EMR Multicoupler and Preselector, 300-512 MHz, 4 Channels, 3-10 MHz, N Females.

  • 089c5d18e8541bf95c4152886f6c1c3c
1 1

Out of stock

Modelo: 25104-0/P5

Proveedor: EMR CORPORATION

Código SAT: 32121800

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

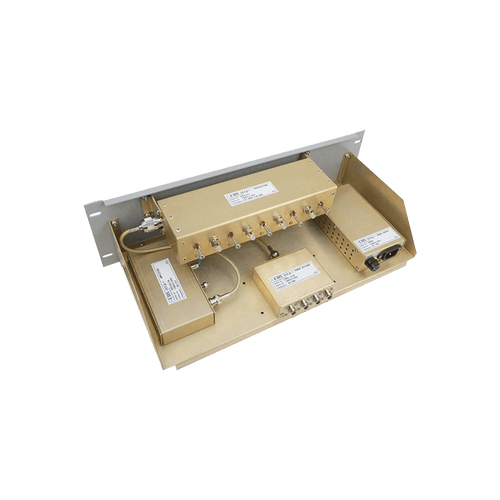

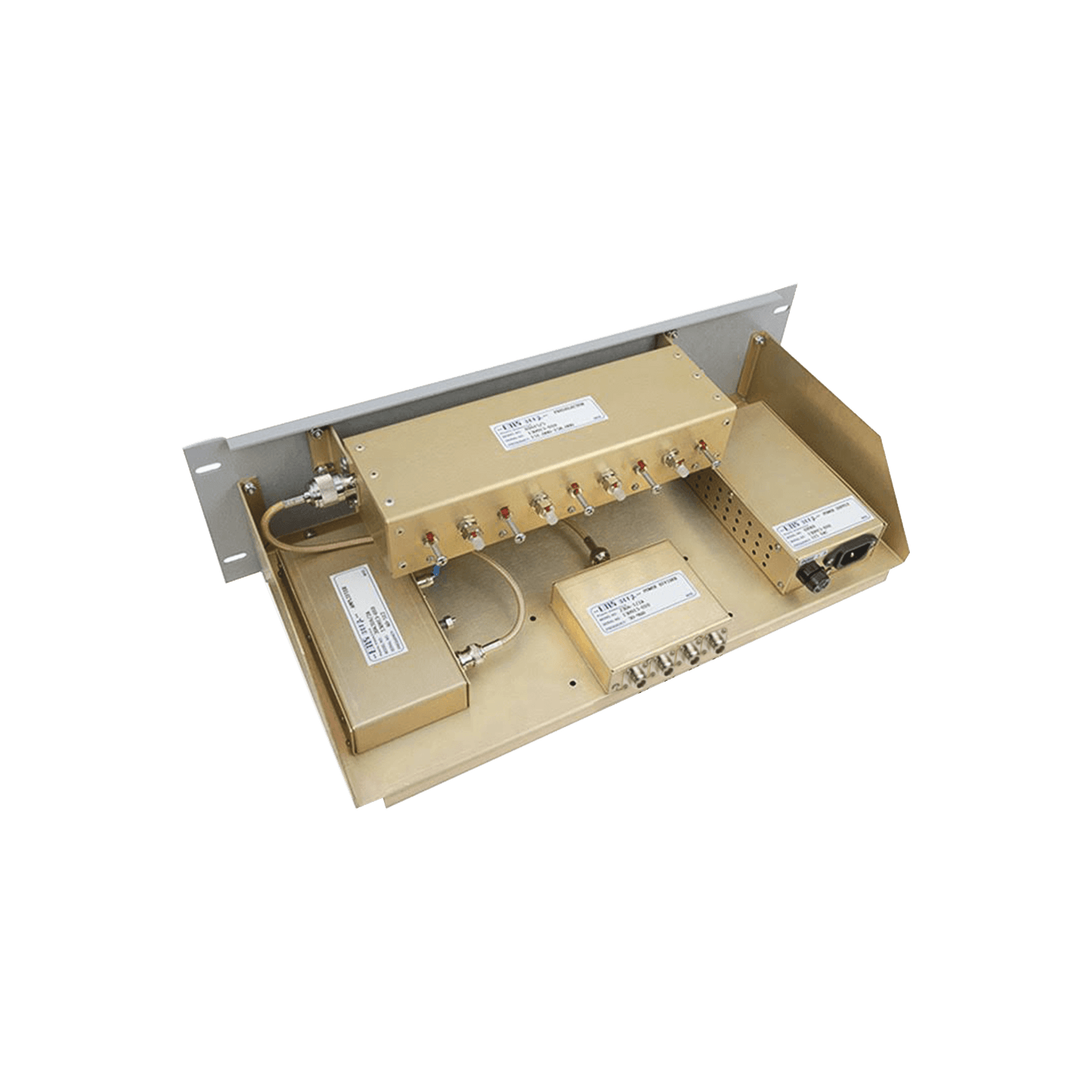

Multicoupler with Preselector 300-512 MHz, for 19 in. Rack.

  • Frequency Range: 300-512 MHz.
  • Number of Channels: 3-4.
  • Bandwidth: 3-10 MHz.
  • Number of Resonators: 5.
  • Rx-Rx isolation: +23 dB.
  • System Voltage: 115 Vac.
  • Amplifier Gain: +20 dB.
  • Amplifier Type: E-pHEMPT.
  • Amplifier Noise Figure: 3.0 dB.
  • 3rd Order Amplifier IP: +42 dBm.
  • Compression at 1 dB of the Amplifier: +21 dBm.
  • Amplifier Bias Voltage: 13.6 Vdc.
  • Amplifier Consumption Current: 200 mA.
  • System NF (Typical): 5 dB.
  • Nominal Impedance: 50 Ohm.
  • VSWR max. @ Resonance: 1.25:1
  • Temperature Range: -30ºC to +60ºC.
  • Dimensions (Height x Width x Depth): 134 x 483 x 254 mm.
  • Connectors (Input/Output): N/N Females.
  • Packaging Weight: 5.4 kg.

* Ask for Delivery Time.
