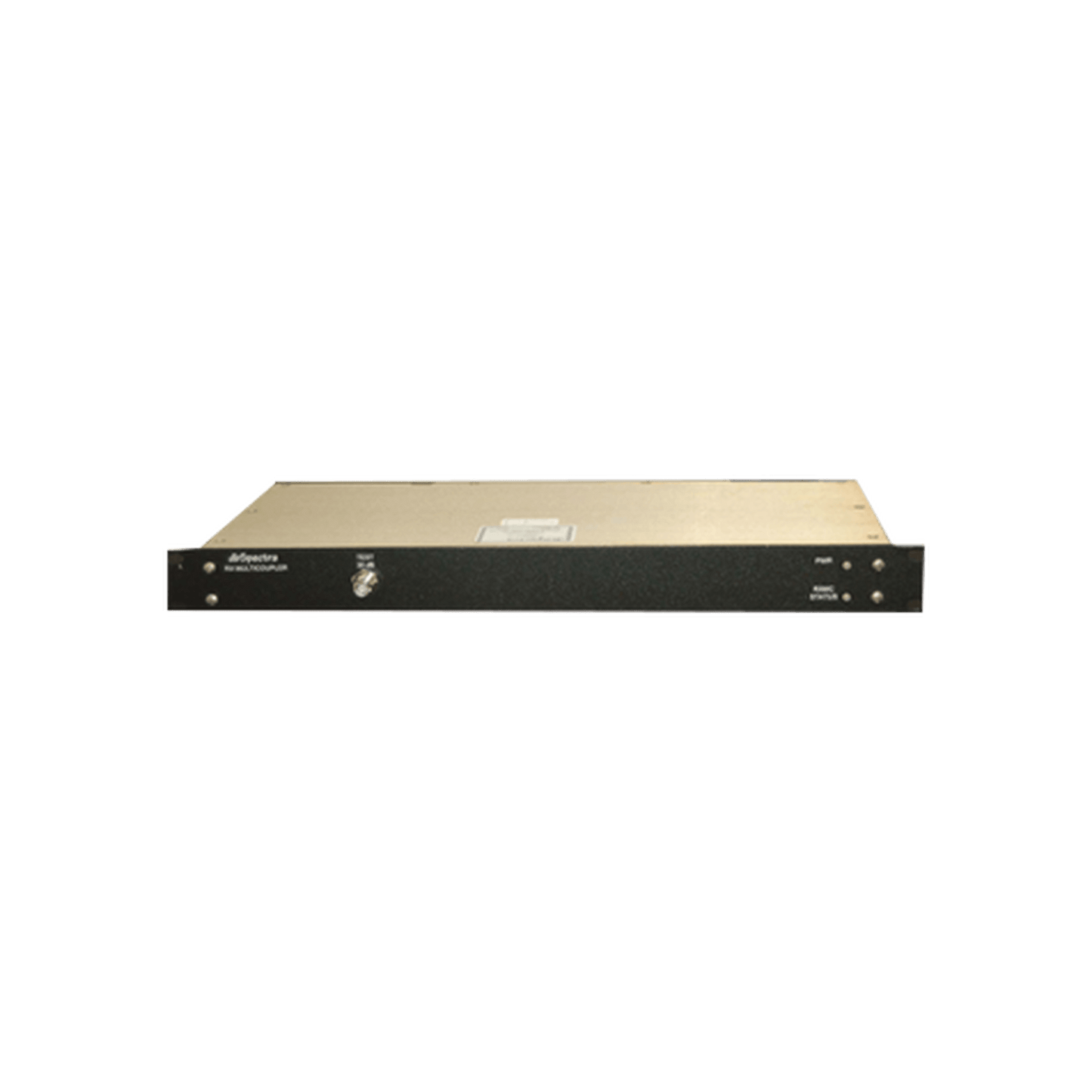

Multicoupler for Reception 370-512 MHz, 16 Channels, 1 UR, 90-240 Vca/ 12 Vcd, N/BNC Females.

  • 88138b209278a91fa83eb22ce9b4192b
1 1
  • Auto-Terminated Splitter: Unused ports on the splitter outputs do not require "Terminal Loading".

Out of stock

Modelo: DS-RMC06-16-BAN

Proveedor: DB SPECTRA

Código SAT: 32121800

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


Multicoupler Reception 370-512 MHz for 16 Channels.

Features and Benefits:

  • Post Filter Ports: Allow a secondary filter for greater selectivity after the LNA to minimize the impact on the noise figure.
  • 30 dB Test Port: Enables the receiver's static and effective sensitivity test without disconnecting the RX path.
  • Adjustable Electronic Attenuator: Adjustable 1-15 dB attenuator (1 dB steps) to optimize system reserve gain.
  • LNA Alarm monitor (optional): Provides dry contact for external alarms and local LED indicators.
  • LNA design: Quadrature coupled LNA for optimal noise figure and excellent third-order interception.
  • Auto-Terminated Splitter: Unused ports on splitter outputs do not require "Terminal Load".
  • Battery Backup: AC models support a secondary 12 Vcc power input.

Specifications:

  • Frequency range: 370-512 MHz.
  • Number of channels: 16.
  • LNA Type: Coupling by Quadrature.
  • LNA Noise Figure: 2 & comma;2 dB (370-470 MHz); 2 & comma;5 dB (470-512 MHz).
  • LNA gain (0 dB of Aten.): 9.0 / 9.5 dB.
  • LNA OIP3:> 40 dBm.
  • Isolation from RX to RX: 20 dB (min).
  • VSWR (Input/Output): 1.5:1 (at 50 Ohms).
  • Power supply requirement: 90-240 Vca / 12 Vcc.
  • Attenuator: Adjustable 1-15 dB in 1 dB steps.
  • Test port: 30 dB coupler.
  • Finish: black/gold Alodine.
  • Connectors: Input and Port-Filter; N(H.) / Output and Port-Test; BNC (H).
  • Alarm (optional): Block type connector.
  • Mounting Hardware: 19-inch EIA Rack.
  • Temperature range: -30 °C to 60 °C.
  • Dimensions (High x Width x Background): 44.5 (1RU) x 482.6x260.4mm.

* Ask for Delivery Time.
