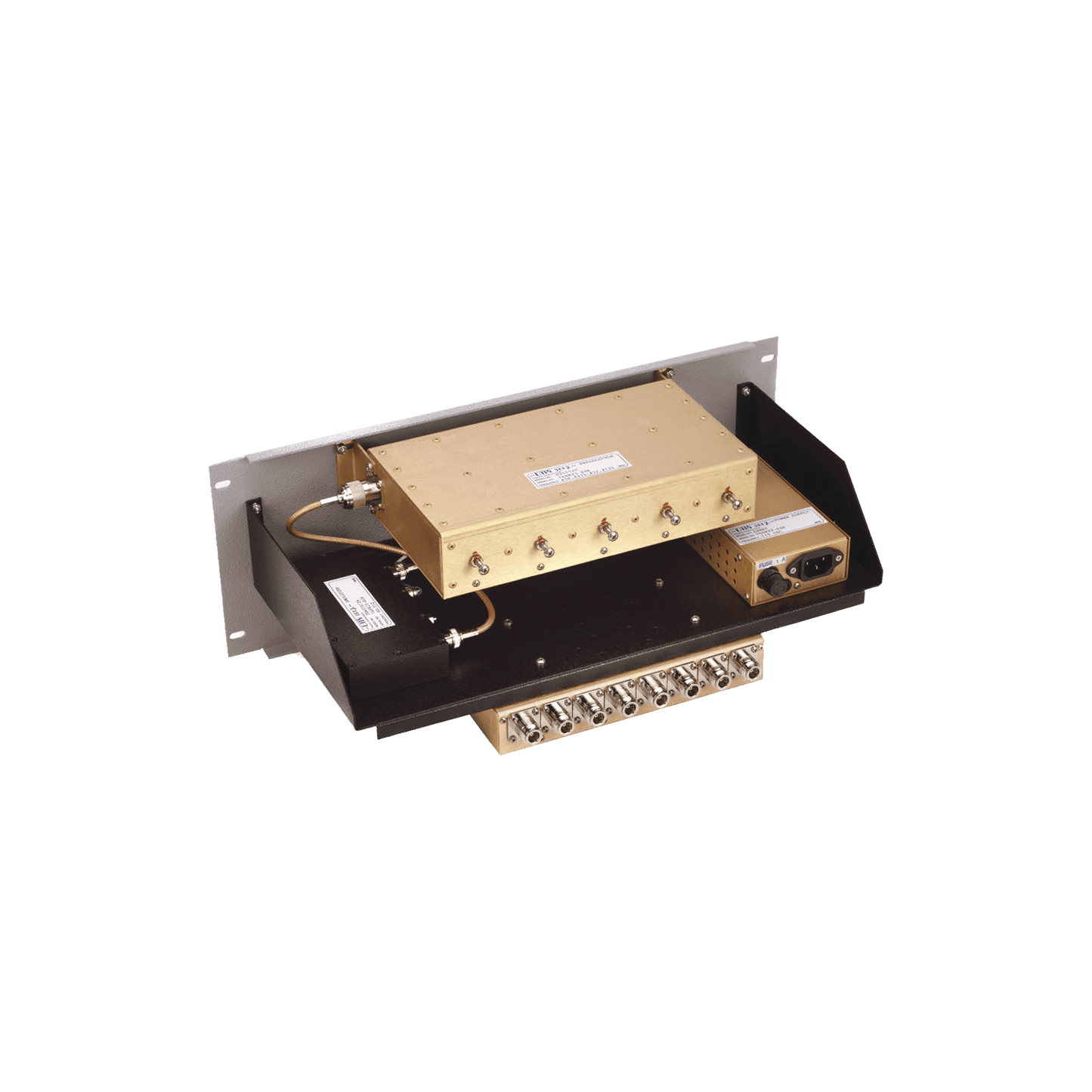

Multicoupler with Preselector 138-225 MHz, 8 Channels, 3-8 MHz Bandwidth, N/N Females

  • 5e37c69a9999e4601faa179af1ddbb0e
1 1

Out of stock

Modelo: 24108-0/P5

Proveedor: EMR CORPORATION

Código SAT: 32121800

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


Multicoupler with Preselector 138-225 MHz / 19 in Rack, N/N Females.

  • Frequency Range: 138-225 MHz.
  • Number of Channels: 5-8.
  • Bandwidth: 3-8 MHz.
  • Number of Resonators: 5.
  • Rx-Rx isolation: +20 dB.
  • System Voltage: 115 Vac.
  • Amplifier Gain: +20 dB.
  • Amplifier Type: E-pHEMPT.
  • Amplifier Noise Figure: 3.0 dB.
  • 3rd Order Amplifier IP: +42 dBm.
  • Compression at 1 dB of the Amplifier: +21 dBm.
  • Amplifier Bias Voltage: 13.6 Vdc.
  • Amplifier Consumption Current: 200 mA.
  • System NF (Typical): 5.0 dB.
  • Nominal Impedance: 50 Ohm.
  • VSWR max. @ Resonance: 1.25:1
  • Temperature Range: -30ºC to +60ºC.
  • Dimensions (Height x Width x Depth): 134 x 483 x 254 mm.
  • Connectors: Input/Output: N/N Females.
  • Packaging Weight: 5.5 Kg.

* Ask for Delivery Time.
