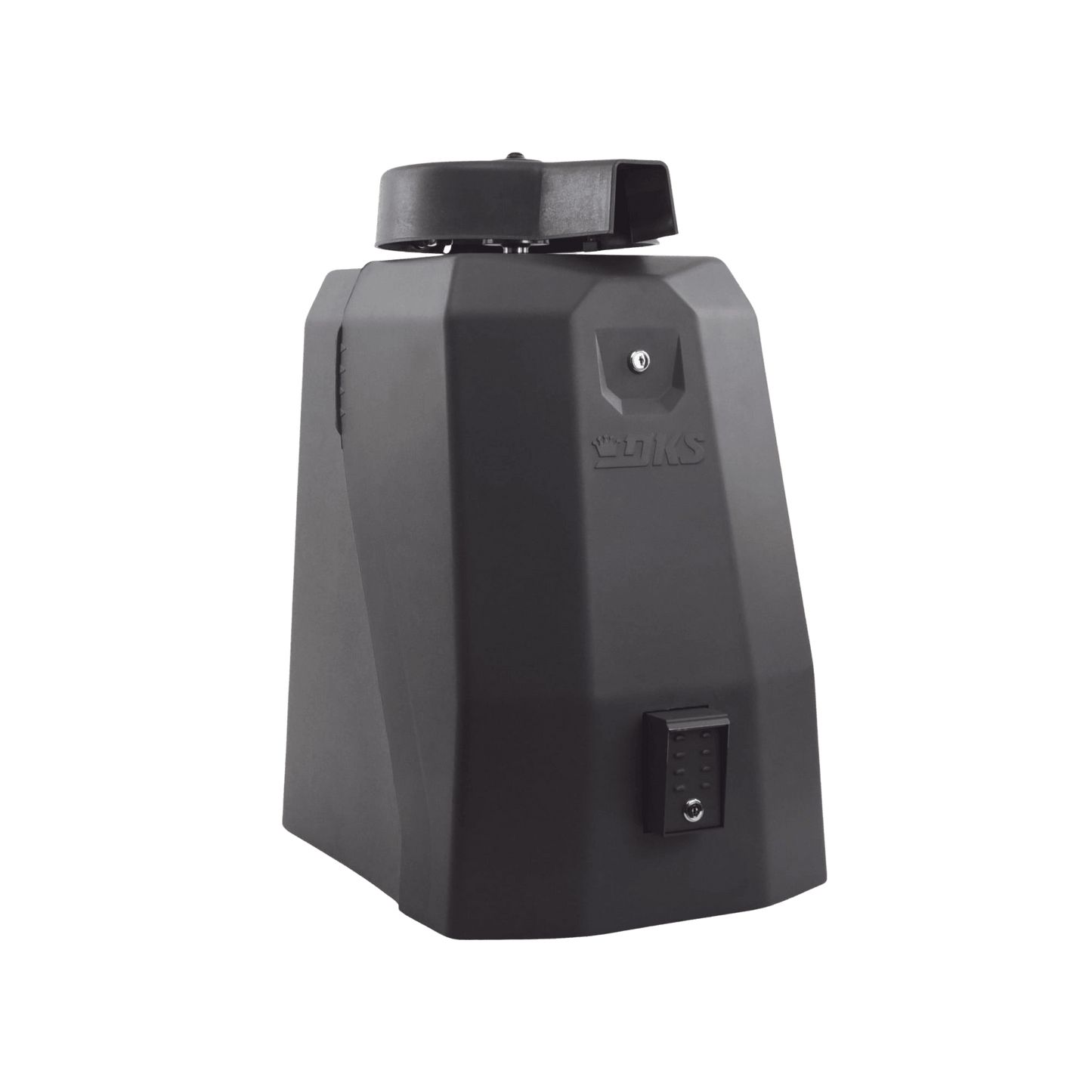

Motor for swing gate / 4.8 meters / 360 kg / Continuous Use / Solar energy / Backup battery

  • 5500e00c6af268607ce2a68218ac7159
  • a55050aecf4659e0f800c08d8233f53d
  • a100fc8a11f72e8e927329ab276e25ea
  • 6dd842d941ff4d24ad248e1fad711c0a
  • fbcfa7507be5ef30273b0f5116495734
  • a9751e03f13b297b561a214b58b74579
  • 74881b8da1988619aa71de9de01a32dc
1 7

16 in stock

Modelo: 6524-380

Proveedor: DKS DOORKING

Código SAT: 46171619

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
Main features:
  • Continuous use equipment
  • 5 years warranty
  • Heavy-duty transmission for durability
Physical and Electrical Characteristics:
  • Power supply 115 Vac
  • Power consumption 1.8 A
  • Motor power 0.5 Hp
Featured Features:

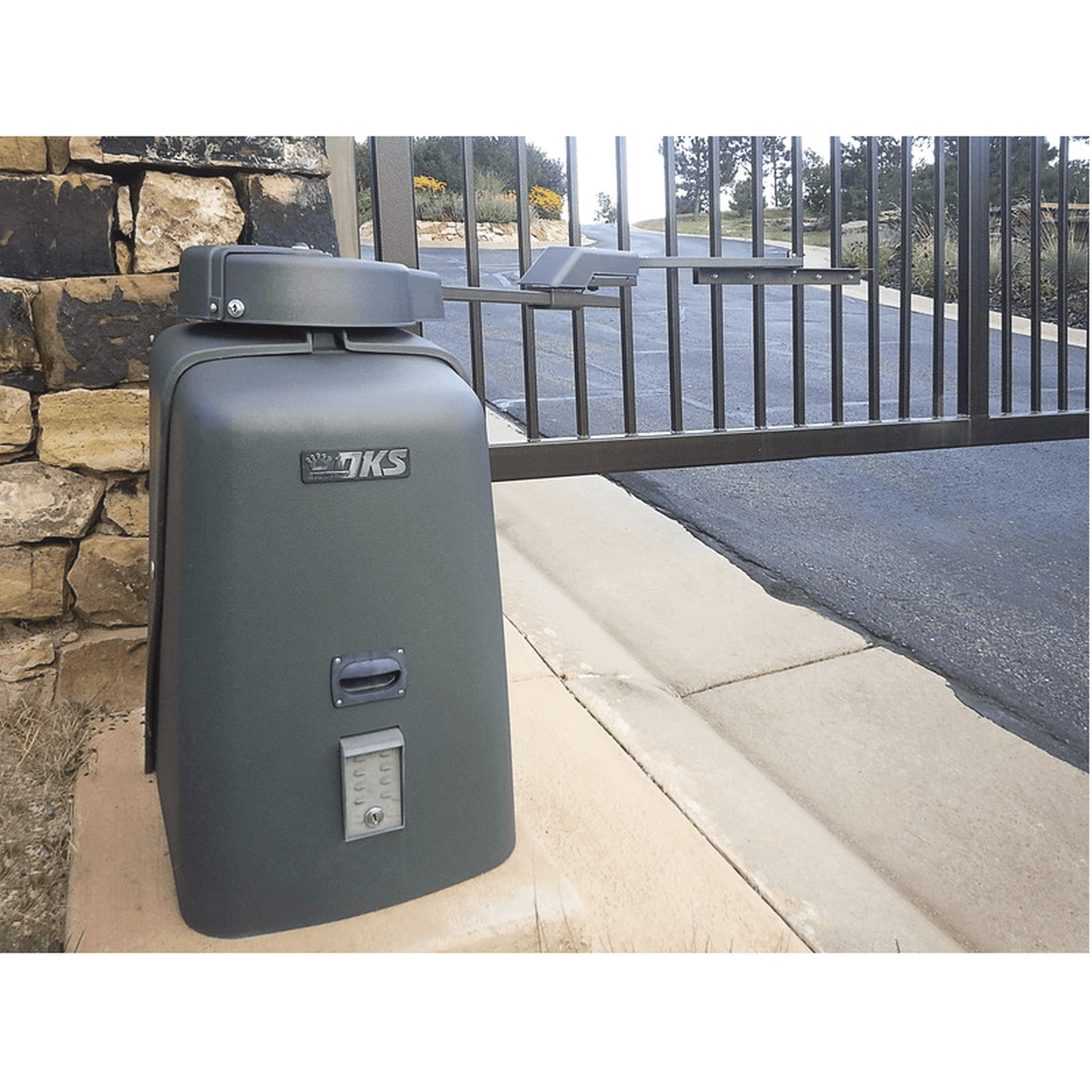

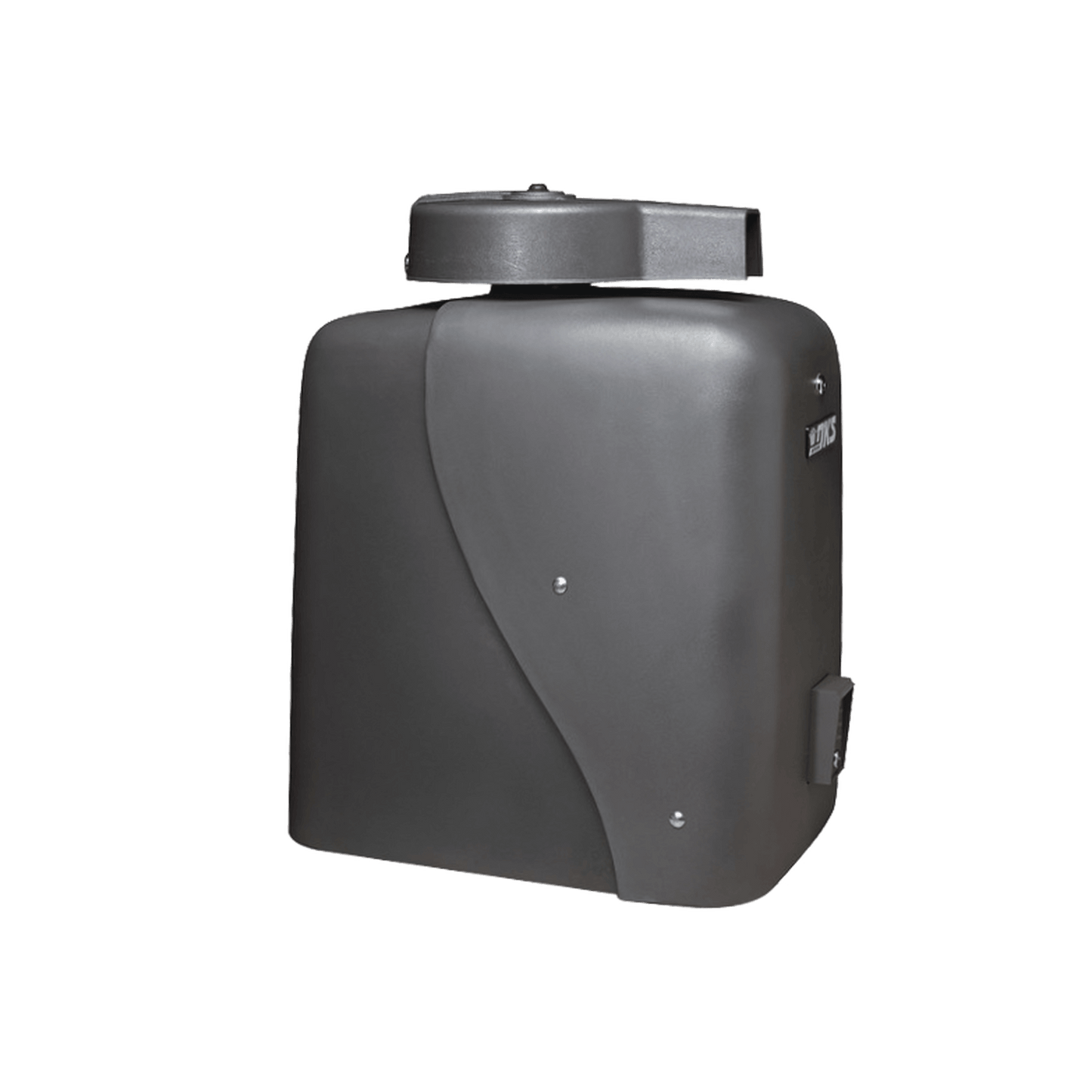

The 6524 series of DKS folding operators is perfect for those situations where power backup is critical, since they will continue to operate even with a temporary loss of general power.

Characteristics

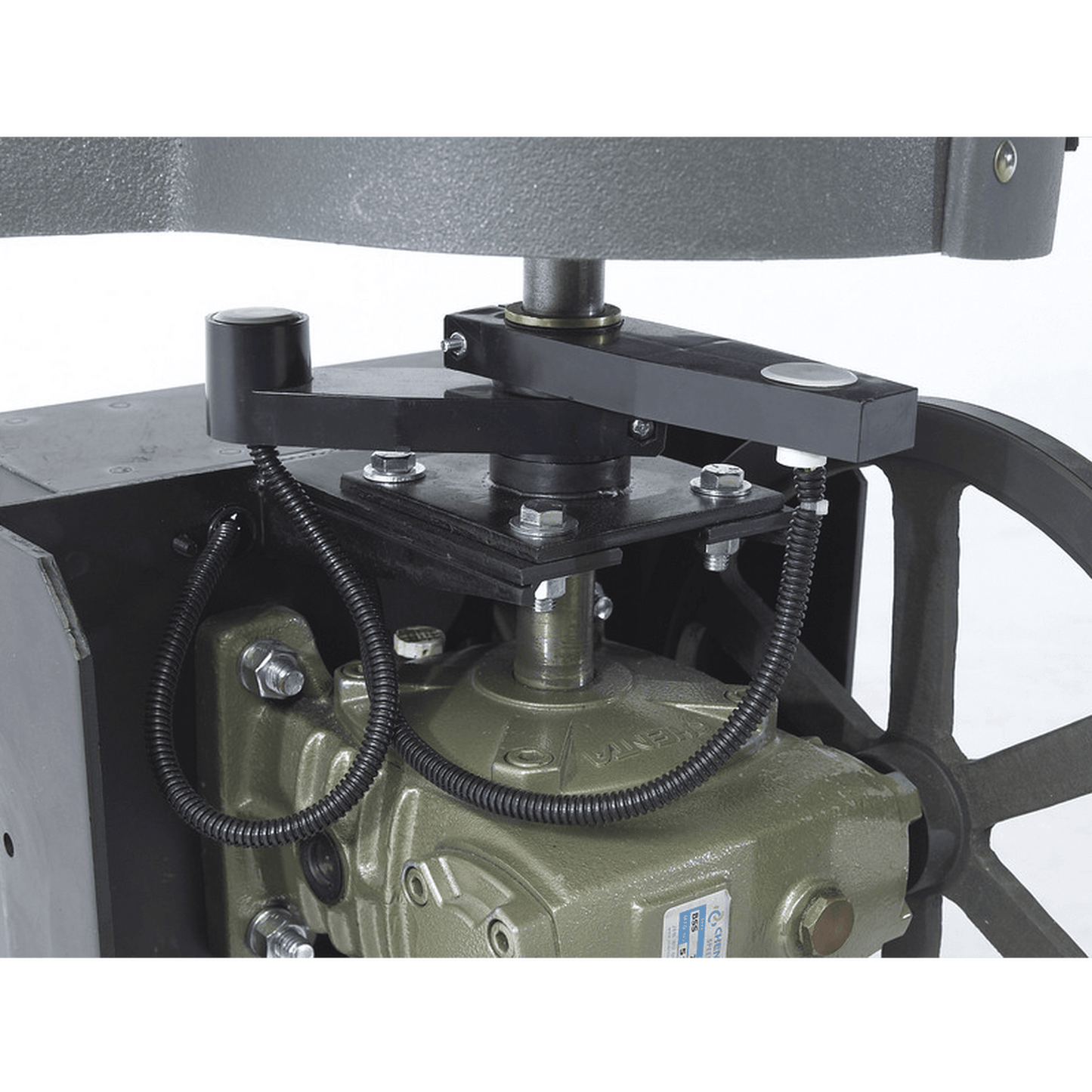

  • Heavy Duty Transmission

  • Steel frame that provides stability and smooth operation.

  • Includes 7.2 Ah battery. (Optional upon request, 18 Ah)

  • Easily adjustable limit switches

  • Automatic closing timer configurable from 1 to 30 seconds

  • Configurable function for operation on double doors

  • Selectable magnetic loop functions (Shadow/Reverse)

  • Individual switch to turn off when working with direct current (DC)

  • Battery protection circuit

  • Integrated ports for DKS mass sensors

  • Compatible with "Gate Tracker", allows the operator, report engine status data to DKS 1833,1835,1837,1838 access systems

Consumption in alternating current:

  • 115 Vac
  • Includes individual switch
  • Voltage output for magnetic lock

Direct current consumption:

  • 24vdc
  • 0.0 Amp SBPD (patent pending), The operator is optimized to consume minimum energy when at rest, maximizing battery life.

Specifications:

  • Maximum door length: 4.8 meters
  • Maximum weight of the door: 360 Kgs (Assuming that the door is correctly leveled, with good quality hinges, movement and in good condition)
  • Consumption 115 Vac, 1.8 A.(AC Input)
  • Class I Applications, II, III and IV
  • UL certified

It is important to take into account the resistance that the wind can generate in gates without ventilation slots when operating the motors when opening and closing folding doors. We recommend considering the installation of grilles that allow adequate ventilation to facilitate the correct operation of the devices .
