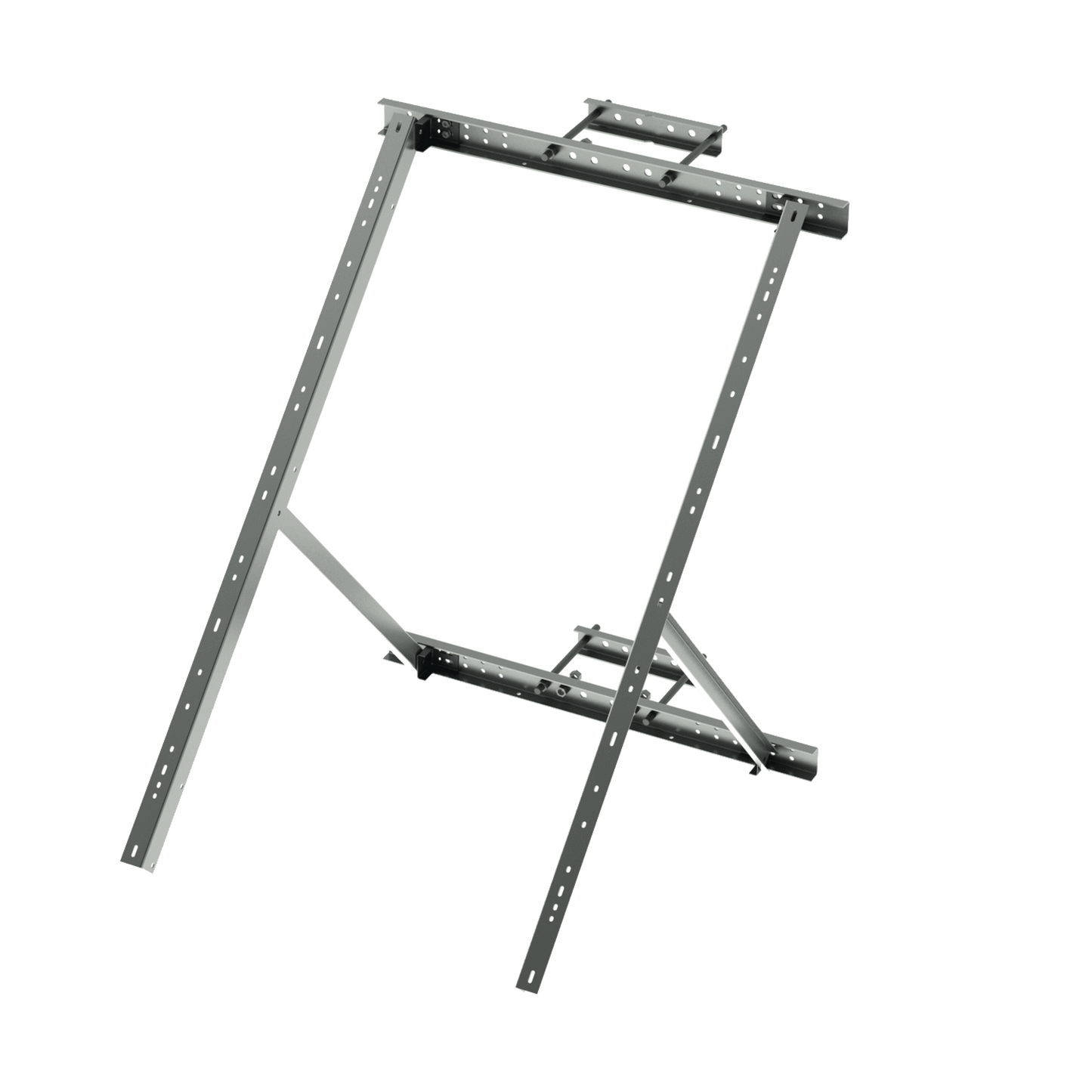

Mounting for Electrolytic Galvanized Pole or Tower Solar Panel (See Compatibility).

Functional Features:

• Robust Design.
• Easy Assembly
• High mechanical resistance
• Includes holding bracket (No strap required)
• High compatibility between solar modules (See compatibility)
• Electrolytic Galvanized finish to delay the generation of rust.
• Weight: 15kg.
• Recommended only for tilt angles of 25° to 50°.

Installation Compatibility:

	Compatibility In Tower		Compatibility On Pole
Model	1 Cell	2 Cells	1 Cell	2 Cells
PRO-PROSE-5012
PRO- PROSE-8512
PRO- PROSE-12512
PRO- PROSE-15012
PROSE-230W
PRO- PROSE-25024
WK-5012
WK-8512
WK-12512
WK-15012
WK-230W
WK-25024
SW-50
SW-85
SW-150
SW-250			*
EPL5012
EPL8512
EPL12512
EPL15012
EPL26024

Acceptable
Not recommendable

* For the installation of the SW-250 panel, it is necessary to drill additional holes in the panel frame.


** To install a second solar panel, you must purchase a screw kit model SS-PB-KIT .

Installation Recommendations.

• The installation must be carried out by trained personnel (2 People).
• Not recommended for areas with high air currents.
• The installation must not exceed 6 meters in height at the average ground level.
• Mast recommended for installation 6" ced. 40 minimum (8" maximum external diameter).
• Compatible with STZ30 sections: STZ30G, STZ35, STZ35G, STZ45 and STZ45G.
• It is not recommended to install more than one mount on the tower.
• It is the responsibility of the installer to properly foundation the mast or tower to ensure a safe installation.
• Recommended only for tilt angles of 25° to 50°.

The assembly does not include a mast, sections, nor solar modules.

SYSCOM is not responsible for installations carried out outside the manufacturer's recommendations.

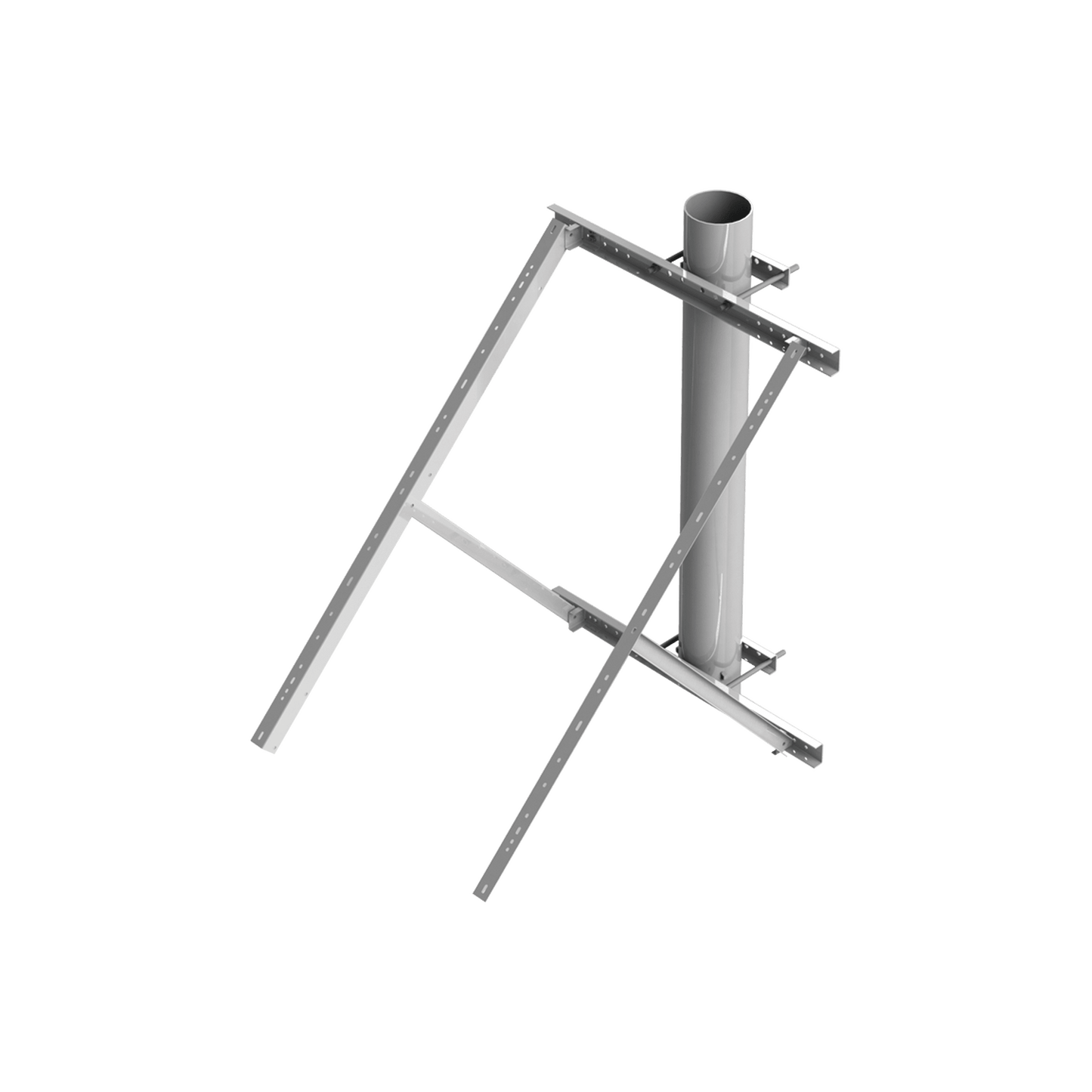

Pole Installation.

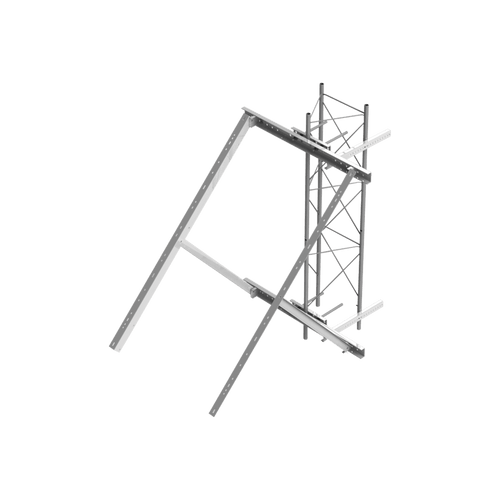

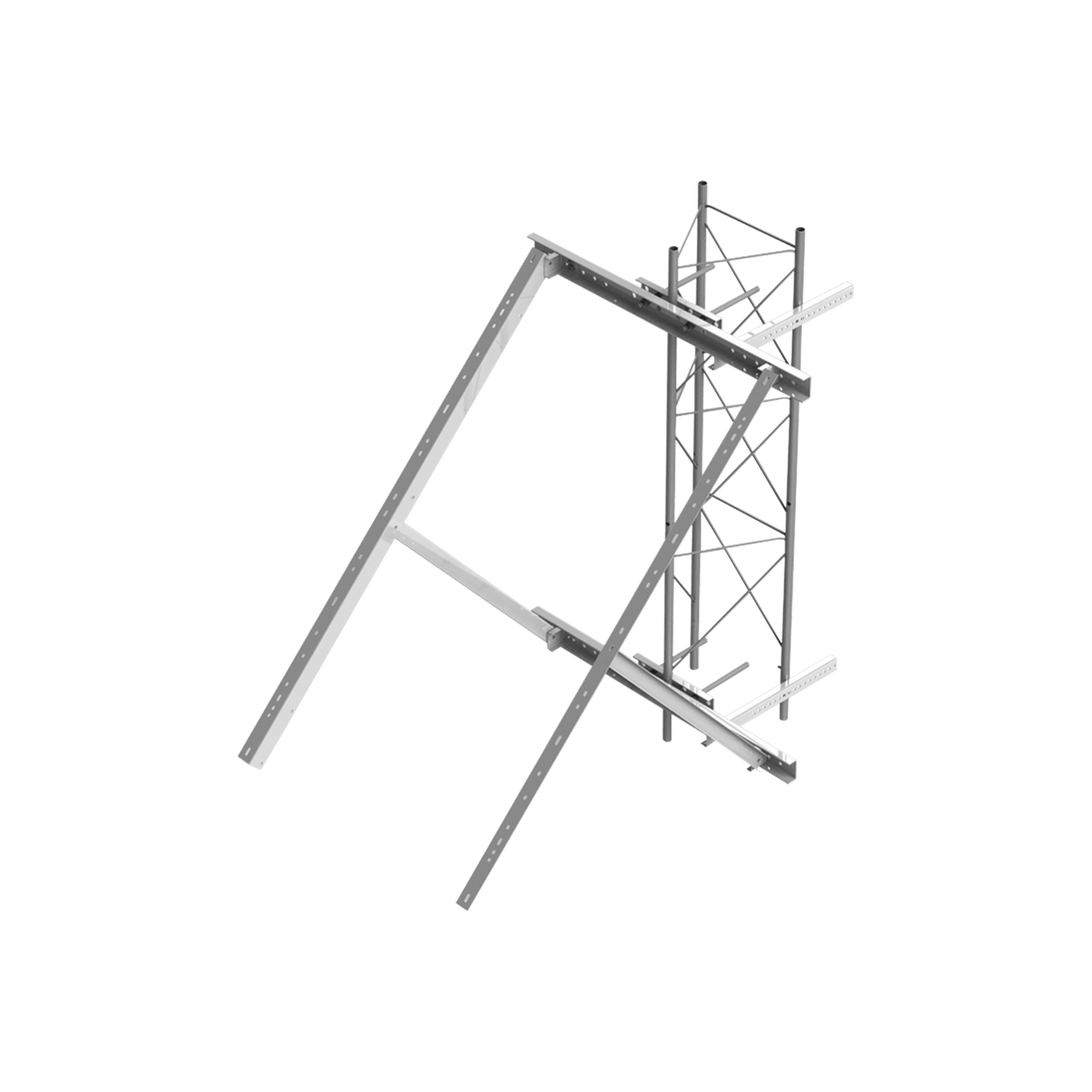

Tower installation.

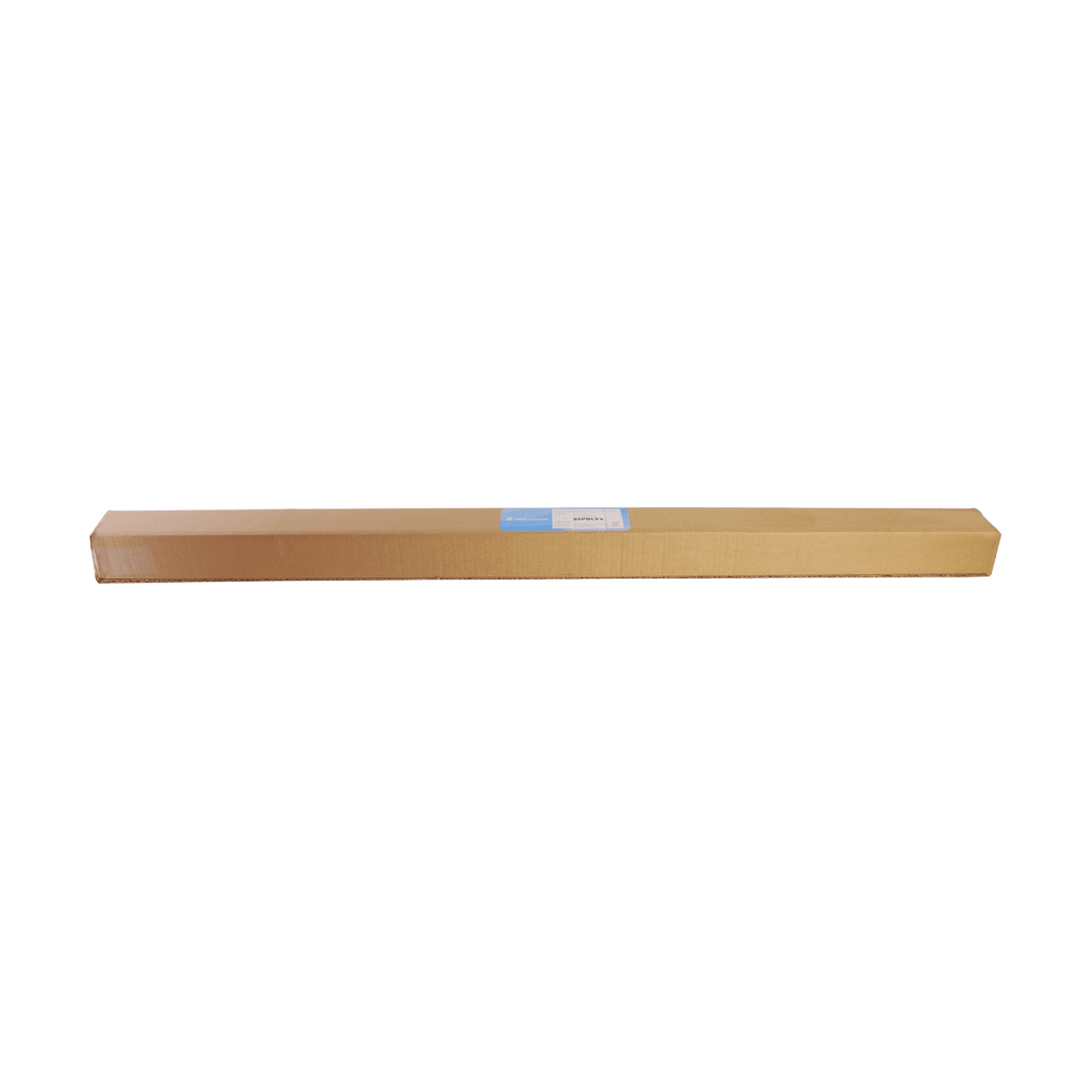

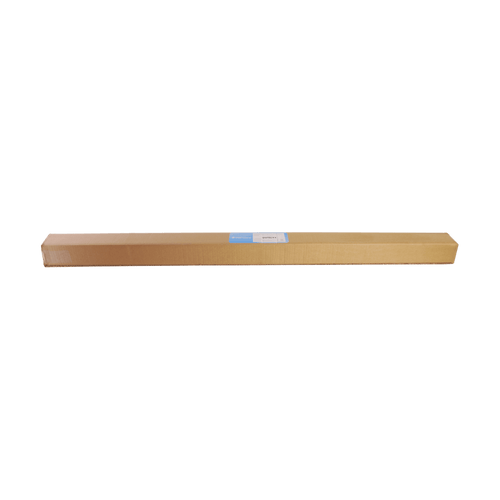

Assembly Packaging.
