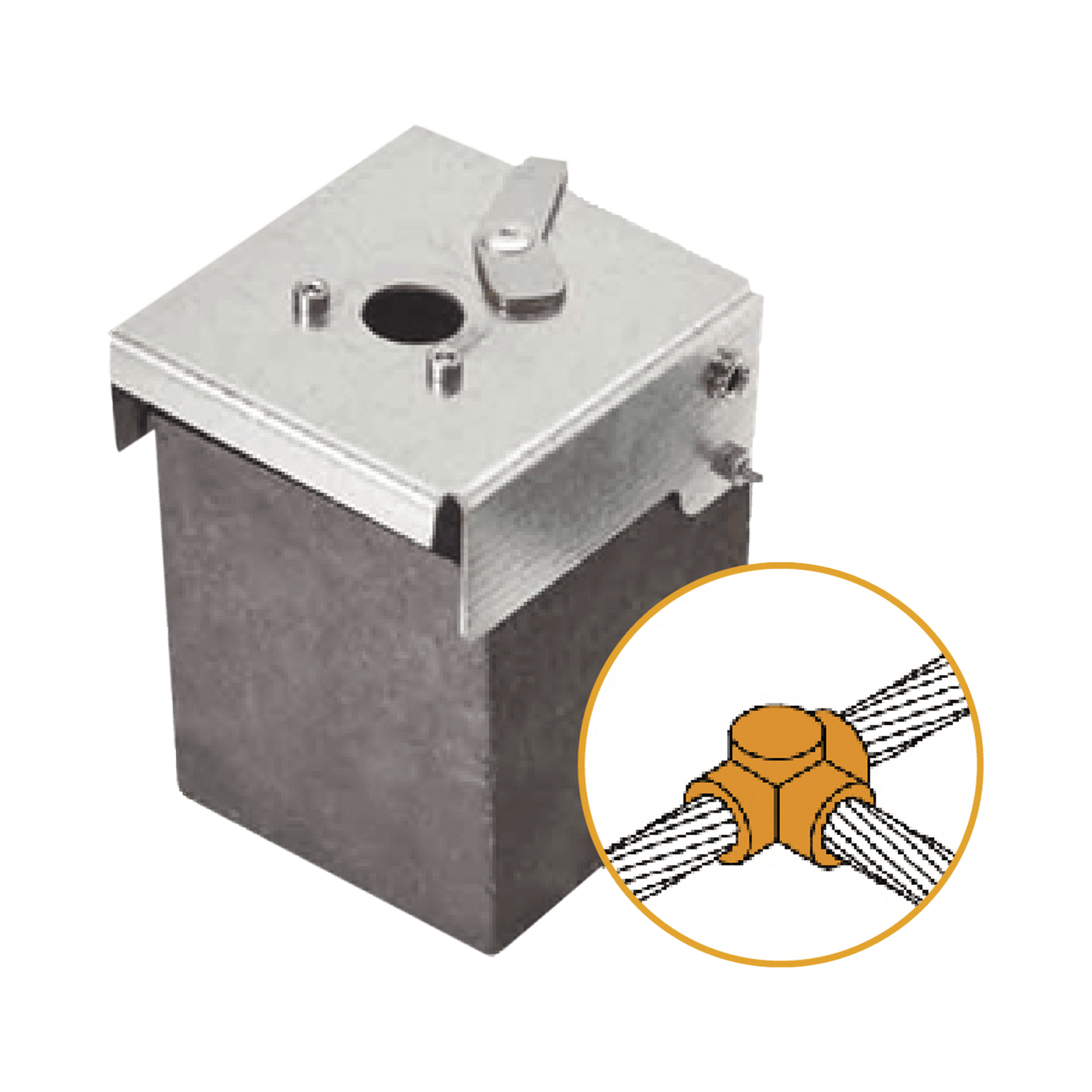

Horizontal graphite mold horizontal T joint of 2/0 AWG cable (through) with 2/0 AWG cable (terminal).

  • 50dab6d419f6685b5d06a879e263f877
1 1

26 in stock

Modelo: AT-W20/W20/TH

Proveedor: APLICACIONES TECNOLOGICAS

Código SAT: 23271800

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Apliweld® exothermic welding is a process that achieves the molecular union of two or more metallic conductors through a chemical reaction. This molecular bond improves the mechanical properties, electrical and corrosion related with respect to any mechanical joint. Apliweld® exothermic welding is the best way to make permanent connections, reliable and high conductivity in any installation that requires grounding.

  • Type of tablet you need: Exothermic Welding Compound Tablets ( AT-020N ).
  • Number of tablets: 2.
  • Necessary accessories: Clamp for specific molds S models ( AT-049N ).
  • Union type: Horizontal T
  • Wire 1: 2/0 AWG gauge (70 mm 2 ).
  • Wire 2: Gauge 2/0 AWG (70 mm 2 ).

Technical characteristics:

  • Material: Graphite with electrogalvanized steel cap
  • Approximate weight: 1400 grams
  • Dimensions (mm) :80 x 80 x 110
  • Duration (No. of welds): 70
  • Regulations: UNE 21186, NF C 17-102, IEC 62305

For electronic ignition:

  • Electronic starter ( AT-010N )
  • Electronic ignition equipment ( AT-100N )

For powder ignition:

  • Powdered initiators ( AT-012N )
  • Ignition Spark Plug (AT-060N)
