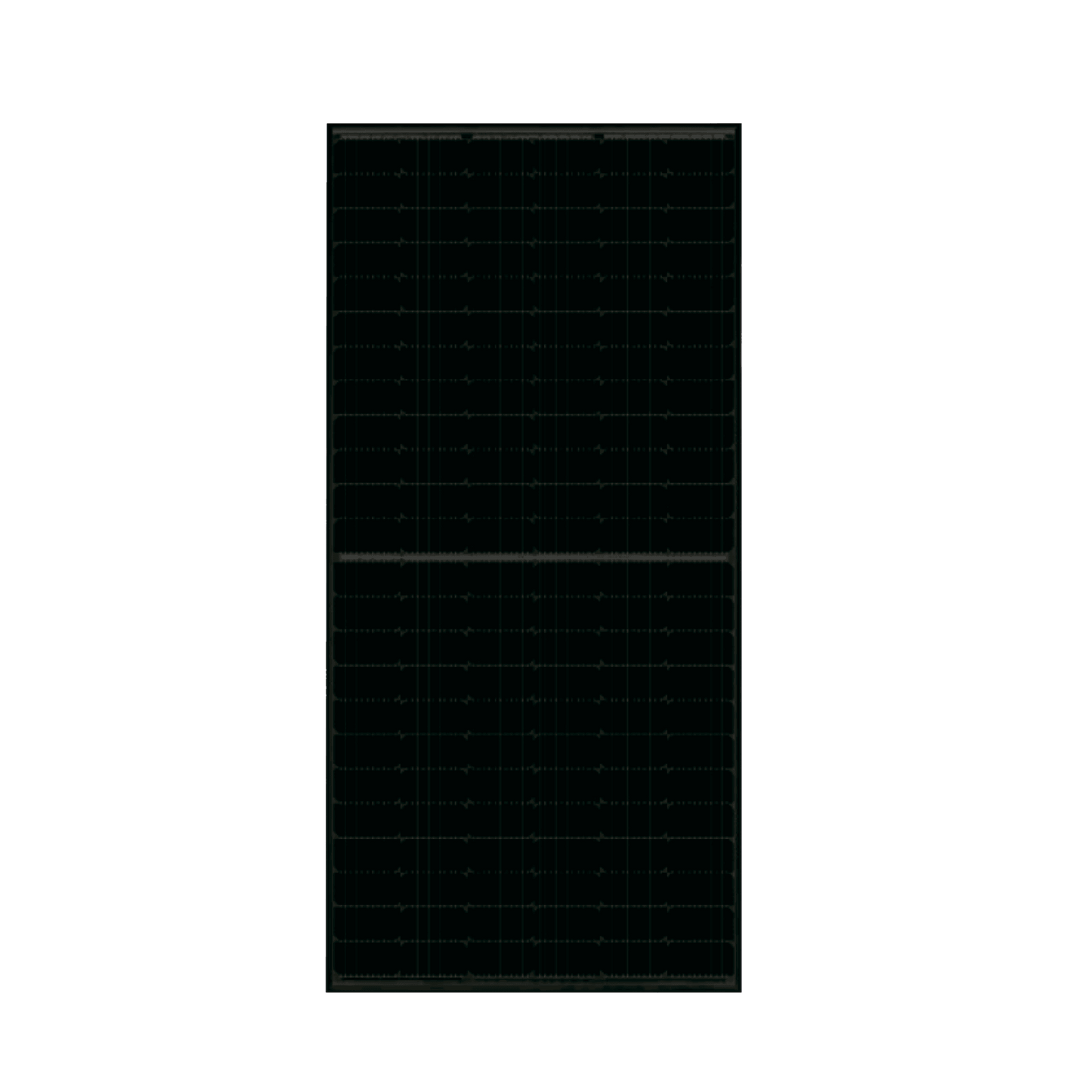

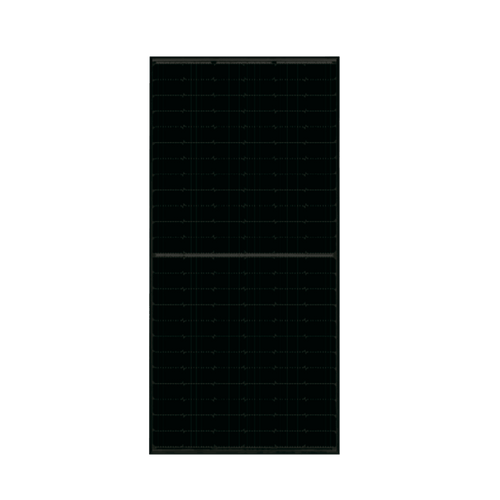

FULL BLACK Solar Module, ELITE PLUS, 540W, 49.6 Vcc, Monocrystalline, 144 Cells, PERC

  • 6fb8fa2a01af32a4afdd6dbe7927e0f7
1 1
  • -Mayor Eficiencia gracias a la esctructura de celda cortada (modulos de baja resistencia)
  • -El diseño avanzado en la superficie del videio garantiza un exelente rendimiento en entornos de poca luz.
  • -Puede resistir carga de nieve hasta 5400 Pa y de carga del viento hasta 2400 Pa
  • TIER 1

Out of stock

Modelo: ETM772BH540BB

Proveedor: ETSOLAR

Código SAT: 26111607

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

FULL BLACK SOLAR MODULE ET-M772BHBB.



ET-SOLAR Solar modules They are found in the list of TIER1 modules, with quality specifications that exceed market demand.



-Greater Efficiency thanks to the cut cell structure (low resistance modules)

-Advanced design on the video surface ensures excellent performance in low light environments.

-Can resist snow load up to 5400 Pa and wind load up to 2400 Pa

-High resistance to salt fog and ammonia.

ELECTRICAL INFORMATION IN STC*

Maximum power (Pmax)

540W

Power tolerance

0~5W

Module efficiency

20.9%

Maximum voltage capacity (Vmp)

41.64V

Maximum current capacity (Imp)

12.97A

Open circuit voltage (Voc)

49.6V

Short circuit current (Isc)

13.86A

Dimensions 2274x1134x35 mm


Applications:


• For network interconnection

• Isolated systems with MPPT controllers

Warranty


12 year warranty against manufacturing defects
and 25 years of useful life (power output).

Recommendations and warranty comments.

Any claim for this product must be made within the warranty period with the invoice for the product.

The equipment serial number must be visible, as does the back label.

If the module's MC-4 connectors are cut, the module loses its warranty instantly.

If you drill the frame of the module you lose your warranty instantly.

Do not install when any object at any point of the day generates shadow, It is considered a poor installation and may be a reason for loss of warranty.

Do not mix modules of different powers in the same controller or inverter! It is considered a poor installation and may be a reason for loss of warranty.

It is recommended that you use the EP-MC4 crimping pliers when crimping the PROSECA-01 connectors to the cable you will use to connect your module to the inverter or controller.

***Not suitable for use in BDM600 Mircoinverters***
