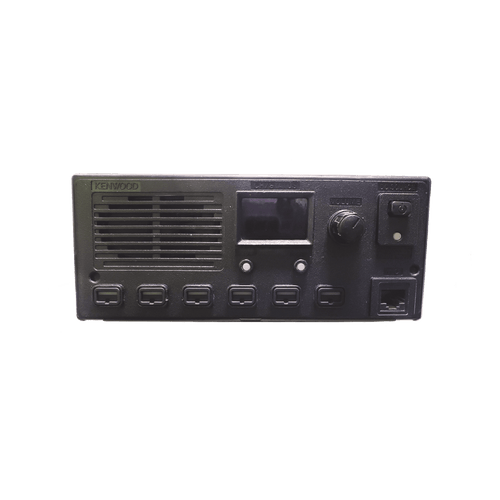

UHF Repeater Module 450-480 MHz, Analog, 40 W, WITHOUT CABINET

Repeater module only

Does not include mounting for rack installation.

-100% duty cycle, 25W
-Integrated 16-tone community panel.
-CW identification.
-DB-25 connector with logical interface for auxiliary inputs and outputs for extreme control.
-Input voltage: 13.8 Vdc.
-Input for battery backup which is activated automatically (To keep the battery charged, enable the charge jumper).
-High stability oscillators (TCXO).
-19" rack mounting
-Compatible for conventional systems and open trunks.

NEW FEATURES IN VERSION 2:
-Battery backup alert and operation tone.
-Remote function and auxiliary output control over air by DTMF.
-On/Off control.
-Courtesy tone (Only in repeater operation).
-BNC Female connector for RX and N-Female connector for TX.
-Integrated antenna switching capability for base operation.

IN BASE STATION MODE:
-16 channels.
-Simplex or full duplex operation.
-Priority scan.
-2-digit display: which indicates channel number and operating status.
-Port for voice encryption.
-Inputs for remote control.

For optimal work of this Repeater, adjustment with a service monitor is required, consult the Department. of Engineering.
