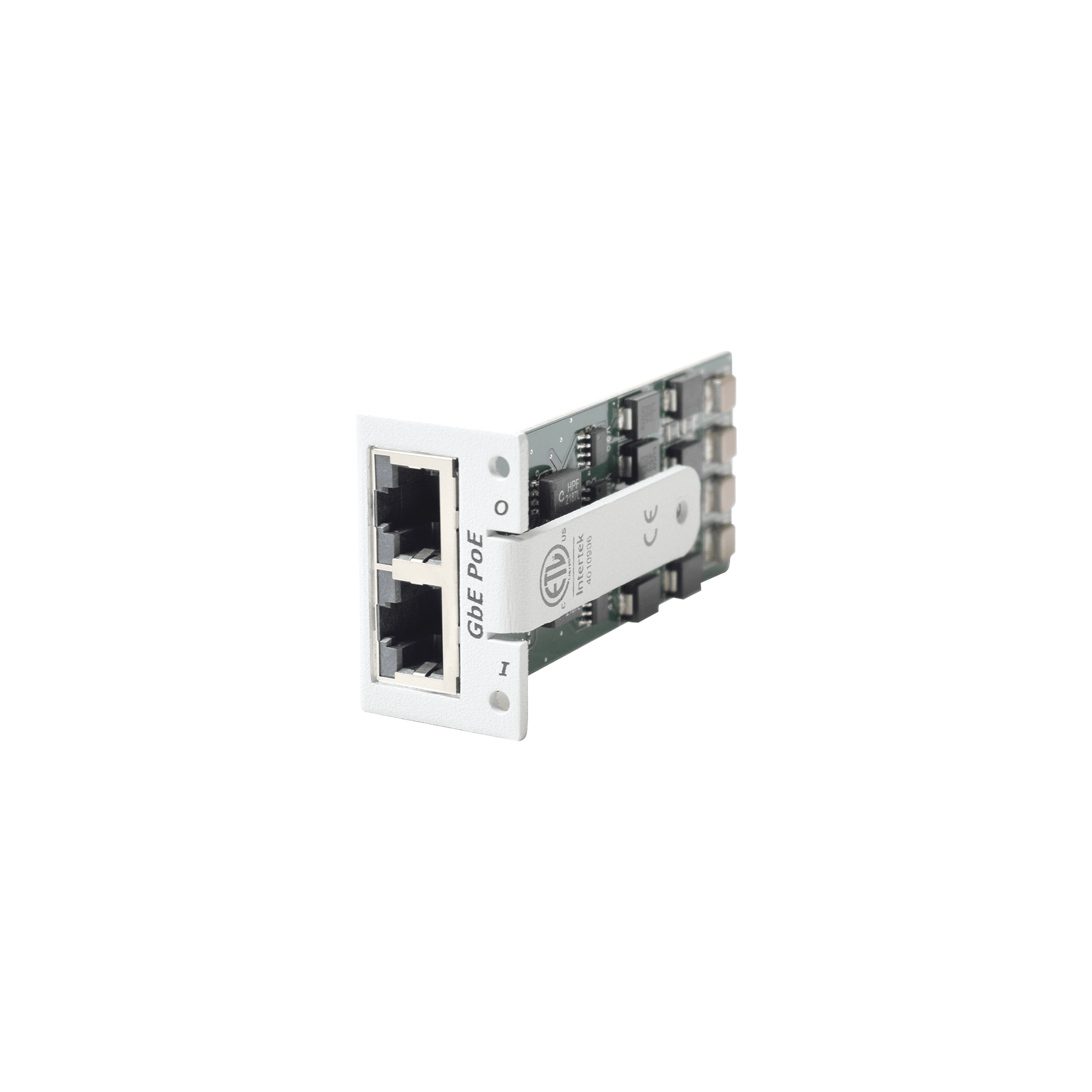

Individual Ethernet PoE Protector Module 10/100/1000 Mbps For TCPXH Chassis For 19\" Rack

Protect your IP network equipment with Transtector protectors. They use the highest technology in protection systems developed with silicon avalanche diodes (SASD).

Unlike other protector manufacturers that use metal oxide varistors (MOV) that degrade over time by opposing transients or overvoltages that damage your electronic equipment. Transtector uses silicon avalanche diode (SASD) technology that does not degrade when opposed to surges, They have the fastest response and the highest performance in their protectors; thus maintaining the best protection and minimizing the costs of repair and replacement of electronic equipment.

-Technology: Silicon Avalanche Diode (SASD).
-Does not degrade.
-Protocol: Ethernet.
-Data speed: 10/100/1000 Mbps.
-Maximum operating voltage: 11 Vdc.
-Protected Pins: (1,2) and (3,6).
-Grounded Pins: (4,5) and (7,8).
-Low Capacitance: 3 pF.
-Connector: RJ45.
-TCPEX8P cabinet mounting type.
-Temperature: -40° to 75° C.

Replaceable protection module.
