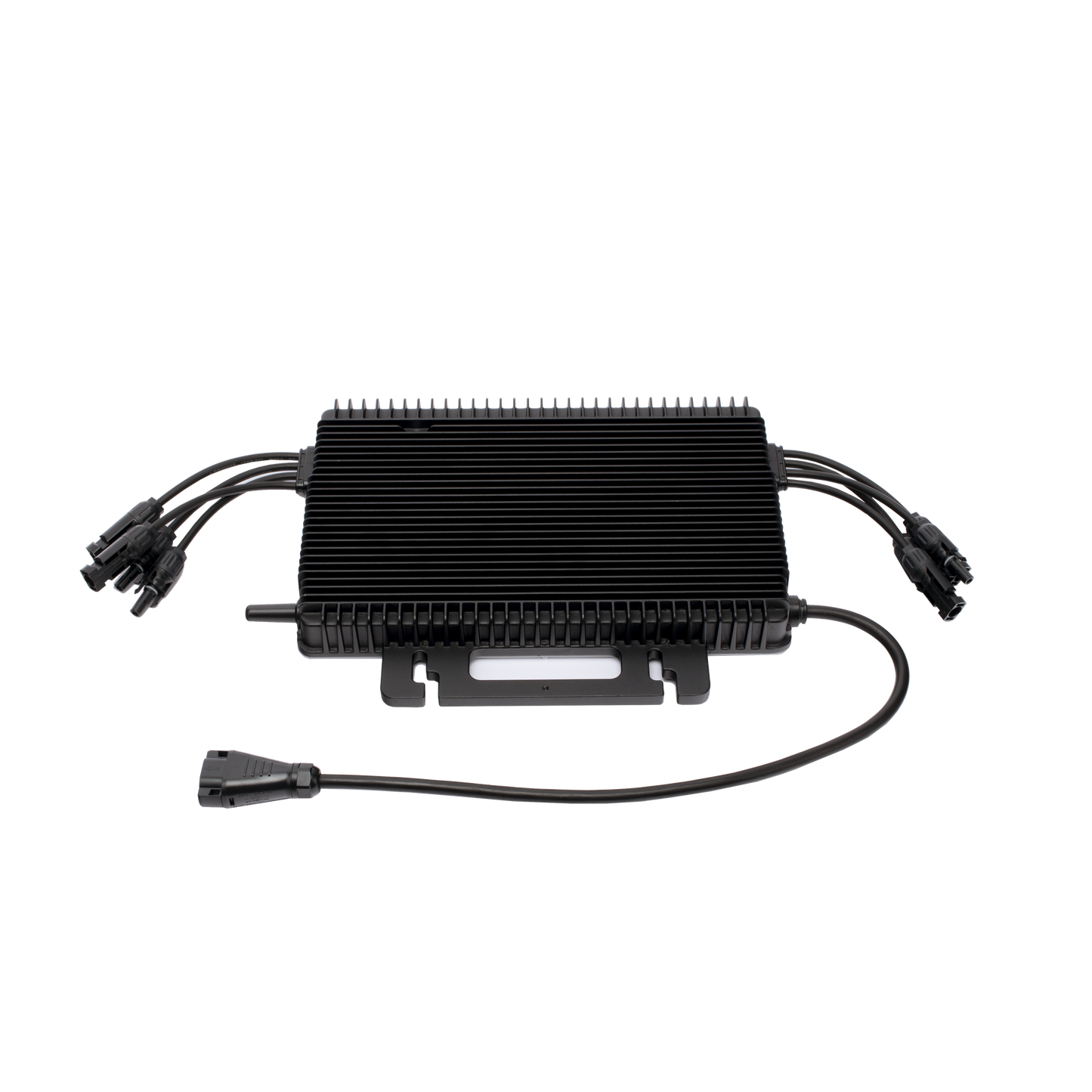

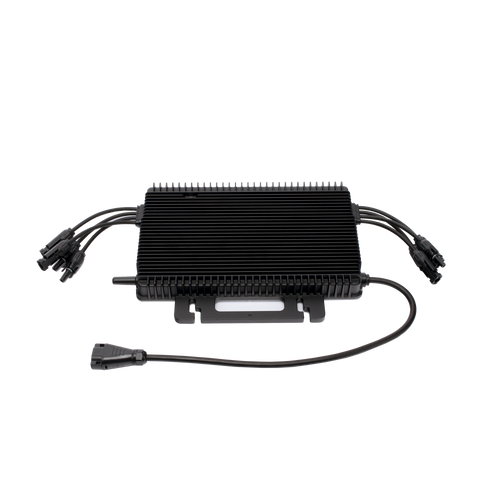

2 Kw 220 Vca Microinverter for Power Network Interconnect IP67 Connection for Trunk Cable for 4 Modules Up to 670 W

  • d5dcb2211ad5668e35fd46d304746ff1
  • d5dcb2211ad5668e35fd46d304746ff1
1 2
  • Quick and professional installation thanks to its connectors
  • 12 Year Warranty Against Manufacturing Defects
  • Supports 4 panels of up to 670W

404 in stock

Modelo: HMS20004TA

Proveedor: HOYMILES

Código SAT: 39121006

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Monitoring and administration via app or PC through the DTUPROS

IP67 Ideal for installing outdoors under the same assembly of the modules.

Monitoring platform through DTUPROS with daily generation graphs.

Does not include the DTU for DTUPROS monitoring

Specifications

DATA

Direct Current (DC) input data

Maximum Photovoltaic Power in Watts

4 x 670 W

Maximum input voltage (Voc).

60 Vcc

Maximum direct current current

4 x 16 A

Alternating Current (AC) Output Parameters

Maximum output power

2000 W

Rated AC output voltage

220 Vca

Maximum AC current

8.33 A

General data

Maximum efficiency

99.8 %

Nominal frequency/ranges

55 - 65 Hz

Dimensions

331 x 218 x 34.6 mm

Weight

4.7 Kg

Number of units per branch

3 Microinversores

Certificates

UL1741, IEEE1547


  • Microinversores HOYMILES
  • They are responsible for converting the current generated by the solar modules (DC) into alternating current (AC) to deliver it to our electrical grid system.
  • Dual MPPT
  • Aluminum heat sink
  • 4 pairs of MC4 connectors.
  • Installation in small or difficult areas
  • Scalable
  • Super light.
  • Microinversor MHS-2000-4T
  • The Hoymilimes Microinverter is the first microinverter in the world in 220 Vac for up to 4 modules of 670 W with dual MPPT that offer us:
  • Low investment cost
  • Connection and generation of independent panels
  • Ultra-fast ignition
  • Real-time notifications.
  • Remote performance monitoring with DTU
  • More Power
  • The microinverters are mounted on the same structure of the modules and the connections of the modules are through their own connectors, so it makes for a really simple installation.
  • High efficiency, excellent benefit
  • Maximum conversion efficiency: up to 95%
  • Make the most of the sun's power with MPPT technology
Connection diagram
