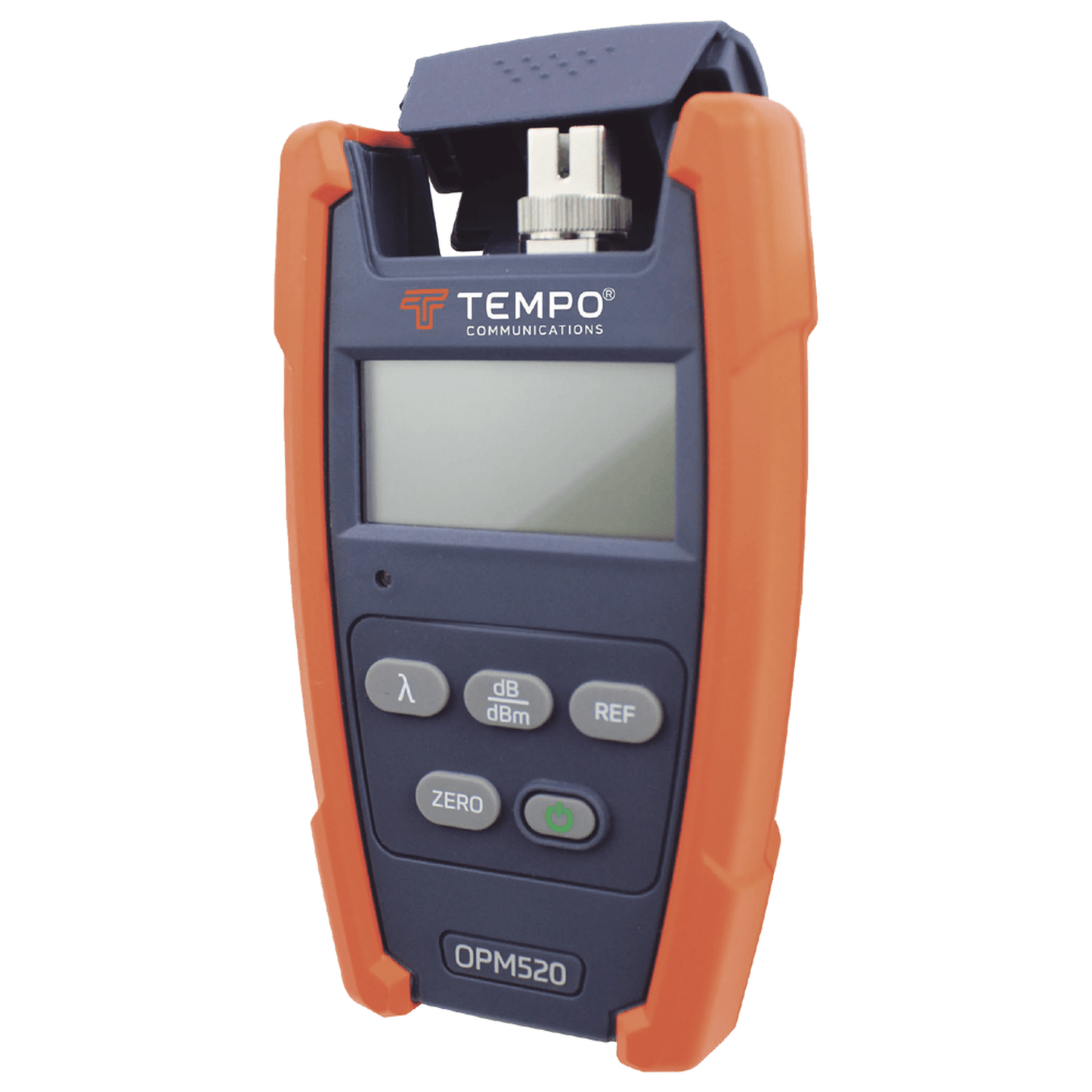

High Power Meter for Fiber Optic

  • c15d779417cc0182425a8ab39f14d4db
1 1
  • • Standard and high power optical power meters
  • • Accurate insertion loss measurements
  • Calibrated wavelengths 850nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm

Out of stock

Modelo: OPM520

Proveedor: TEMPO

Código SAT: 43223327

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Optical power meters from TEMPO Communications (OPM510/520) are available in standard and high-power versions for the telecom and MSO markets. Absolute and referenced power measurements ensure fast and accurate measurements of loss budget and insertion loss. By placing tones on the fiber using a source of TEMPO Communications, the optical power meter will definitively identify fiber optic cables.

Characteristics:

• Standard and high power optical power meters

• Measure optical power

• Accurate insertion loss measurements

• Tone and Probe Fiber Networks at 270Hz, 1kHz and 2kHz

• Absolute or referenced optical power measurements

• InGaAs Detector for Maximum Sensitivity

• Calibrated wavelengths 850nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm

• SC, LC, FC and ST interchangeable adapters

• Reinforced package, IP54 compliant

• Compatible with Singlemode and Multimode Networks

• Automatic shut-off or continuous on operation

• Battery or 120/240 VAC operation

The lengths of the wave 850, 1300, 1310, 1490, 1550, 1625
Measuring range OPM510: -65 ~ +10; OPM520: -50 ~ +27
Detector type InGaAs
Accuracy OPM510: ±0.25dB (±0.5dB@850nm); OPM520: ±0.25dB (±0.5dB@850nm)
Linearity OPM510: +/-0,5 dB (+10 a -3 dBm) +/-0,1 dB (-3 a -50 dBm) +/-0,5 dB (-50 a -65 dBm); OPM520: +/-0.5dB +27 a -3dBm +/-0.1dB -3 a -50dBm
Resolution 0.01dB
Functions µW/dBm/dB(REF)/ TONE DETECTION MOD 270Hz, 1kHz, 2kHz
Connector type SC/PC (LC, ST, SC intercambiables)
Type of fiber Singlemode and Multimode
Battery life > 100 Hours
Power supply 9V alkaline battery or 1000mAh lithium battery/9V AC adapter
Operating temperature -10ºC ~ 50ºC
Storage temperature -20ºC ~70ºC
Relative humidity 0 TO 95% (NON-CONDENSING)
Weight 0.68 lbs (300 g)
Dimensions 6,1 × 3,5 × 1,3" (155 × 88 × 33 mm)
IP Classification IP54
Vibration 5 Hz a 150 Hz, Amplitud+0,15 mm
Shock Maximum acceleration of 25 g with a pulse duration of 6 ms
Compliance CE, FCC
