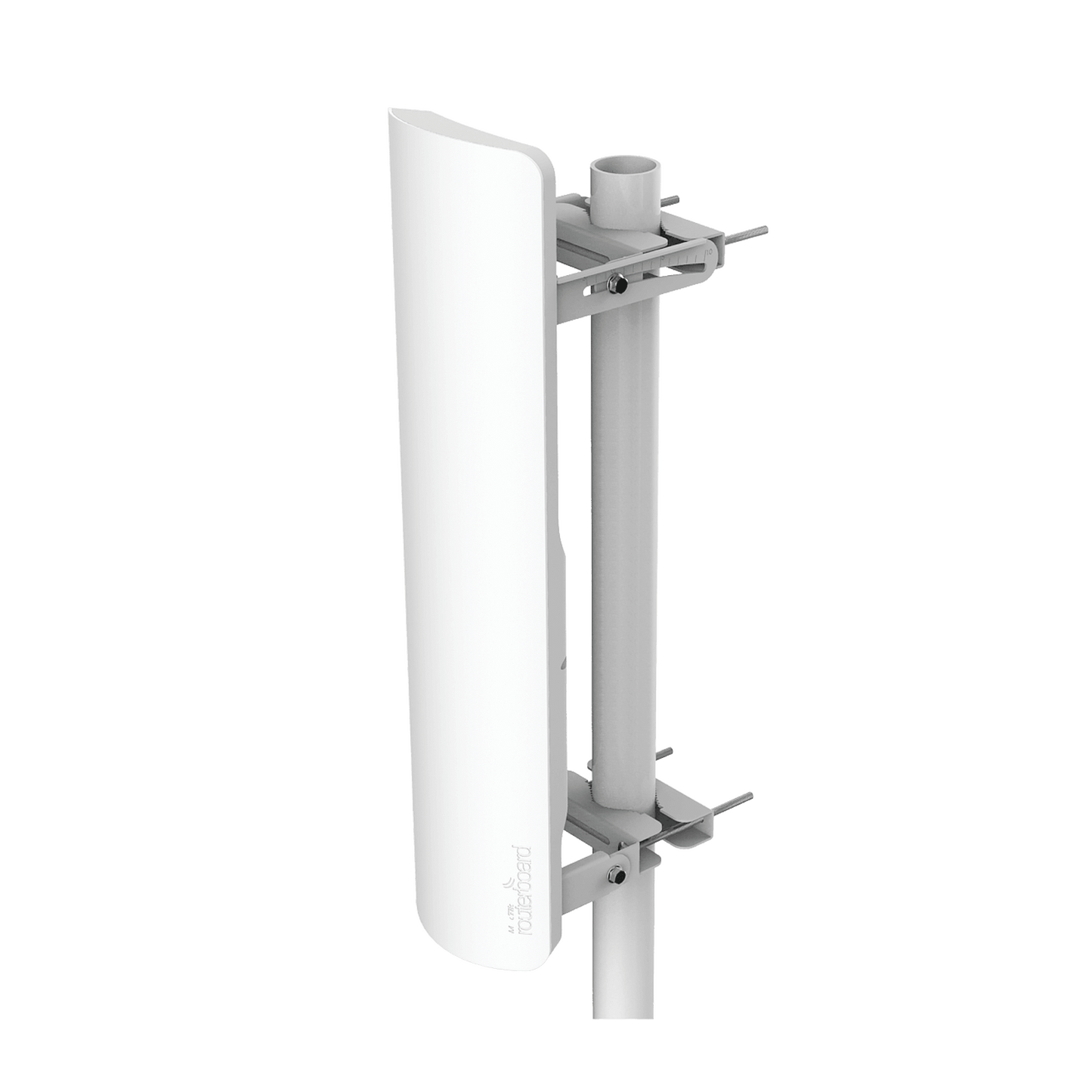

(MANT 19s) 19 dBi Sectorial Antenna with 120 ° Aperture Angle, 5.17 - 5.825 GHz Frequency Range.

  • 3587edda5ff58114a094e4866bea1218
  • 4b56df7ed2e828c888e386cf2b2d9fec
  • 453365a8b6e2fe14ef94c876a13b3a70
  • f13d6309069e3460778c8d684a1546bd
  • cef1fb92ba20934a90dee18f83e54c03
  • 213849eb7e284ee0c30ba755c3c2d50d
1 6

Out of stock

Modelo: MTAS-5G-19D120

Proveedor: MIKROTIK

Código SAT: 43221709

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

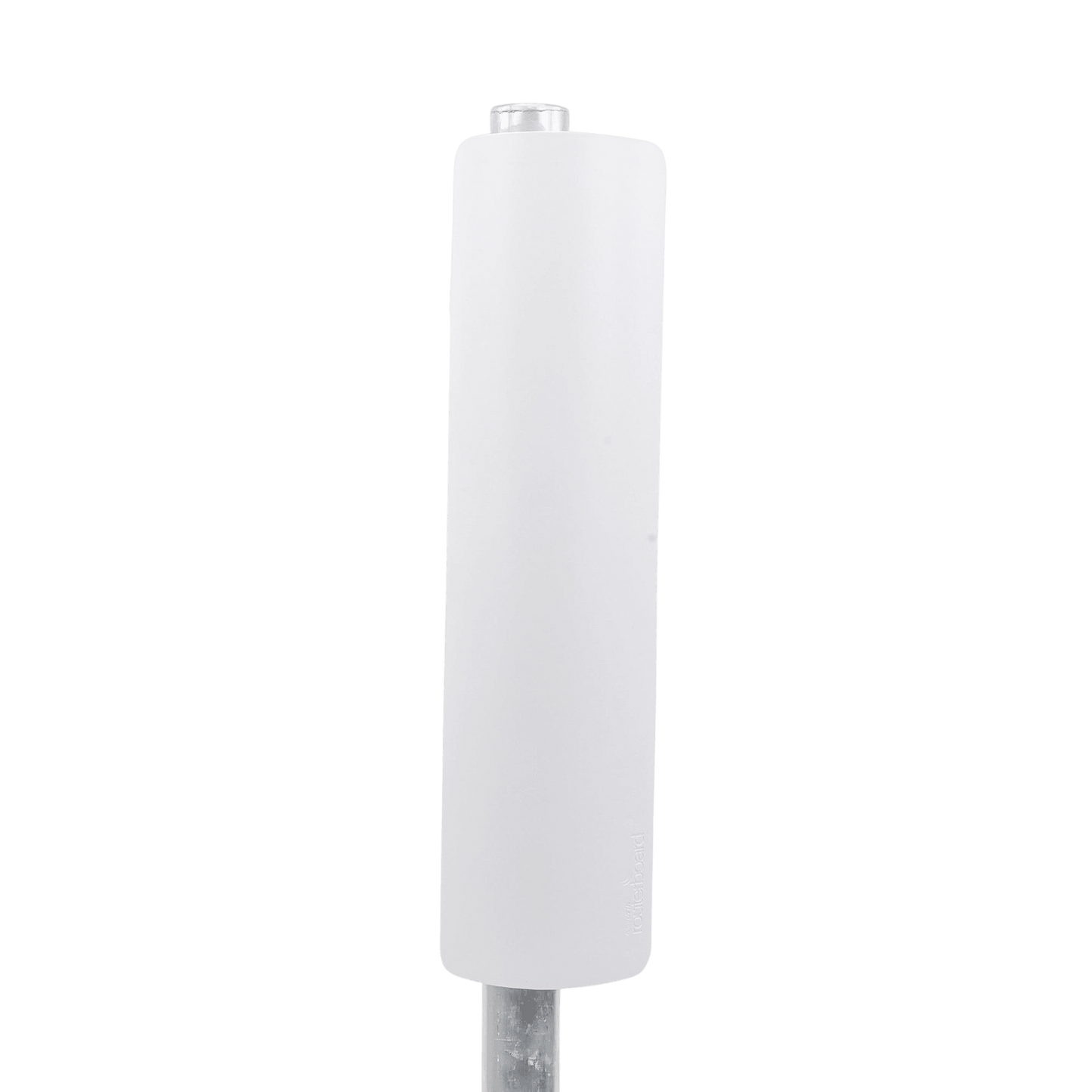

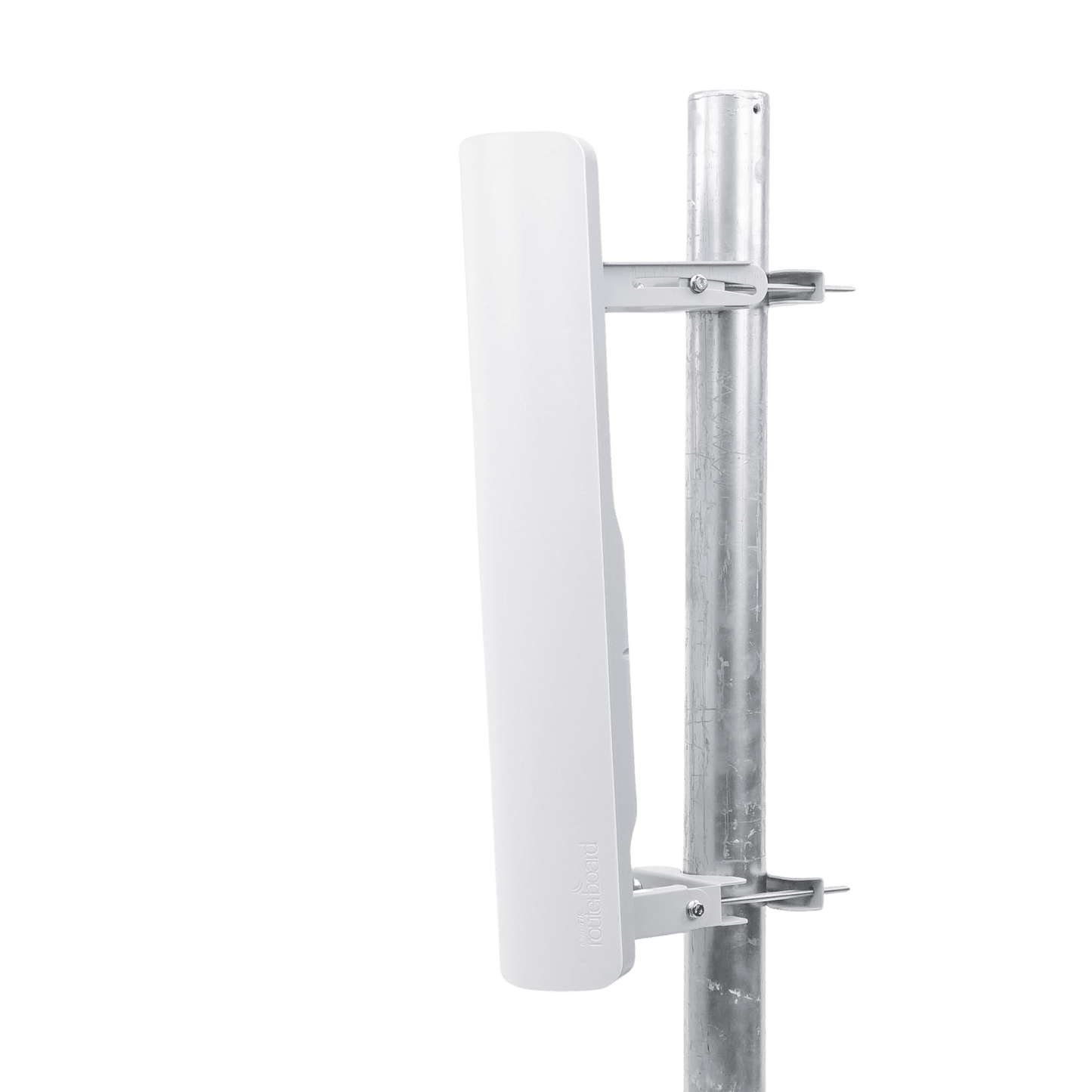

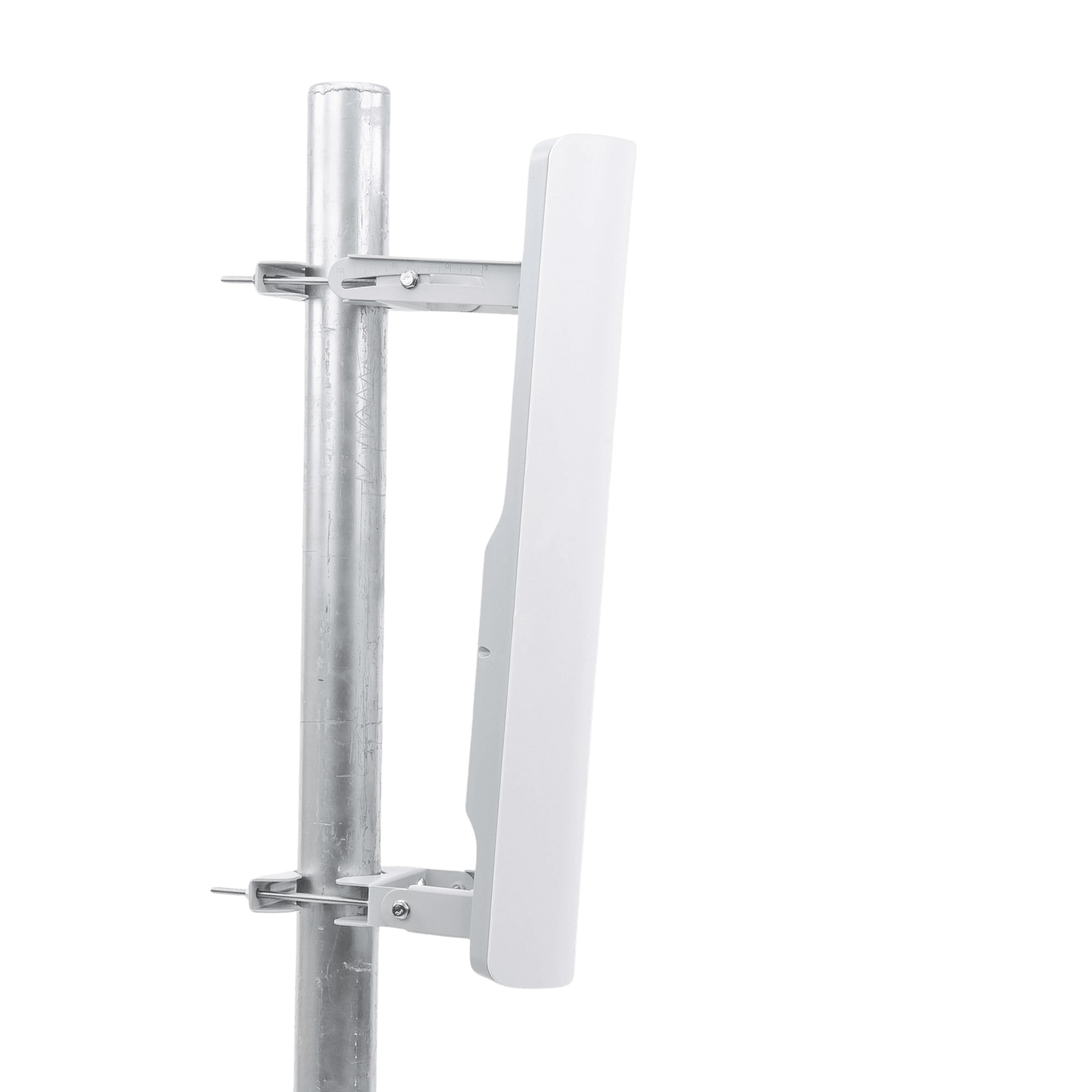

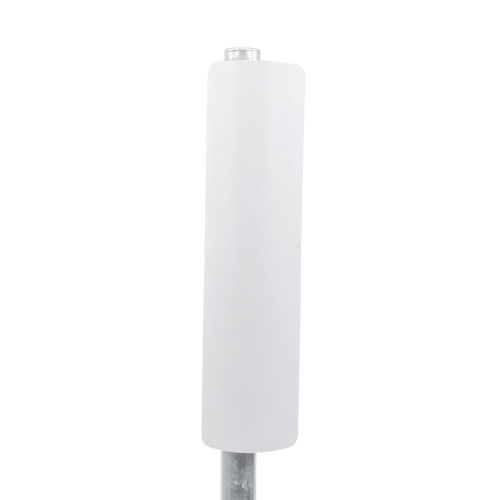

The new mANT sector antennas are the perfect companion for BaseBox, NetBox, NetMetal or any other outdoor wireless device.

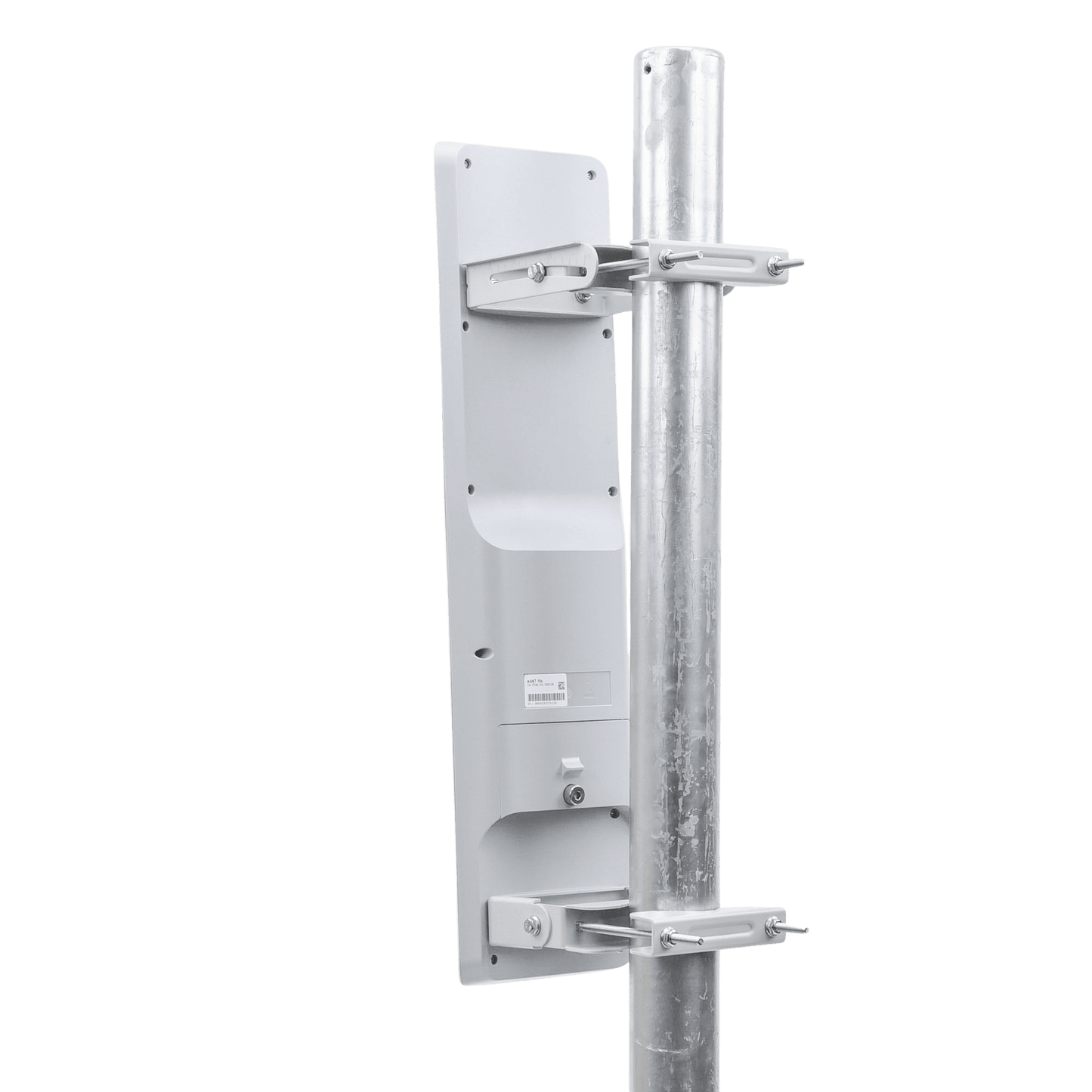

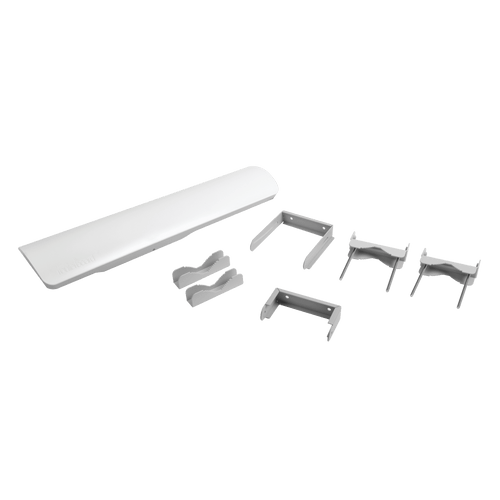

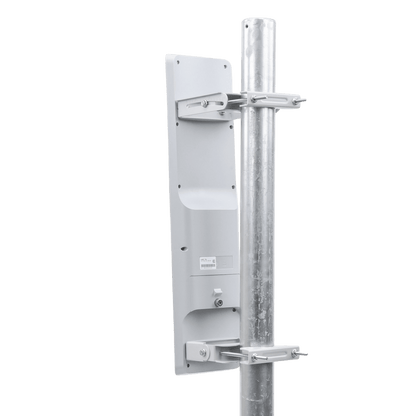

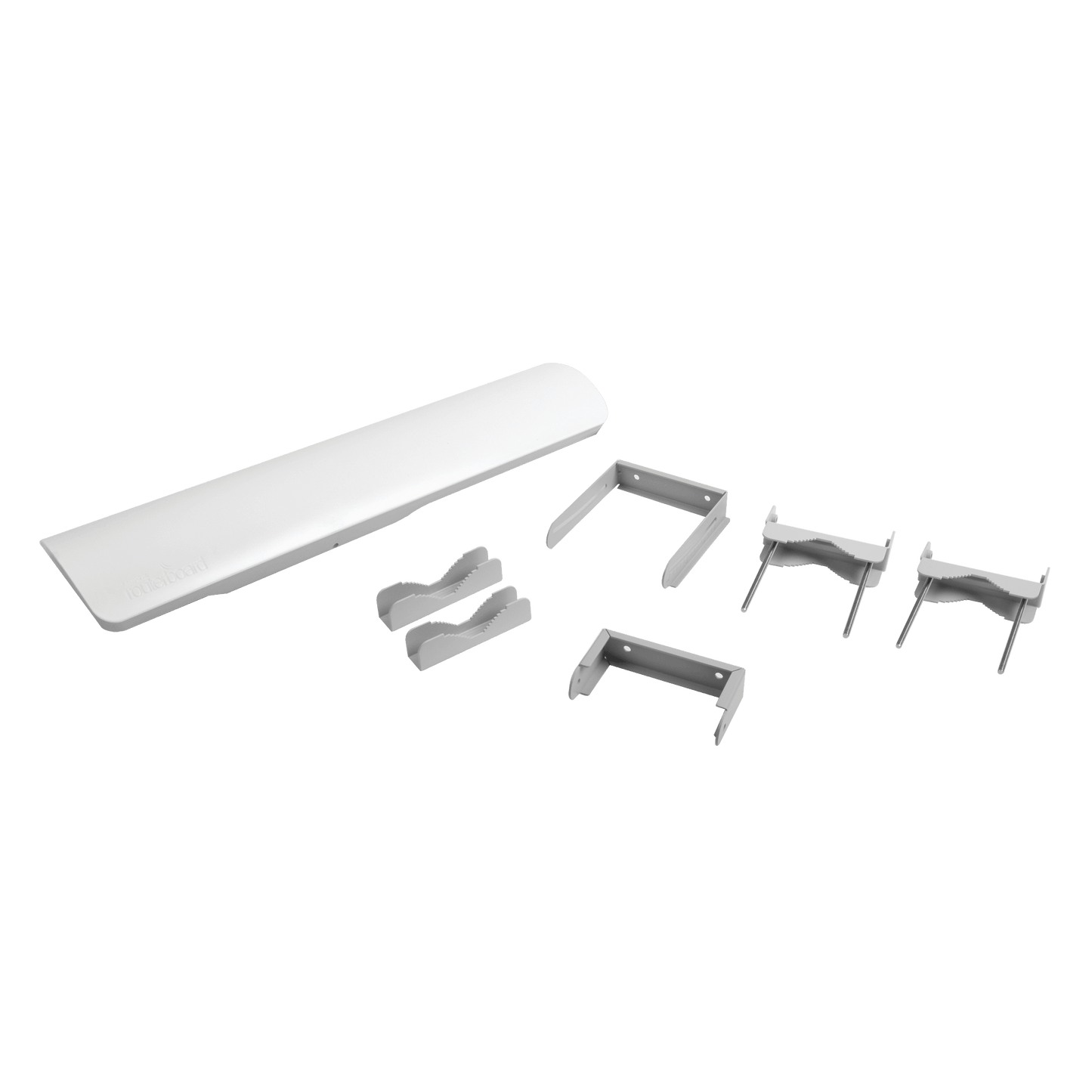

The mANT is a 120-degree beamwidth 19dBi dual-polarized antenna with two RP-SMA connectors. Comes with metal U bolt type brackets.

IMPORTANT NOTE: Does not include Jumpers

Product specifications

Details
Product code MTAS-5G-19D120
Beam width 120 degrees (azimuth) 5 degrees (elevation)
Connector dose RP-SMA
Cross polarization > 30 dB
Diameter x depth 152 x 598 x 78 mm
Frequency range 5,17 - 5,825 GHz
Front to back ratio > 30 dB
MTBF Approximately 100,000 hours at 25°C
Polarization Vertical y Horizontal
Port-to-port isolation > 40 dB minimum
VSWR 1,43 typical, 1,8 max.
Weight 1270 g
