(MANT 15s) 15dBi Sectorial Antenna with 120 ° Opening Angle with a range of 5.17 - 5.825GHz

  • b0c00f7735057d23eae1c372dc88e154
1 1
  • Antena sectorial 120° de apertura, 15 dBi ganancia
  • Compatible con montajes SXT y QuickMount
  • Rango de frecuencia 5,17 - 5,825 GHz
  • Aislamiento de puerto a puerto 40 dB mínimo
  • Incluye QuickMount Pro para ajuste preciso

Out of stock

Modelo: MTAS-5G-15D120

Proveedor: MIKROTIK

Código SAT: 43221709

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

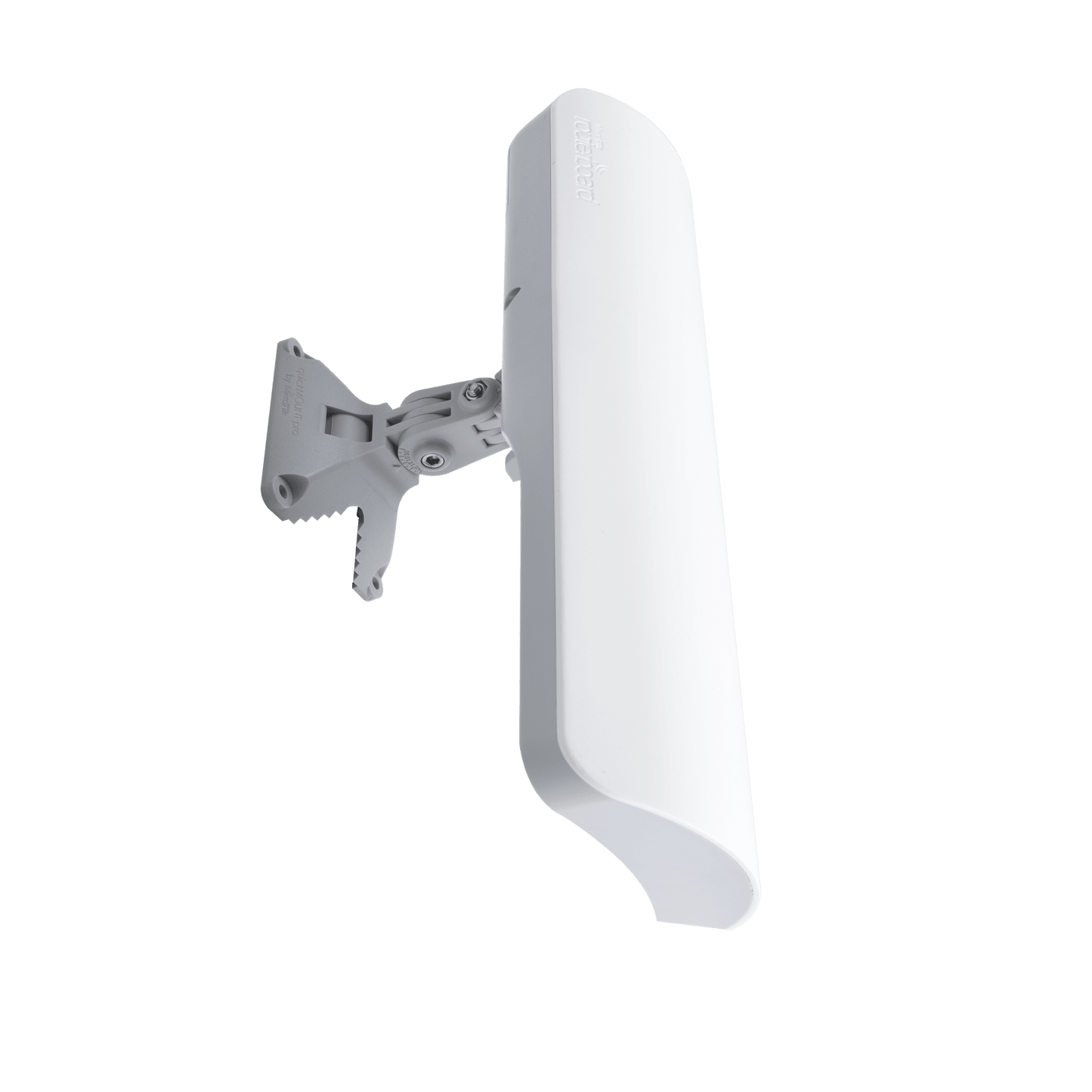

The new MANT antenna sector is the perfect companion for BaseBox, NetBox, NetMetal or any other outdoor wireless device.
The mANT 15s is a 120° 15dBi sector antenna with two RP-SMA connectors. It is compatible with SXT type mounting so you can use it with our durable and adjustable QuickMount systems. Includes a quickMOUNT PRO.

Product specifications

Details
Product code MTAS-5G-15D120
Beam width 120 degrees (azimuth) 10 degrees (elevation)
Connector dose RP-SMA
Cross polarization > 30 dB
Diameter x depth 140 x 348 x 82 mm
Frequency range 5,17 - 5,825 GHz
Front to back ratio > 30 dB
MTBF Approximately 100,000 hours at 25°C
Polarization Vertical y Horizontal
Port-to-port isolation > 40 dB minimum
VSWR 1,43 typical, 1,8 max.
Weight 734 g
