Mesh for Lifting and Permanent Support of 7/8\" Coaxial Cable in Communications Towers.

  • f5bf2794617a678b0ca8f55298d2d494
1 1
  • Material de acero inoxidable para durabilidad mejorada
  • Rango de cable de 27.4-30.5 mm
  • Carga de trabajo máxima de 362.8 kg
  • Resistencia a la ruptura de 1814.3 kg
  • Cumplimiento con ISO 9001:2015, RoHS y CE

Out of stock

Modelo: HG-PL-78

Proveedor: SYSCOM TOWERS

Código SAT: 27112100

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

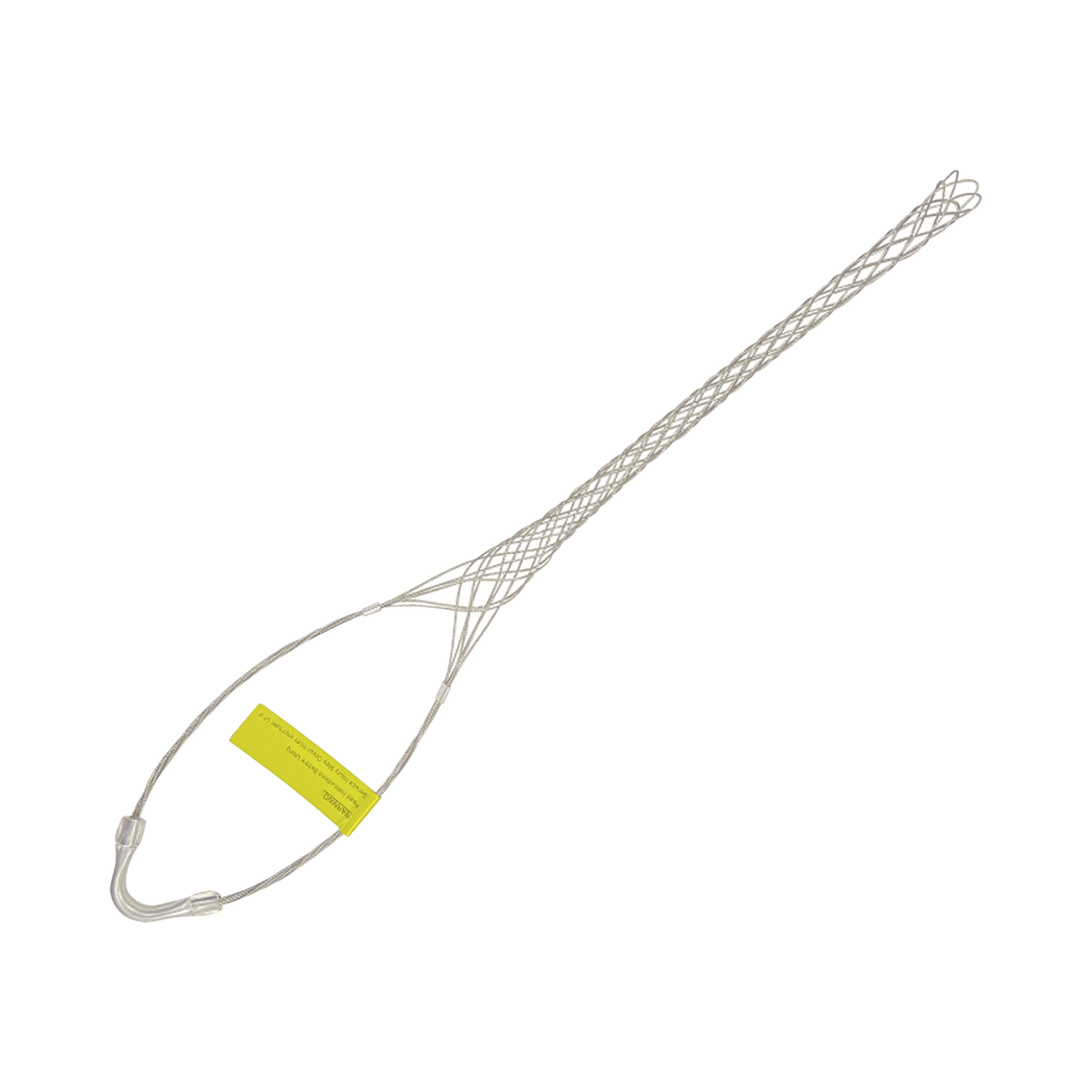

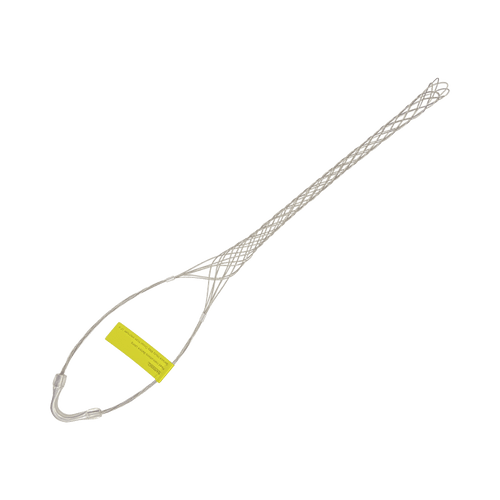

The pre-cut lifting meshes, for lifting cables and permanent support, Their main function is to act as a support point to absorb additional stresses, such as vibrations, expansions, contractions and flexions. Pre-cord is specifically used when the top connector is installed after the antenna transmission line has been hoisted. This process ensures a secure and stable connection in situations where the installation order is crucial.

Main applications:

  • Telecommunications Facilities.
  • Data Transmission Networks.
  • Antenna Cables.
  • General Cable Laying

Characteristics:

  • Material: Stainless steel.
  • Cable range : 1.08-1.20 in | 27.4-30.5mm
  • Mesh length : 17 inches | 431.8mm
  • Working Load: 800 lb | 362.8kg
  • Approximate Breaking Strength : 4000 lb | 1814.3kg
  • Compliance: ISO 9001:2015, ROHS and CE
