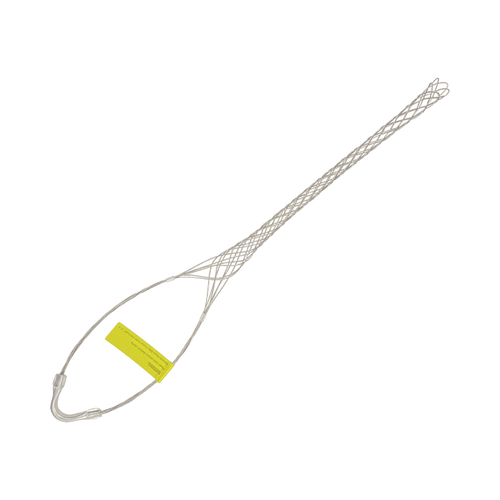

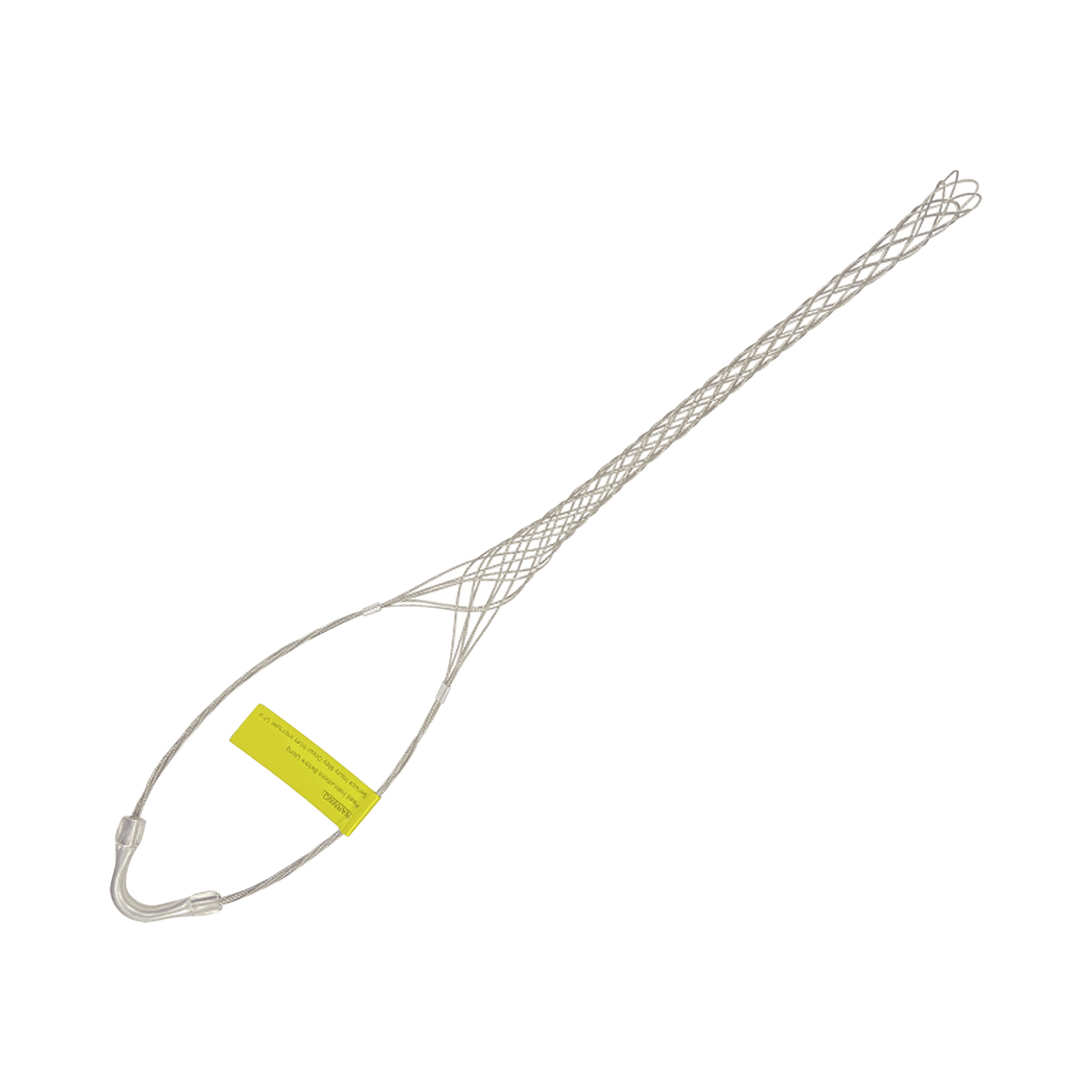

Mesh for Lifting and Permanent Support of 1-1/4\" Coaxial Cable in Communications Towers.

  • a7635b5e354d08035ab29b96650bf400
1 1
  • Material: acero inoxidable para máxima durabilidad
  • Rango de cable: 1.54-1.67 in (39.1-42.4 mm)
  • Longitud de malla: 24.0 in (609.6 mm)
  • Carga de trabajo: hasta 800 lb (362.8 kg)
  • Cumplimiento: ISO 9001:2015, RoHS y CE

Low stock: 9 left

Modelo: HG-PL-114

Proveedor: SYSCOM TOWERS

Código SAT: 27112100

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

The pre-cut lifting meshes, for lifting cables and permanent support, Their main function is to act as a support point to absorb additional stresses, such as vibrations, expansions, contractions and flexions. Pre-cord is specifically used when the top connector is installed after the antenna transmission line has been hoisted. This process ensures a secure and stable connection in situations where the installation order is crucial.

Main applications:

  • Telecommunications Facilities.
  • Data Transmission Networks.
  • Antenna Cables.
  • General Cable Laying

Characteristics:

  • Material: Stainless steel.
  • Cable range : 1.54-1.67 in | 39.1-42.4mm
  • Mesh length : 24 inches | 609.6mm
  • Working Load: 800 lb | 362.8kg
  • Approximate Breaking Strength : 4000 lb | 1814.3kg
  • Compliance: ISO 9001:2015, ROHS and CE
