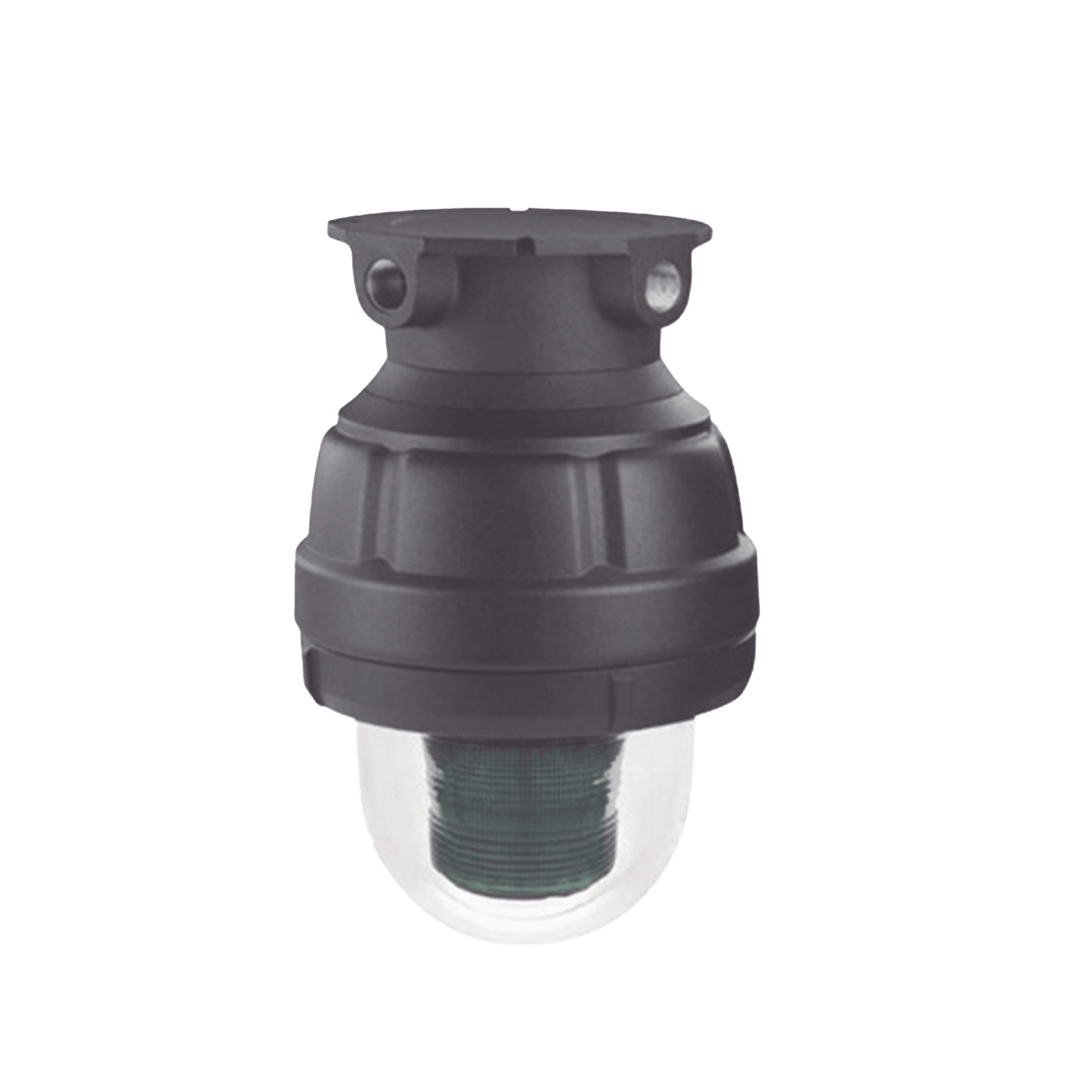

Green Explosion Proof LED Warning Light

  • b6551d902a7d16dac73f06943ead601d
1 1
  • Available in 24 Vdc/DC and 120-240 VAC
  • Flashing or steady on mode
  • 50,000 hour LED
  • Operating temperature range: -55°C to 65°C
  • Ceiling and wall mounting and hanging bracket options
  • Type 4X, IP66, IP69K

Out of stock

Modelo: 27XL-024-G-MOD

Proveedor: FEDERAL SIGNAL INDUSTRIAL

Código SAT: 39111706

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

CHARACTERISTICS

The Model 27XL Explosion Proof LED Light is unique on the market because it covers a full range of possible mounting configurations, including the dome.

Configurable in constant or intermittent on mode, 27XL provides improved performance over standard LEDs and greater versatility while maintaining low power consumption and the vibration resistance expected of LED devices.

The 27XL features a standard low-influx circuit design that provides greater compatibility with factory automation control systems and less electrical interference with influx-sensitive devices. Corrosion resistance is achieved with a powder coat finish applied over the copper-free aluminum housing.

Because it is easy to install and requires very little maintenance, It is ideal for use in areas such as oil platforms, mines, refineries and chemical plants.

Specifications

Mounting Optional Kit 3/4" Pendant Mounting Kit
Optional wall mounting kit
Optional ceiling mounting kit
Voltage 24 Vac/Vdc
120/240 Vac
operating current 400mA at 24Vac/dc
operating current 210/130mA at 120/240Vac
Input current 1.75 amps, 5.0 mS at 24 Vac/dc
2 amps, 0.25 mS at 120/240Vac
Light source/lamp style GIVES
Flash rate/minute 60
lamp life 50,000 Hours
Minimum operating temperature -55°C
Maximum operating temperature 65°C
Degree of protection Type 4X
Protection (IP) IP66, IP69K
Weight without assembly 6.3kg
Ceiling Mount Weight 2.0kg
Pendant Mount Weight 1kg
Wall Mount Weight 2.67kg
