(LHG XL 5 ac 4 Pack) CPE and PtP in 5GHz 802.11 a/n/ac with 27dBi Grid Antenna. \"Now with More Speed ​​and Greater Distance\"

  • 91e90cd55707d894bf51eb59b876100b
1 1
  • Antena de 27 dBi para largo alcance
  • Puerto Ethernet gigabit 10/100/1000 Mbit
  • Protocolo NV2 TDMA compatible
  • CPU de 4 núcleos a 716 MHz
  • Operativa en rangos de -40°C a 70°C

16 in stock

Modelo: RBLHGG-5ACD-XL4PACK

Proveedor: MIKROTIK

Código SAT: 43222640

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

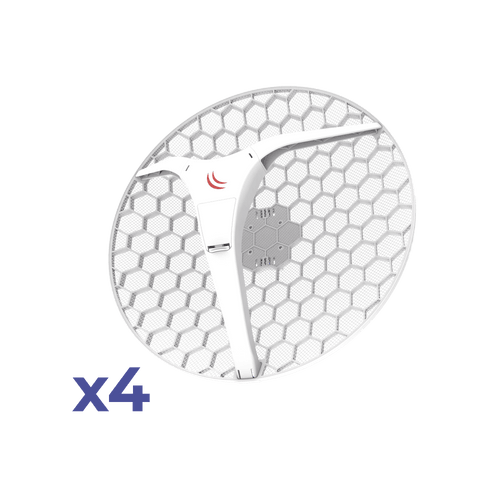

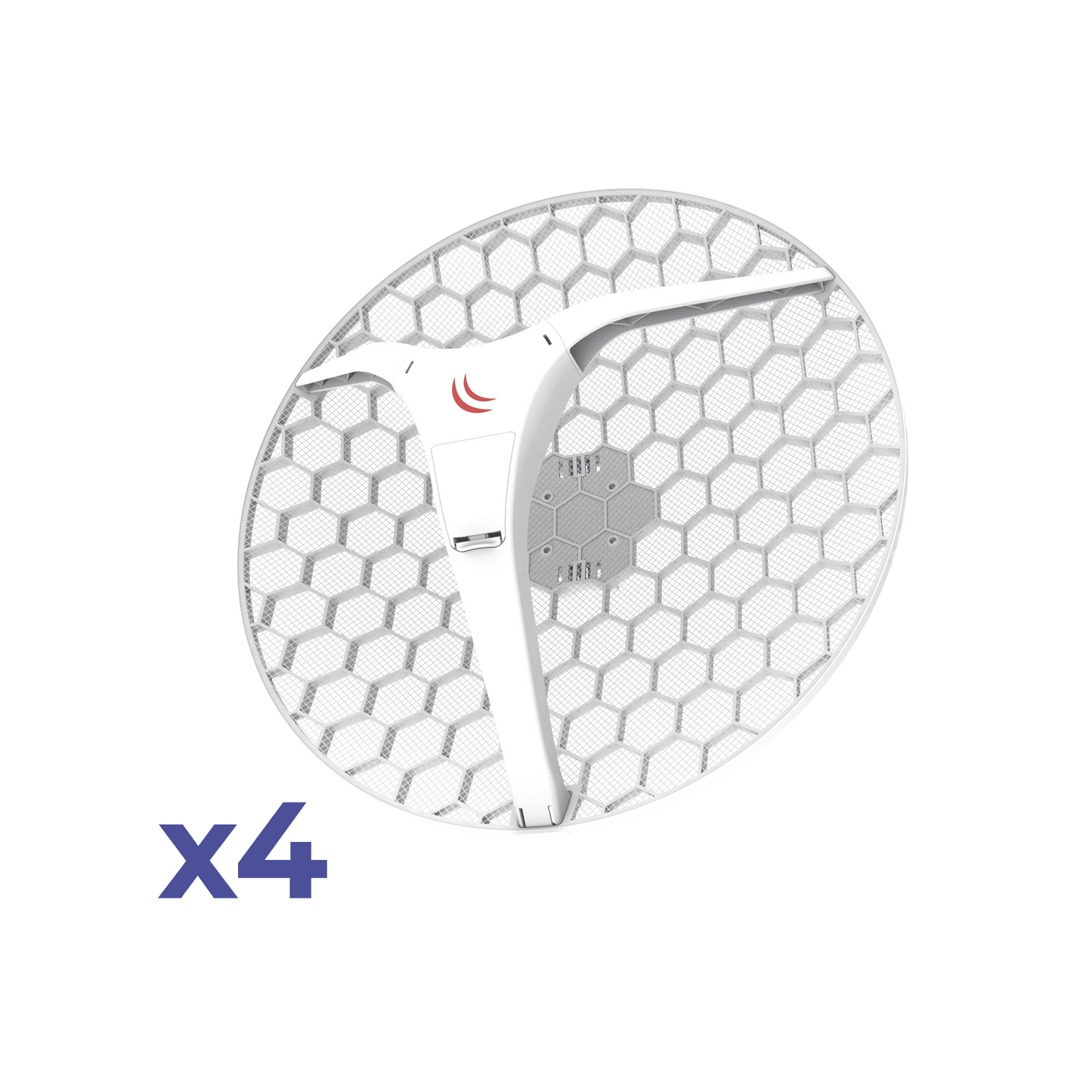

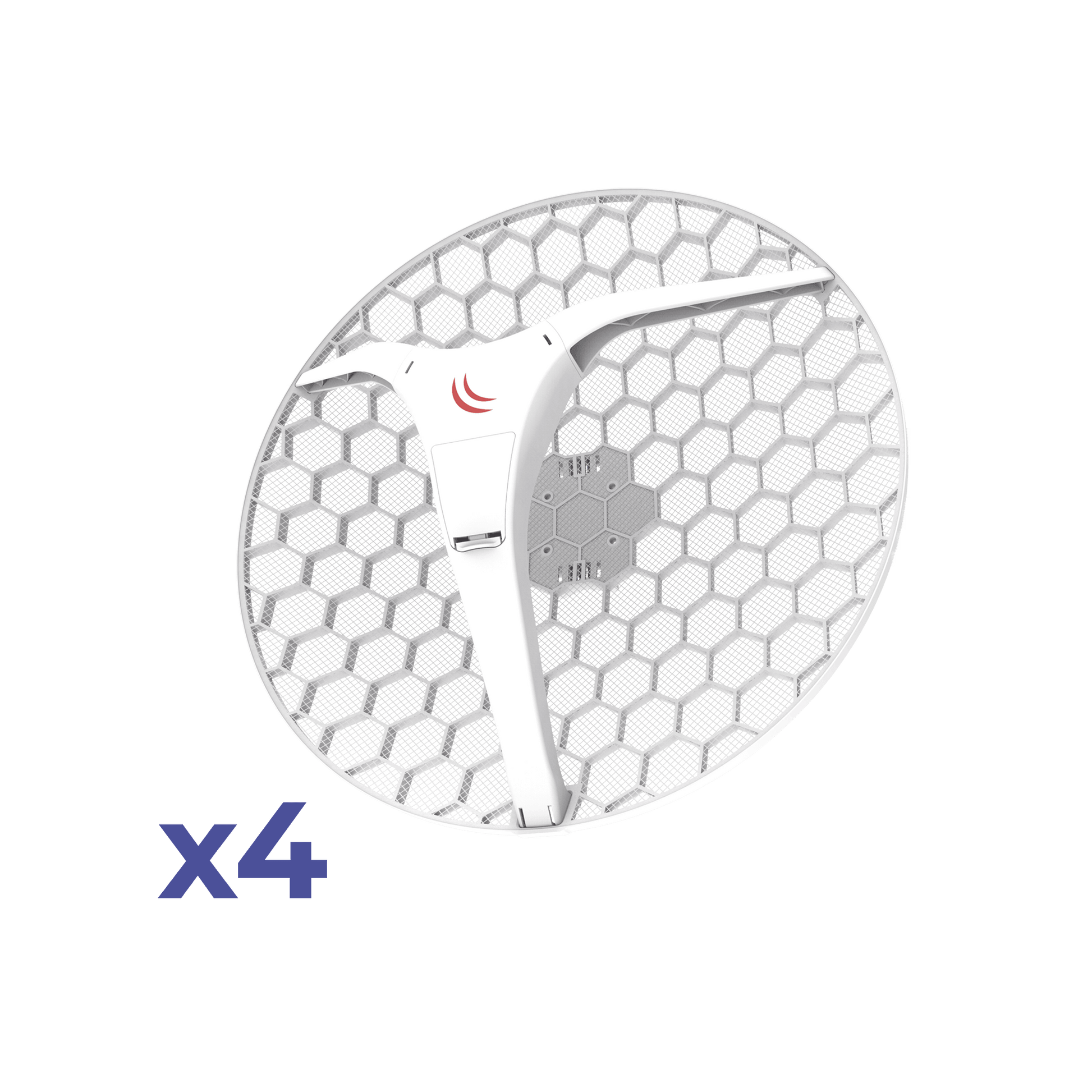

The LHG XL 5 ac is a long-range 5 GHz 802.11ac wireless device with an integrated 27 dBi dual polarization network antenna at a revolutionary price. It is perfect for point-to-point links or for use as CPE over longer distances and supports the Nv2 TDMA protocol.

The device includes a 10/100/1000 Mbit Ethernet port to fully utilize the speeds provided by the 802.11ac protocol.

Specifications

Details
Product code RBLHGG-5acD-XL
Architecture ARM 32 bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716MHz
Dimensions Ø 550 x 245 mm;
RouterOS License 3
OS RouterOS
RAM size 256MB
Storage size 16MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yeah

Feeding

Details
Number of DC inputs 1 (PoE-IN)
Maximum power consumption 8W
Fan count Passive
PoE in Passive PoE
PoE on input voltage 10-30V

Wireless specifications

Details
Maximum 5GHz wireless data rate 867 Mbit/s
Number of 5 GHz wireless chains 2
5 GHz wireless standards 802.11a/n/ac
dBi antenna gain for 5 GHz 27
5GHz wireless chip model IPQ-4018
5 GHz wireless generation Wi-Fi 5

ethernet

Details
10/100/1000 Ethernet ports 1

Certification and approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54

Wireless specifications

5GHz Transmit (dBm) Receive sensitivity
6MBit/s 25 -96
54 MBit/s twenty-one -80
MCS0 25 -96
MCS7 twenty -75
MCS9 18 -70
*This model is a package of 4 units.

Parts included

The device has a pre-installed and licensed operating system. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years from the date of purchase.
