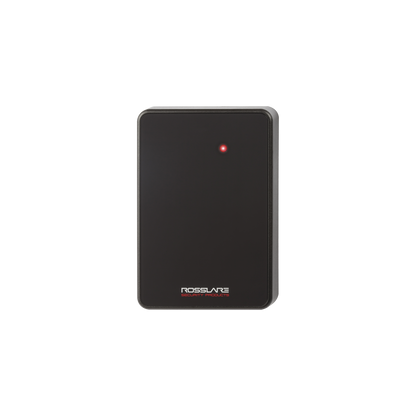

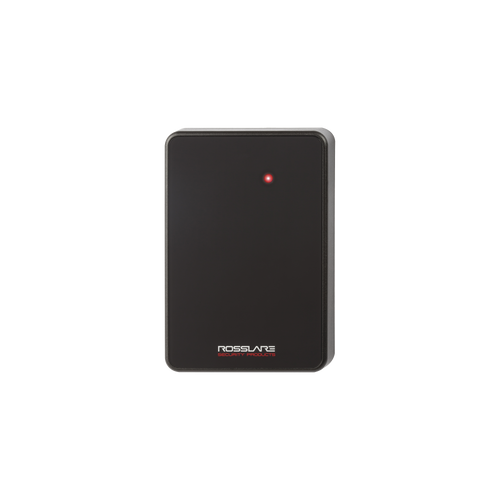

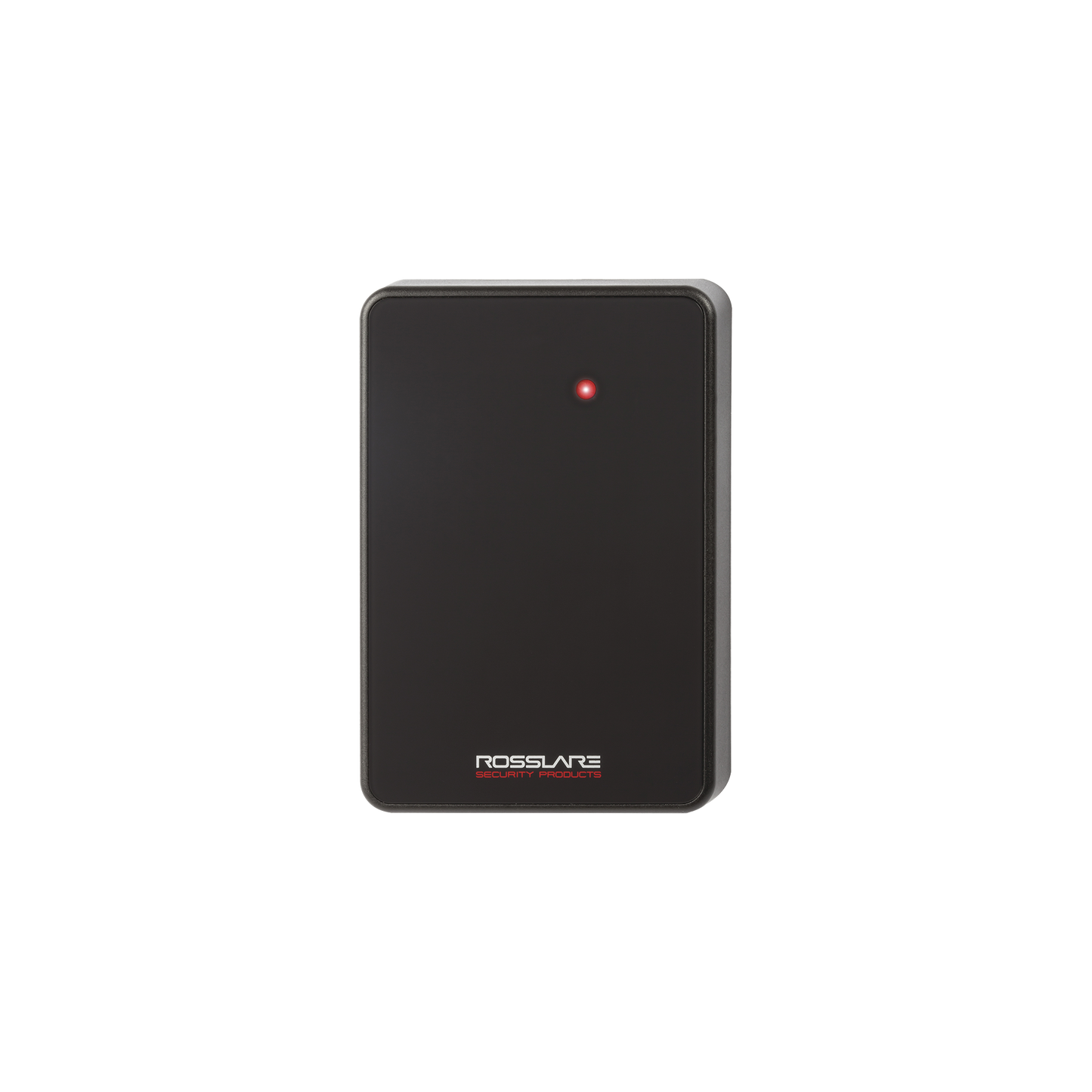

Multiformat CSN reader (MIFARE, classic, Felica ICLASS) OSDP or Wiegand output

  • 302746492f221b33ec4111a82f86b78b
  • 302746492f221b33ec4111a82f86b78b
1 2

Out of stock

Modelo: AYH6255

Proveedor: ROSSLARE SECURITY PRODUCTS

Código SAT: 46171619

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

New CSN ​​SELECT smart readers

The most powerful Smart readers are the AY-K/M/H/L/R 6255 series from ROSSLARE, Multiformats for 13.56 MHz credentials, Multi-format output feature and excellent read range and use in any environment.
Main features of CSN readers

CSN reads the following formats:

  • MIFARE Ultralight / Ultralight C
  • MIFARE Classic
  • MIFARE Plus S / Plus X
  • MIFARE DESFire EV1
  • ISO 14443A/ISO 18092 (NFCIP-1)
  • ISO 14443B
  • ISO 15693/Felica/Topaz/iClass
  • NFC (ask for device compatibility)


Compatible with AC-015, AC-115, AC215, AC-215IPL, AC-225IPL, AC425IPL and AC825

• Reading range 3 cm.
• OSDP or Wiegand output (selectable)
• 26-bit Wiegand output.
• Requires 5 22 gauge cables (120 m max).
• Power supply 12 Vdc, 120mA.
• Dimensions 144.9 × 42.9 × 22.1 mm
• Weight 126 grams.


Demonstrative video
