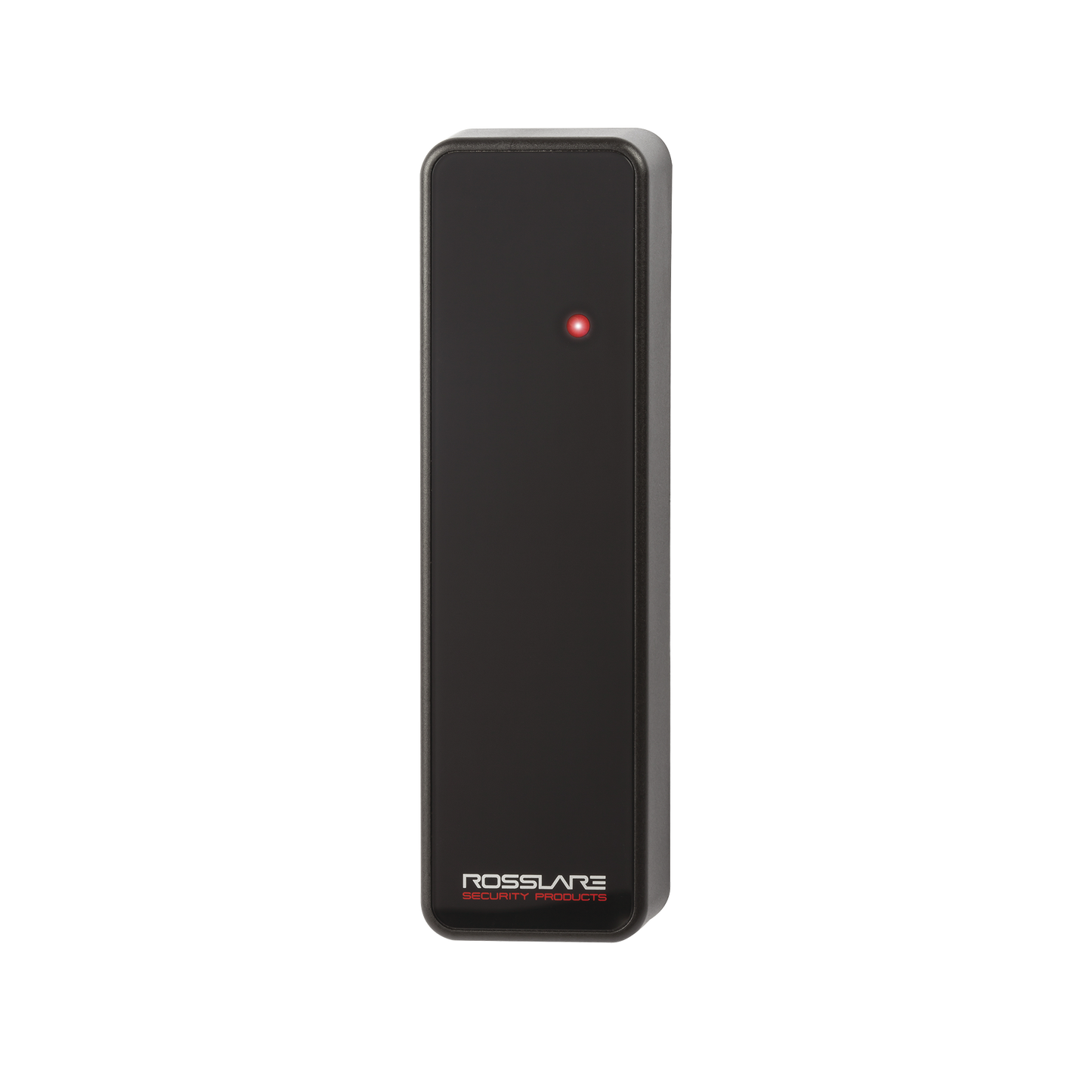

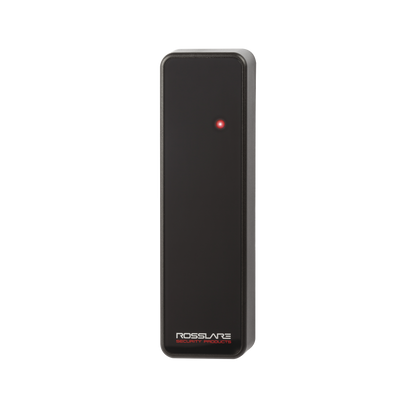

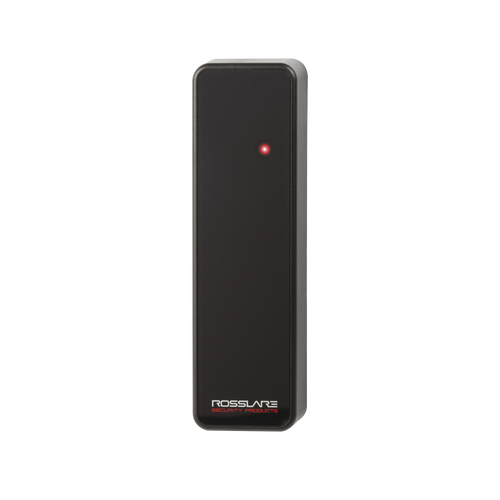

CSN Multiformat Reader (MIFARE, classic, Felica ICLASS)

  • 7d02d70646cc417a96b042ac532e6557
  • 7d02d70646cc417a96b042ac532e6557
1 2
  • Multiformato para credenciales de 13.56 MHz
  • Compatibilidad con ISO 14443A/B y NFC
  • Salida Wiegand de 26 bits
  • Rango de lectura hasta 3 cm
  • Dimensiones compactas de 144.9 x 42.9 x 22.1 mm

40 in stock

Modelo: AYL6255

Proveedor: ROSSLARE SECURITY PRODUCTS

Código SAT: 46171619

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

New CSN ​​SELECT smart readers

The most powerful Smart readers are the AY-K/M/H/L/R 6255 series from ROSSLARE, Multiformats for 13.56 MHz credentials, Multi-format output feature and excellent read range and use in any environment.
Main features of CSN readers

CSN reads the following formats:

  • MIFARE Ultralight / Ultralight C
  • MIFARE Classic
  • MIFARE Plus S / Plus X
  • MIFARE DESFire EV1
  • ISO 14443A/ISO 18092 (NFCIP-1)
  • ISO 14443B
  • ISO 15693/Felica/Topaz/iClass
  • NFC (ask for device compatibility)

  • Recommended cards: ACCESSCARM1K,ACCESSCARDM4K, ACCESKFBM1K, ACCESSWB65M1K, ACCESSWB74M1K . See here.


Compatible with AC-015, AC-115, AC215, AC-215IPL, AC-225IPL, AC425IPL and AC825

• Reading range 3 cm.
• 26-bit Wiegand output.
• Requires 5 22 gauge cables (120 m max).
• Power supply 12 Vdc, 80mA.
• Dimensions 144.9 × 42.9 × 22.1 mm
• Weight 126 grams.


Demonstrative video
