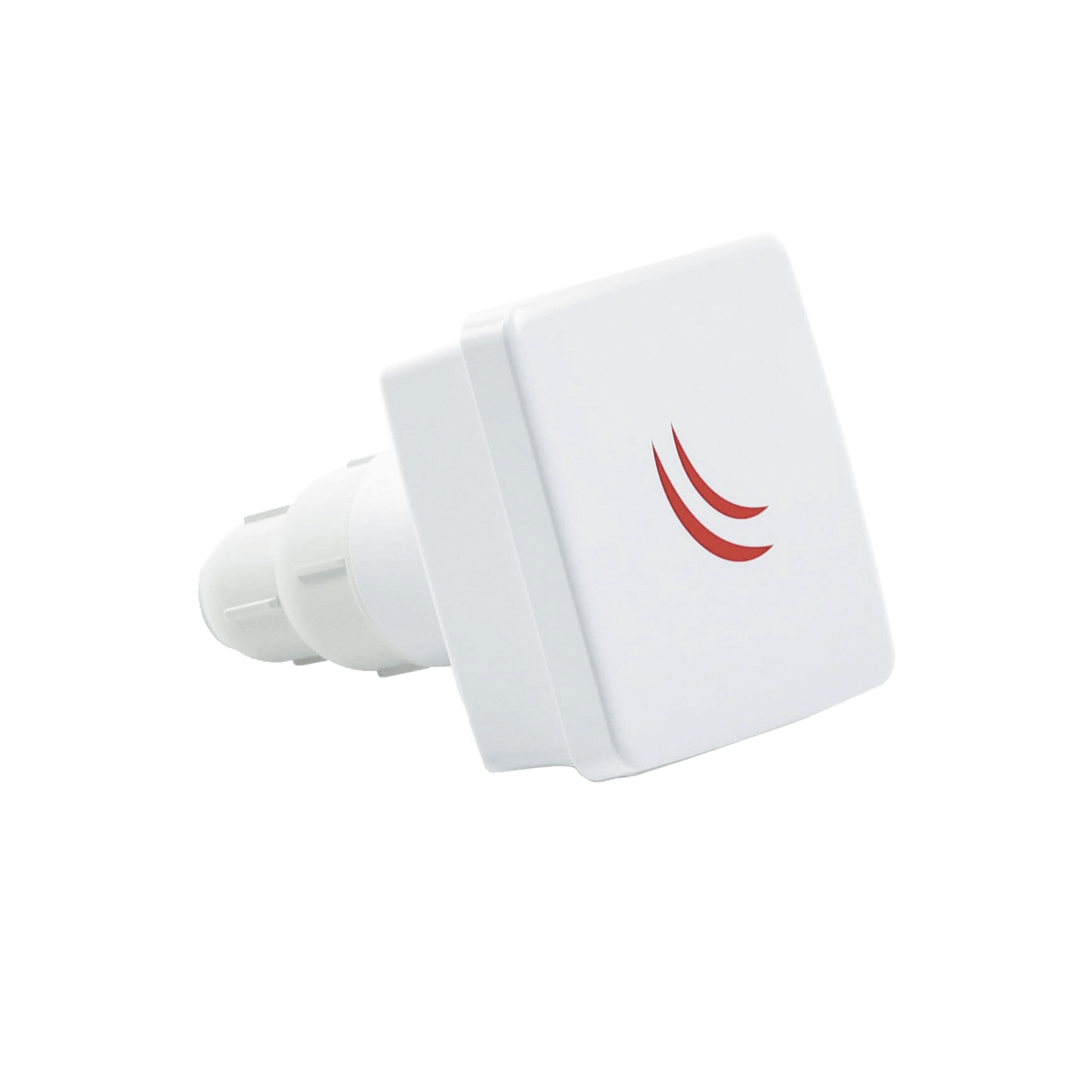

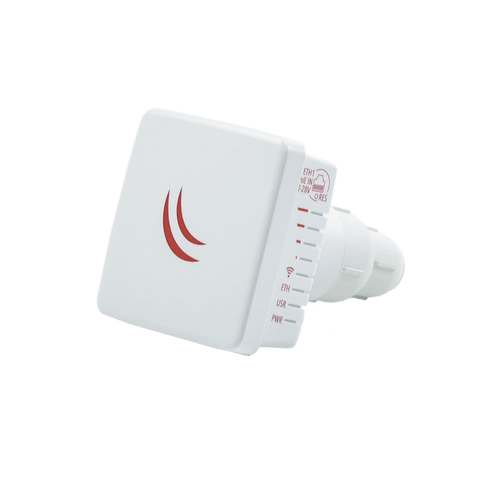

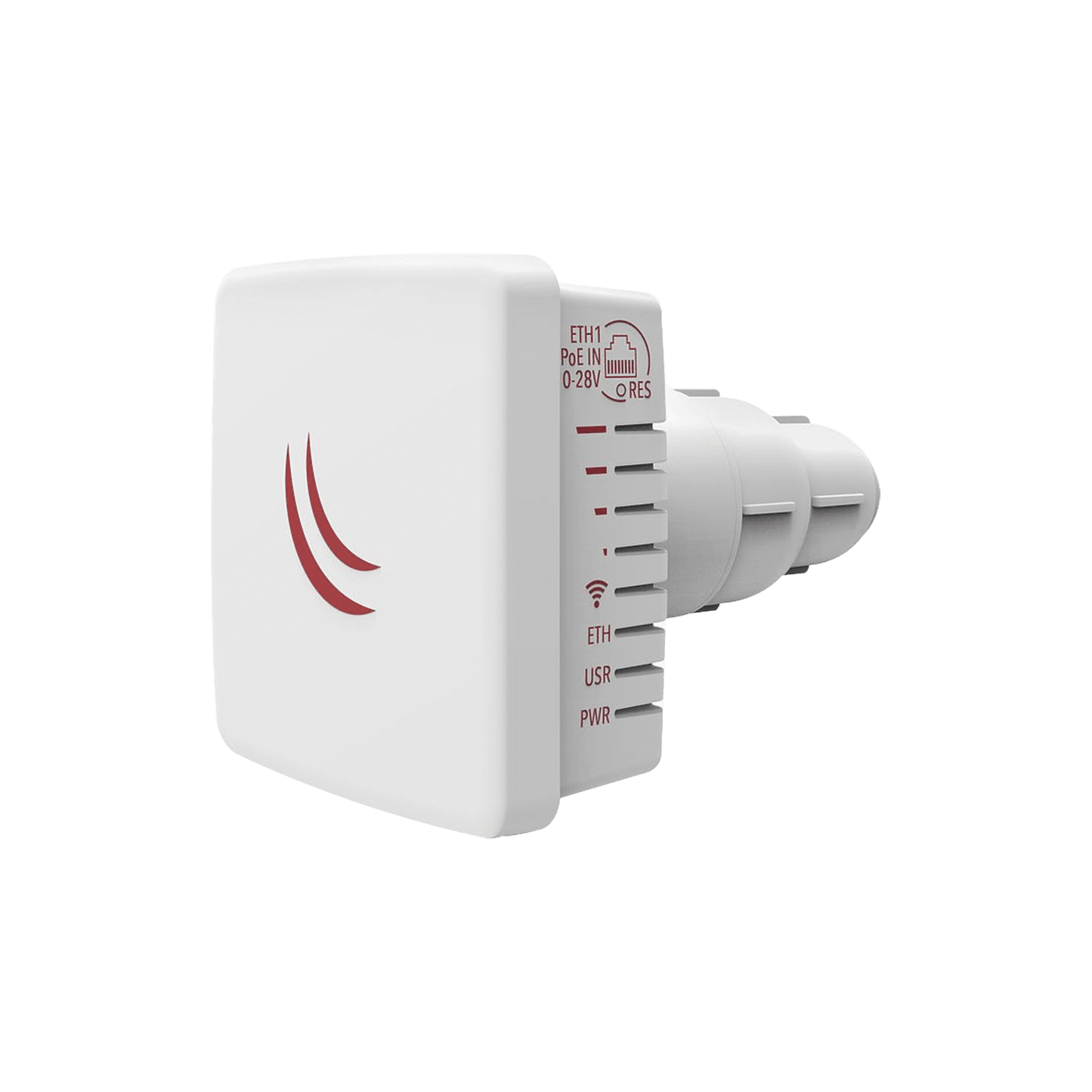

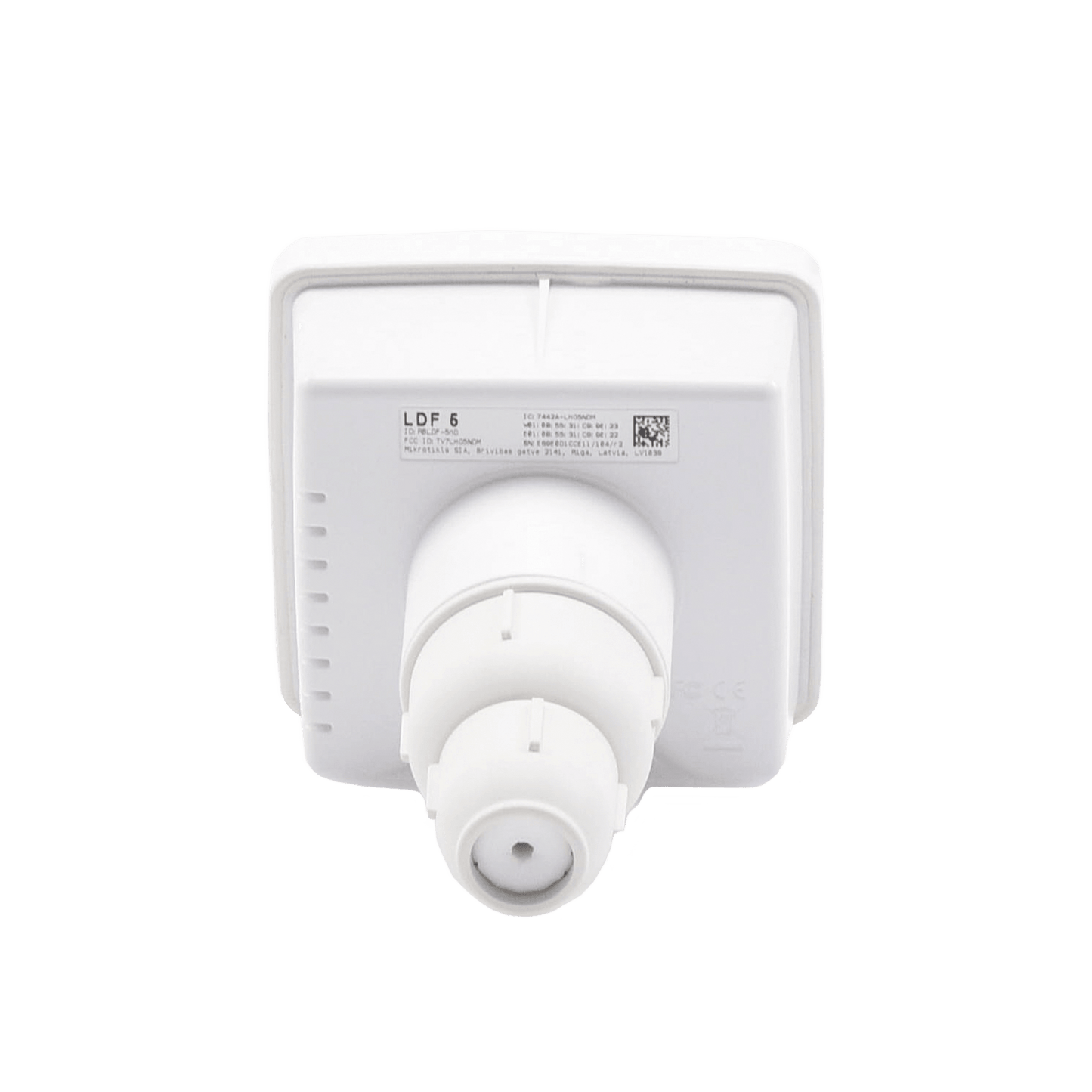

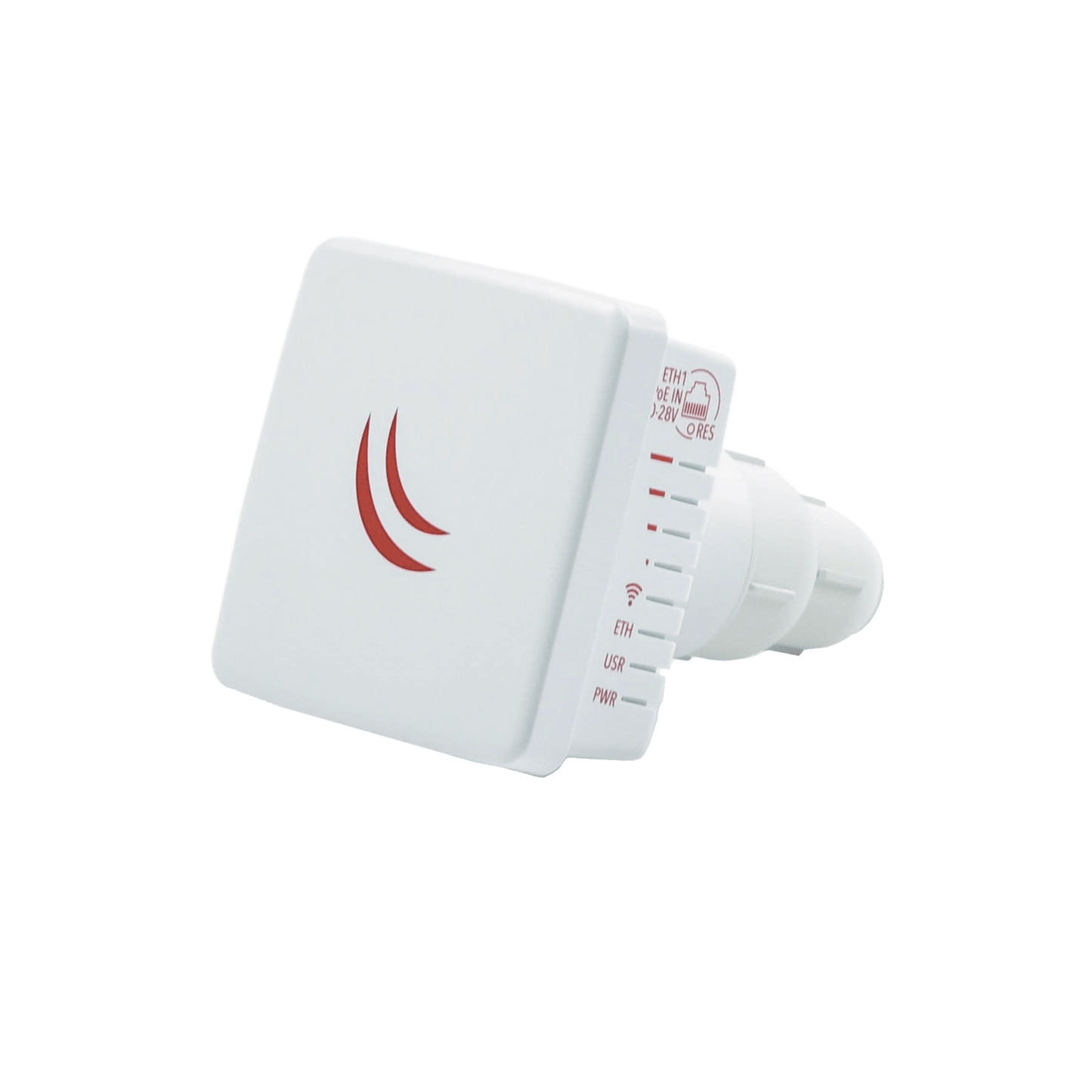

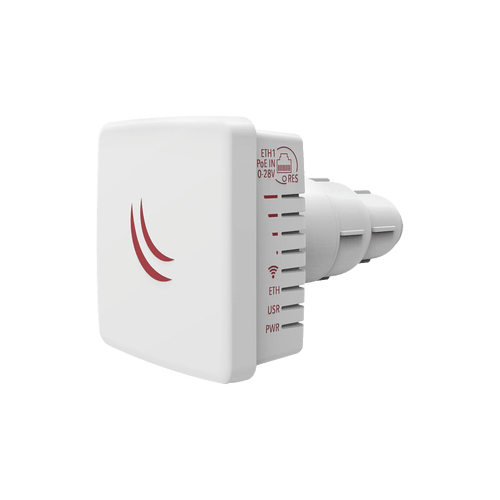

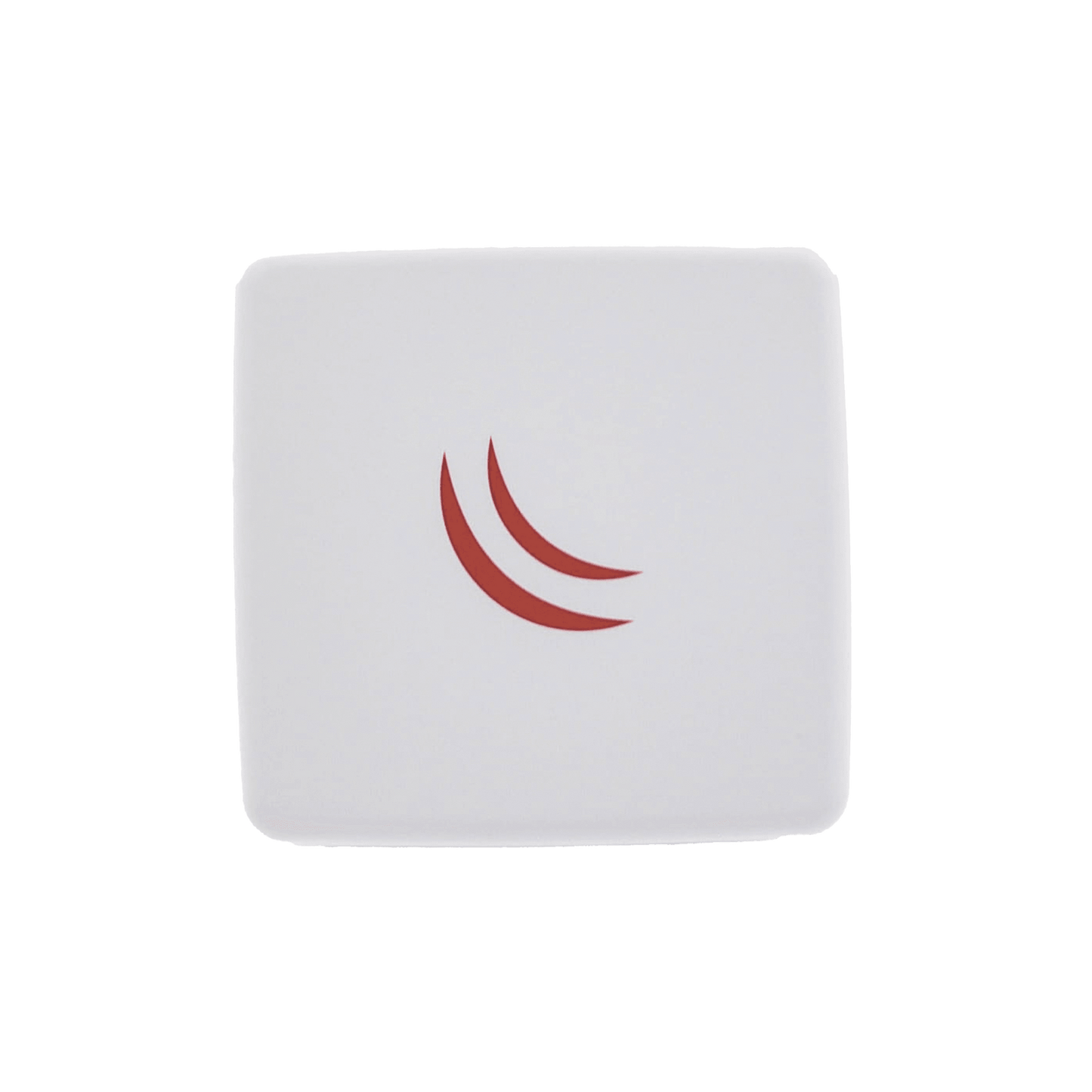

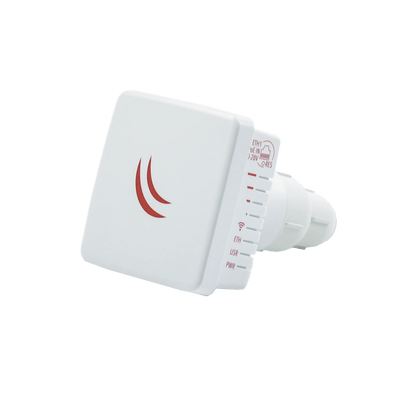

(LDF 5) CPE and PtP in 5GHz 802.11 a/n 9 dBi antenna.

  • 1955fcd6a16ef0646cb36ad73aeaa8da
  • c667f0e3cae7ef81115006b510ad9c53
  • 1addbbdbd19c7dcaaca6f29648c4baac
  • 1c15c56ebee11a492789e366f8be8481
  • 80fcf01292a1cbef5e525460f9add34a
1 5

Out of stock

Modelo: RBLDF-5ND

Proveedor: MIKROTIK

Código SAT: 43222640

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

The LDF (Lite Dish Feed) is an outdoor wireless system with a built-in antenna, Intended to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal.

This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long-range wireless links. The offset bracket is universal with a diameter of 40 mm, and the LDF can be easily placed inside it. Since the LDF itself is a small package, makes shipping and deployment simple and low cost.

Using a plate up to 100 cm in diameter, It is possible to obtain an antenna amplification of up to 33dBi. The device comes pre-installed with RouterOS and is ready to use.

Specifications

details
Product code RBLDF-5nD
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600MHz
Dimensions 84x84x115mm
RouterOS License 3
OS RouterOS
RAM memory size 64MB
Storage size 16MB
Storage type Flash
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Feeding

details
Number of DC inputs 1 (PoE-IN)
Maximum power consumption 6W
Cooling type Passive
PoE in Passive PoE
PoE on input voltage 10-30V

Wireless specifications

details
5GHz maximum wireless data rate 300 Mbit/s
Number of 5 GHz wireless chains 2
5 GHz wireless standards 802.11a/n
dBi antenna gain for 5 GHz 9
5GHz wireless chip model AR9344
5 GHz wireless generation Wi-Fi 4

ethernet

details
10/100 Ethernet ports 1

Certification and approvals

details
Certification CE, FCC, IC, EAC, ROHS
IP IP54

Wireless specifications

5GHz Transmit (dBm) Receive sensitivity
6MBit/s 25 -96
54MBit/s twenty -80
MCS0 25 -96
MCS7 19 -75

Parts included

The device has a pre-installed and licensed operating system. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years from the date of purchase.
