(LDF 5 ac) CPE and PtP in 5GHz 802.11 a/n/ac for Reflector Antennas \"Now with Higher Speed\"

  • 6dfa960266c06b4b64431013cf59b3f7
  • 848ce673c3464e7b9161065c725f3c7e
1 2

Out of stock

Modelo: RBLDFG-5ACD

Proveedor: MIKROTIK

Código SAT: 43222640

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

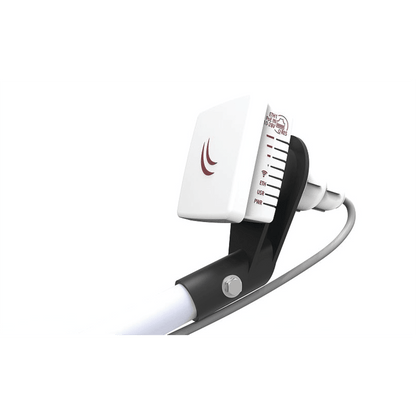

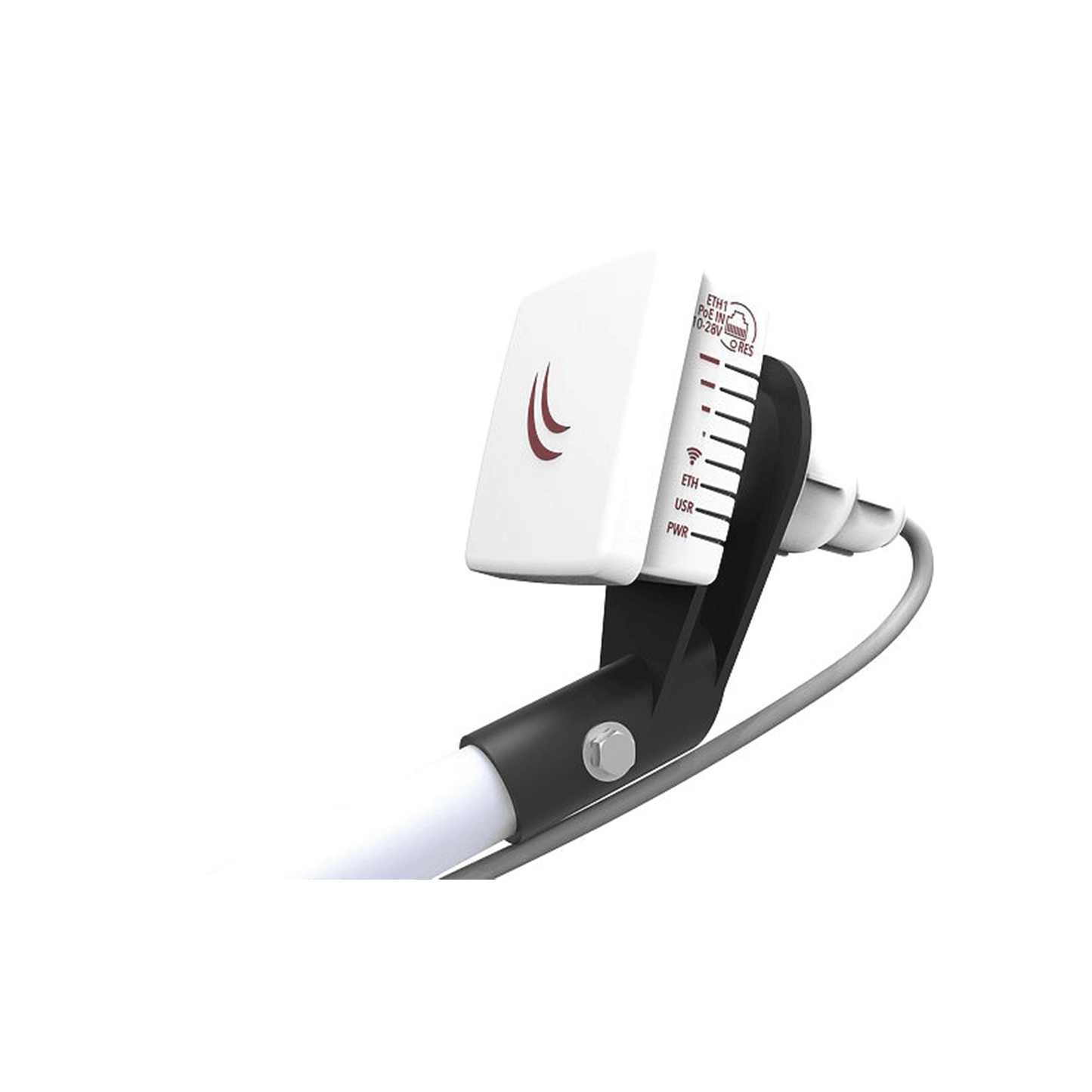

The LDF (Lite Dish Feed) is an outdoor wireless system with a built-in antenna, intended to be installed on offset satellite dishes. The dish will act as a reflector, amplifying the signal.

This means you can use any available satellite dish with an offset mount to quickly deploy powerful long-range wireless links. The offset mount is universal with 40 mm diameter, and the LDF can be easily placed inside it. Since the LDF itself is a small package, makes shipping and deployment simple and low cost.

LDF 5 ac is equipped with a Gigabit port and supports 802.11ac for higher performance.

Specifications

Details
Product code RBLDFG-5acD
Architecture ARM 32 bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716MHz
Dimensions 84mm x 84mm x 115mm
RouterOS License 3
OS RouterOS
RAM size 256MB
Storage size 16MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yeah

Feeding

Details
Number of DC inputs 1 (PoE-IN)
Maximum power consumption 8W
Fan count Passive
PoE in Passive PoE
PoE on input voltage 10-28V

Wireless specifications

Details
Maximum 5GHz wireless data rate 867 Mbit/s
Number of 5 GHz wireless chains 2
5 GHz wireless standards 802.11a/n/ac
dBi antenna gain for 5 GHz 9
5GHz wireless chip model IPQ-4018
5 GHz wireless generation Wi-Fi 5

ethernet

Details
10/100/1000 Ethernet ports 1

Certification and approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54

Wireless specifications

5GHz Transmit (dBm) Receive sensitivity
6MBit/s 25 -96
54 MBit/s twenty-one -80
MCS0 25 -96
MCS7 twenty -75
MCS9 18 -70

Parts included
