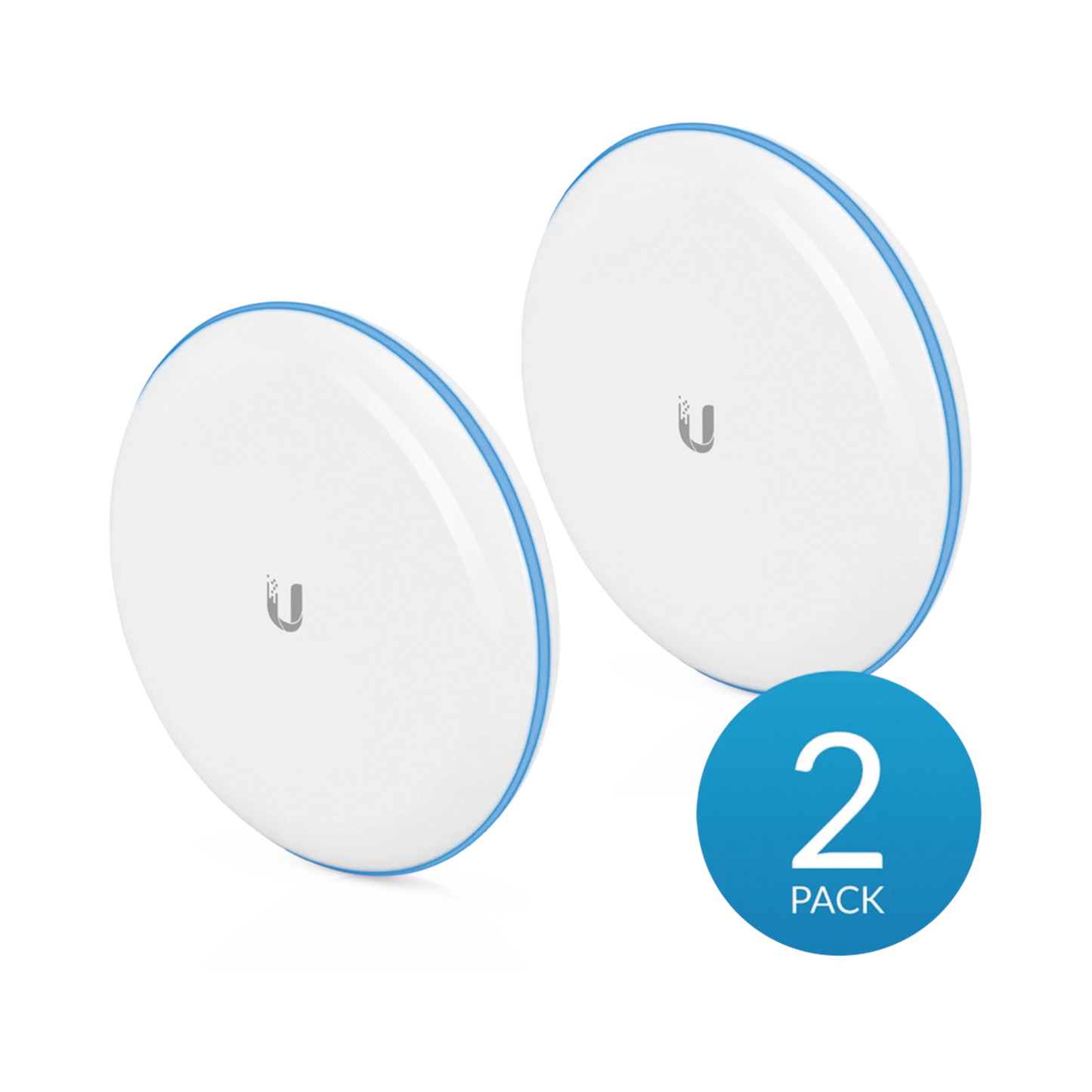

UniFi Building Bridge Kit 1+ Gbps in 60 GHz with redundant radio in 5 GHz, range up to 500 m

  • 0cd84ef7bae886fae4c14007df6aa2a8
  • 1aa3a3b7ee10ca6d84e99db4a88fa1a3
  • d3f0d5acc063a2d7e132867ffcbf4306
1 3
  • Low interference band at 60 GHz
  • 5 GHz radio for backup
  • Elegant industrial design
  • Easy to align
  • Pre-configured radios for quick installation using the UniFi app

18 in stock

Modelo: UBB

Proveedor: UBIQUITI NETWORKS

Código SAT: 43222640

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

UniFi Building-to-Building Bridge

The ideal solution for short-range, high-performance connectivity.
Two pre-configured devices are included in each package for quick deployment.

Easy to set up Plug & Play

High performance up to 1.7+ Gbps bi-directional

Range up to 500 m

60 GHz with redundant radio at 5 GHz

UniFi Controller makes connecting two networks seamless

Easy installation for the best LED sign

Use the LED indicator to adjust the position of the UBB for optimal signal to the other device.

bridge-animation

Easy to set up

The integration of the UniFi Building Bridge with the UniFi Controller makes connecting two networks seamless.

Product specification
Dimensions 140 x 140 x 90mm (5.51 x 5.51 x 3.54")
Weight 376g (13.3oz)
Antenna gain
2.4GHz (BLE)
5GHz
60GHz

2 dBi
10 dBi 17.2 dBi
GPS Forks
Max. TX Power 25 dBm (5 GHz)
Interfaces
Network
Administration
(1) 10/100/1000 Ethernet Port
Bluetooth
Enclosure UV-Resistant Polycarbonate
802.3af PoE support
Passive Power over Ethernet (48V)
Power supply UniFi PoE Switch
Giga 48V PoE Adapter 0.32A (Included)
Max consumption 11W
wind load 56 N @ 200 km/h (12.6 lbf @ 125 mph)
Wind survival 200 km/h (125 mph)
Mounting Pole Mounting (Included)
Wall mounting (Not Included)
ESD/EMP Protection ±24kV Contact/Air
Temperature -40 to 70° C (-40 to 158° F)
Humidity. 5 to 95% No condensation
Certifications CE, FCC, I.C.
Frequency Range (MHz)
Worldwide 5150 - 5875
57:000 - 66:000
US/CA U-NII-1: 5150 - 5250
U-NII-3: 5725 - 5850
57:000 - 66:000
Bluetooth (MHz)
Worldwide 2400 - 2483.5
