Galvanized metal double door kit 8 ft x 8 ft / Fire resistant for 180 min / UL

  • 2f4fb74daab716a123d2364ae0e953ea
1 1

Out of stock

Modelo: 5052AD

Proveedor: ASSA ABLOY

Código SAT: 30171505

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

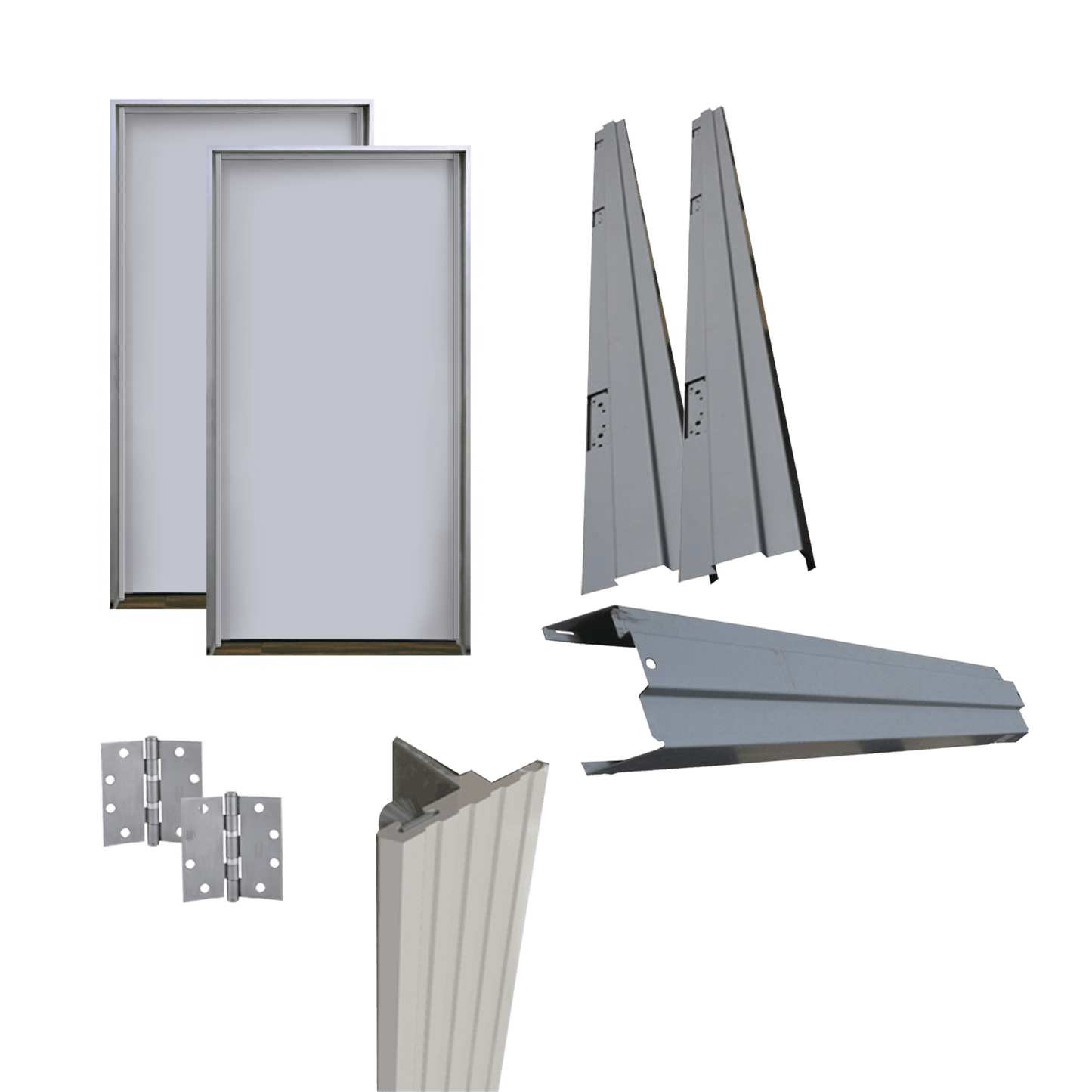

The Kit Includes:
2 x 5052A Galvanized Metal Door 4' 0" x 8' 0" / Fire Resistant for 180 min / UL
1 x 5057 Galvanized Hinge Jamb 8' 0" - 5 3/4" Right
1 x 5058 Galvanized Hinge Jamb 8' 0" - 5 3/4" Left
2 x 5040 Heavy Duty Bearing Hinge Kit UL Certification
1 x 5071 8 ft header for double door
1 x 5035 Astragal 96 in series 355CS

Special features:

  • Mechanically interlocked for strength and rigidity
  • Honeycomb core that provides natural resistance.
  • Reversed channels, ends welded to both face sheets


Description of each Door:

  • Fire resistant for 180 min.
  • 1-3/4” thickness.
  • Honeycomb interior.
  • “Interlocked” unions.
  • Inverted “Top/Bttm” channels.
  • 7 gauge hinge reinforcement.
  • “Prime” anti-corrosion finish.
  • Standard preparations.
  • UL certification.
  • STC 32 (in 18 gauge).
  • “Interlocked” unions.
  • Gauge: 18
  • 1,000,000 use cycles in 18 gauge.
  • Dimensions: 4'0” x 8'0”​
For the door to be fire resistant, additional accessories are required for each door:
  • Perimeter seal : model 5019
  • Sardinel: 5021 , or 5026, 5027 (option with stop).
  • Seal under door: 5017A or 5033 (with rubber).
  • Dropper : 5037 , (for use on doors facing outside).
  • Door closer: 84883.
*Optional you can use emergency door bar, mechanical lock and signaling.
