Lightning Rod Kit with Accessories for Protection with a Diameter of 300m.

  • eb54d6f8683a01172385592420dea585
1 1

Low stock: 9 left

Modelo: KITMASTER05V2

Proveedor: TOTAL GROUND

Código SAT: 39121600

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

The KDA-05 lightning arrester system is a lightning protection system (SPTE). It is used to intercept, conduct and dissipate lightning current and internal elements through joints, shielding and grounding. The goal of an SPTE is to reduce the risk of harm to both people and other living beings, as well as structures, buildings and their contents.

It offers 300m diameter of protection.

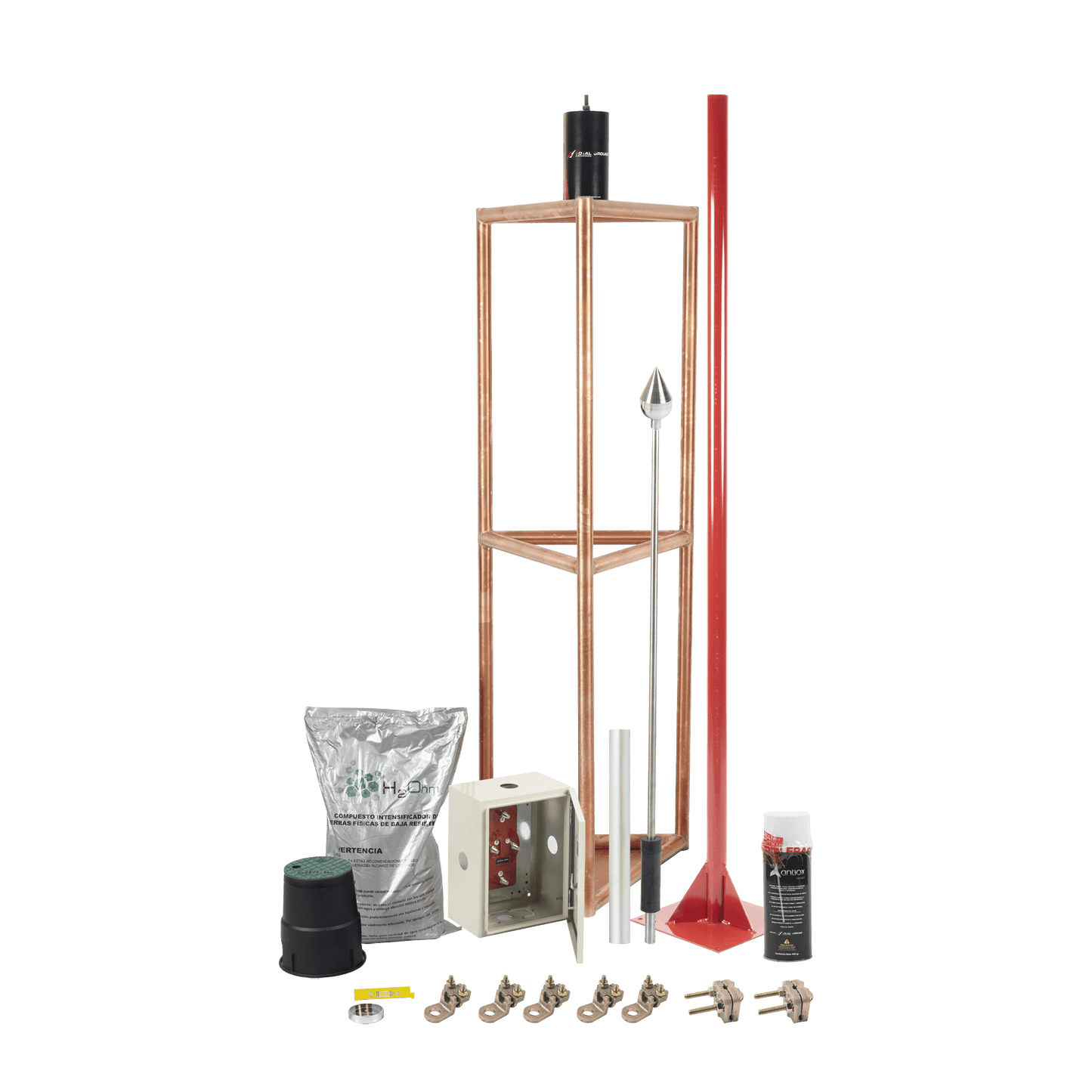

Includes the following components:

Amount

Model

Description.

1

KDA05

Lightning rod tip with 1.2m mast 1000 A electrode ( TG1000 ). 8 bags of 11 kg of soil improver ( H2OHM ).

5

TGCR14

Bronze Connector.

2 TGAB21 Rod connector.
1 ANTIOX Protective spray for connectors.
1 S1010

Registration for electrode.

1 BP/M2

Flat Base with Integrated 2 m Mast. for Punta Pararayos

Complementary accessories (Not included):

Amount Model

Description
--

SLY349BLK

 THW-LS Covered Copper Cable Gauge 2/0 AWG.
1

TGCDA

 Atmospheric Discharge Counter.
-- TGAC orTGAC114 Insulator for drop cable.

Description of Tip KDA05.

Lightning-capturing and current-conducting tip designed in high-conductivity aluminum, which is part of an external protection system against electrical storms (SEPTE), to reduce the risk of damage that can be caused by lightning.
It seeks to reduce the incidence of falls by up to 95% due to its magnetoactive operation.

It is recommended to take into account Standard NMX-J-549-ANCE-2005, which suggests that a protection system against thunderstorms (SPTE) must have an internal protection system against thunderstorms (SIPTE) and another external storm protection system. electrical (SEPTE).

The KDA-05 tip is part of the external protection, while the internal part corresponds to the TOTAL GROUND Suprector brand transient surge suppressors (SSTT).
