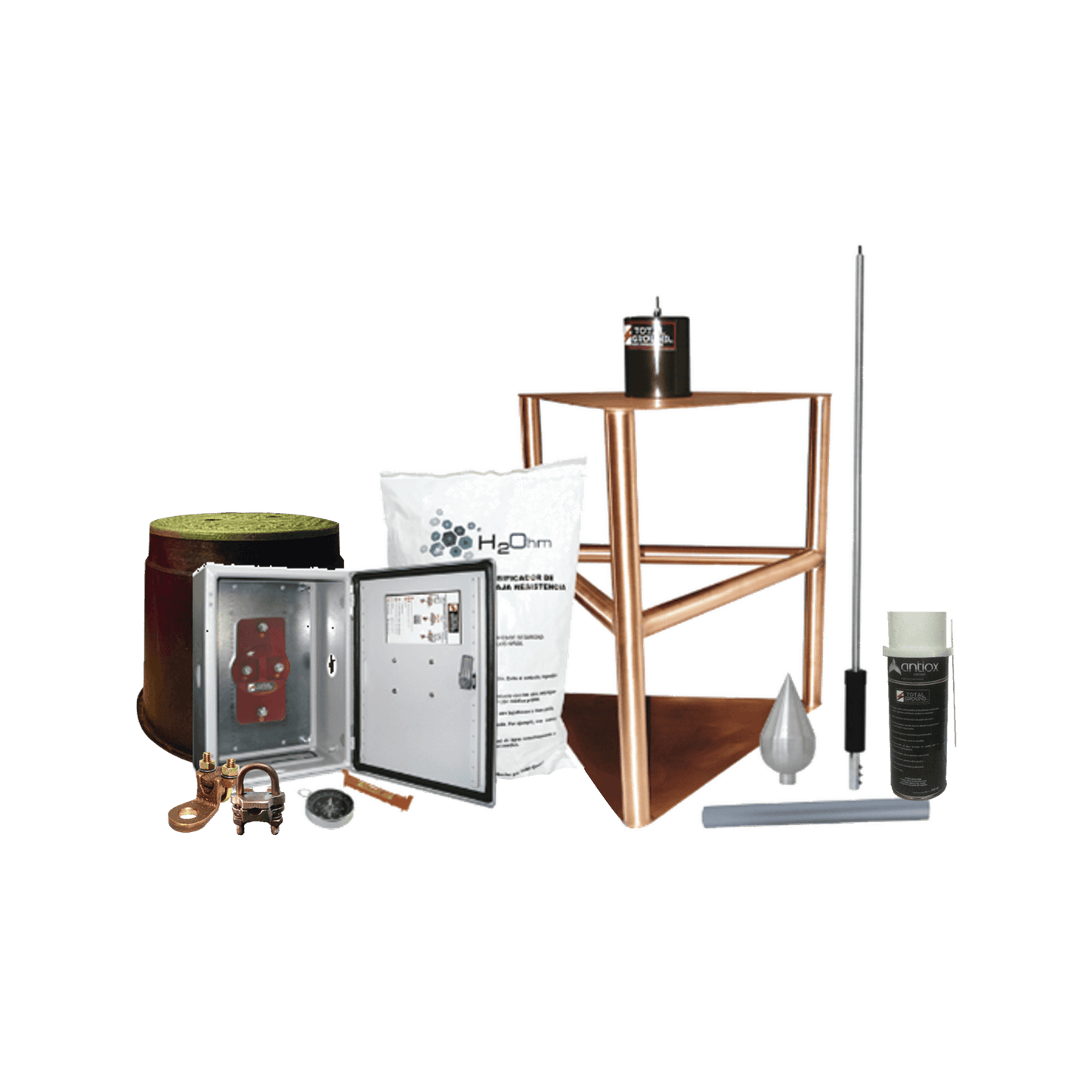

Lightning Rod Kit with Tower Installation Accessories for Protection of 200 m Diameter.

  • 769e1a9bcf7f2fb0494acf7451f81b7a
1 1
  • Protección hasta 200m de diámetro
  • Punta pararrayos con mástil de 1.2m
  • Electrodo TG700 con capacidad de 700 A
  • 4 sacos de mejorador de suelo H2OHM
  • Conectores de bronce y varilla incluidos

Out of stock

Modelo: KITMASTER03T

Proveedor: TOTAL GROUND

Código SAT: 39121600

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

The KDA-03 lightning rod system is a lightning protection system (SPTE). It is used to intercept, conduct and dissipate lightning current and internal elements through joints, shielding and grounding. The goal of an SPTE is to reduce the risk of harm to both people and other living beings, as well as structures, buildings and their contents.

It offers 200m diameter of protection.

Includes the following components:

Amount Model Description.

1

 KDA03

Lightning rod tip with 1.2m mast 700 A electrode ( TG700 ). 4 11 Kg bags of soil improver ( H2OHM ).

5

TGCR14

 Bronze Connector.
2 TGAB21 Rod connector.
1 ANTIOX Protective spray for connectors.
1 S1010 Registration for electrode.

Complementary accessories (Not included):

Amount Model

Description
--

SLY349BLK

 THW-LS Covered Copper Cable Gauge 4/0 AWG.
1

TGCDA

 Atmospheric Discharge Counter.
-- TGAC orTGAC114 Insulator for drop cable.
2 SMMK4 or SMMK4E
 Mast Adapter Hardware for Diameters from 3/4" to 2-1/4".

Description of Tip KDA03.

Lightning-capturing and current-conducting tip designed in high-conductivity aluminum, which is part of an external protection system against electrical storms (SEPTE), to reduce the risk of damage that can be caused by lightning.
It seeks to reduce the incidence of falls by up to 95% due to its magnetoactive operation.

It is recommended to take into account Standard NMX-J-549-ANCE-2005, which suggests that a protection system against thunderstorms (SPTE) must have an internal protection system against thunderstorms (SIPTE) and another external storm protection system. electrical (SEPTE).

The KDA-03 tip is part of the external protection, while the internal part corresponds to the TOTAL GROUND Suprector brand transient surge suppressors (SSTT).
