VISTA48 Wireless Panel Kit with 6160RF Alphanumeric Keyboard, Receiver for Wireless Sensors, Battery, Transformer, 2 5816 Magnetic Contacts with magnet, 1 5800PIR Motion Sensor and a Remote Control

Alarm panel for residential applications, businesses or offices.

System:

• Programming by alphanumeric keyboard, Downloading software.

• Maximum 8 keyboards, supports alphanumeric keyboards, icon-based and touch-sensitive; maximum 2 (auxiliary power source suggested).

• Entry time defined by the installer.

• 2 programmable entry and exit zones with different times.

• Automation functions.

• Auto arming and disarming function.

• Supports 4204 relay module, maximum 4.

• 250 events in memory. The memory can be read with COMPASS Downloading software.

• 3 partitions with the option to configure one as a lobby.

• Confirmation of arming and disarming.

• Configurable partial auto.

• 2 A siren output.

• 2 programmable voltage outputs.

• Telephone line cut detection.

• Auxiliary current of 600 mA

• 16 Vac power input.

Zones:

• 8 programmable zones, Configurable with or without end-of-line resistor.

• Zones can be configured for fast or slow response.

• Zone duplication capacity.

• In zone one it supports up to 16 two-wire smoke detectors.

• Supports 4-wire smoke detectors.

• Supports 40 wireless zones by adding the Honeywell 5800 receiver.

• 24 types of configurable zones.

• 16 additional zones for portable controls.

• Supports expansion module for wired zones 4219 and 4229.

• 100% wireless system supervision.

• Range up to 60 m on the wireless 5800 series.

Users:

• 48 user codes.

• 6 levels of authority: installer, teacher, standard, guest, only arming and coercion.

• Quick assembly system.

• 5 levels of arming: total, partial, night, instant and maximum.

• Open door warning (CHIME).

Communication:

• Built-in communicator for communication with the Alarm Receiving Center.

• Supports 4+2 and CONTAC/ID communication formats.

• Supports dual and split reporting option.

• Compatible with Third Generation 3i communication systems.

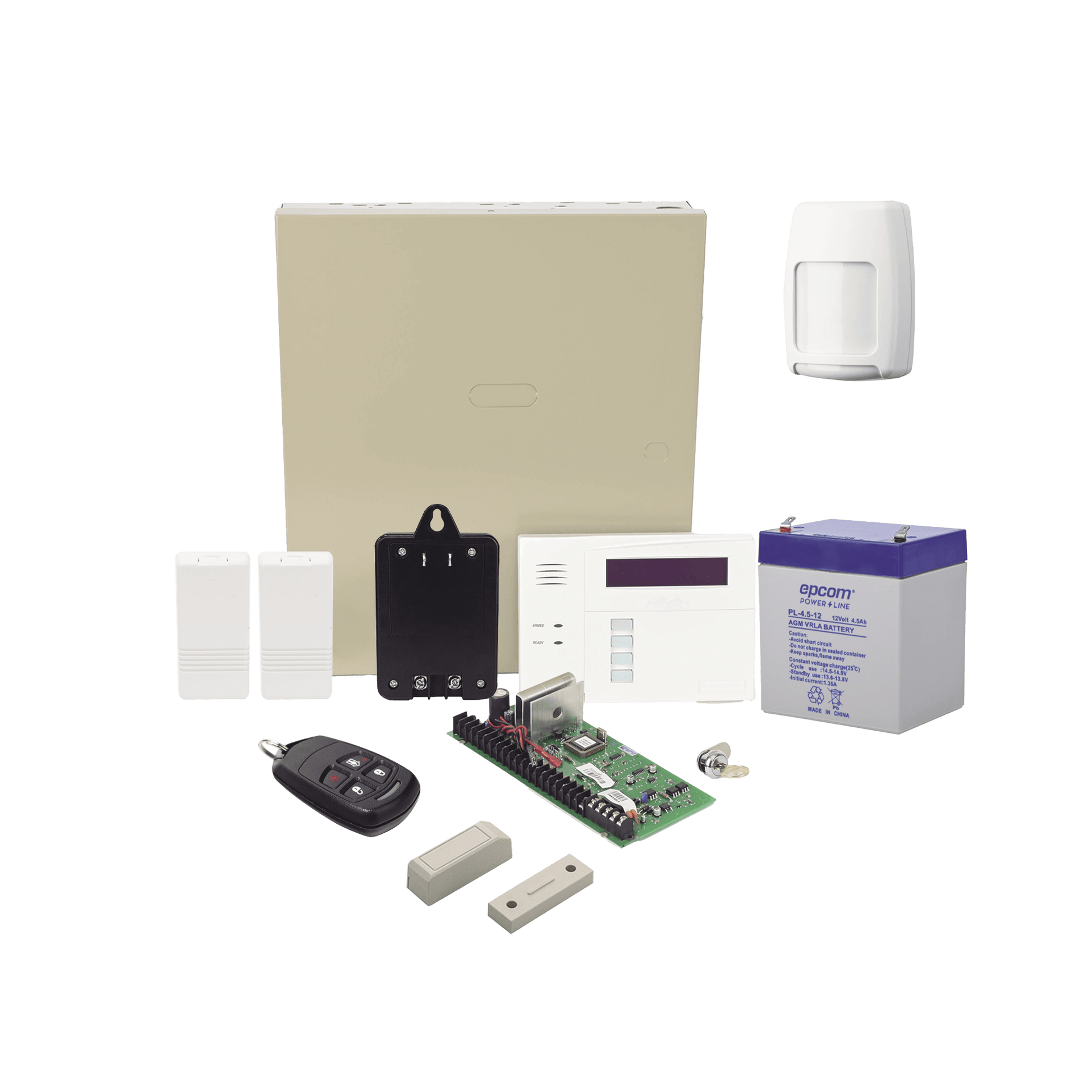

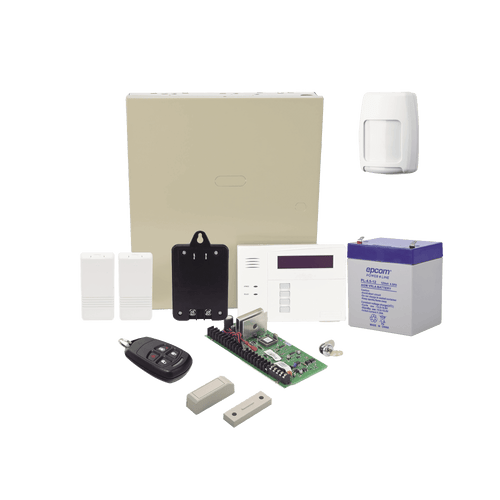

Includes:

» VISTA48 Alarm Panel, keyboard with wireless receiver and VISTA48/6160RF cabinet

» 5800PIR wireless motion sensor

» 2 magnetic contacts 5816

» 2 Contacts with SF2031 magnets

» Wireless remote control 58344

» 16.5Vac transformer

» 4Ah PL4.512 battery

*1 year warranty.
