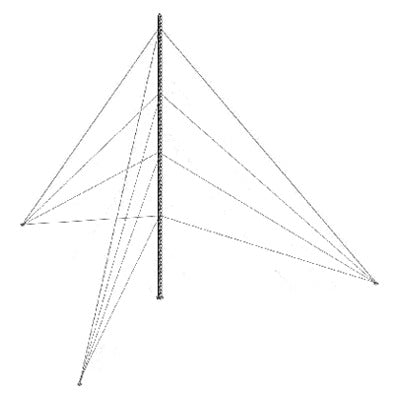

3 m Height Floor Arrived Tower Kit with Hot Immersion Galvanized STZ-35G Section (Not included retained).

  • 5d0f0770cf7929a2d53b8c06f4fab1f2
  • 5d0f0770cf7929a2d53b8c06f4fab1f2
1 2
  • Certificación ISO 9001:2015, calidad garantizada
  • Galvanizado en caliente según NMX-H-004-SCFI-2008
  • Carga axial máxima soportada: 350 kg
  • Resistencia al viento hasta 200 km/hr
  • Ideal para zonas costeras e industriales

12 in stock

Modelo: KTZ-35G-003

Proveedor: SYSCOM TOWERS

Código SAT: 43222903

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Featured Features:

  • Product manufactured under regulations ISO 9001:2015.
  • High Elevation / Low Cost.
  • 100% Section-to-Section Assembly Inspection.
  • Hot Dip Galvanized according to NMX-H-004-SCFI-2008.
  • Ideal for high humidity coastal areas or industrial areas.

Physical Characteristics:

  • Maximum Axial Load: 350 Kg.
  • Height: 3 meters (1 section).
  • Wind resistance: 200 km/hr.
  • Anticorrosive protection: Hot-dip galvanizing (NMX-H-004-SCFI-2008).
  • Application: Outdoor (Wet Areas).

Includes the following components:

Amount MODEL Description
1 STZ35G Tower section with a face width of 35 cm.
1 SCZ35PG 35 cm tower cap with lightning rod suppressor.
1 SBZ35G Base for 35 cm tower.
1 SAB45G Anchor for 35/45 tower base.
1 SJB35G Retained clamping flange.
3 SAZ45G Floor anchor for Retained.
6 NECK-14-HDG Collar for guy wire
18 NUDO-316-FJG 3/16" dog clamp.

Does not include retaining cable. 20 meters of 3/16" retaining line is recommended (SRET-474-CAM either SRET-316-DA ) or larger diameters.

Does not include Tensioners. 3 5/8" x 9" turnbuckles are recommended. (TEN5/8X9OGJ o TEN5/8X9OQJ).

**He NO Using installation accessories such as Flanges, Tower Base, Tower Anchor or Retaining Anchors is considered a loss of equipment warranty and any additional adaptation is the responsibility of the installer.**

Complementary accessories (Not included):

Signaling/Lighting System (Not included):
Amount MODEL Description
2 EIGSLSE LED type strobe Autonomous with photocell, solar panel and battery. Type L810.
2 HLU3R2 EIGSLSE Obstruction Lamp Assembly

*The signage standard dictates that the tower must be painted in 7 stripes of equal size; 4 stripes in a reddish-orange tone and 3 in white.

Lifeline system (Not included):

Amount MODEL Description
1 SHE-LV Pair of clamping hardware
1 S-FLOOR Guide for line
5 SRET-338CAM 3/8" Cable
6 NUDO-38FJG 3/8" Forged Knot
2 NECK-38-HDG Neck 3/8"
1 TRY-ACC-SLIDER (Optional) Safety Cart for Installer.
1 SYS-USA7B (Optional) Suspension Harness.

*The NOM-009 Brand the use of systems that stop accidental falls into a structure is mandatory.

Recommended Physical Grounding System for Tower and Equipment Mounted on It (Not included):

Amount MODEL Description
1 TG45AB 45A Grounding Electrode with Electrode, Filter and H2Ohm Compound
1 S610 Plastic register.
3 TGCR11 Eye Connector
2 TGAB18 Rod Connector
1 TGBUSG10 Tie Bar with 1000A Capacity Insulators (Without Cabinet)
* It is recommended to use cal. coated copper cable. 4 AWG (SLY-287-GRN) for landing the electrode on the tower. For tower equipment, lime can be used. 6 AWG (SLY-291-GRN).

Basic Lightning Rod System Recommended for Tower (Not included):
Amount MODEL Description
1 TGTDPC Lightning rod tip with aluminum mast (MASTIL1.2)
1 TG45AB 45 Amp electrode. With a bag of impedance enhancing compound (H2OHM), compass and level.
1 S610 Small plastic register.
1 ANTIOX Aerosol for terminal protection.
3 TGCR11 Eye Connector.
2 TGAB18 Rod Connector.
2 TGAC114

Tower insulator.
*Dipole tip provides a 72° cone of protection beneath the coil. It is recommended for areas with low incidence of lightning.
*2/0 gauge copper wire is recommended for integration (SLY-346-BLK). Considering an electrode installation at a maximum of 3 meters from the tower, approx. 8 meters.
See Physical Ground + Lightning Rod connection diagram in the following DIAGRAM.

Recommendations:

Make sure the installation is performed by a trained professional.
Schedule a maintenance plan to check tension on retainers and tighten bolts.
Do not install solar panels higher than 6 meters. Check compatibility between solar cells and mounts.
A stress study must be performed when placing an eccentric load on a tower. This can cause excessive torsion and bending in the tower causing structural failures.
The tower must be painted in tone orange-reddish and white, in 7 bands of equal height starting and ending in reddish orange (SYSCOM does not carry out the painting work on the tower).
It is recommended to illuminate the tower at least at the top with a red lamp.
Representative Diagram: Retained Water Installation Version 2.0

Installation Images
