15 meter Floor Braced Tower Kit with Hot Galvanized STZ30G Section. (Does not include retention).

  • 5d0f0770cf7929a2d53b8c06f4fab1f2
  • 5d0f0770cf7929a2d53b8c06f4fab1f2
1 2
  • Certificación ISO 9001:2015 para calidad garantizada
  • Galvanizado en caliente según NMX-H-004-SCFI-2008
  • Resistencia al viento hasta 200 km/hr
  • Altura total de 15 metros (5 tramos)
  • Aplicación para zonas costeras e industriales

17 in stock

Modelo: KTZ-30G-015

Proveedor: SYSCOM TOWERS

Código SAT: 43222903

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Featured Features:

  • Product made under ISO 9001:2015 Regulations.
  • High Elevation / Low Cost.
  • 100% Assembly Inspection Section - Section.
  • Hot Dip Galvanized according to NMX-H-004-SCFI-2008 .
  • Ideal for high humidity coastal areas or industrial areas.

Physical Characteristics:

  • Maximum Axial Load: 200 Kg.
  • Height: 15 meters (5 sections).
  • Wind resistance: 200 km/hr.
  • Anticorrosive protection: Hot dip galvanized (NMX-H-004-SCFI-2008).
  • Application: Outdoors (Wet Areas).

Includes the following components:

Amount Model Description
5 STZ30G Tower section with a face width of 30 cm.
1 SCZ30PG 30 cm tower cap with oppressor for lightning rod.
1 SBA30G Base for 30 cm tower.
1 SAB30G Anchor for tower base.
3 SJB30G Retained clamping flange.
3 SAP02G Floor anchor for Held.
18 NECK-14-HDG Collar for retaining cable
54 NUDO-316-FJG 3/16" dog clamp.

Does not include retention cable. 160 meters of 1/8" retention ( SRET-318-CAM) or larger diameters are recommended.

Does not include Tensioners . 9 1/2" x 6" turnbuckles are recommended. ( TEN1/2X6OGJ or TEN1/2X6OQJ ).

** NOT using installation accessories such as Cable Ties, Tower base, Tower Anchor or Holding Anchors, It is considered a loss of warranty on the equipment and any additional adaptation is the responsibility of the installer.**

Complementary accessories (Not included) :

Signaling/Lighting System (Not included) :
Amount Model Description
2 EIGSLSE Autonomous LED type strobe with photocell, solar panel and battery. Type L810.
2 HLU3R2 EIGSLSE Obstruction Lamp Assembly

* The signage standard dictates that the tower must be painted in 7 stripes of equal size; 4 stripes in orange-reddish tone and 3 in white.

Lifeline system (Not included) :

Amount Model Description
1 SHE-LV Pair of fastening hardware
1 S-GULV Line guide
18 SRET-338CAM 3/8" cable
6 NUDO-38FJG Forged knot 3/8"
2 NECK-38-HDG 3/8" neck
1 TRY-ACC-SLIDER (Optional) Security Cart for Installer.
1 SYS-USA7B (Optional) Suspension Harness.

*NOM-009 makes it mandatory to use systems that stop accidental falls into a structure.

New! Lightning Rod + Ground Kit with Cable. LINKEDPRO brand (Not included)

KLP-TZ15-PRO . - All inclusive! Ideal for 15 m towers with crown dipole, wiring and electrodes with 10 years warranty.

Or you can also quote individually the following components of Physical Earth or Lightning Rod:

Recommended Physical Ground System for Tower and Equipment mounted on it (Not included) :

Amount Model Description
1 TG45AB 45 A grounding electrode with Electrode, H2Ohm Filter and Compound
1 S610 Plastic record.
3 TGCR11 Eye Connector
2 TGAB18 Rod Connector
1 TGBUSG10 Junction Bar with 1000A Capacity Insulators (Without Cabinet)
* It is recommended to use lime sheathed copper cable. 4 AWG ( SLY-287-GRN ) for electrode landing to the tower. For tower equipment, lime can be used. 6 AWG ( SLY-291-GRN ).

Recommended Basic Lightning Rod System for Tower (Not included):
Amount Model Description
1 TGTDPC Lightning Rod Tip with Aluminum Mast (MASTIL1.2)
1 TG45AB 45 Amp electrode. With a bag of impedance improving compound (H2OHM), compass and level.
1 S610 Small plastic register.
1 ANTIOX Aerosol for terminal protection.
3 TGCR11 Eye Connector.
2 TGAB18 Rod Connector.
10 TGAC

Tower insulator.

*Dipole tip offers a 72° cone of protection under the coil. It is recommended for areas with low incidence of lightning.
*2/0 gauge copper cable is recommended for integration ( SLY-346-BLK ). Considering an installation of the electrode at a maximum of 3 meters from the tower, approx. 8 meters.
See Ground + Lightning Rod connection diagram in the following DIAGRAM .

Recommendations:

Make sure installation is done by a trained professional.
Schedule a maintenance plan to check tensions in retainers and tighten hardware.
Do not install solar panels more than 6 meters high. Check compatibility between solar cells and mounts.
A stress study must be carried out when an eccentric load is placed on the tower. This can cause excessive torsion and bending in the tower causing structural failure.
The tower must be painted in a reddish-orange and white tone , in 7 stripes of equal height starting and ending in reddish-orange (SYSCOM does not carry out the painting work on the tower).
It is recommended to illuminate the tower at least at the tip with a red lamp.

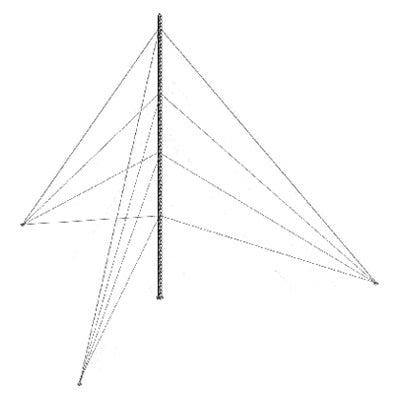

Representative Diagram: Installation of Retained Version 2.0

Installation Images

ROHN LOGO
