Laser Sensor and Remote Control Kit / Avoid using magnetic ties / Protects lanes up to 9.6 m wide and 9.6 meters deep

  • a0be94a5b49d750e754e8ba3ab4d7f11
  • b6716e96527616a59aedb8e31ff1ea9b
  • b117642b3c3ef0c663b4490afbf39bb8
  • a51f300b8e78d4989896427b48acc06f
  • 78b8cd29f092019b51c44da10255ee0f
1 5
  • Includes remote control

18 in stock

Modelo: 10LZR-H100KIT-19327

Proveedor: BEA

Código SAT: 46171619

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
Main features:
  • Laser Technology.
  • Detection mode: Motion and presence.
  • Detection range: 9.6 x 9.6 m.
Physical and Electrical Characteristics:
  • Operating voltage: 12 to 24 VDC.
  • Maximum consumption 5 W.
  • Maximum current 1.8 A.
Featured Features:
  • Time of flight technology.
  • NEMA 4 protection grade.
  • Activation and safety signs.

Applications - Vehicular barriers, folding or sliding gates and roller blinds

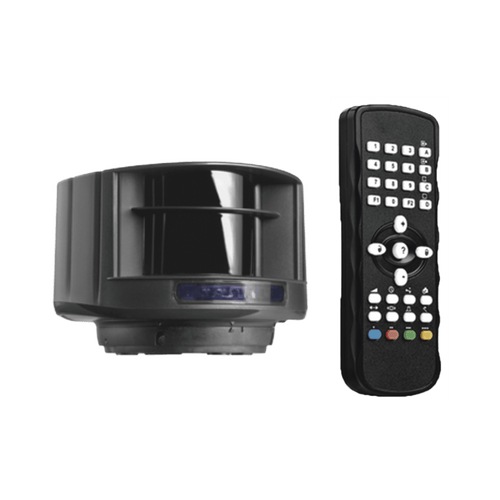

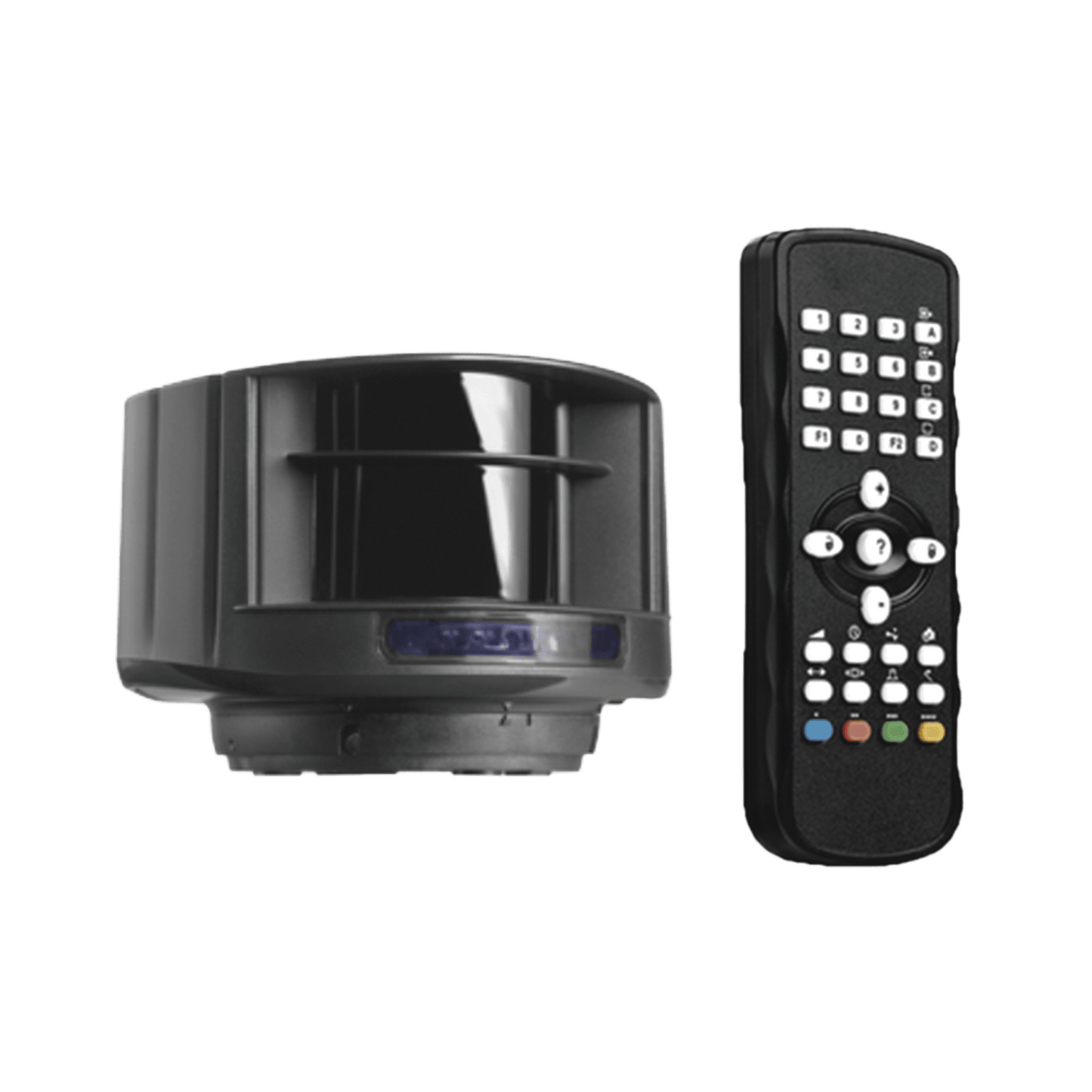

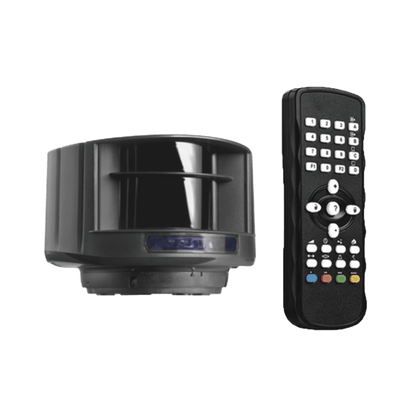

What does the kit contain?

  1. Sensor 10-LZR-H100 , laser sensor.
  2. Remote control for configuration model 10-REMOTE

What do I need to quote?

  1. Support for barrier or pedestal mounting (Not included). Makes installation easier. Model 10-LBA
  2. Power supply 12 Vdc 1 A regulated for the power supply of the equipment (Not included). Recommended model: PL-DC-1000 or equivalent.

Optional accessory to quote

  • Pedestal bollard to mount the 10-LZRH100 sensor (Not included). Model 10-BOLLARD-BLK

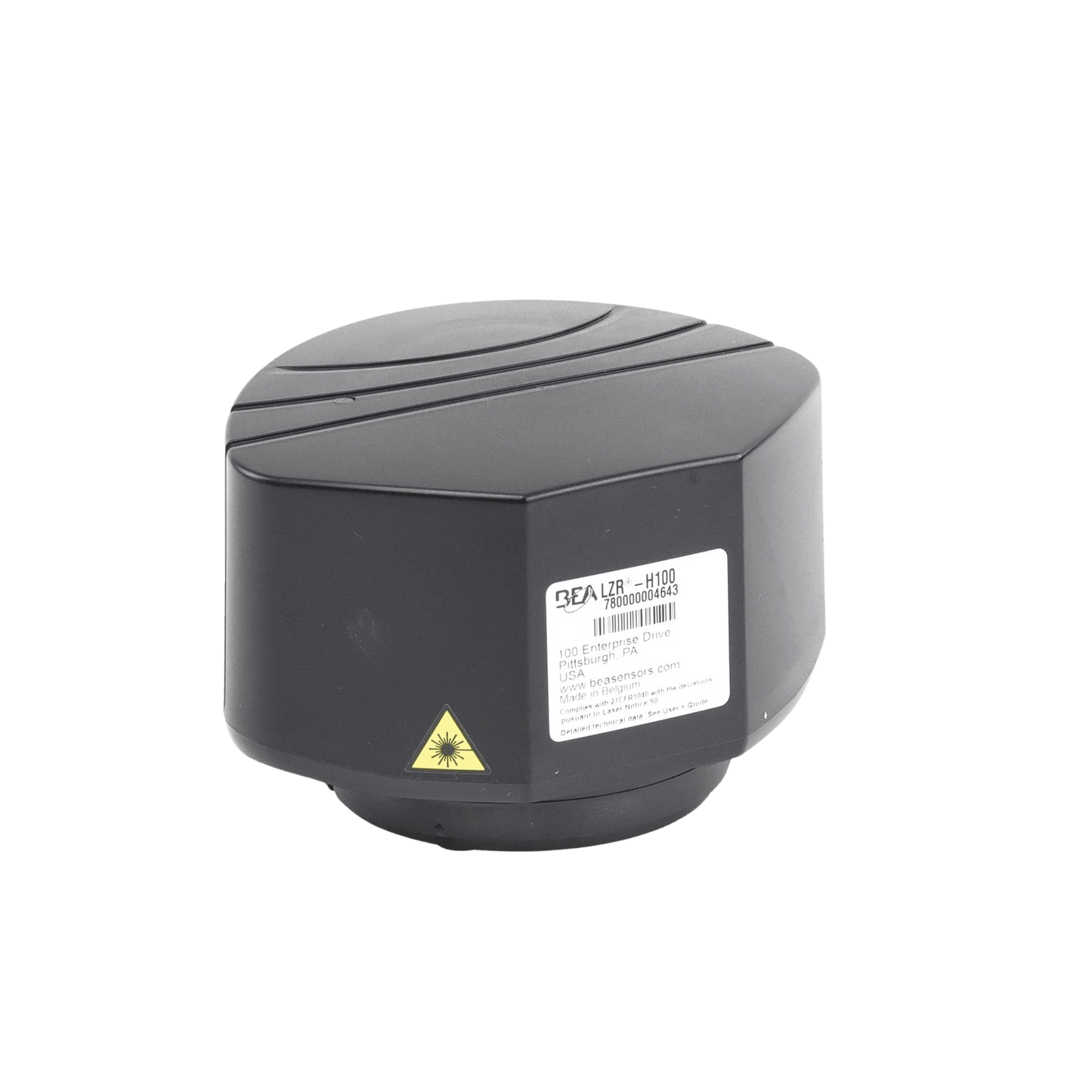

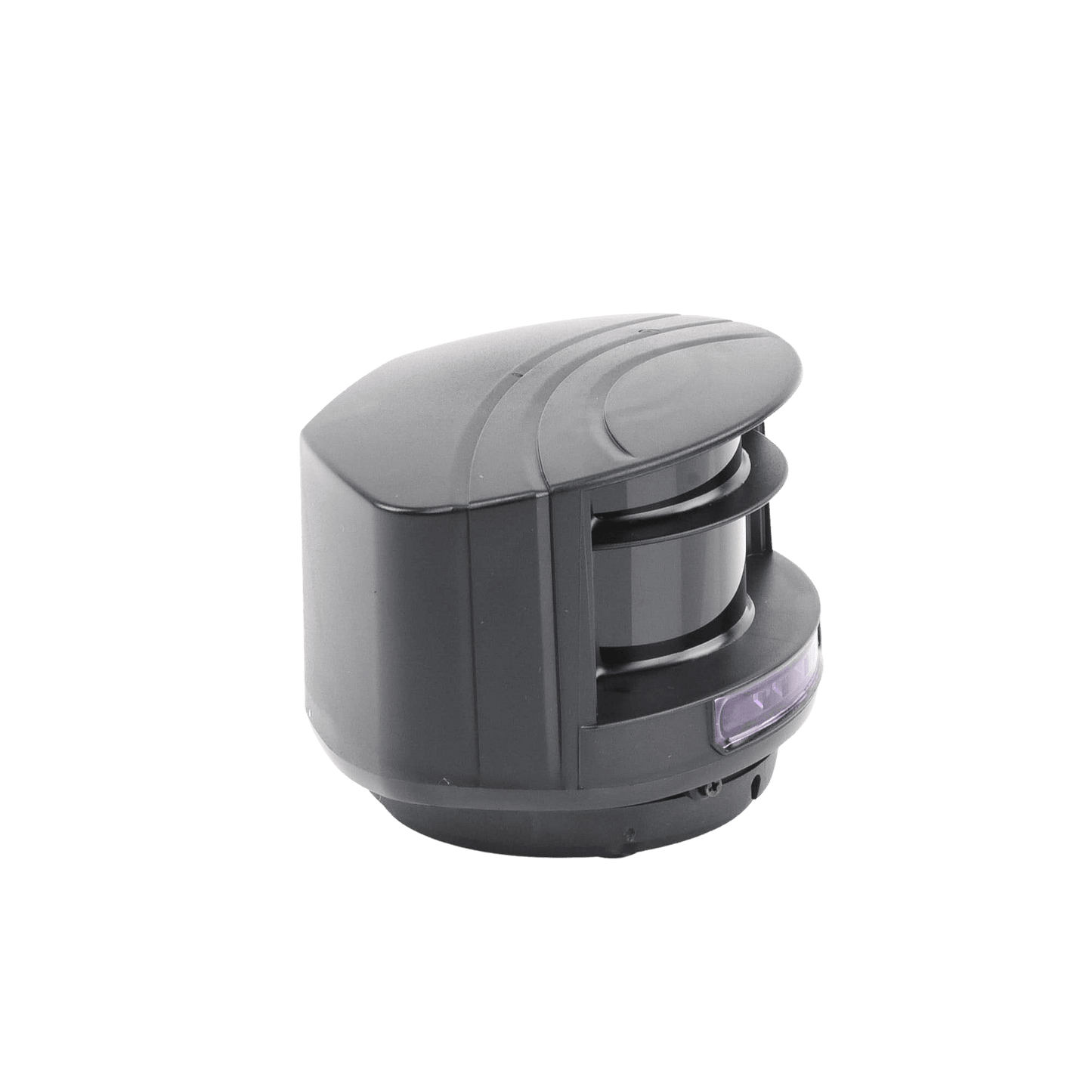

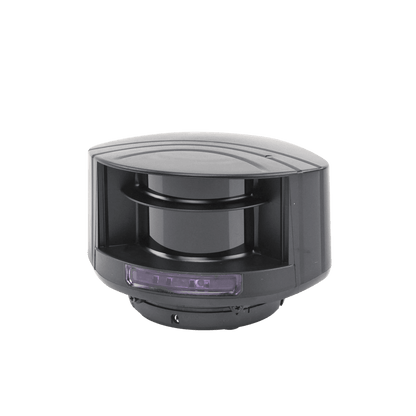

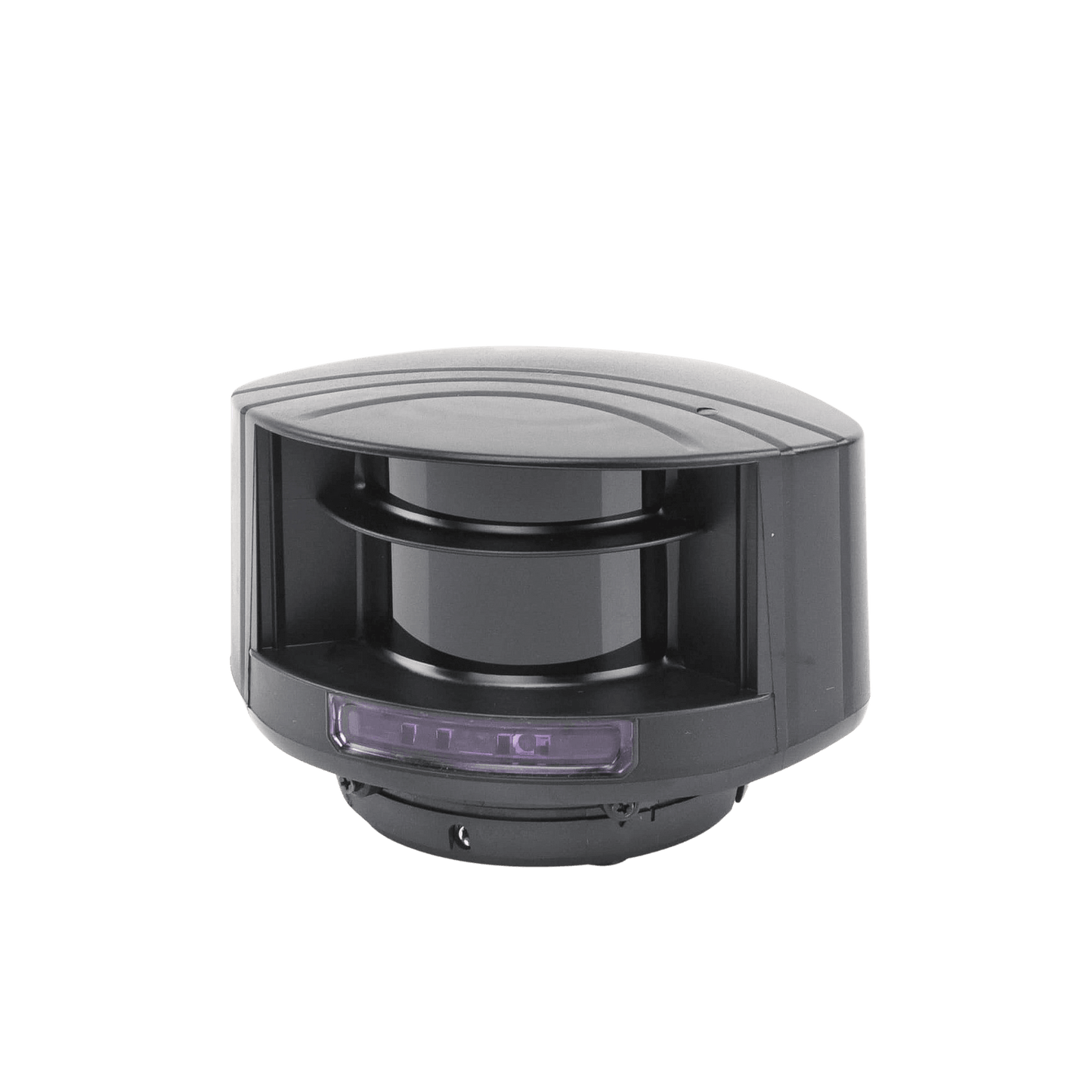

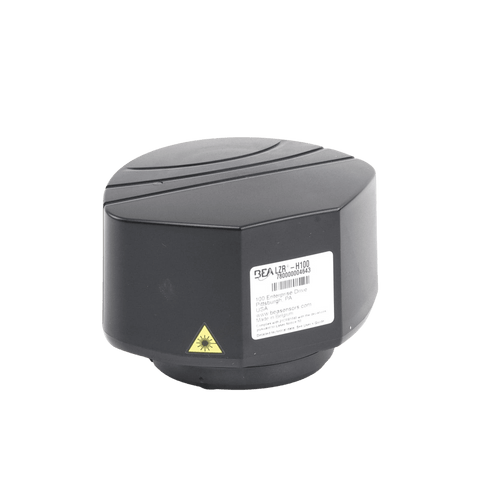

BEA's 10-LZR-H100 sensor is a sensor based on Time of Flight laser technology. It is designed for door applications, gates and vehicle barriers.
This solution provides 4 laser curtains, which offer a three-dimensional detection zone for precise object detection. These laser curtains are highly configurable and can be adjusted for opening function, security and presence detection in vehicle sensing applications.

The 10-LZR-H100 is a safe and highly competitive alternative for locations where it is not possible to install magnetic loops, this due to restrictions applied by the end user or inconveniences that limit the installation area.
The sensor is encapsulated in a NEMA 4 enclosure. ensuring excellent performance in outdoor applications.
