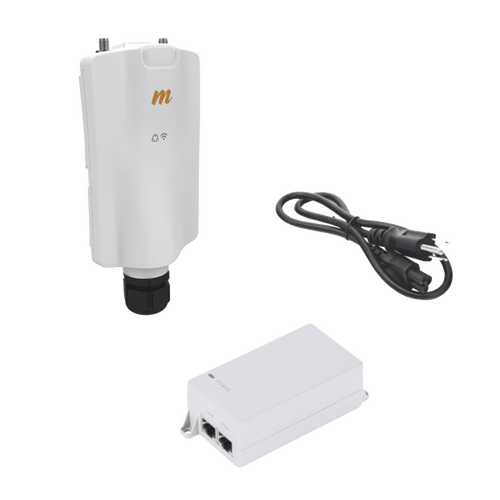

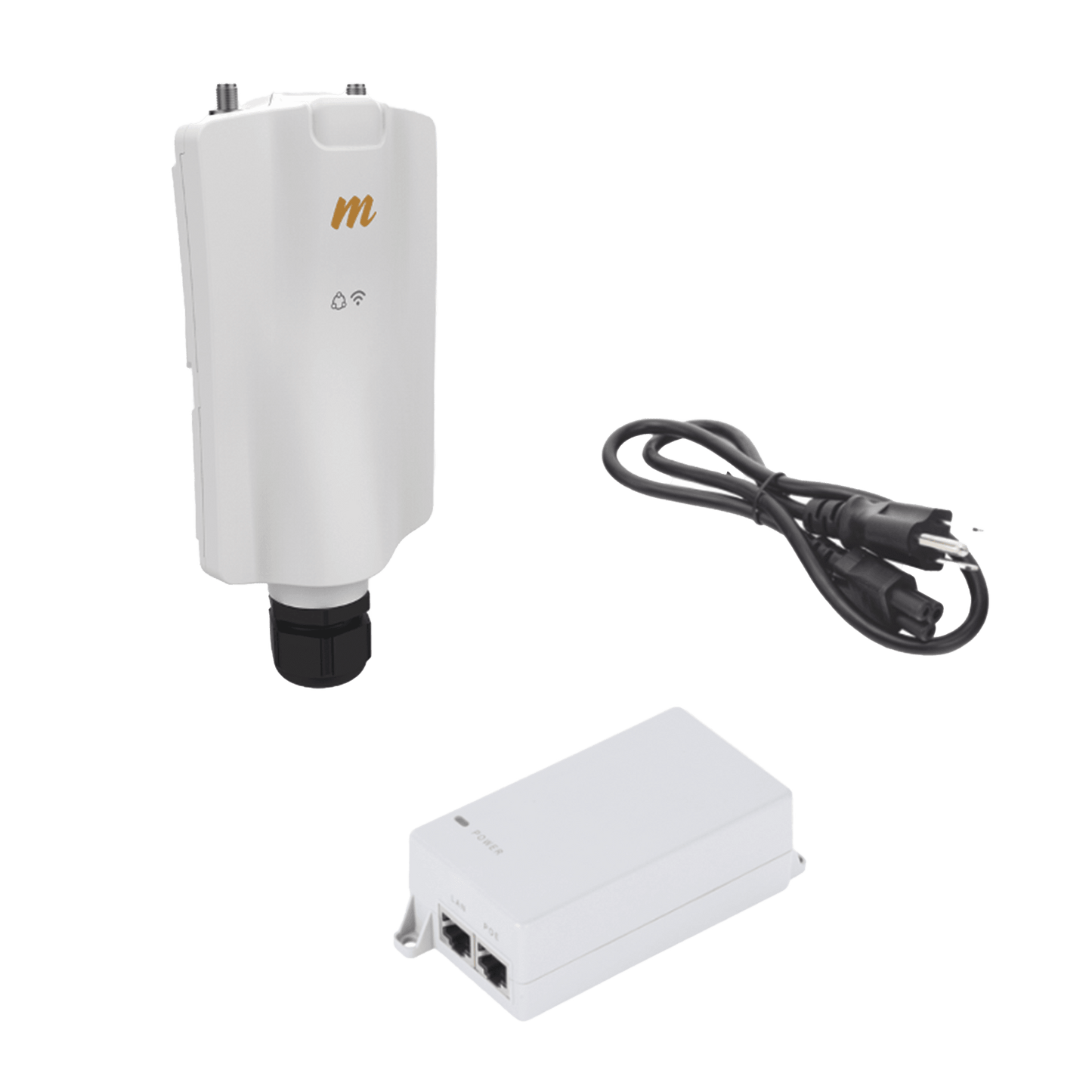

A5x radio kit, 700 Mbps, up to 64 concurrent users, cloud-based monitoring, including POE24V and PCC53 power cable

  • ead34e6f4fa9a9356b14c970e18ac7b0
1 1
  • 700Mbps
  • 64 concurrent clients
  • Frequency from 4.9 to 6.4 GHz

Out of stock

Modelo: A5XPACK

Proveedor: MIMOSA NETWORKS

Código SAT: 43222640

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


• Main features of the A5x.

  • Puerto Ethernet 10/100/1000
  • Advanced Security: WAP;AES; RADIUS; 802.1x Authorization.
  • Maximum performance up to 700 Mbps aggregate speed in DL/UL.

Modes of operation:

PTMP:

  • Access point.

Radio

  • MIMO and modulation: 4 x 4 MIMO OFDM above MCS9 (256-QAM 5/6).
  • Channel width 20/40/80 MHz
  • Maximum transmission power: 27 dBm.
  • Outdoor: IP67.
  • Temperature range: -40 to 55 °C (-40 to 131 °F)
  • Frequency 4.9 - 6.4 GHz
Customer capacity:
  • 64 Clients WiFi Interoperability.
  • 44 Clients in spectrum synchronization and reuse

Physical and electrical characteristics

  • Maximum power consumption: 9-12.9 W
  • Passive POE power: 24-56 Vdc
  • Does NOT include POE injector

Dimensions:

  • Depth: 44mm
  • Width: 75mm
  • Height: 188.4mm
  • Beet : .30 kg. ( 0.70 lbs)

Note : the equipment already includes an internal download counter protector, It is recommended to land on a physical earth.
