100 Amp Grounding Kit with Electrode, Filter and H2Ohm Compound.

  • c4c0c6e71c3cbcdef5e8562f1b718742
  • c4c0c6e71c3cbcdef5e8562f1b718742
1 2
  • Resistencia menor a 2 ohm para seguridad óptima
  • Instalación sin mantenimiento por hasta 20 años
  • Cobre electrolítico altamente conductivo y anticorrosivo
  • Compuesto H2OHM con certificado de no toxicidad
  • Acoplador de impedancia con filtración baja frecuencia LCR

69 in stock

Modelo: TG-100-AB

Proveedor: TOTAL GROUND

Código SAT: 39121436

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

TOTAL GROUND brand grounding electrodes must be installed in conjunction with our ground improving compound to ensure a resistance of less than 2 Ohm (in most cases) and a corrective maintenance-free installation for up to 20 years.

Magnetoactive electrodes include a compass and level to ensure professional integration.

CHARACTERISTICS

Electrode

TOTAL GROUND brand grounding electrode model TG-100AB. Made of highly conductive electrolytic copper, specially treated to retard the effects of corrosion.

H2OHM compound

H2Ohm organic base, made with hygroscopic moisture coagulant material that has a LAPEM testing certificate and a laboratory certificate accredited to EMA, with values ​​within the CRETIB standard of non-toxicity or damage to the environment

Impedance Coupler

Impedance coupler built into LCR low frequency filtration device mounted on structure with 3 1/2 inch connection terminals.

DESCRIPTION:

  • Unit of Measurement: Kit
  • Description: Magnetoactive Electrode.
  • Capacity: 100 Amperes.


RECOMMENDED APPS:

The TG-100AB electrode is used for grounding:

  • computing SITES. ( See Selection Guide ).
  • Transformers. ( See Selection Guide ).
  • Telecommunications racks.
  • Satellite systems.
  • Radio frequency systems.
  • Industrial control systems.

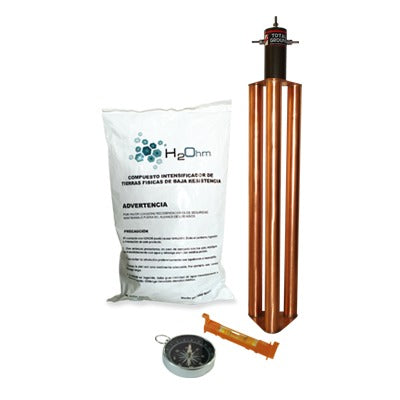

Includes the following components:

Amount Model Description
1 TG100AB Electrode.
1 H20HM 11 kg bag of soil improver.
1 -- Compass and level.

Complementary accessories (Not included):

Amount Model Description
1 ANTIOX Protective spray for connectors.
5 TGCR11 Bronze Connector.
2 TGAB18 Rod Connector.
1 S610 Registration for electrode.
1 SLY286BLK THW-SL Sheathed Copper Cable Gauge 2 AWG.
1 TGBUSG10 7-7/8" x 2" x 1/4" tie bar with 1000A capacity insulators.
1 TGBUE10 Connection bar and thread distribution.
