Equipment Ready for Honeywell Total Connect (Smart Home) and High Security Alarm Monitoring with ALARMNET (IP and 4G).

Extreme High Security

ALARMNET ensures that your signal ALWAYS ARRIVES. Your information is sent encrypted, servers in the USA with high redundancy and 4G backup (Multiple Carriers).

Smart Home with Total Connect

Manage your Panel and other devices (Thermostats, Doors, Sensors, Lighting) with Total Connect, the leading application in the USA for smart homes.

In this image we see the state of the main door, lighting in living room / dining room, garage door, sensor alerts and cloud camera recording.

High Security Cloud Video Recording

Access video cloud, extreme fluidity and high security on Honeywell USA servers from your mobile or via the Web.

Compatible cameras: IPCAMWIC1 , IPCAMWIC2 and IPCAMWOC1

High Security Remote Arming

Remotely control security partitions for your business.

Handle security, access control, and user management with Honeywell Total Connect VISTA® partitions.

Turn your House into a Smart Home

Honeywell Total Connect allows you to manage all devices with high security on any mobile device.

Compatible with Google Home and Alexa

"Alexa, ask Honeywell to turn on the lights"
"Alexa, ask Honeywell to close the door"
"Alexa, ask Honeywell to set up the house"

Alarm panel for residential applications, businesses or offices.

System:
• Programming by alphanumeric keyboard, Downloading software.
• Maximum 8 keyboards, supports alphanumeric keyboards, icon-based and touch-sensitive; maximum 2 (auxiliary power source suggested).
• Entry time defined by the installer.
• 2 programmable entry and exit zones with different times.
• Automation functions.
• Auto arming and disarming function.
• Supports 4204 relay module, maximum 4.
• 250 events in memory. The memory can be read with COMPASS Downloading software.
• 3 partitions with the option to configure one as a lobby.
• Confirmation of arming and disarming.
• Configurable Auto Partial Arming.
• 2 A siren output.
• 2 programmable voltage outputs.
• Telephone line cut detection.
• Auxiliary current of 600 mA
• 16 Vac power input.

Zones:
• 8 programmable zones, Configurable with or without end-of-line resistor.
• Zones can be configured for fast or slow response.
• Zone duplication capacity.
• In zone one it supports up to 16 two-wire smoke detectors.
• Supports 4-wire smoke detectors.
• Supports 40 wireless zones.
• 24 types of configurable zones.
• 16 additional zones for portable controls.
• Supports expansion module for wired zones 4219 and 4229.
• 100% wireless system supervision.
• Range up to 60 m on the wireless 5800 series.

Users:
• 48 user codes.
• 6 levels of authority: installer, teacher, standard, guest, only arming and coercion.
• Quick assembly system.
• 5 levels of arming: total, partial, night, instant and maximum.
• Open door warning (CHIME).

Communication:
• Built-in communicator for communication with the Alarm Receiving Center.
• Supports 4+2 and CONTAC/ID communication formats.
• Supports dual and split reporting option.
• Compatible with Honeywell communication systems for AlarmNet.

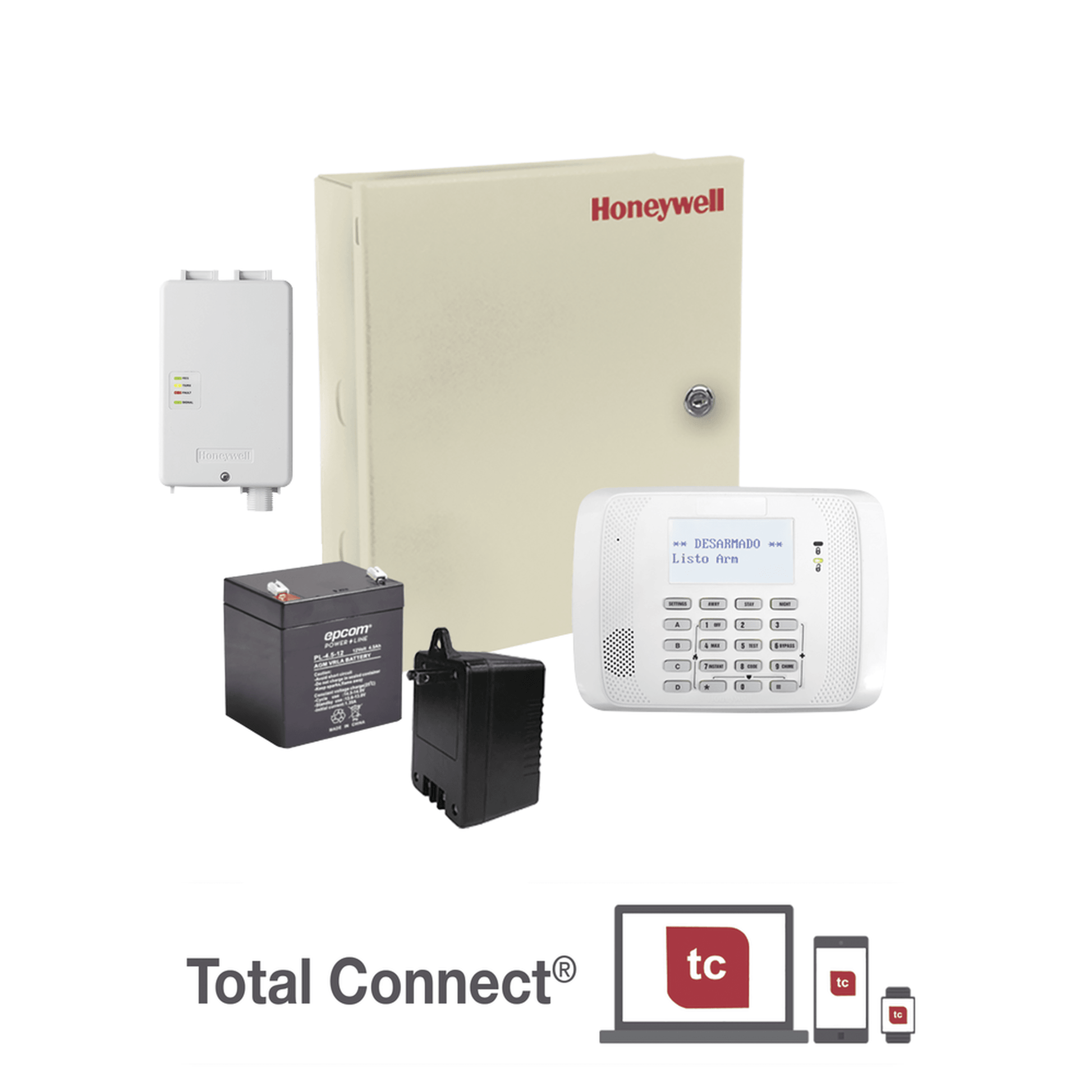

Includes:
-VISTA48 alarm panel, keyboard with wireless receiver and VISTA48/6162RF cabinet
-LTEXA Communicator
- PL4.512 backup battery - 16Vac transformer


*1 year warranty.
