Multiple Mold Kit for 40 to 60 Exothermic Welds for Cable up to 3/0 AWG and 5/8 Rod.

  • e70789be140447d402346fccb9e131af
1 1

11 in stock

Modelo: AT-MM-CT16

Proveedor: APLICACIONES TECNOLOGICAS

Código SAT: 39121600

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Apliweld® exothermic welding is a process that achieves the molecular union of two or more metallic conductors through a chemical reaction. This molecular bond improves the mechanical properties, electrical and corrosion related with respect to any mechanical joint. Apliweld® exothermic welding is the best way to make permanent connections, reliable and high conductivity in any installation that requires grounding.

Advantages:

  • perfect unions
  • Cost savings
  • Improves job security

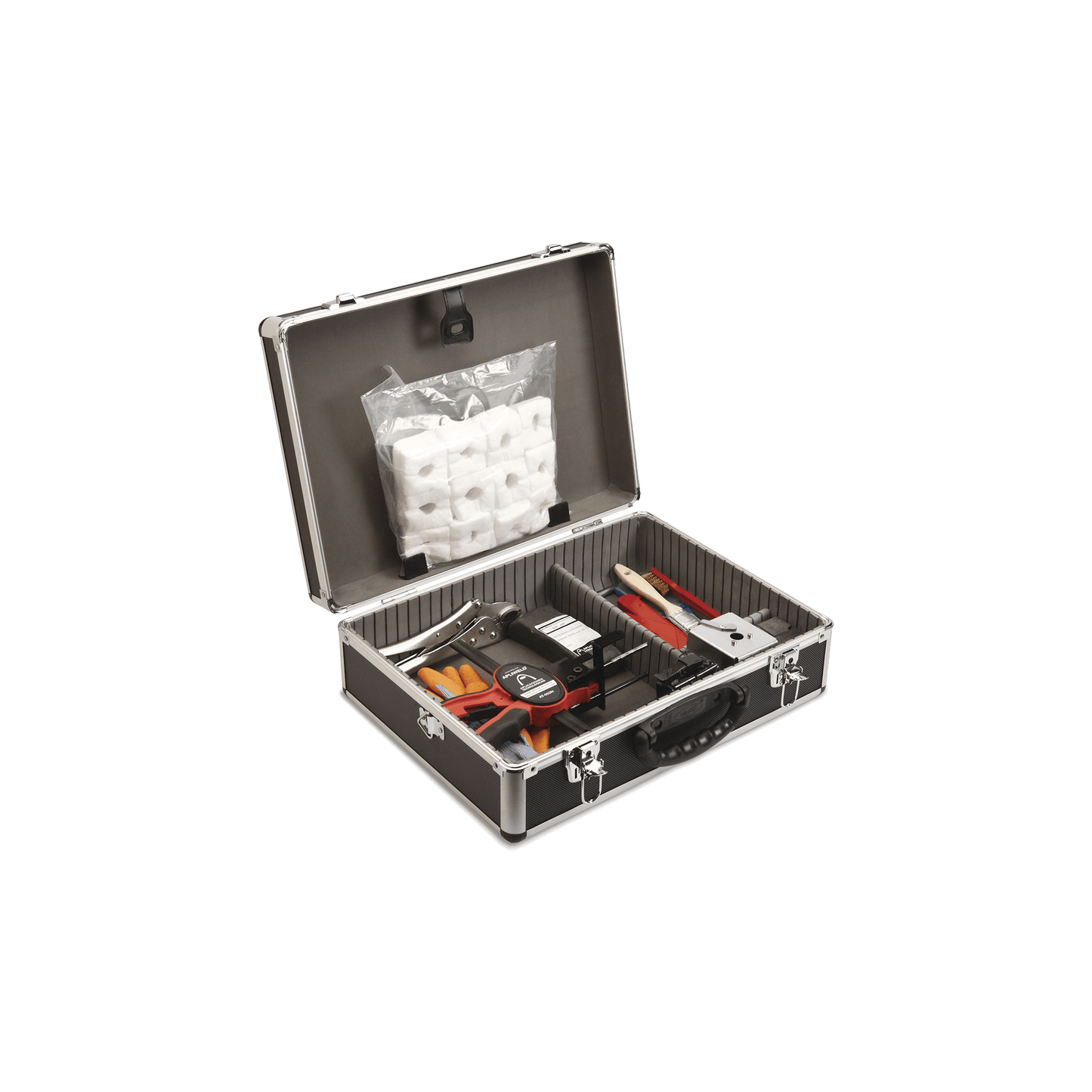

The welding kit includes a work case with the necessary accessories to perform 40 to 60 various weldings such as Cruz, Type T: Linear, etc

Requires soldering tablets and starter:

  • Type of Tablet you need: AT-020N (Not included)
  • Manual starter: AT012N (Not included)

Quantity of Tablets: Varies depending on the union ( See Manual ) .

Union type: Variable ( See Manual ) .

References included in each MM-CTX suitcase

Code Description Units
MM-PTX Lower piece for diameter X spike (*) 1
MM-053N Multiple mold clamp 1
MM-T Multiple mold hopper 1
MM-PH Lower piece for welding cables and plates 1
MM-CS Set of 60 chamber sealers 2
AT-080N Multiple mold suitcase 1
AT-060N Ignition spark plug (for powder starter) 1
AT-061N Conductor cleaning brush 1
AT-062N Hopper cleaning brush and electronic starter housing 1
AT-063N Mold scraper trowel for slag removal 1
AT-064N Welding chamber cleaning brush 1
AT-065N Sealing paste to prevent material leakage out of the mold 1
AT-073N Work gloves 1
AT-082N Support pliers for spike welding 1

(*) X can be 14, 16, 17, 18 and 19.

All parts can be purchased separately or as spare parts.
