What the KTG-3750W Kit includes:

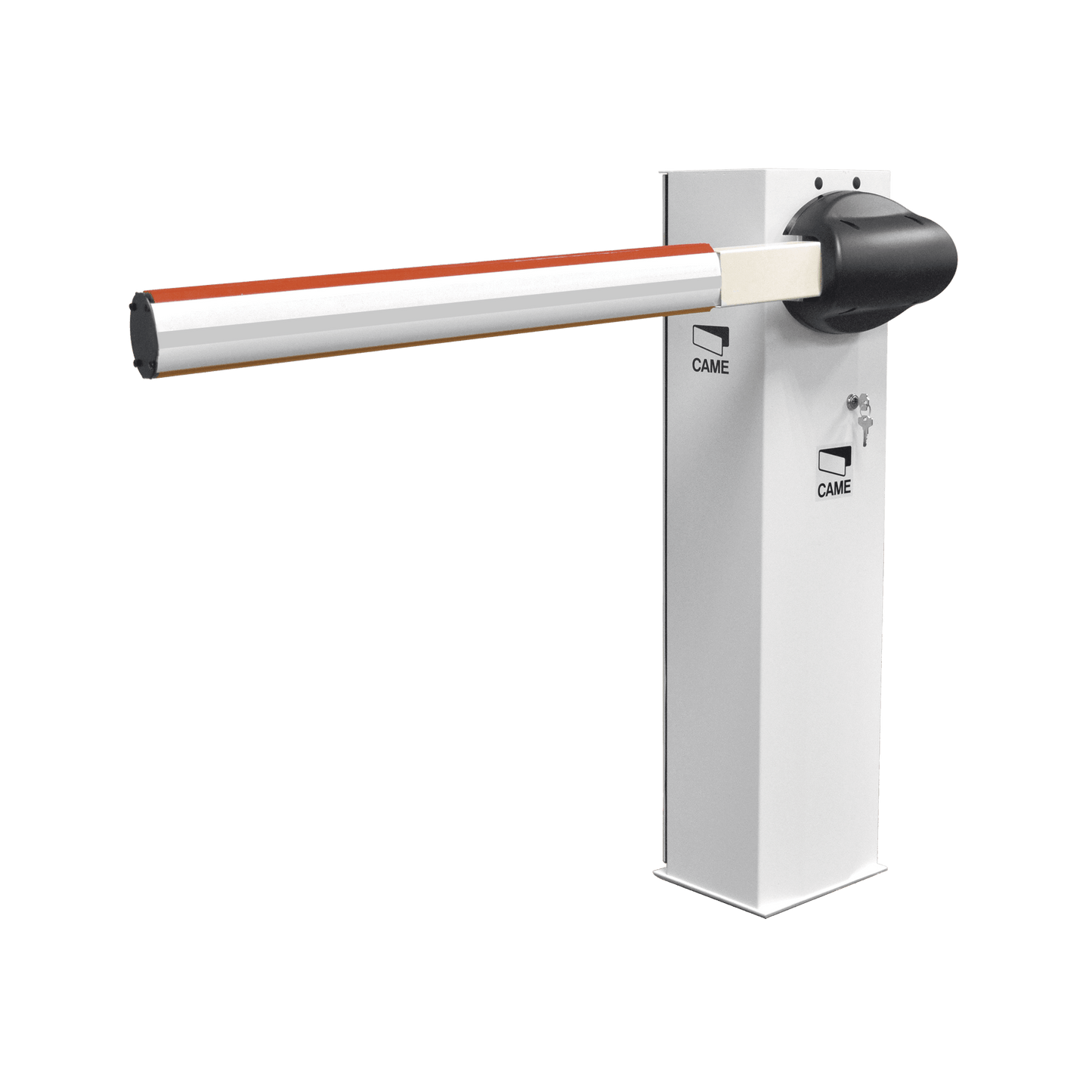

• 1 x 001-G03750120A White vehicle barrier with Italian cabinet.
• 1 x 009-MXARM001 Generic mast of national manufacture without lighting.
• 1 x 001-G04060 Spring for barrier calibration (50 mm) green.
• 1 x 009-MX027 National generic mast hitch 009-MXARM001.

Grades:

• For better functioning of the barrier, The arm must be calibrated at 45°. Incorrect adjustment will shorten component life.
• Any change in mast length or adding/removing accessories from it will require recalibration of the arm.
• In case the change in the arm or mast is significant, a change must be made in the barrier spring, You can review the following TABLE

What additional components can I quote to assemble a complete vehicle barrier system with mast?

Step 1

• Safety devices
  • Mass sensor : 10-MATRIX-IIS-1224 , Interface for magnetic loop connection, allows the barrier to have vehicle detection. Requires a magnetic loop.
  • Magnetic loop : SYS-LM6 , Helps prevent the barrier from closing if there is a vehicle under the action area of ​​the vehicle barrier, also, It allows the automatic closing of the barrier when the vehicle finishes passing within the detection area. Effective for detecting compact cars and medium-sized trucks. Useful in lanes up to 4 meters wide.
  • CAME photocells : 001-DIR10 , designed to protect pedestrians in the area of ​​​​action of the barrier mast. Effective lane width of up to 10 meters.
  • Floor bases for CAME DIR photocells : 001-DIR-CG , 001-DIR-CN , Ideal for mounting photocells in line with the barrier.

Step 2

• Choose optional components:
  • Signal lamp . 001KLED24 , Integrate easy-to-view signage for drivers and pedestrians that warns before and during the movement of the barrier to avoid accidents.
  • Wireless remote control . KITCMEWL , Adds the wireless antenna and receiver to use 001-TOP432EE controls.
  • Compatible triple button panel, XBS-SW-01
  • Mast joint 009MXARM001. 009-MX009L/R , Ideal for placing the barrier in underground parking applications or places where for some reason it is not possible to install a 4 meter straight mast.
  • RGB LED strip for mast. 009-RGBIP65 . Adds Red and Green LED lighting to the vehicle barrier for better visibility. Requires 009-RGBFC power supply, not included.

To see all available accessories, Click on the following link: See all available accessories

Additional Notes and Recommendations

• All components and accessories sold separately.
• Vehicular access devices require installation by certified personnel.
• The warranty period may change between each item contained in the kit.
• The warranty specifically covers damage and/or malfunction resulting from a manufacturing defect in the product.
• Any damage caused by improper operation or installation, invalidates the product warranty policy.
• CAME equipment does not have a UL certification. However, the UL 325 standard is used as a reference for classification of the type of application corresponding to the product. For more information about the UL325 standard, you can consult the following link UL 325 Safety Standard
• In order to ensure better protection against electric shock, It is necessary to connect a Physical Ground line to the designated terminals on the vehicle barrier, as well as adding a line protection device against electric shocks.
• The kit includes a 50 mm diameter balancing spring. This spring allows you to swing the barrier with its mast without accessories (for example LED strips) up to 4 meters. When making any changes to the length or weight of the mast, This spring may need to be replaced with models 001-G06080 or 001-G02040 . Refer to your barrier installation manual or the SYSCOM engineering area for more information.

Vehicular access without booth with CAME

"link here"

NOTE: Consider XB-POST armrests on arms 4 m or longer to avoid premature damage to the mechanism.
