GARD12 Barrier Kit / Designed for Special Large Accesses / Supports Arm of Up to 12 Meters

  • 2f8632f02465fdffe85e39fa4b8d142f
1 1

Out of stock

Modelo: KT-GARD12

Proveedor: CAME

Código SAT: 46171619

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
Main features:
  • Supports mast up to 12 meters
  • Intermittent or 50% operation
  • Opening time 10 seconds.
Physical and Electrical Characteristics:
  • Barrier power supply 220VAC
  • Motor power 24VDC
  • Current consumption 15A
Featured Features:
  • IP54 protection grade
  • Operating temperature from -20 to 55°C
  • Engine torque 600 Nm.

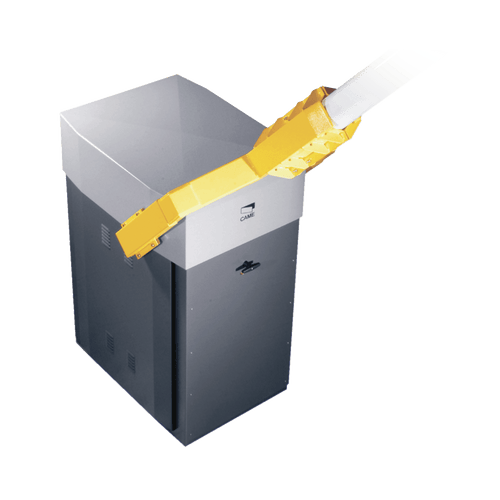

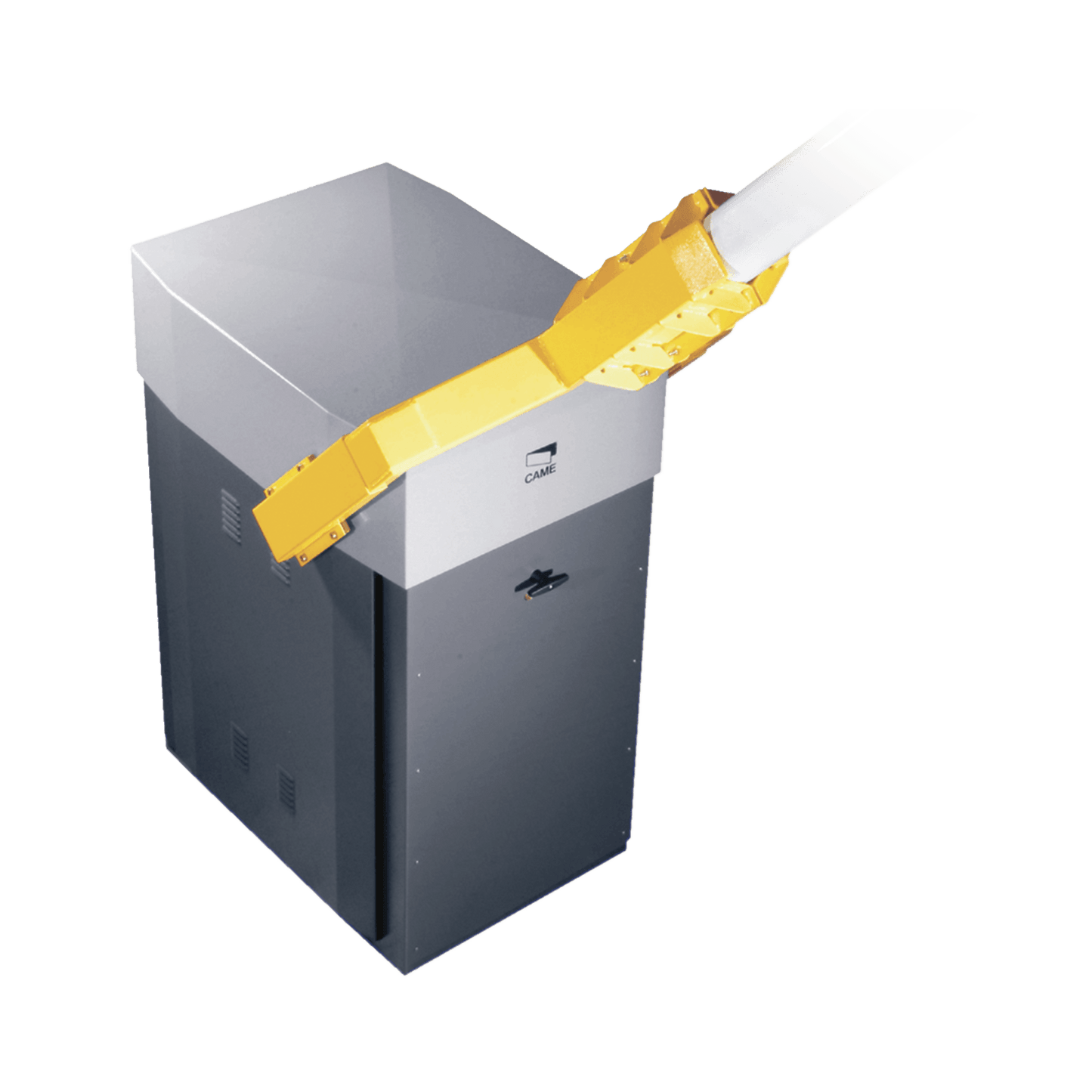

GARD 12 Barrier Kit

The kit includes:

  • 1 x 001G1201K 220V GARD 12 barrier with painted steel cabinet.
  • 1 x 001G1325 Counterweight Pack for GARD 12.
  • 1 x 001G0121 Arm kit with fixed support.
  • 2 x 001G0461 Red Arm Bands Pack
  • 1 x 002LB38 Battery Backup Card (Batteries not included)

Additional notes:

  • Equipment with one year warranty against manufacturing defects.

Main features

Two 24VDC gearmotors mounted on the same shaft to offer more torque.

Balanced with modular counterweights, ensures safe and reliable movement of the mast.

Robust structure with galvanized steel cabinet finished in gray paint.

GARD 12 barrier measures

GARD 12 barrier measures

NOTE: Consider XB-POST armrests on arms 4 m or longer to avoid premature damage to the mechanism.
