LOUROE ASK-4 #101 APR-1 base and Verifact B audio kit for security applications, audio systems for security and control power, clarity and clarity guaranteed

  • 007eada8516d704aefdc014841ba594d
1 1

Out of stock

Modelo: ASK4101B

Proveedor: LOUROE ELECTRONICS

Código SAT: 52161520

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
Louroe Electronics® is a manufacturer of audio systems for security and control systems. They are products designed to meet many needs with applications in a wide variety of markets. The low impedance Verifact TM help reproduce sound quality and clarity.

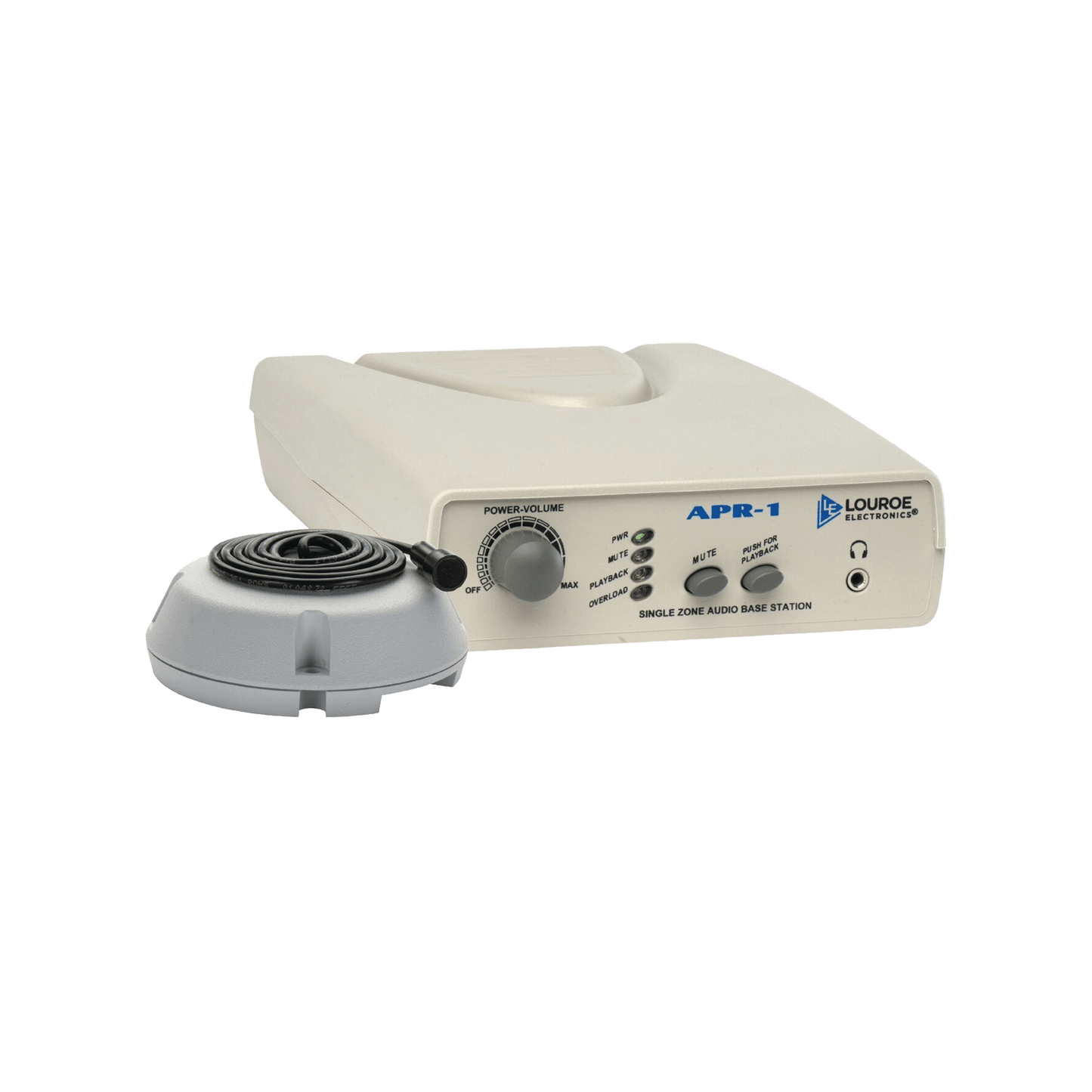

The ASK4101 is equivalent to the ASK-4 Louroe model #101, what is an audio kit, capable of integrating security systems, like a DVR or any device and interface where you can control and play audio. The kit contains a desktop base with integrated speaker for live monitoring and audio playback, plus an electrolytic low impedance microphone designed for ceiling mounting, and can capture normal sounds within 5m. If mounted on the wall, or diametral 9 meters if it is installed in the sky. The distance between the microphone and the base station can be up to 300 meters.

The kit contains:
  • 1 Verifact "B" microphone.
  • An APR-1L base station.
  • 1 x AD-1 wall adapter.
  • 1 set of connection cables.

Base Features:
  • Provides power to the microphone.
  • With the ability to control the gain.
  • It has diagnostic LEDs.
  • Increases microphone distance up to 300 m.
  • Ability to listen to live audio captured by the microphone.
  • Ability to listen to audio playback captured by a DVR.
  • With headphone output for private listening mode.
  • Ensures greater audio quality and clarity from VerifactTM A, B, DV.
  • Compatible with DVRs and equipment with audio input and output.
  • 1 audio input and output.
Microphone specifications:
  • Type: electric capacitor.
  • Output: Level (0 dB @ 1k) unbalanced.
  • Frequency response: 40 Hz to 15 kHz +/- 1 dB.
  • Actual: 4 mA.
  • Voltage 12 V DC, 500 mA.
Dimensions:
  • 6,9 x 11,4 cm (ancho) x (height).
Weight:
  • 1,4 kg.
Base Specifications:
  • Input sensitivity: 0:78 Vrms.
  • With channel 1 audio input and output.
  • Output: 1W @ 8Ω.
  • Output impedance: 600 Ω later.
  • Input impedance 10KQ.
  • Frequency response: 100Hz to 10KHz.
  • Headphone impedance: 8 to 600Ω.
  • Power: 12 V CC, 500mA.
Dimensions:
  • 8 1/4 "x 5 3/4" W x 1 3/8 "H.
Weight:
  • 4 lb.
