Kit with ALTRONIX 12 Vdc at 4 Ampere source, includes transformer and 4.5 Ampere battery

  • 10d3605b85a529837b0cc07e1244477f
1 1

Out of stock

Modelo: RT1640SMP5PL4

Proveedor: EPCOM POWERLINE

Código SAT: 39121009

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

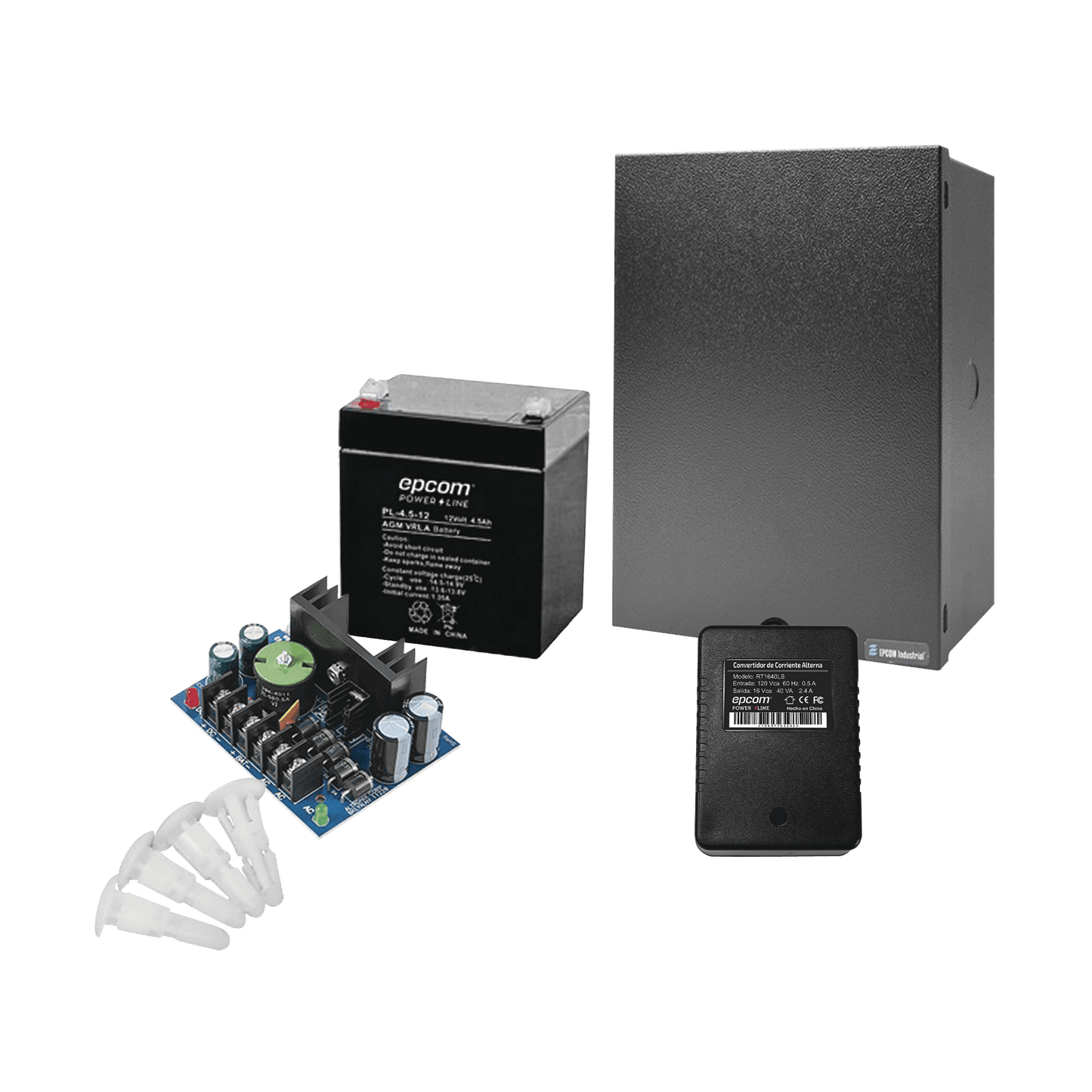

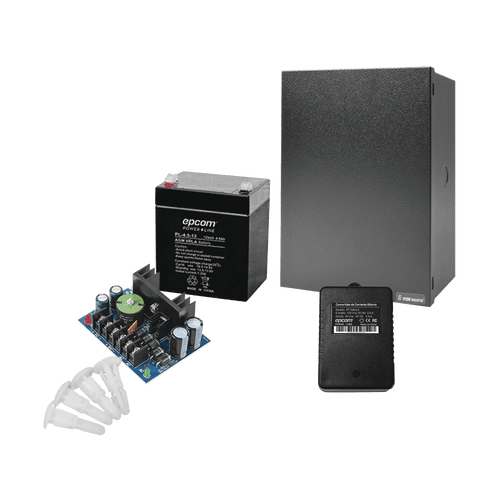

POWER SUPPLY KIT (SMP5) WITH PL4.512 BACKUP BATTERY This kit is recommended in CCTV and ACCESS CONTROL applications The Kit includes:

SMP5 card
  • Requires 16 Vac to 24 Vac input transformer
  • Output 6 Vdc, 12 Vdc, 24 Vdc at 4 Ampere
  • Filtered and electronically regulated outputs
  • Overvoltage and short circuit protection.
  • Dimensions: 76.2 x 88.9 x 50.8 mm
  • Weight 158g.
RT1640LS transformer
  • Primary power: 120 Vac, 60Hz, 170mA max.
  • Secondary power supply 16 Vac, 40VA @ 2.4A
GOF-01-XTV2 Cabinet
  • Blade Gauge: 26.
  • Color: Black.
  • Application: Indoor.
  • Dimensions: 221 x 191 x 83 mm (Width x Height x Depth).
  • Weight: 600g.
PL4.512 battery
  • High performance batteries.
  • Designed for high reliability applications.
  • Manufactured under the highest quality standards.
  • Tested 24 hours a day / 7 days without any decrease in performance.
  • Capacity in Ah: 4.5.
  • Voltage (Vcc): 12.
  • Type: AGM/VRLA.
  • Width (mm): 70.
  • Height (mm): 107.
  • Depth (mm): 90.
  • Weight (kg): 1.44.
Kit KITRS6
  • Kit of 4 SMP5 card holders
