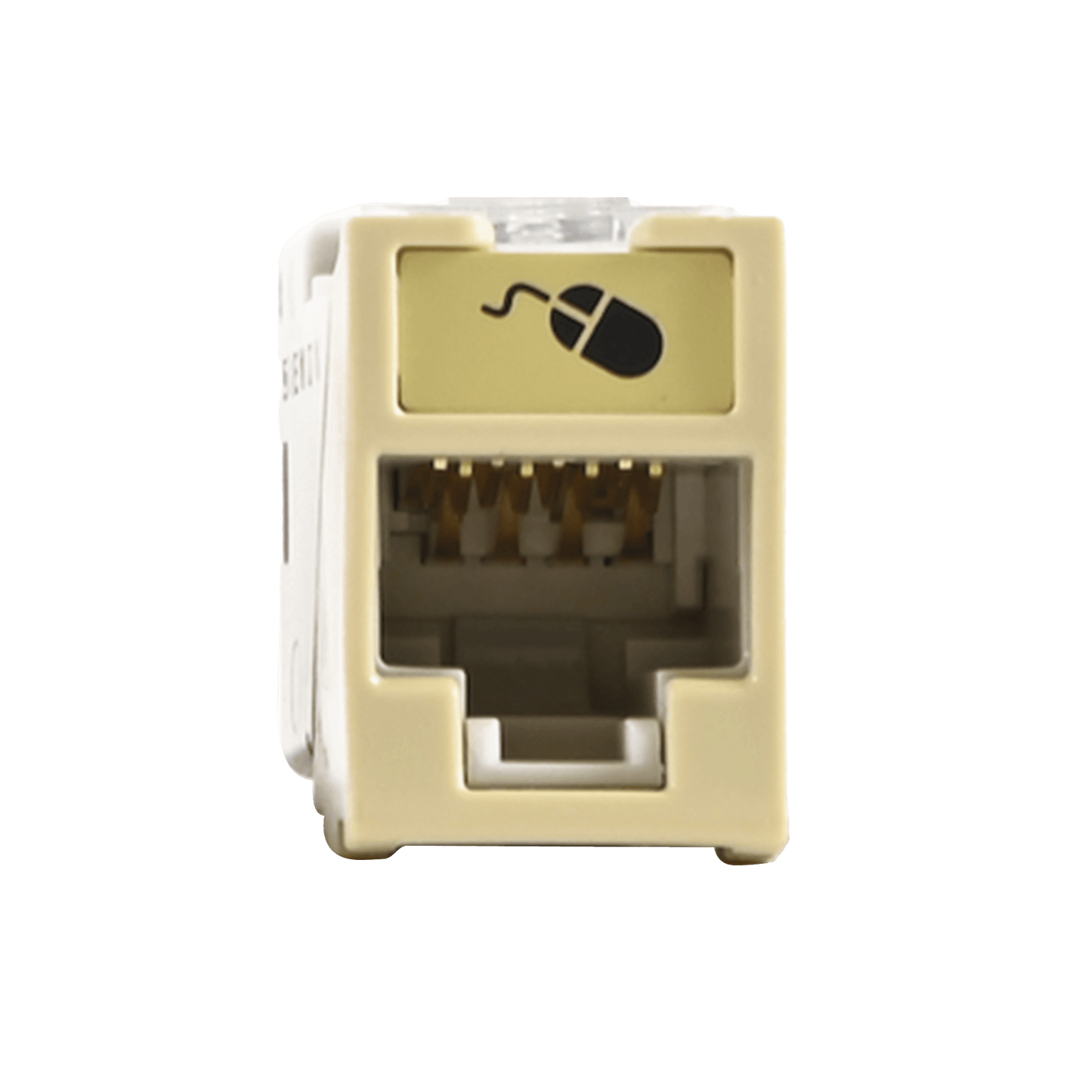

Jack UltraMAX Cat6A, UTP, Hybrid Wall Plate Mount (Flat and Angulate), Ivory Color, Punch Down

  • f4e2063f81193ec9ee1438b47a0a8708
1 1
  • Plataforma única para categorías 5e, 6 y 6a
  • Desempeño categoría 6a con clase EA
  • Soporte terminación T568A y T568B
  • Operación temperatura de -10 a 60 °C
  • Clasificación de flamabilidad UL 94 V-0

Out of stock

Modelo: U6A-H20NS

Proveedor: SIEMON

Código SAT: 39121462

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

The SIEMON UltraMAX copper connectivity system Uses a single platform of innovative outputs for your requirements UTP Category 5e, 6 and 6A. UltraMAX outlets are designed to maximize usability, quality and performance in a sleek footprint that is ideal for users to achieve fast, reliable terminations right from the start, every time.

  • Copper Jack Module.
  • Installs on Faceplate.
  • Color: Ivory.
  • Performance level: Category 6A/Class EA.
  • Type of termination: impact pliers (110) are used.
  • Accepts type of Punching: T568A or T568B.
  • Application: UTP (Unshielded).
  • No. of modular spaces: 1.
  • No. of ports: 1.
  • Module Type: Hybrid (Can be placed Flat or Angled).
  • Jack Type: RJ45.
  • Recommended driver size: 24-22 AWG Solid and 26-24 AWG Stranded.
  • Operating temperature: -10 to 60 °C (14 to 140 °F).
  • Flammability Classification: UL 94 V-0
  • RoHS compliant.
  • It is recommended to use the Impact pliers UMAX-PD for faster and more efficient work.
  • You can use the palm protector PG2 if you want to work in the comfort of your hand.
  • Insert PG2-U to place jack on palm protector PG2

Each UltraMAX output It features a unique linear lacing design that allows users to terminate their connections from either side and achieve a fast, consistent termination.
