IP Video System Design PROFESSIONAL Tool/Design Software for IP Video System/Up to 64 Cameras per Project

  • a323d45b22ae660123055a75d3e06374
1 1
  • Maximum number of cameras per project 64
  • 3D Fisheye Simulation
  • Imported from Google maps
  • Imported from Autocad drawings (.dwg, .dxf)
  • Imported from 3D user models (.obj, .dae)

Out of stock

Modelo: IPVSDTPRO

Proveedor: JVSG

Código SAT: 43231512

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Main features:
  • Increase the efficiency of your system and reduce costs by finding the best locations for the camera.
  • Calculate camera lens focal length and viewing angles
  • Finding dead zones to increase the level of security of your facilities using 2D and 3D modeling
  • To estimate the network bandwidth required to create network video systems.
  • Calculate hard disk storage space.
General characteristics:
  • Maximum number of cameras per project 64
  • Design Software for CCTV
  • It allows to generate presentations and proposals.
  • 3D plans and simulation
  • Realistic 3D Models
  • Cables and Distance Calculations
  • Zone Limit Walls
  • Fisheye 3D Simulation
  • Visual Effects & Comma; DVR View
  • Imported from Google Maps
  • Imported from Autocad drawings (.dwg & comma; . Dxf)
  • Imported 3D user models (.obj & comma; . Dae)
The design tool includes:
  • Field of View Calculator
  • Lens Focal Length Calculator
  • CCTV and Bandwidth Storage Calculators
  • Megapixel camera resolution calculator
  • Many other CCTV tools for you to design a fast video surveillance system & comma; easily and professionally.

** Compatible with Win 10



The only design software for CCTV system with integrated network bandwidth and storage space calculation

Only with the Design Tool for IP Video System you can calculate the network bandwidth and storage space for 15 camera resolutions and various compression methods & comma; including H.264 & comma; MPEG-4 and Motion JPEG. The Design Tool for IP Video System allows the system designer to find optimal FPS and compression that adapts to LAN capabilities and calculate the required hard disk storage space. The frame size estimate is based on the result of our own compression research & comma; thanks to our extensive knowledge of compression algorithms and a wide range of experimental CCTV data in real life.




Camera Zone Coverage Calculation

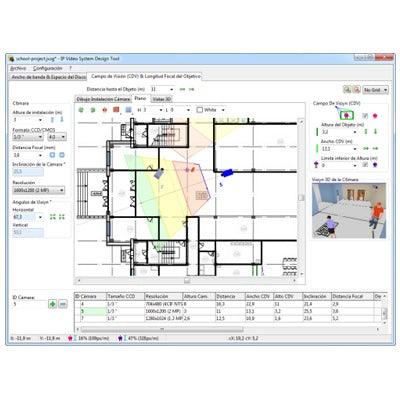

CCTV Floor plan modeling and camera Zone Coverage<br /> Calculation

Camera Installation Plan

Network Bandwidth and Storage Space Requrements Calculation

CCTV Camera Design - 3D Mockups
