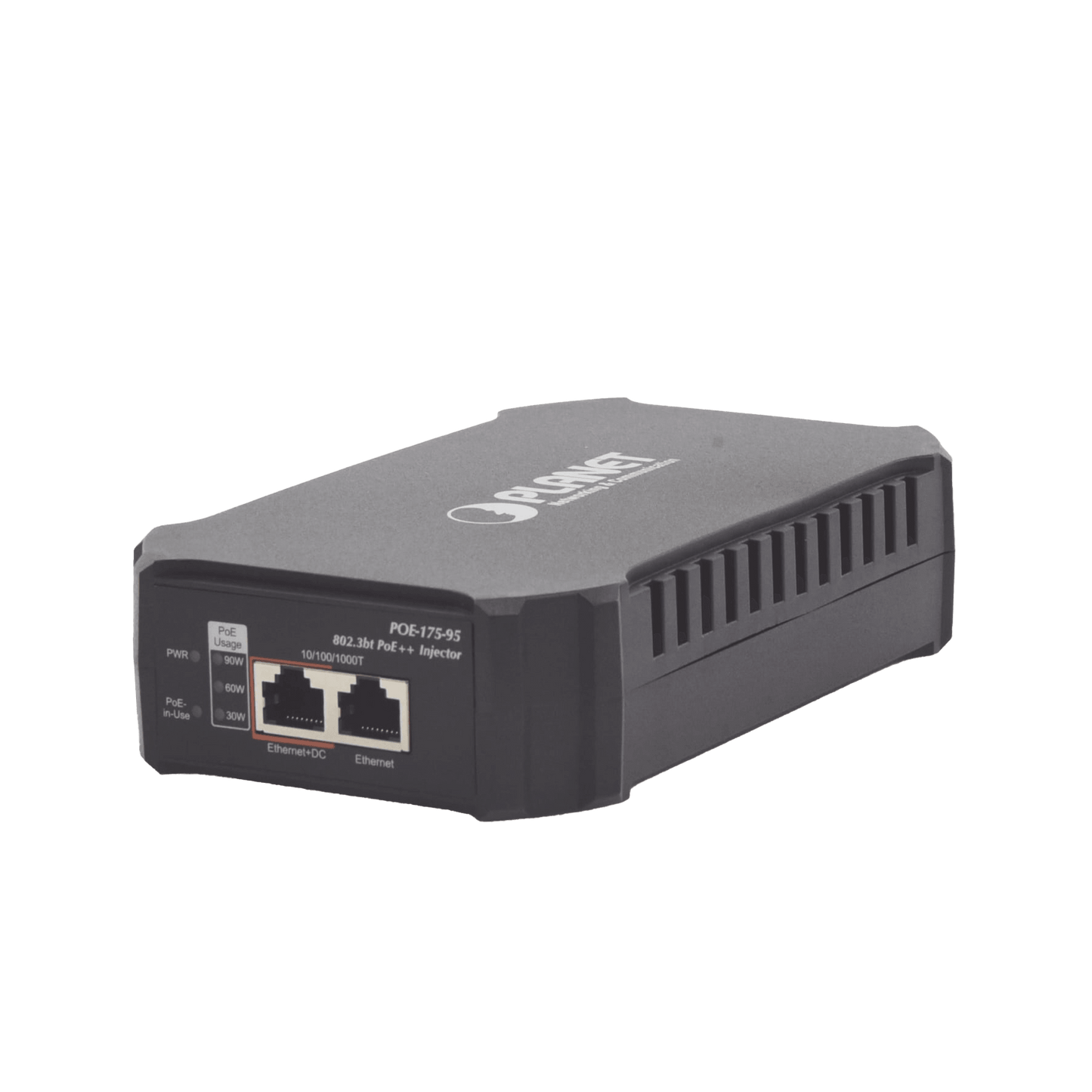

PoE Injector 802.3bt 95 Watts Gigabit w/Internal Power Supply

  • 8f5192003033c74d33f26b481da18edf
  • d859a5e6372dc9708fa8ab9f4c5629a8
  • 489d7e6b959c2e2d77d5e389811e44ba
  • 139127f11bfacb95881f9e5346da645f
1 4
  • 2 RJ-45 ports: 1 Data, 1 Data + Power
  • Delivers up to 95 watts of power
  • PD auto-detection
  • PoE end-span/mid-span
  • Internal power supply

34 in stock

Modelo: POE-175-95

Proveedor: PLANET

Código SAT: 43223107

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Advanced 802.3bt Ultra PoE Network Solution

PLANETA POE-175-95 is a single port , 802.3bt power over ethernet injector , with a maximum of up to 95 watts of power output over Ethernet cables.

It is specifically designed to meet the demand for higher power and increasing network equipment, such as:

  • PTZ speed dome camera
  • all in one touch pc
  • Remote Digital Signage Screen
  • Other network devices that require higher power to function normally

The POE-175-95 delivers digital Ethernet data with 54V DC power over twisted pair cables as a 95-watt power over Ethernet injector, and the power over Ethernet splitter connected, the POE-172S, It will separate digital data and power into three optional outputs ( 12V/19V/24V DC ) with a distance of up to 100 meters.

95 watts of power over 4-pair UTP

The POE-175-95 and POE-172S Ultra PoE solutions use the same cabling standard as IEEE 802.3af/at PoE. Instead of delivering power over 2-pair twisted UTP, either end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), Provides the ability to obtain up to 95 watts of power by using the four standard Cat pairs. 5e/Cat. 6 Ethernet Cabling.

PoE standard
IEEE 802.3af
(802.3at type 1)
IEEE 802.3at
(802.3at type 2)
IEEE 802.3bt
(802.3bt type 3)
IEEE 802.3bt
(802.3bt type 4)
PoH
(Power over HD-BASE-T)
Maximum power delivered by PSE
15.4 watts
30 watts
60 watts
90 watts
95 watts
Available power at PD
12.95 watts
25.5 watts
51 watts
71 watts
72 watts
Voltage range
48V
50~57V
50~57V
52~57V
52~57V
used twisted pair
2 pairs
4 pairs
4 pairs
4 pairs
Supported modes
End-span or mid-span
End-span + Mid-span
End-span + Mid-span
End-span + Mid-span
Compatible wiring
Cat. 3/5/5e/6
Cat. 5e/6
Cat. 5e/6
Cat. 5e/6

Smart LED indicator for real-time PoE usage

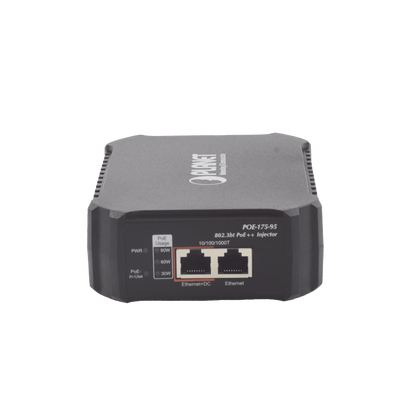

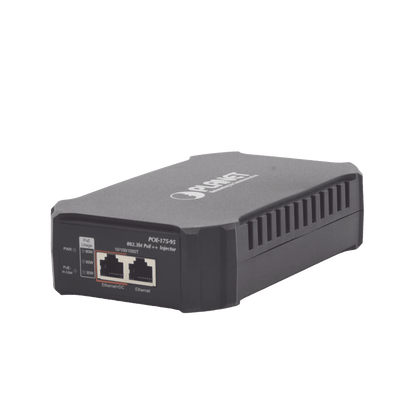

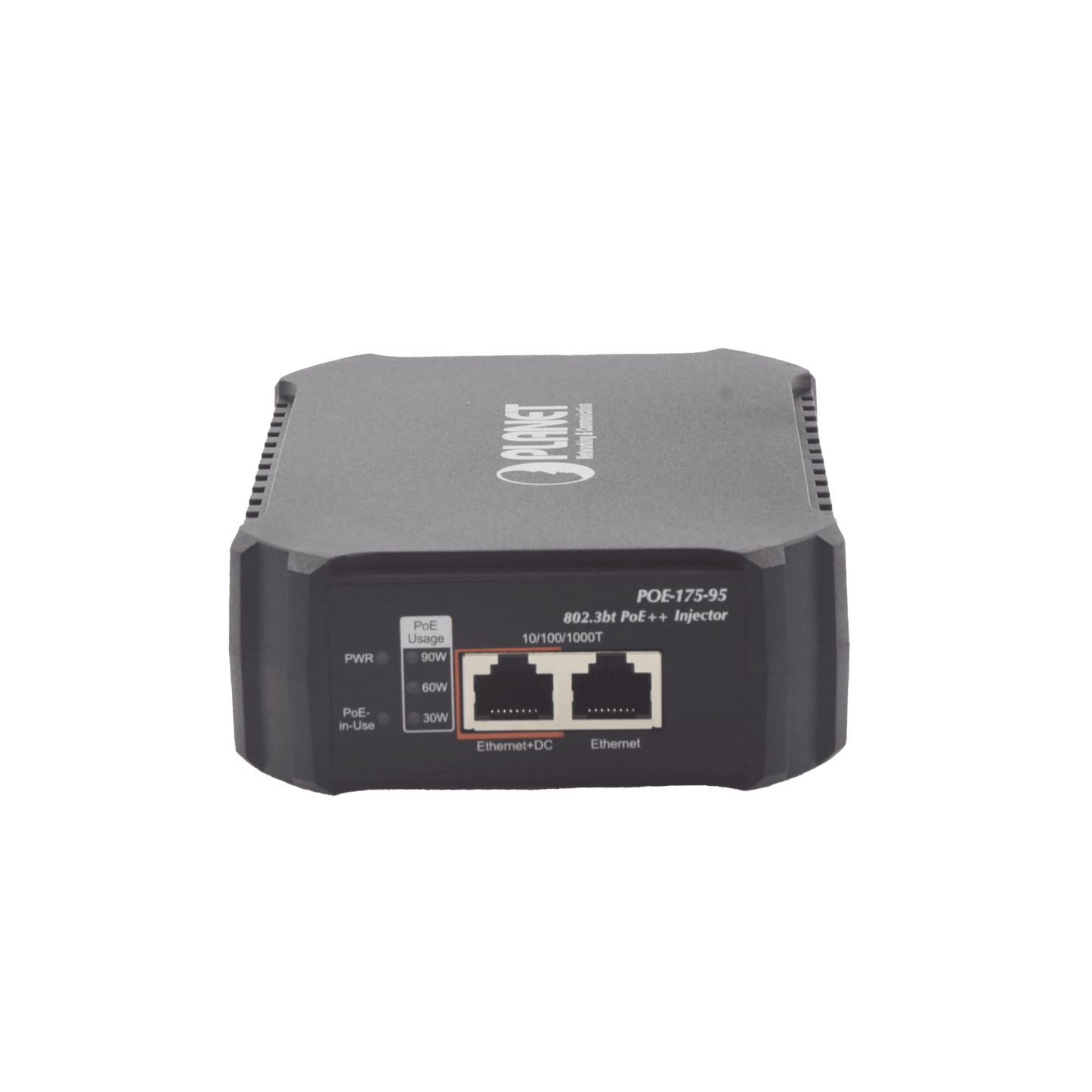

The POE-175-95 helps users monitor the current status of PoE power usage easily and efficiently through its advanced LED indication. The "PoE Power Usage" displayed on the front panel of the POE-175-95 has three LED indicators of different power usage. Through the LED power usage, The POE-175-95 allows the administrator to monitor the power usage status of connected PDs in real time.

Compact size and all-in-one design

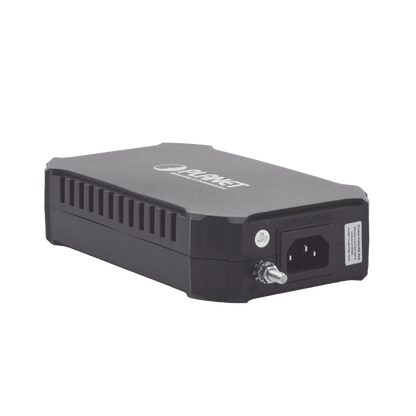

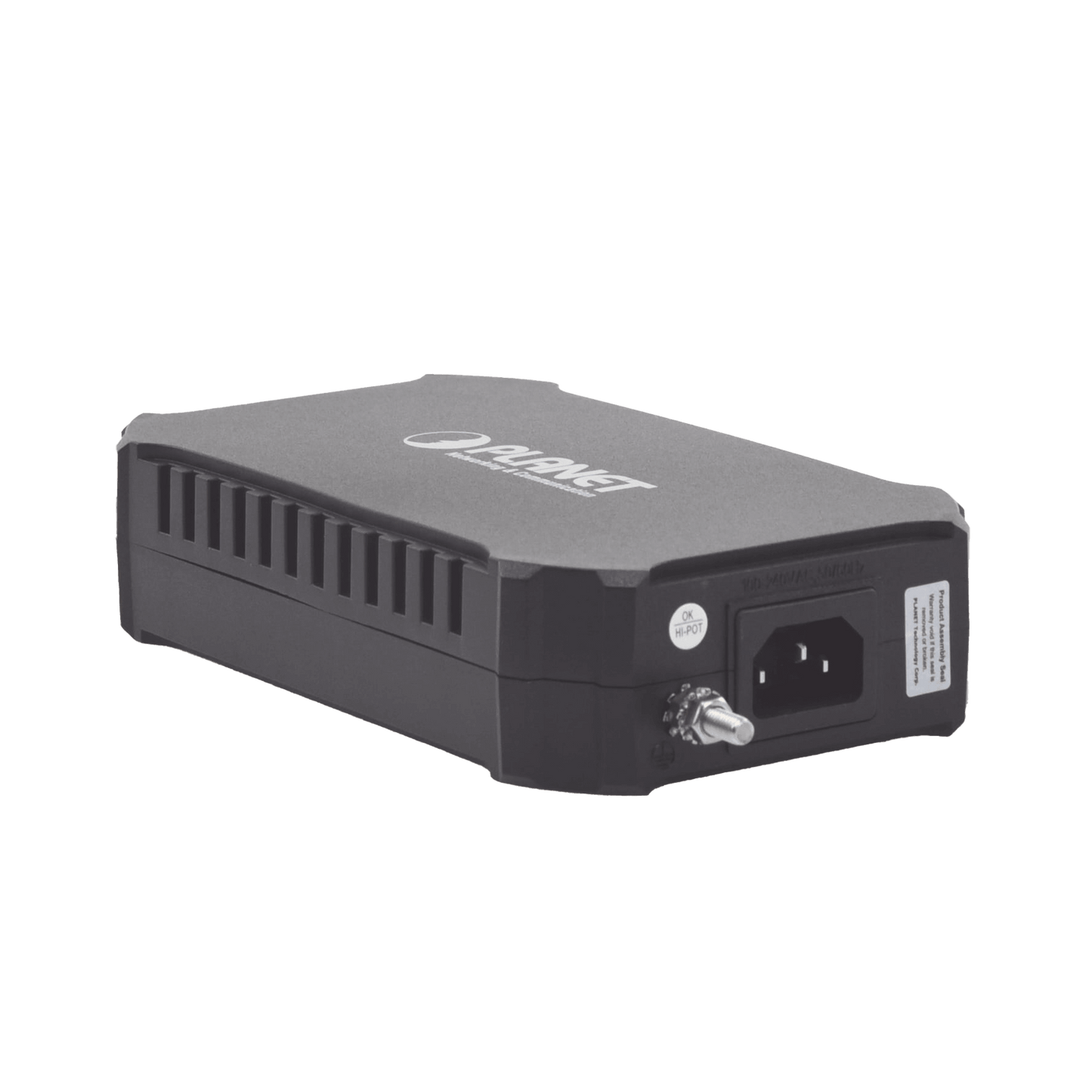

It is easy to install the PoE injector via Plug and Play and comes with simple troubleshooting, making it easy for business and home users to own it. Also, The POE-175-95 comes in a compact housing and has a built-in internal power supply. A 100-240V AC input socket is located on the side panel of the POE-175-95. Real-time LED (Power LED, PoE usage LED and 2/4 pair LED) and two RJ45 ports: Ethernet port and Ethernet + DC port. Simply connect the Ethernet cables and AC power cable, and the POE-175-95 will be ready to provide high-speed network communication and 802.3bt PoE++ injector functions simultaneously without software configuration.

Quick and easy cabling installation for PoE network deployment

Backwards compatible with both 802.3af / PoE standards. The POE-175-95 allows users to flexibly deploy standard and high-power devices to transfer data and power simultaneously over up to 100 meters Ethernet cable. The POE-175-95 frees your security IP camera and wireless AP deployment from the restrictions of power outlet locations and additional AC wiring. This reduces cables and eliminates the need for electrical outlets in the wall, ceiling or any unreachable place, and more than anything, reduces installation time.
