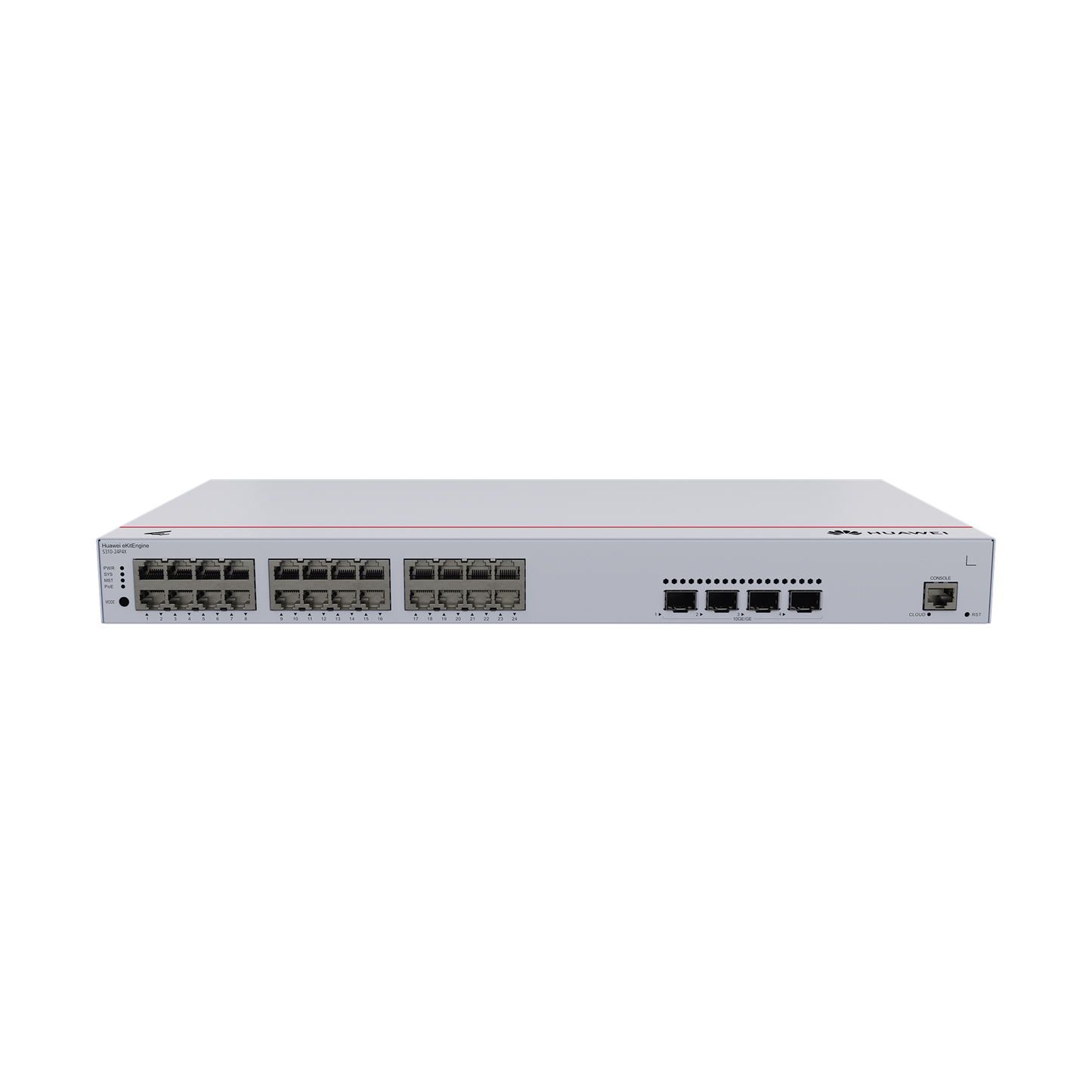

HUAWEI eKit - Managed Gigabit Switch PoE Layer 3 / 24 ports 10/100/1000 Mbps (PoE) / 4 SFP+ Uplink Ports / 400W / Perpetual PoE / iStack / Free Cloud Management

  • bd05f73bcbabd828b62400275ab02f5c
  • bd05f73bcbabd828b62400275ab02f5c
1 2
  • Funcionalidad PoE Perpetuo.
  • Administre y configure sus proyectos desde App - HUAWEI eKit - Totalmente Gratis.
  • Puertos PoE: 24 PoE af&at.
  • Nube Gratuita, libre de licenciamientos.
  • PoE de hasta 400W.
  • iStack también simplifica la configuración y administración del dispositivo.
  • 3 años de garantía.

105 in stock

Modelo: S310-24P4X

Proveedor: HUAWEI eKIT

Código SAT: 43222600

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
Based on the next-generation high-performance hardware and software platform, Huawei eKitEngine S310 Series Switches, stands out with features like smart stack (iStack), Flexible Ethernet networks and diversified security control. Also, eKitEngine S310 series switches support Layer 3 routing protocol, delivering higher performance and more powerful service processing capabilities. This makes them ideal for various application scenarios, such as access to corporate campuses and gigabit to the desktop.

General characteristics

  • Administration via web browser (Stand Alone), eKit App or eKit Cloud.
  • Free Cloud, free of licenses.
  • Switching capacity 128 Gbps.
  • Forwarding rate: 95 Mpps.
  • Ports: 24 x 10/100/1000BASE-T, 4 x 10GE SFP+
  • PoE Ports: 24 PoE af&at.
  • Perpetual PoE functionality: When the PoE Switch reboots (for example, during a software update) continues to supply power to subsequent PDs, ensuring uninterrupted PoE power supply.
  • PoE up to 400W.
  • 3 years warranty.
  • Maximum 16K MAC address entries.
  • VLAN assignment based on MAC addresses, protocols, IP subnets, policies and ports.
  • Multicast IGMP v1/v2/v3 and IGMP v1/v2/v3 snooping.
  • Smart Upgrade , greatly simplifies device update operations, allowing customers to upgrade versions themselves.
  • iStack also simplifies device configuration and management. Once a stack is configured, Multiple physical switches are virtualized into a logical device. You can log in to any stack member switch to manage all stack member switches.

Electrical and Physical Specifications

  • Dimensions (Height, width and length) 43.6 mm x 442 mm x 220 mm
  • Weight: 3.79 kg.
  • Power supply: 100 V AC to 240 V AC, 50/60Hz
  • Maximum electrical consumption without PoE: 44.35W.
  • Maximum electrical consumption with PoE: 485.91W.
  • Operating temperature: -5°C to +50°C.
  • Heat dissipation mode: Air cooling, Intelligent fan and speed adjustment.

  • Package content

  • 1 S310-24P4X.
  • Rack assembly and screws.
  • Installation Manual.
  • AC electrical cable.
