(HEX PoE LITE) RouterBoard, 5 Fast Ethernet Ports, 4 Passive PoE, 1 USB Port

  • 4526f9fd74ba675ee56b920bbad8069f
  • e1c2184ee28c5ab55399cb7ae81260e9
  • 3c6e3f4228a4f4d2fd8fbbf8df8f1276
  • 2fb0894238809db366d7c1badf018270
  • 63cf95fd107c5084958b47e6290e63a1
  • 0e8261b8ff12132a198857a036c088b1
1 6
  • 5 Fast Ethernet 10/100 Mbps ports, 4 with Passive PoE
  • 1 USB Type A port
  • Power: DC Jack or Passive PoE
  • License Level: 4

500 in stock

Modelo: RB750UPR2

Proveedor: MIKROTIK

Código SAT: 43222609

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

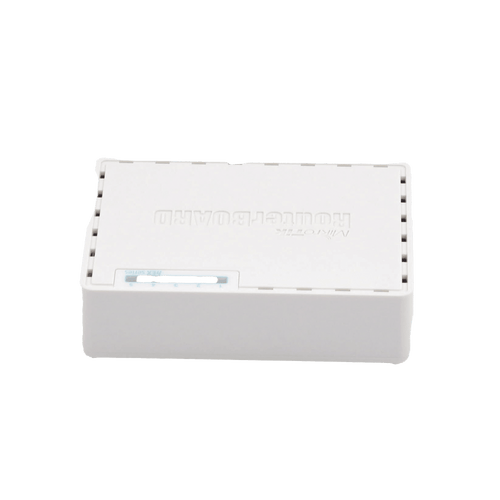

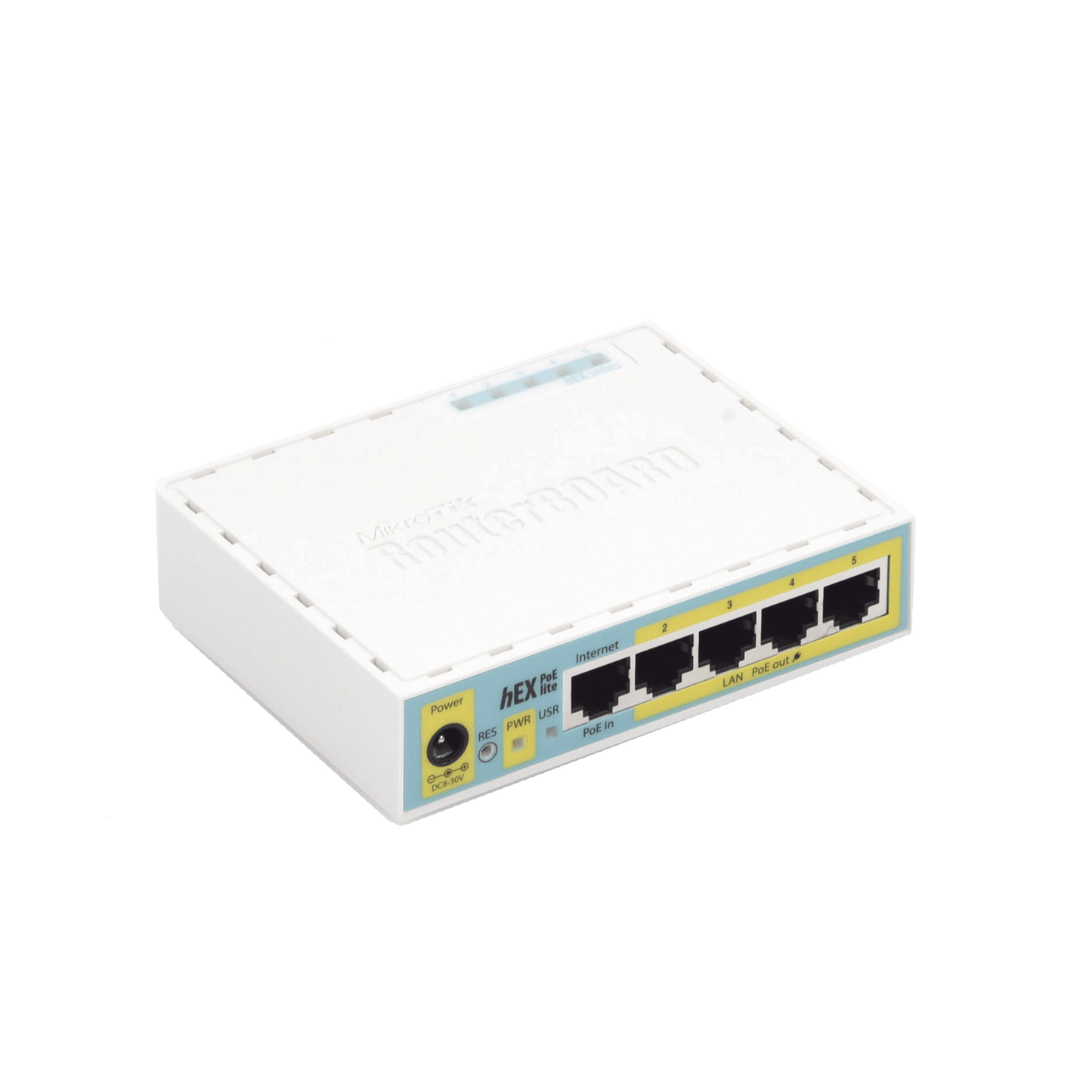

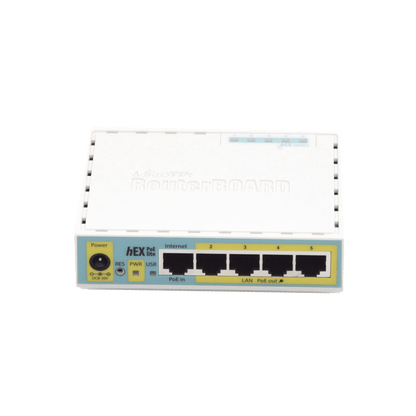

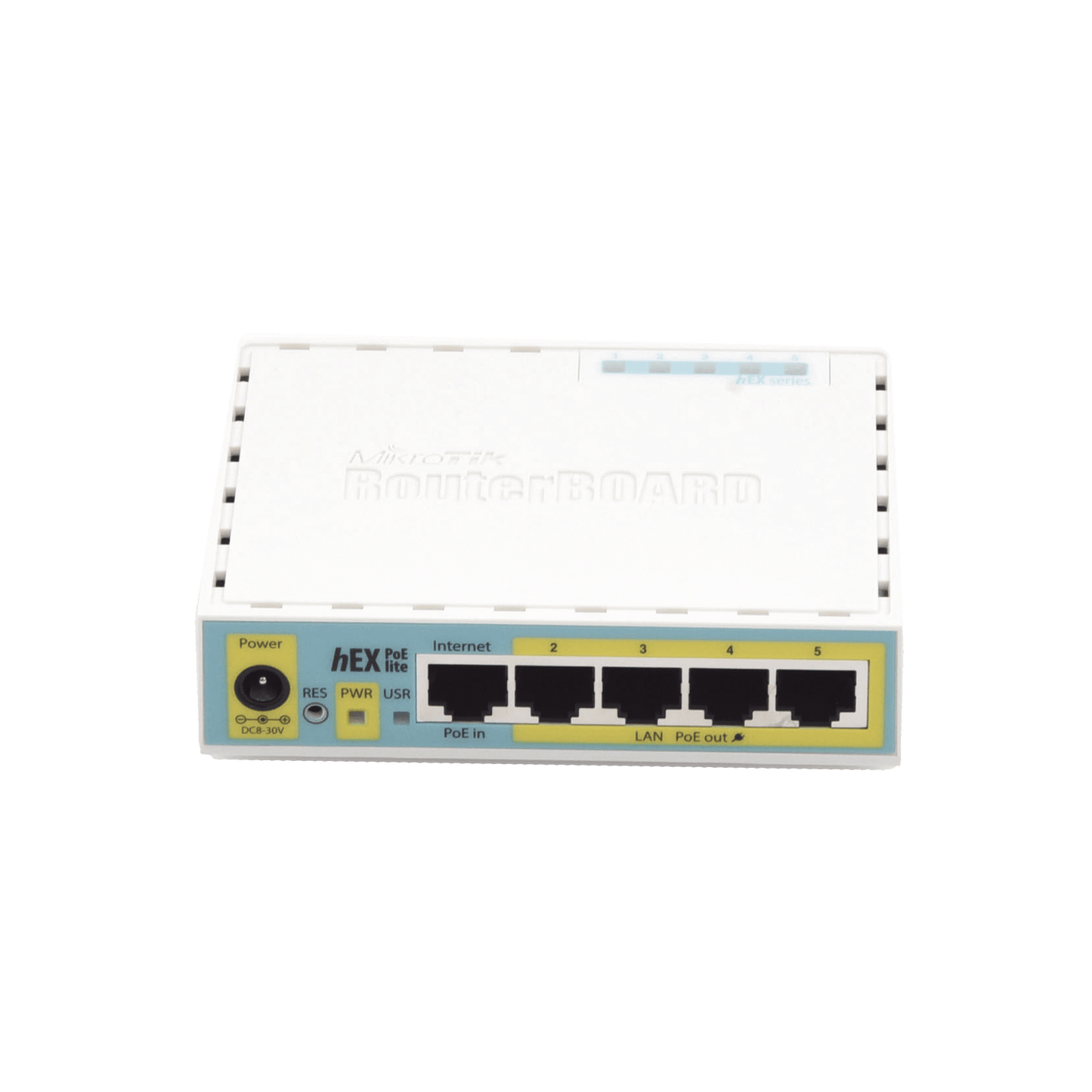

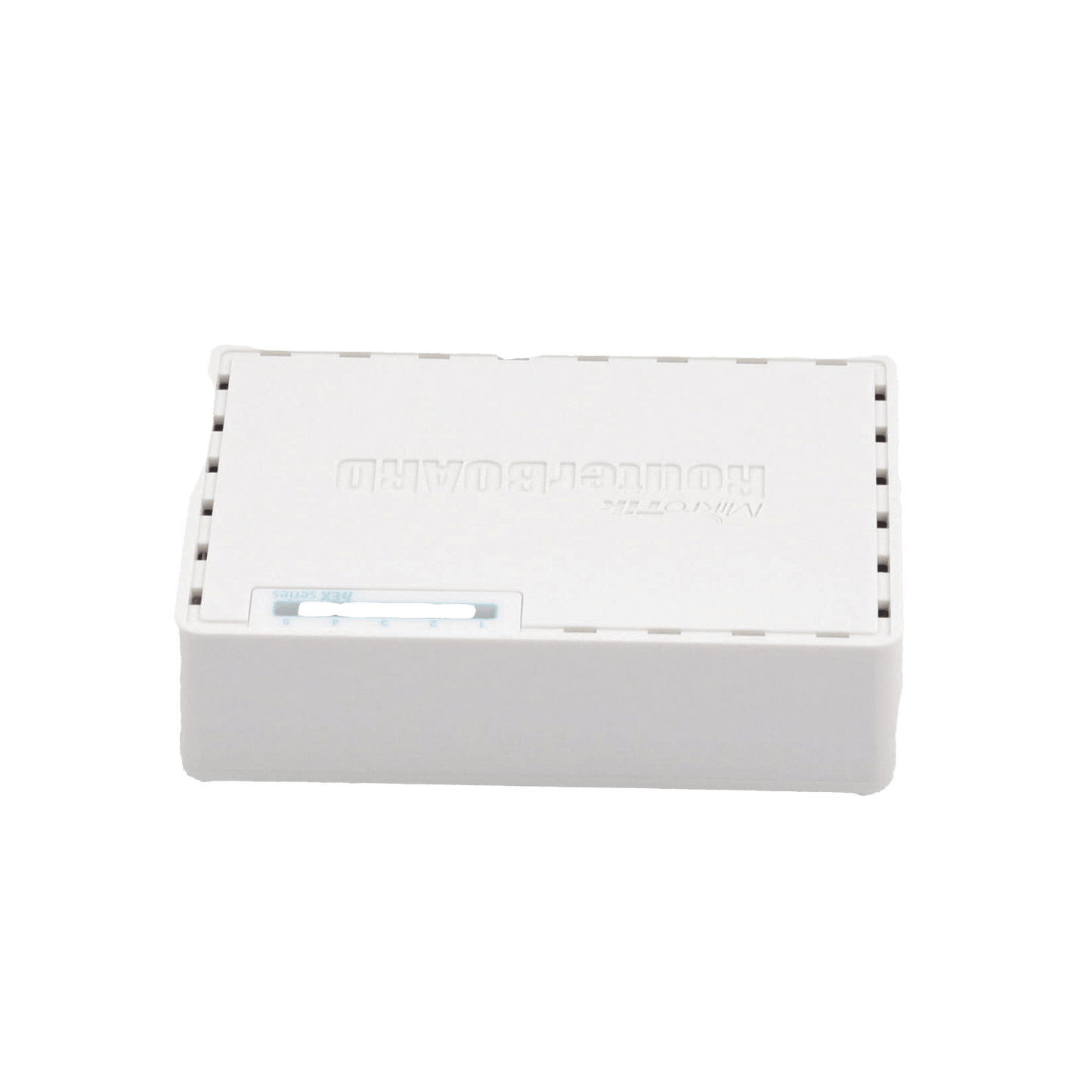

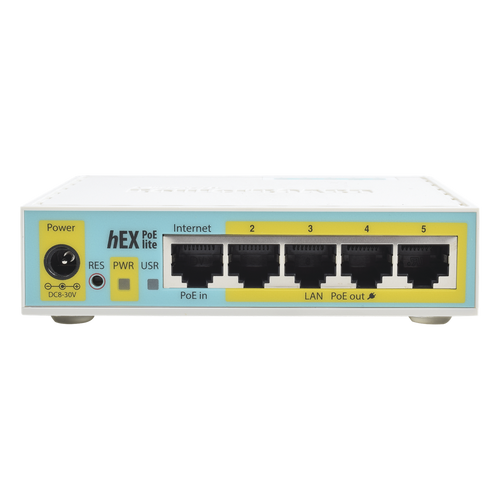

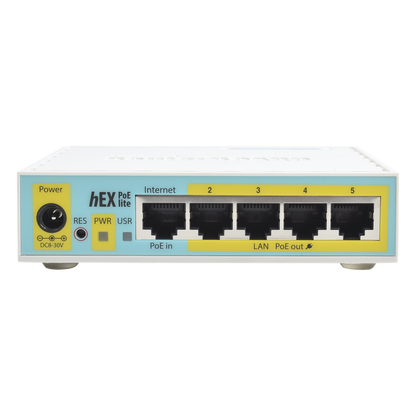

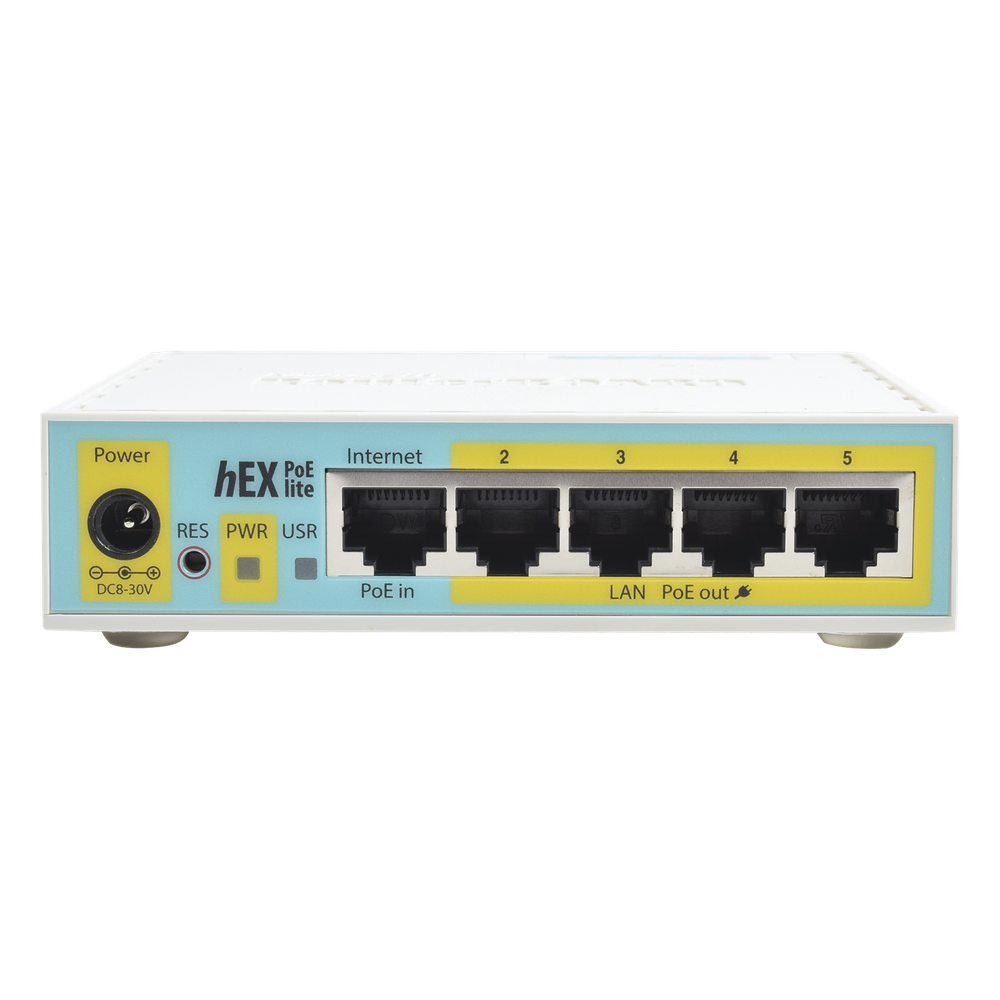

hEX PoE Lite

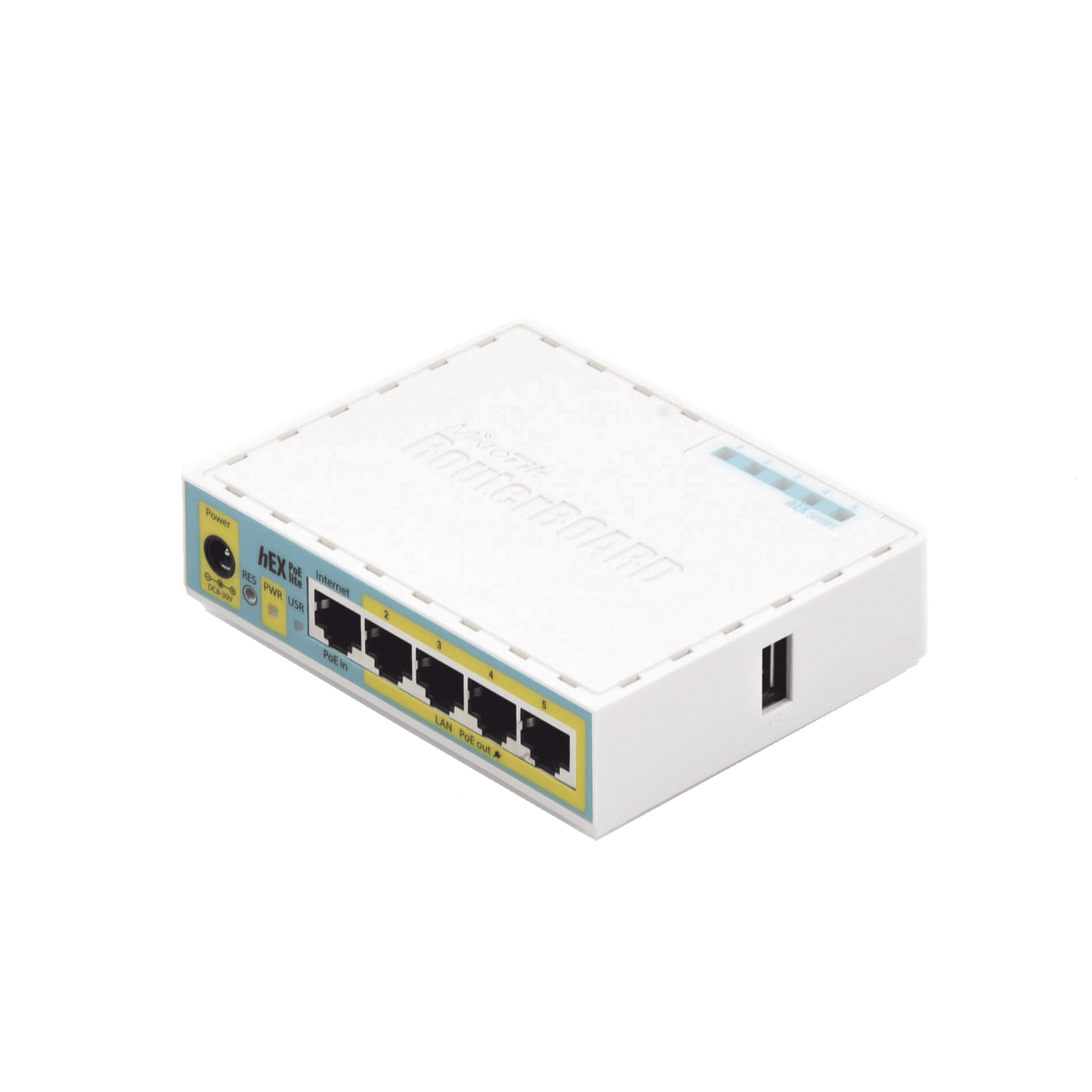

hEX PoE Lite is a small five-port Ethernet router in a plastic case, which has a USB 2.0 port and PoE output.

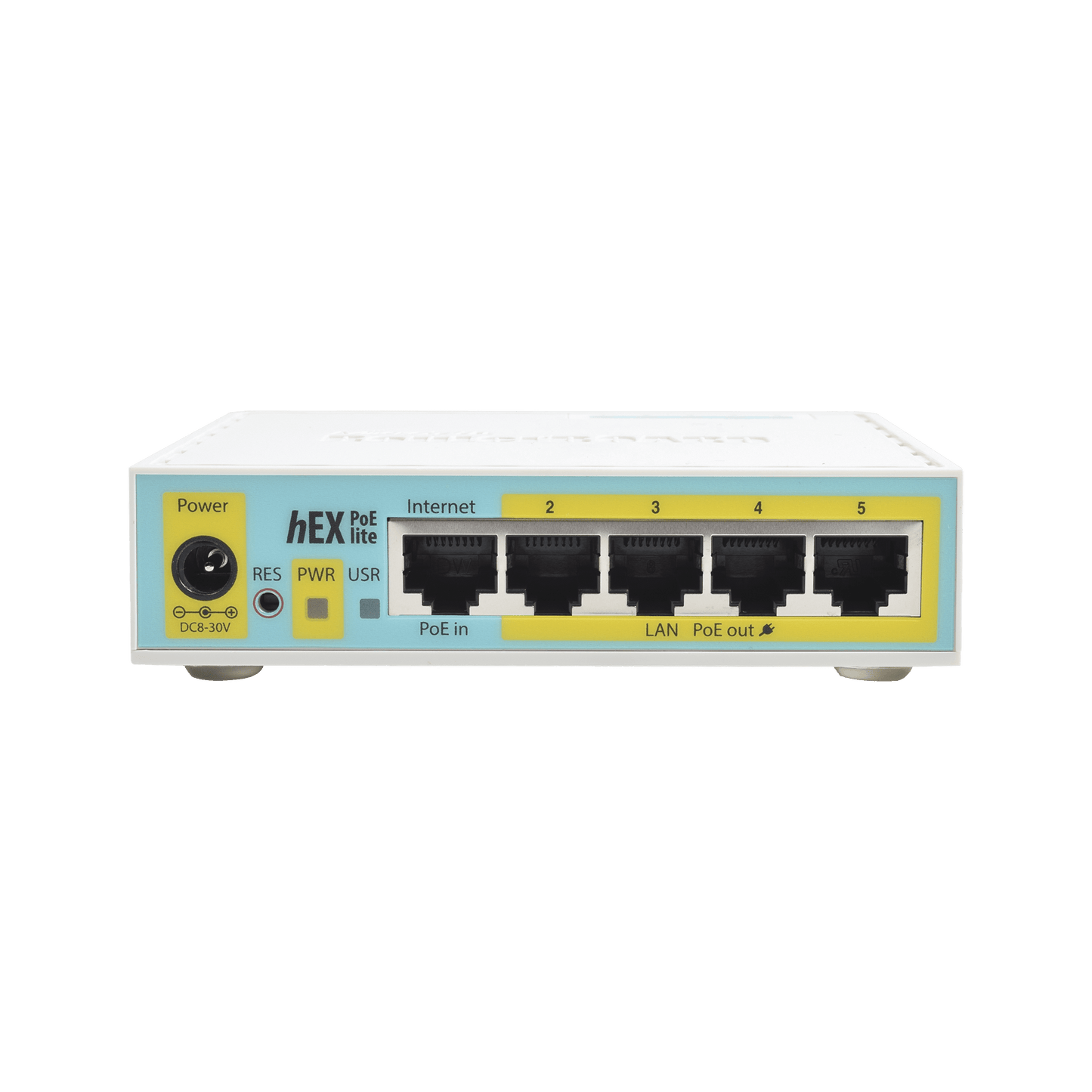

Ports 2-5 can power other PoE (Passive) capable devices with the same voltage applied to the unit. Less power adapters and cables to worry about! The maximum current is 1A per port, Ethernet ports are shielded.

It's economical, small and easy to use. With its compact design and clean appearance, that fits perfectly into any SOHO environment

* 1 year warranty.

RouterOS Key Features

General specifications

Details
Product code RB750UPr2
Architecture MIPS-BE
CPU QCA9531
Number of CPU Cores 1
CPU frequency 650 MHz
Dimensions 113x89x28mm
License Level 4
Operating system RouterOS
RAM memory 64 MB
Storage 16 MB
Storage Type FLASH
Operating temperature -30 + 70 C

Feeding

Details
Energy consumption 3W
Power supplies 2 (DC jack, PoE-IN)
PoE input Passive PoE
Jack input voltage 8-30 V DC
PoE input voltage 8-30 V DC
PoE output Passive PoE

Ethernet

Details
Ethernet ports 5 x 10/100 Mbps

Peripherals

Details
Number of USB ports 1
USB power reset And
USB slot type USB type A

Other

Details
Monitor Actual And
PCB Temperature Monitor And
Voltage Monitor And

Ethernet Test Results

RB750UPr2 QCA9531 (650Mhz) 100M all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 40.6 493.0 117.4 480.9 217.0 111.1
Bridging 25 bridge filter rules 40.6 493.0 70.1 287.1 70.9 36.3
Routing none (fast path) 40.6 493.0 117.4 480.9 200.8 102.8
Routing 25 simple queues 40.6 493.0 79.6 326.0 90.8 46.5
Routing 25 ip filter rules 40.6 493.0 42.2 172.8 43.2 22.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

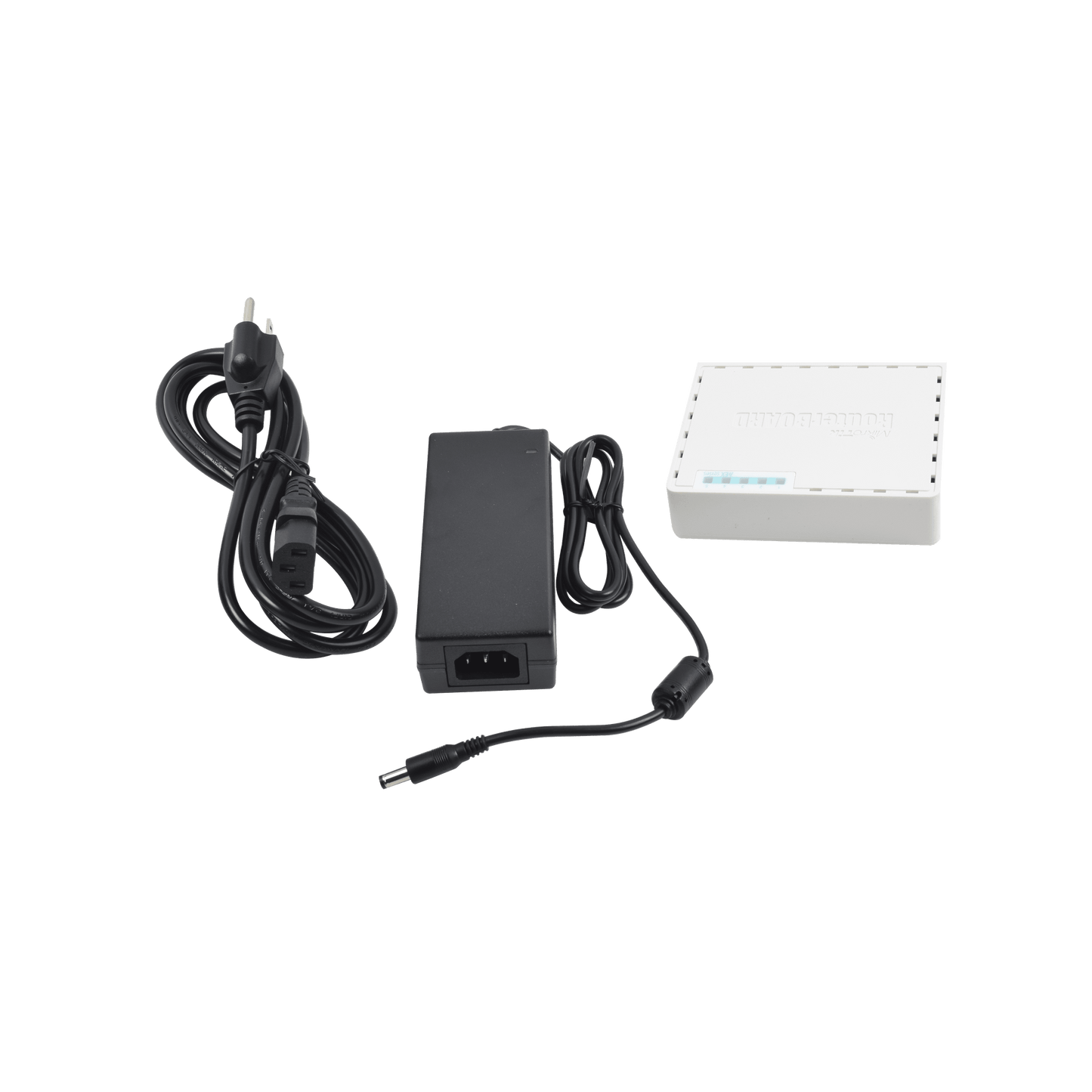

Parts Included

*Images for illustrative purposes only
