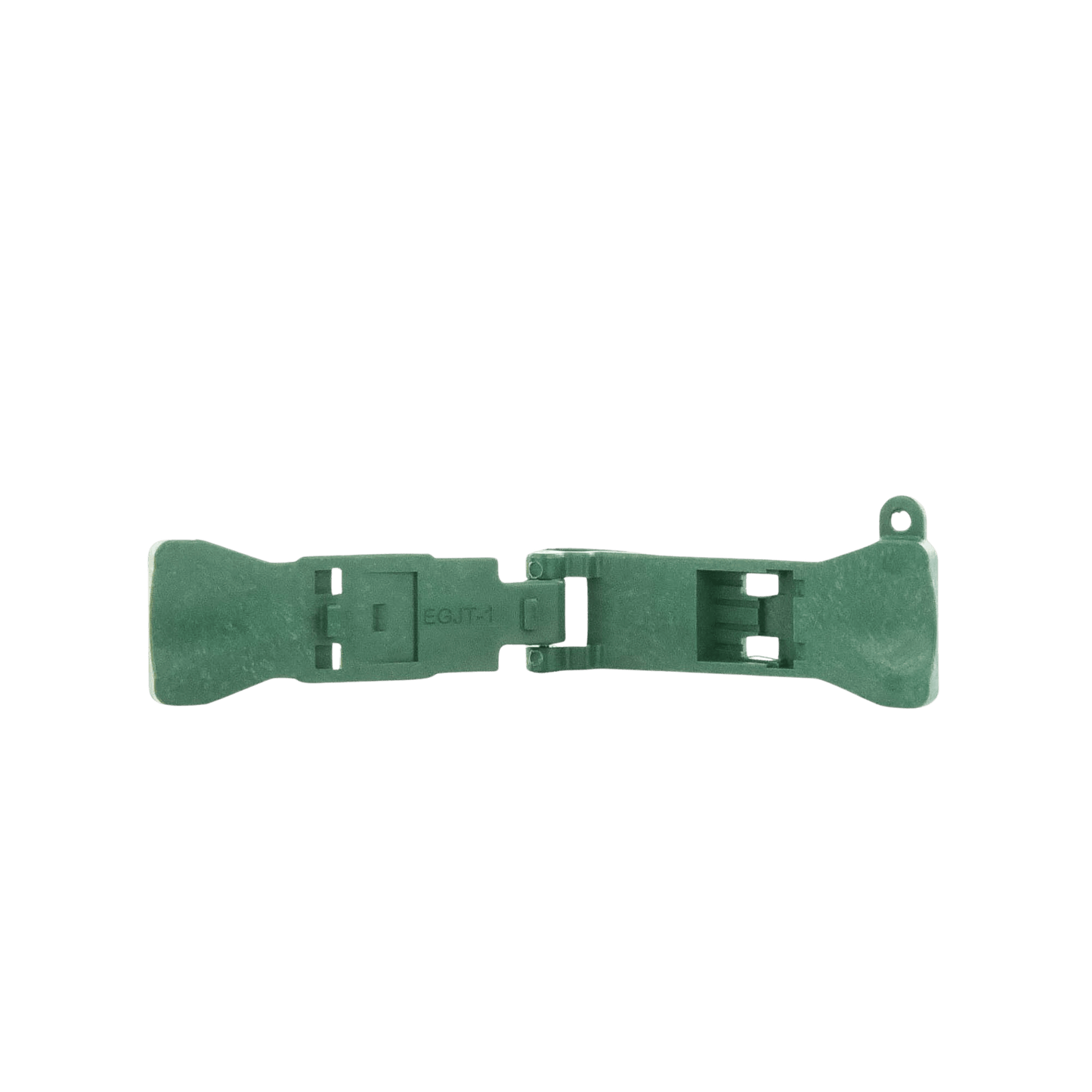

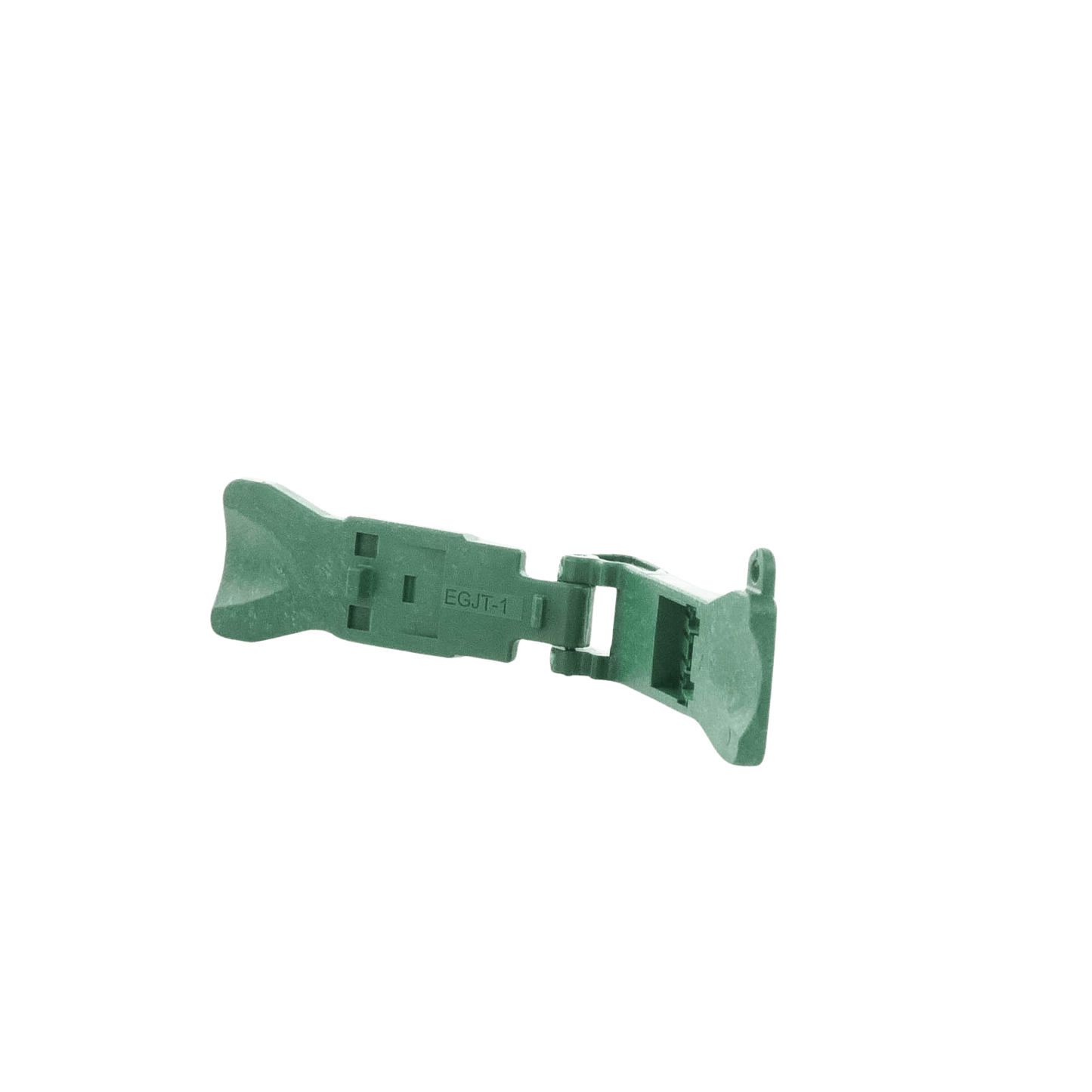

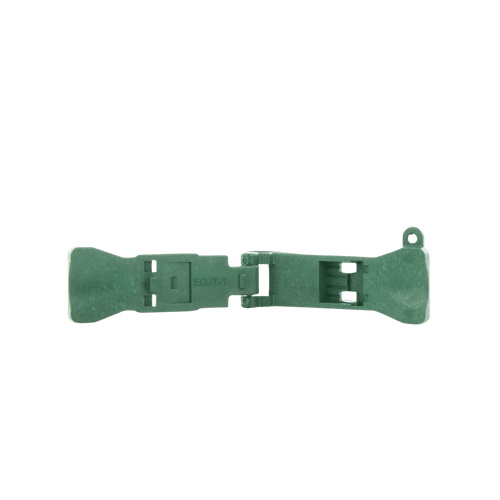

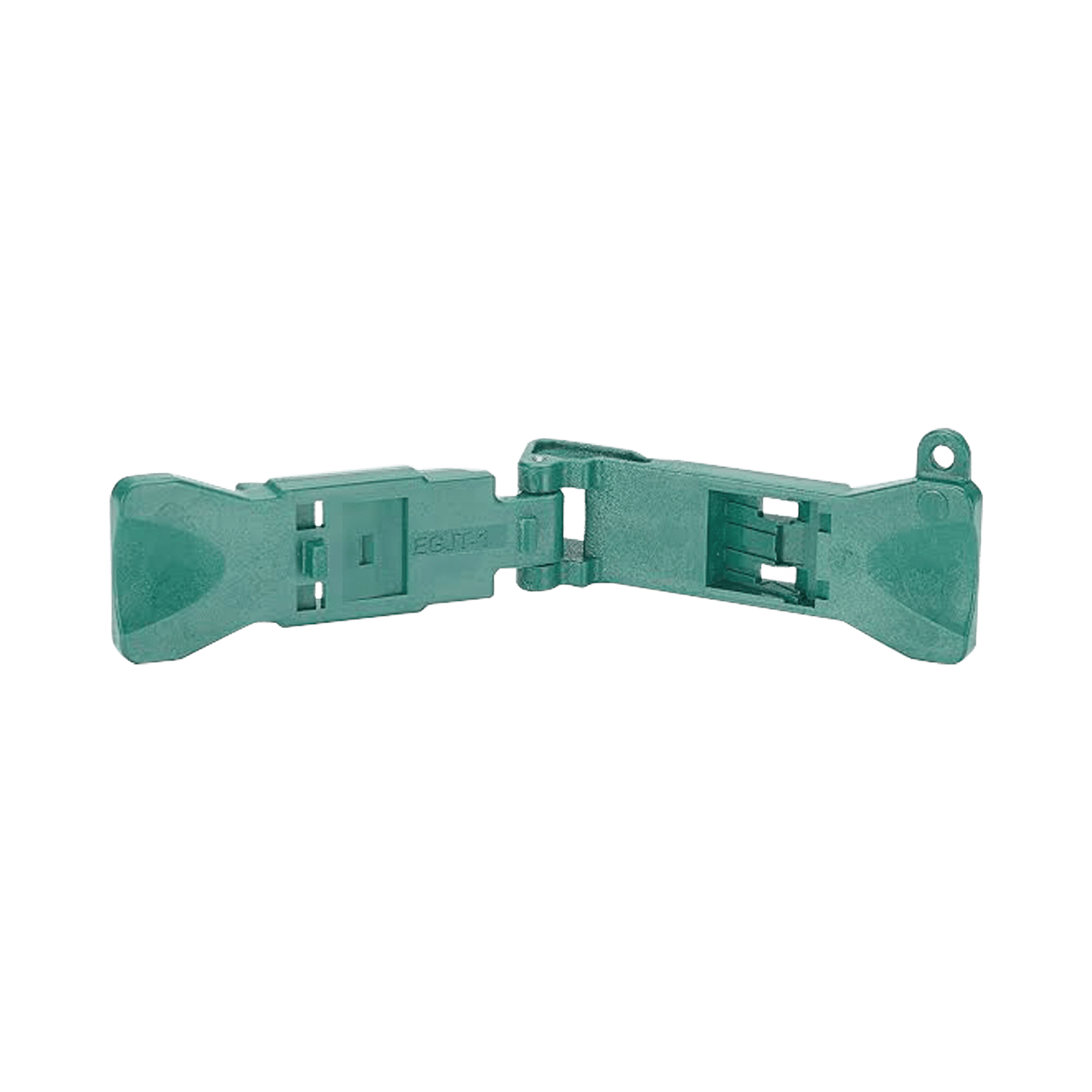

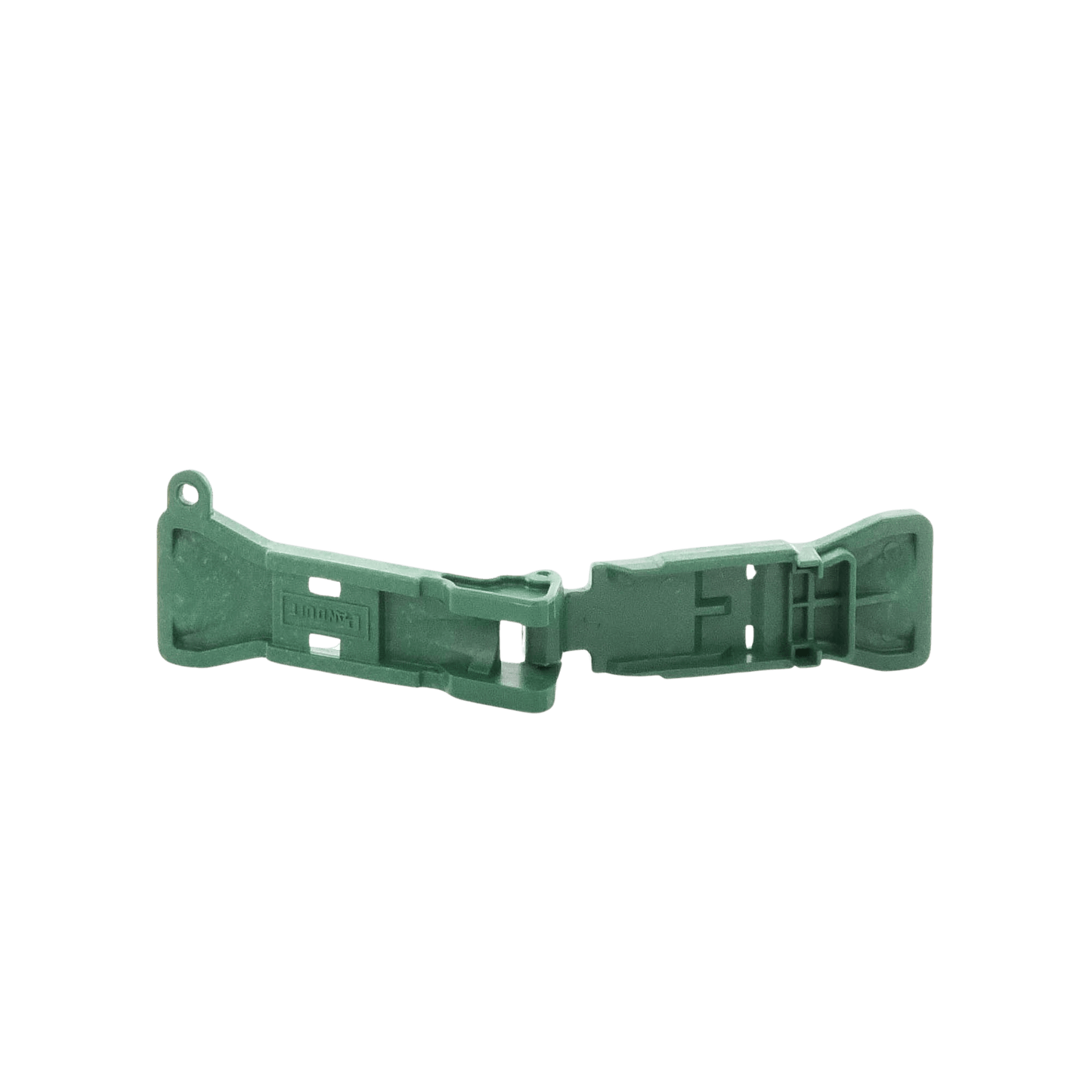

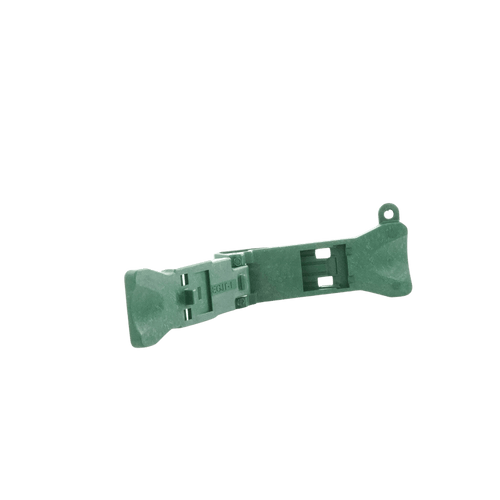

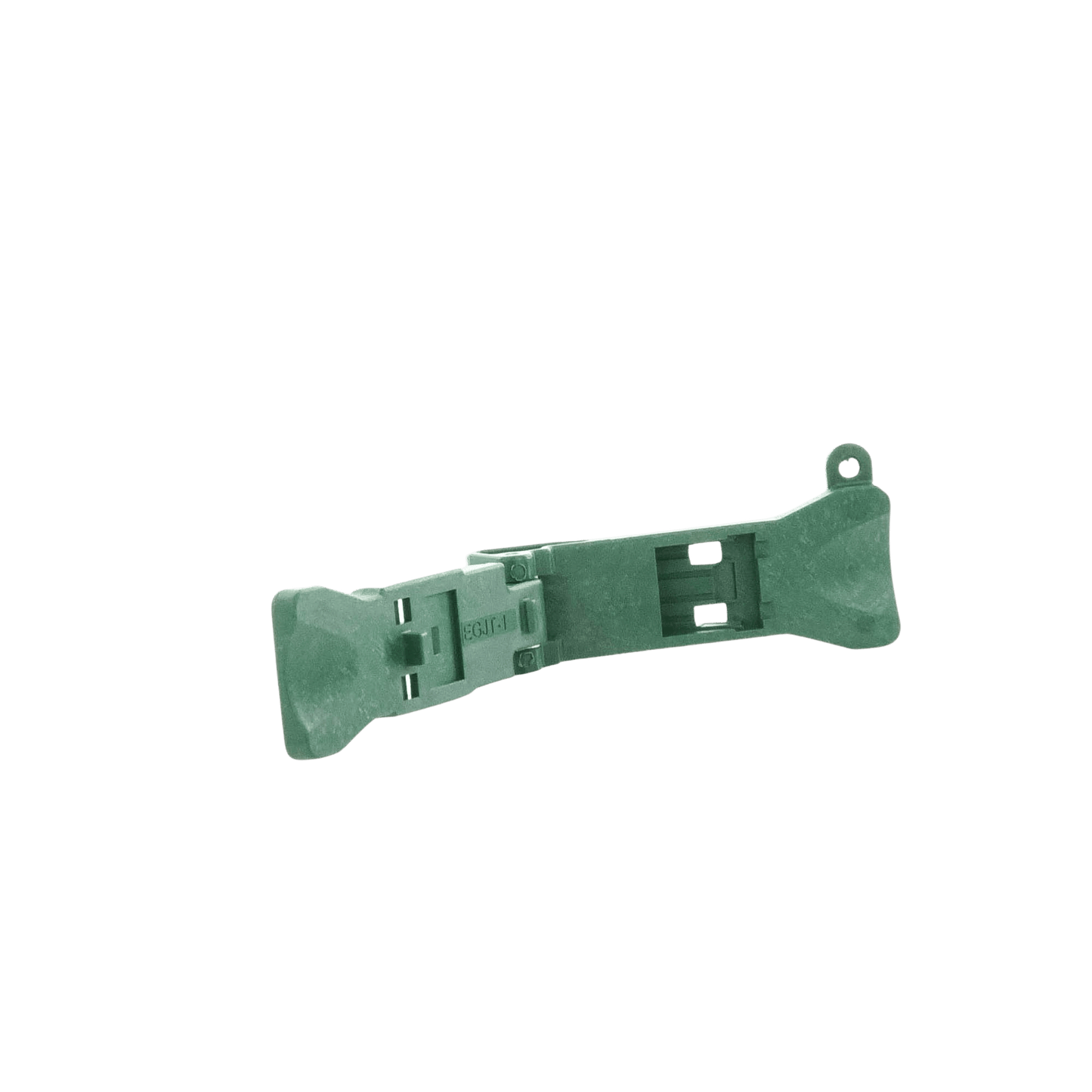

Panduit TG Jacks and TX6A Straight Termination Plug Tool

The Category 6A UTP Field Termination RJ45 Connector is an easy-to-connect field plug for unshielded twisted 4-pair cable. Providing Category 6A performance, it is compatible with Category 5e and 6 systems on 22 to 26 AWG conductors. The Plug is available in both straight and angled forms, and utilizes the TG termination tool to optimize performance and properly maintain cable geometry.

Applications:

The Field Terminated Plug is easy to install and is ideal for a growing number of network-connected devices:

• Wireless Access Points (WAP)
• Power Over Ethernet (PoE) LED Lighting
• IP Security Cameras and Motion Sensors
• Access control points
• Network-connected audio and video equipment
• Other network devices with PoE or HDBASE-T power

Technical Information:

• Cat6A/Class EA Performance: Exceeds ANSI/TIA 568-C.2 Category 6A and ISO 11801 Class EA minimum performance requirements in two field-terminated connections. Exceeds TIA's proposed requirements for MPTL testing with a maximum of two field termination connections.
• Cable Compatibility: Compatible with 4-pair cable, 22 to 26 AWG solid or stranded unshielded twisted pair (UTP), with conductor diameter of 1.52 mm and overall cable diameter of 5.08 to 8.38 mm.

45º Plug Installation Video:

Straight Plug Installation Video:
