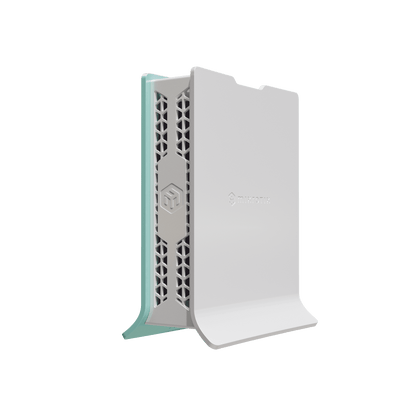

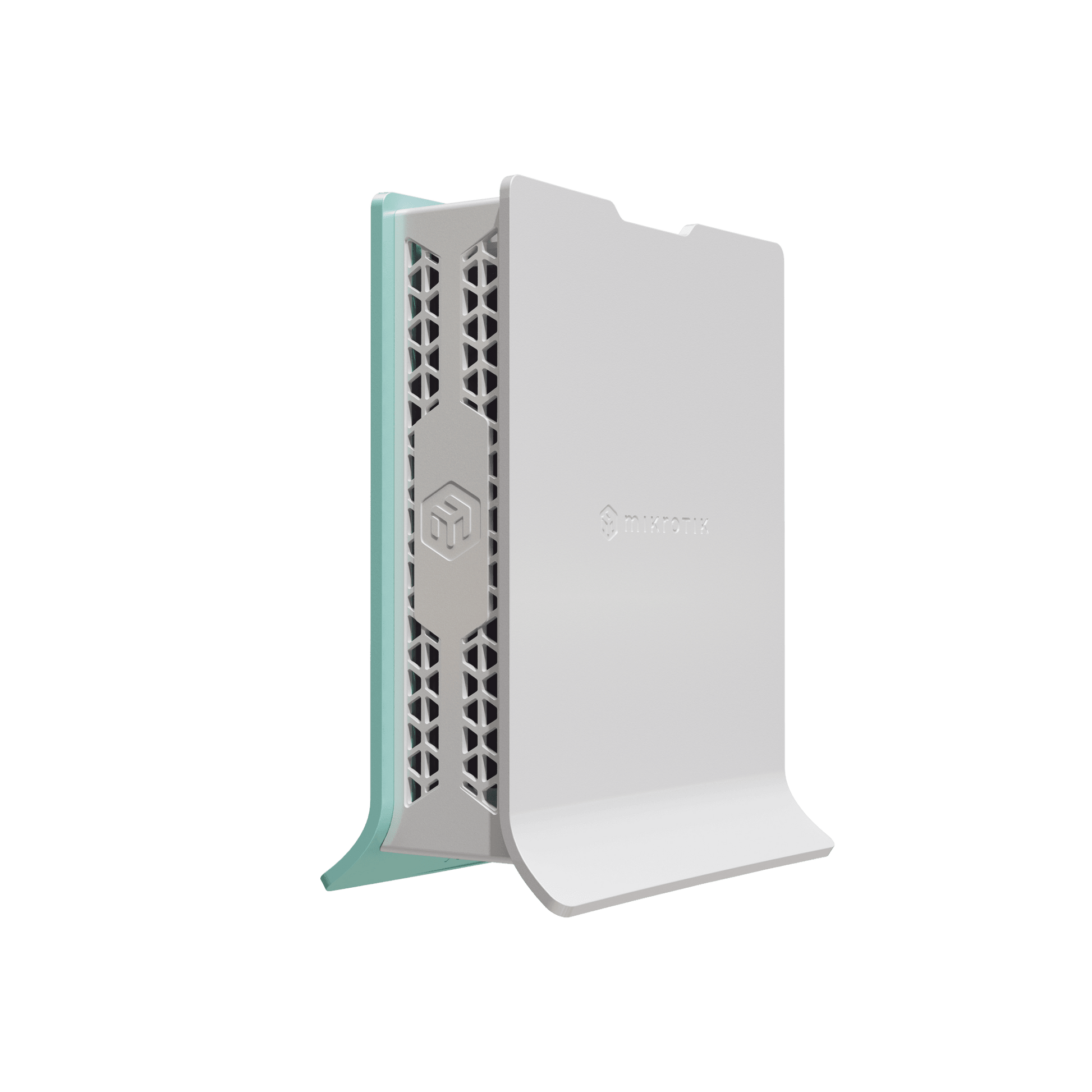

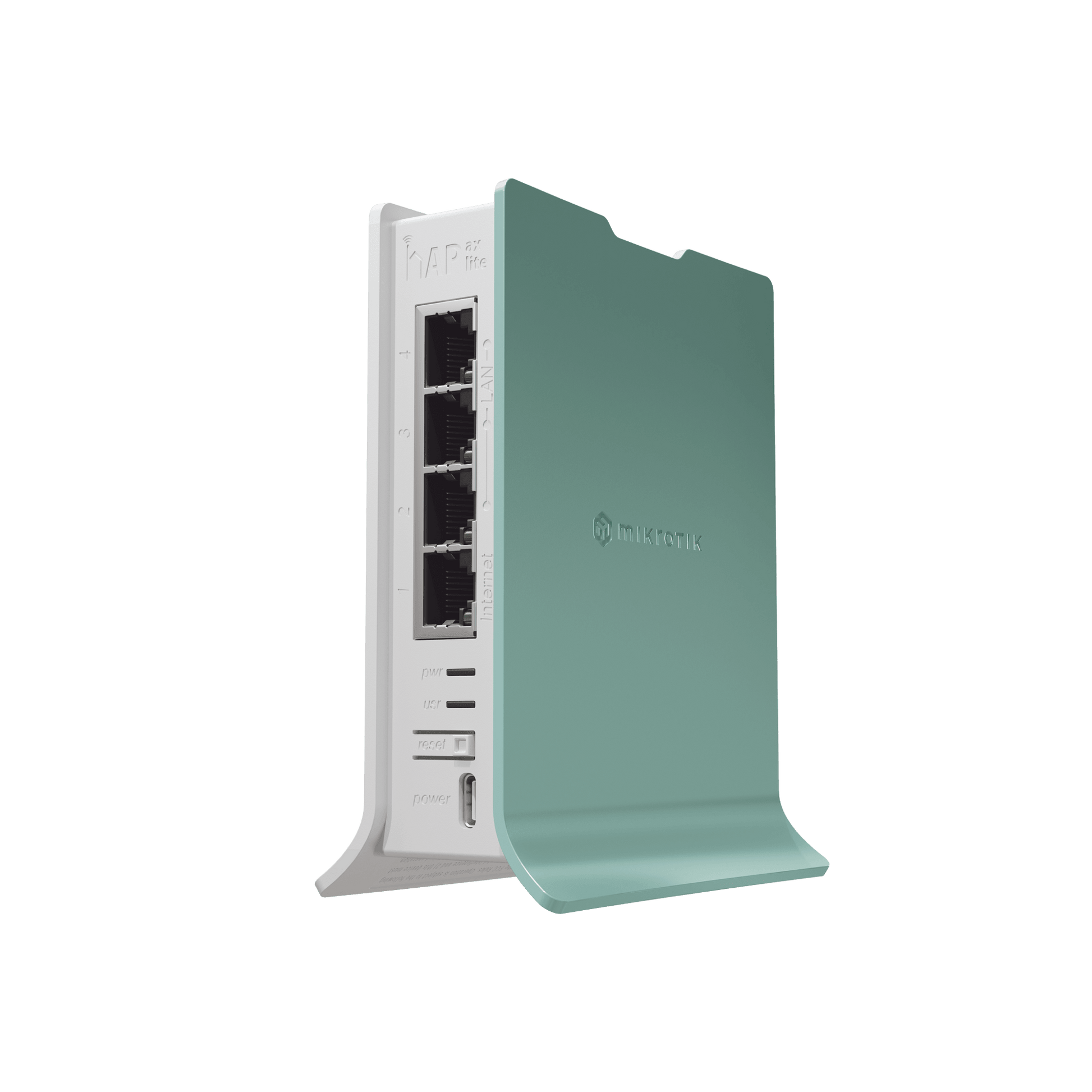

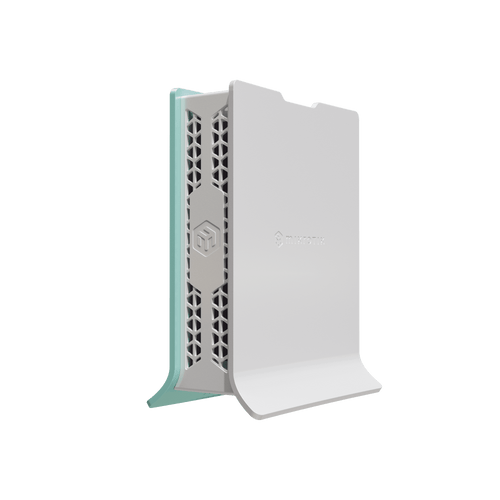

(HAP ax lite) 2.4 Gen6 802.11b/g/n/ax 160mW WiFi Router Power, 4 Gigabit Ports


hAP ax lite is the perfect tiny solution when you need to cut costs, but you can't afford to sacrifice performance. Our latest Gen6 AX wireless chip lets you squeeze the traditional 2,4 GHz wireless spectrum like a lemon! Depending on your general setup, You can expect a speed increase of up to 90%!
Very useful in scalable configurations such as hotels or expanding offices: the attractive price! The compact size and a solid feature set mean you can add more devices without a doubt! And, talking about hotels, Why not pack a hAP ax lite for your vacation? It takes up almost no space in your suitcase and allows you to free yourself from restrictive guest networks.
Our hAP lite devices have always had a value. With 256 MB RAM , a modern ARM CPU running at 800 MHz, 4 Gigabit Ethernet ports , much higher dual-chain antenna gain (up to 4,3 dBi!) and a complete visual redesign, The new hAP ax lite is a true pioneer of value and affordable networking.
Specifications
details | |
---|---|
Product code | L41G-2axD |
Architecture | ARM |
CPU | IPQ-5010 |
CPU core count | 2 |
CPU nominal frequency | 800 MHz |
MODEL change chip | MT7531BE |
RouterOS License | 4 |
Operating system | RouterOS v7 |
RAM memory size | 256 MB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -40 °C a 70 °C |
Wireless capabilities
details | |
---|---|
Maximum wireless data rate of 2:4 GHz | 574 Mbit/s |
Number of 2,4 GHz wireless chains | 2 |
2:4 GHz wireless standards | 802.11b/g/n/ax |
dBi antenna gain for 2:4 GHz | 4.3 |
MODEL 2:4 GHz wireless chip | IPQ-5010 |
2:4 GHz wireless generation | Wi-Fi 6 |
WiFi speed | AX600 |
Ethernet
details | |
---|---|
10/100/1000 Ethernet ports | 4 |
Feeding
details | |
---|---|
Number of DC inputs | 1 |
Maximum power consumption | 8 watts |
Cooling type | Passive |
Certification and approvals
details | |
---|---|
certification | CE, FCC, IC, EAC, ROHS |
IP | 20 |
others
details | |
---|---|
mode button | YEAH |
Wireless specifications
2,4 GHz | Transmit (dBm) | Receive sensitivity |
---|---|---|
1MBit/s | 22 | -100 |
11 MBit/s | 22 | -100 |
6MBit/s | 22 | -95 |
54MBit/s | 18 | -77 |
MCS0 | 22 | -95 |
MCS7 | 17 | -75 |
MCS9 | 16 | -69 |
MCS11 | 15 | -61 |
Parts included
The device has a pre-installed and licensed operating system. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years from the date of purchase.
