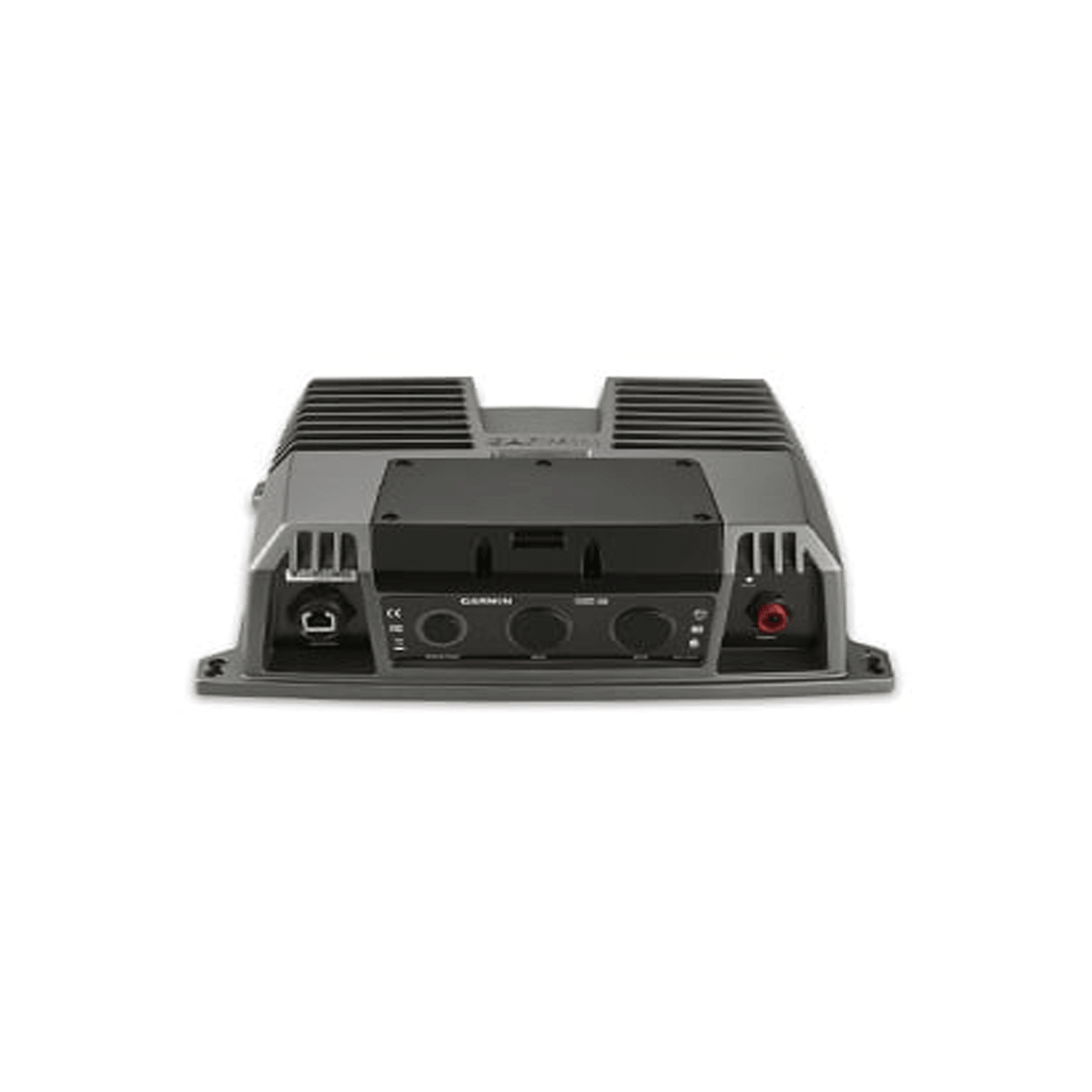

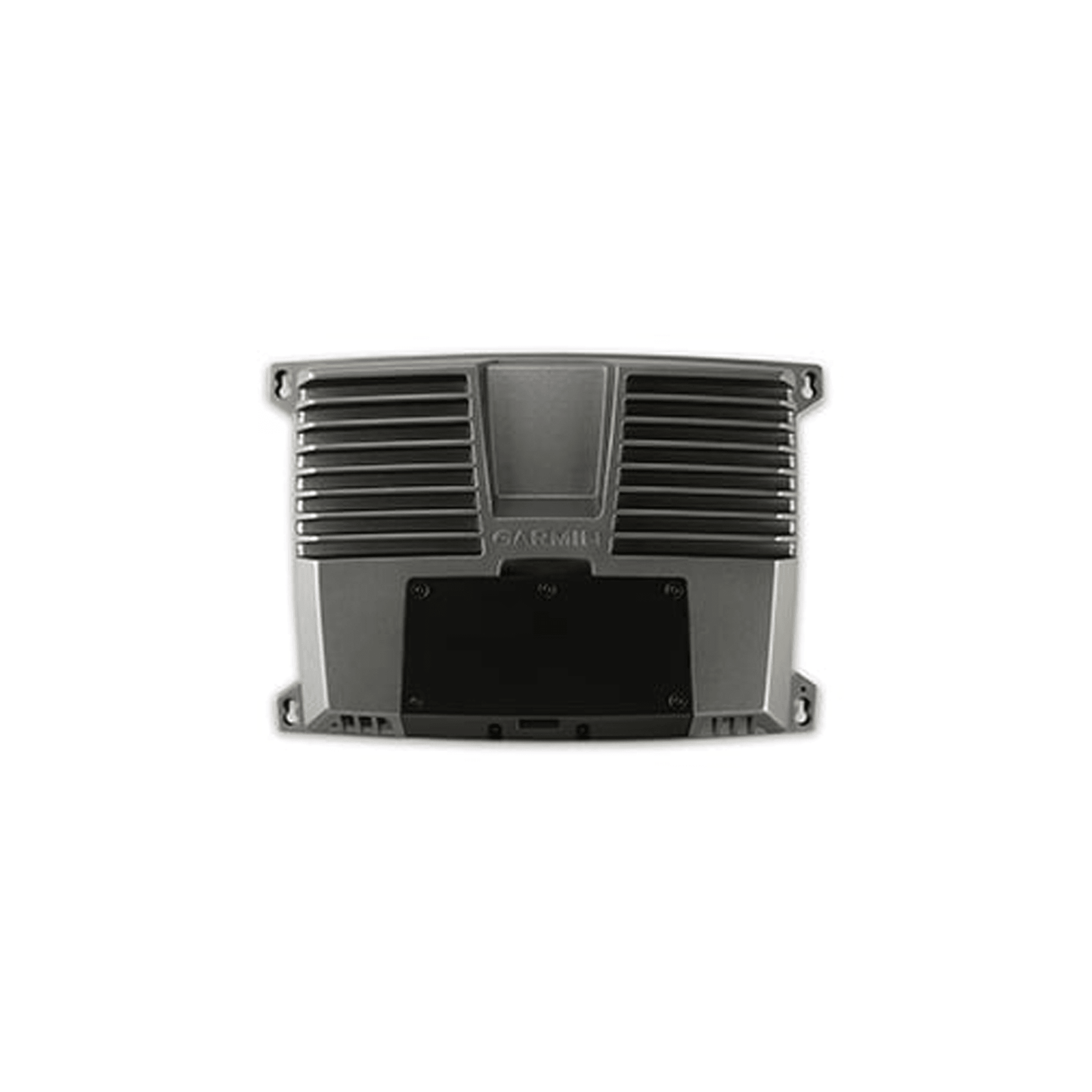

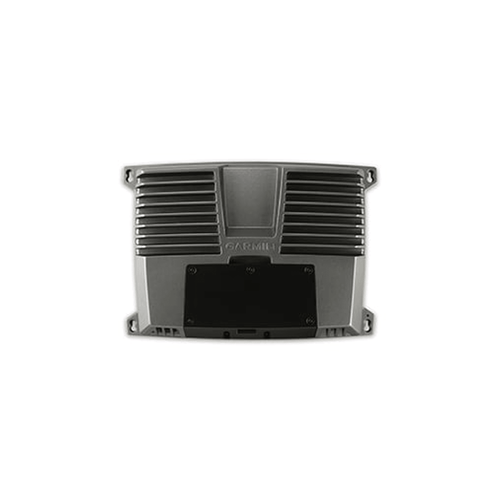

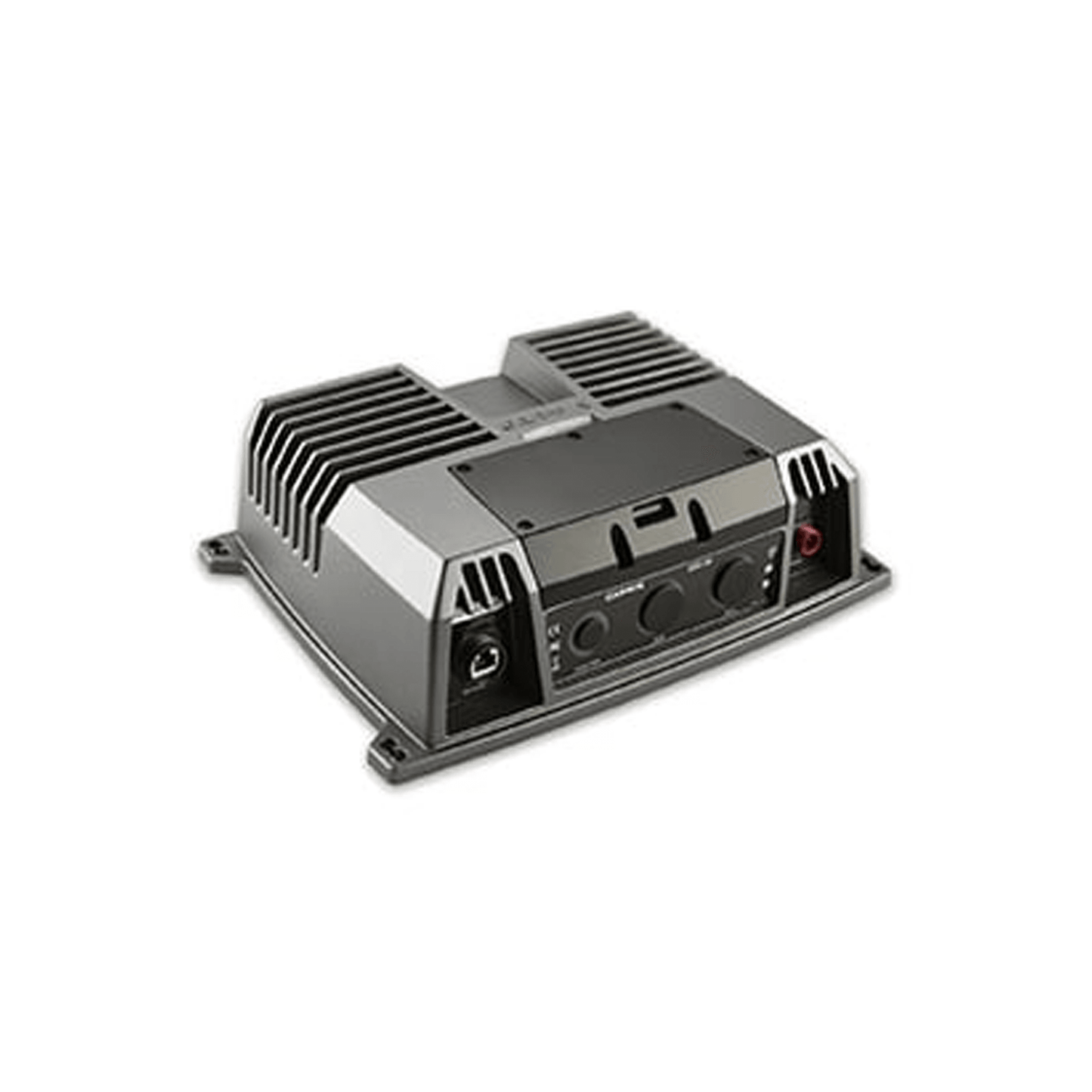

GSD™ 26 Digital Probe

Much greater depths than traditional probes.

Characteristics:

• Compatible transducer
• Explore multiple frequencies at the same time
• Much greater depths: up to 10,000 ft (3,000 m).
• Simultaneous and independent operation of the transducer.
• Power from 25 to 3,000 Watts of RMS power.

Includes:

• GSD 26
• Power cord
• Marine Network Cable (6 ft - 1:8 m)
• Mounting components
• Software update SD card
• Documentation

Specifications:

• Material: Fully sealed aluminum and steel housing with plastic access panel
• Unit Dimensions (274mm × 373mm × 100mm)
• Weight: (5:16 kg)
• Waterproof: yes (IPX7)
• Temperature range: (-15°C to 70°C)
• Power input: 10-35V
• Power consumption: 100 W maximum
• Fuse: 10A
• Compass safety distance: (60cm)
• Probe power: 25-3,000 W rms¹
• Frequency: 25-210 kHz (depending on transducer)
• Depth: 10,000 ft (3048 m)²
• Data Sending: Garmin Marine Network
