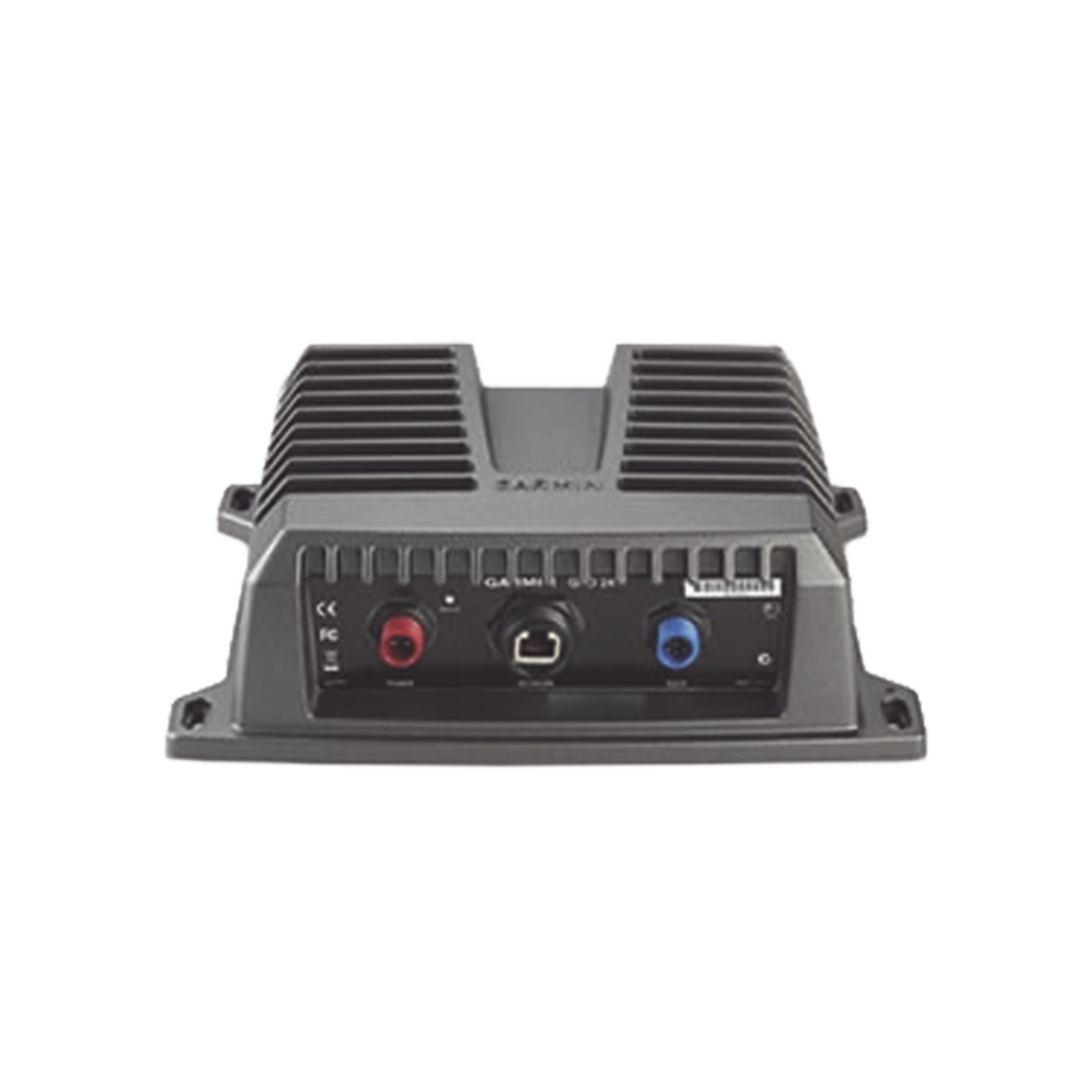

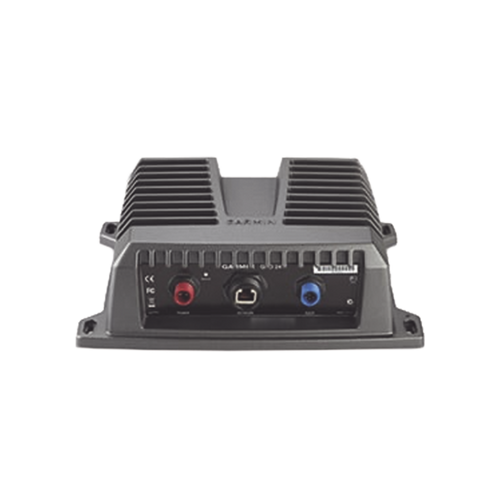

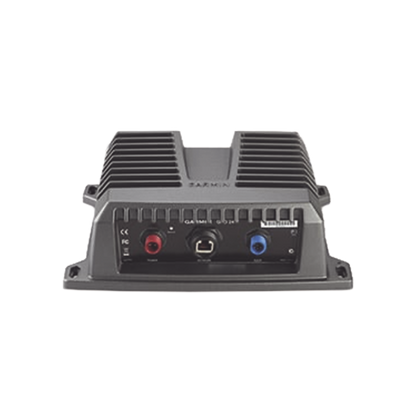

GSD™ 24 Digital Probe

Much greater depths than traditional probes.

Characteristics:

• Transducer compatible with dual frequency 50/200 kHz
• Much greater depths: up to 5,000 ft (1,500 m).
• Selectable power of 600 W, 1 kW and 2 kW.

Includes:

• GSD 24
• Power cord
• Marine Network Cable (6 ft - 1:8 m)
• Mounting components
• Wire block adapter to 8 pin female connector
• Documentation

Specifications:

• Material: Fully sealed aluminum and steel housing
• Unit dimensions: LxWxH: (204mm × 284mm × 81mm)
• Weight: 2:39 kg
• Waterproof: IPX7
• Temperature range: 5°F to 158°F (-15°C to 70°C)
• Power input: 10-35 Vdc
• Electrical consumption: 40 W maximum
• Fuse: 7:5 A
• Compass safety distance: 15:75 in. (40cm)
• Probe power: 25-2,000 W rms¹
• Frequency: 50/200kHz
• Depth: 5,000 ft (1524 m)²
• Data Sending: Garmin Marine Network
