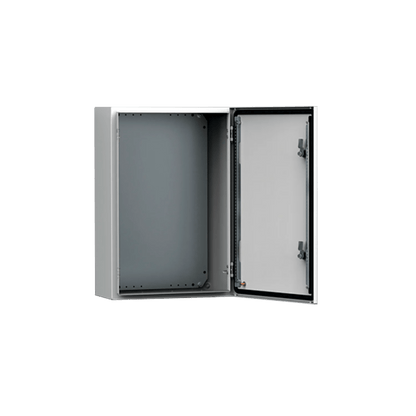

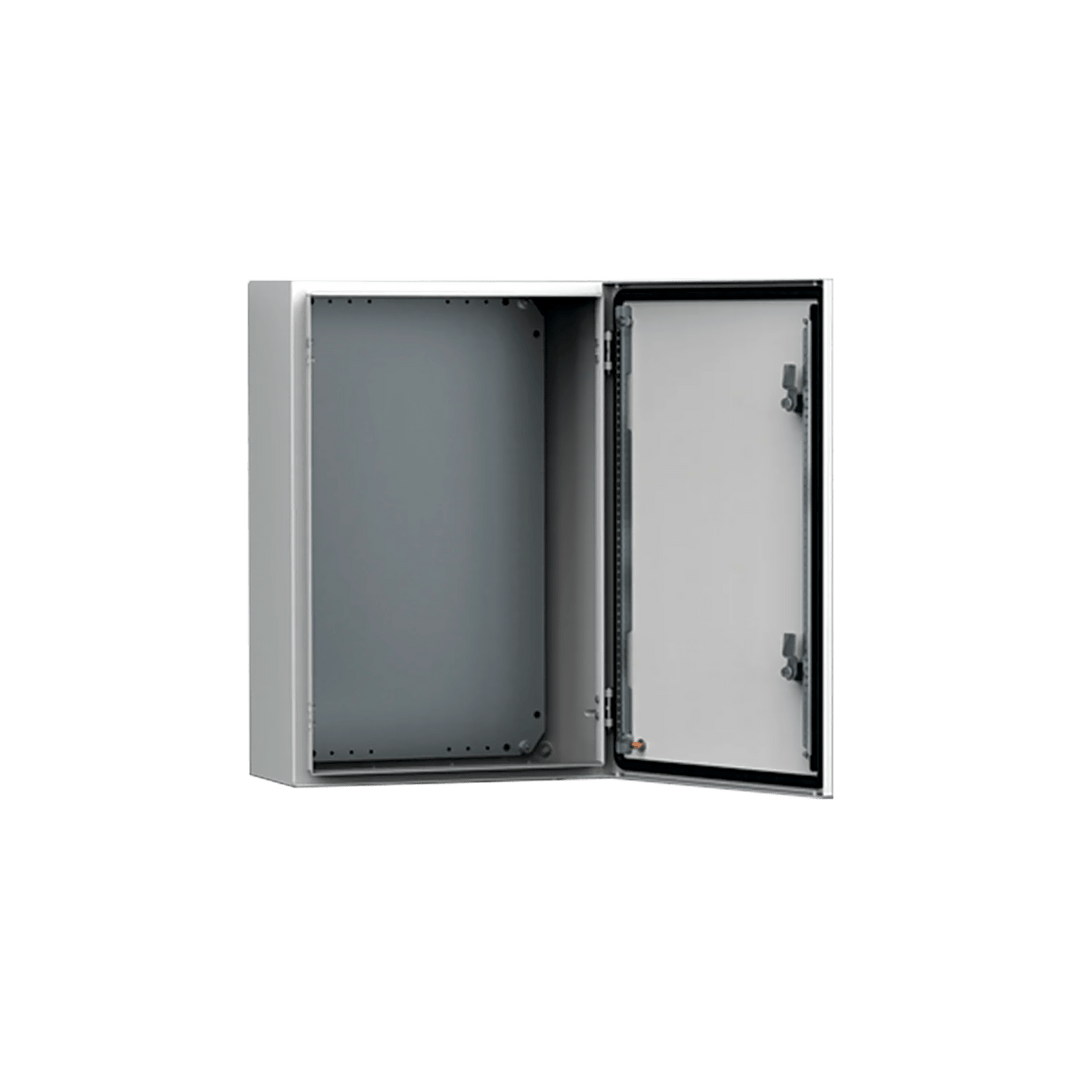

Outdoor Use Cabinet NEMA 4/12; IP66; IK10, 500x400x260mm, Steel, Light Gray Color

The range of steel single door wall cabinets & comma; with a degree of protection IP66 & comma; is available in many different sizes. This range of cabinets is ideal for many different applications. The risk of failure of the components & comma; and with that unnecessary downtime & comma; is eliminated since water and dust are prevented from entering the cabinet.

Main features:

• Body: Folded and welded seam. Four holes with a diameter of 8.5mm for fixing to the wall & comma; pressed into depressions with a diameter of 20.4mm × 2mm & comma; to allow air circulation around the back of the cabinet.
• Door: Surface mounted with 130 degree opening; removable hidden hinges with captive pin
• Door: Hinges can be mounted to allow left or right opening.
• Door: M6 internal welded bolts for mounting MMDP door profiles
• Door: The sealing is ensured by a one-piece injected polyurethane gasket.
• Lock: Custom double paddle lock for easy opening of the door
• Press plate: located at the rear end of the cabinet & comma; for easy wiring to the mounting plate.
• Mounting plate: The mounting plate is marked vertically at 10mm intervals & comma; to facilitate the horizontal positioning of the equipment.
• Mounting plate: At the top and bottom there are holes for easy fixing of the cable

Technical Specifications:

• Height: 19.69 inches/500mm
• Width: 15.75 inches/400mm
• Depth: 10.24 inches/260mm
• Protection rating: NEMA type 4; NEMA type 12; IP66; IK10
• Material: Steel
• Finish: Powder Coated
• Colour: Light Grey
• Color code: RAL 7035
• Body thickness: 16 ga/1.5mm
• Door thickness: 16 ga/1.5mm.
• With panel included
• Style: With mounting plate
• Panel size: 18.5x13.78 inches/470x350mm
• Weight: 28.59 lb (12.96 kg)
