Bi-directional Optical Turnstile Expansion Cabinet/The Most Aesthetic/Acrylic Sheets/5,000,000 Cycles

  • d313a11fdc8047cb9aedc9ef711ec30b
  • 2e157af88f2645cf45badb1dc33e31c9
1 2
  • 5,000,000 cycles guaranteed
  • Made of stainless steel
  • Motorized Rotor
  • acrylic panels

Low stock: 9 left

Modelo: AP4000HDE

Proveedor: ACCESSPRO

Código SAT: 30171509

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

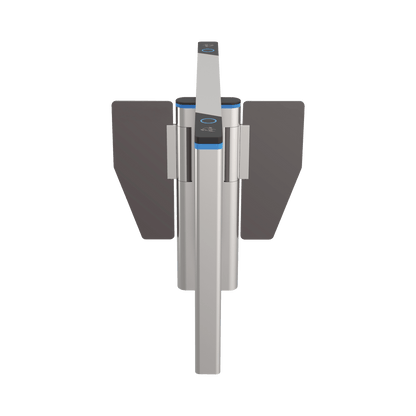

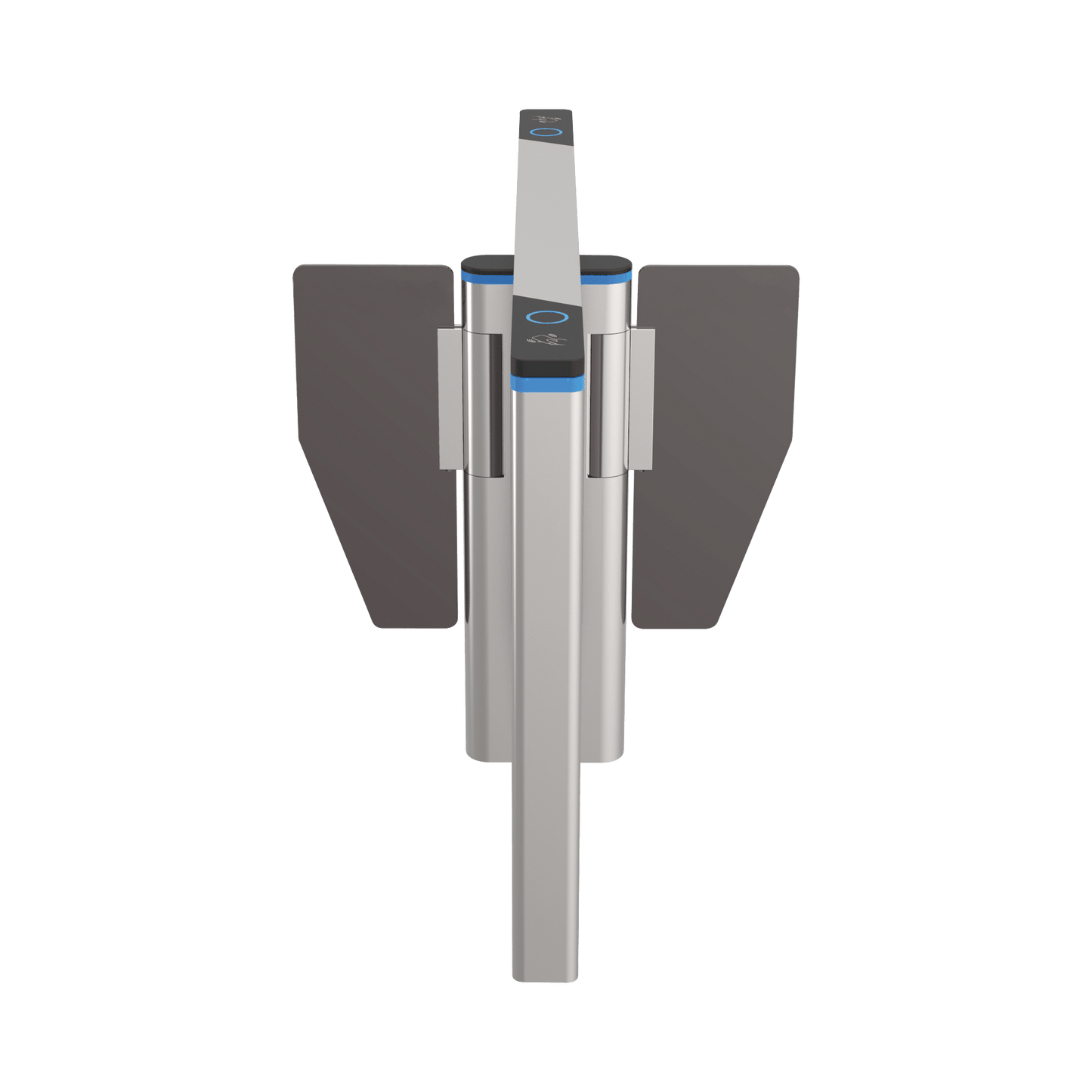

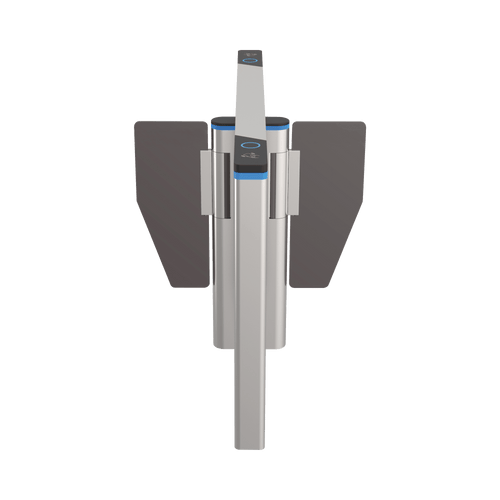

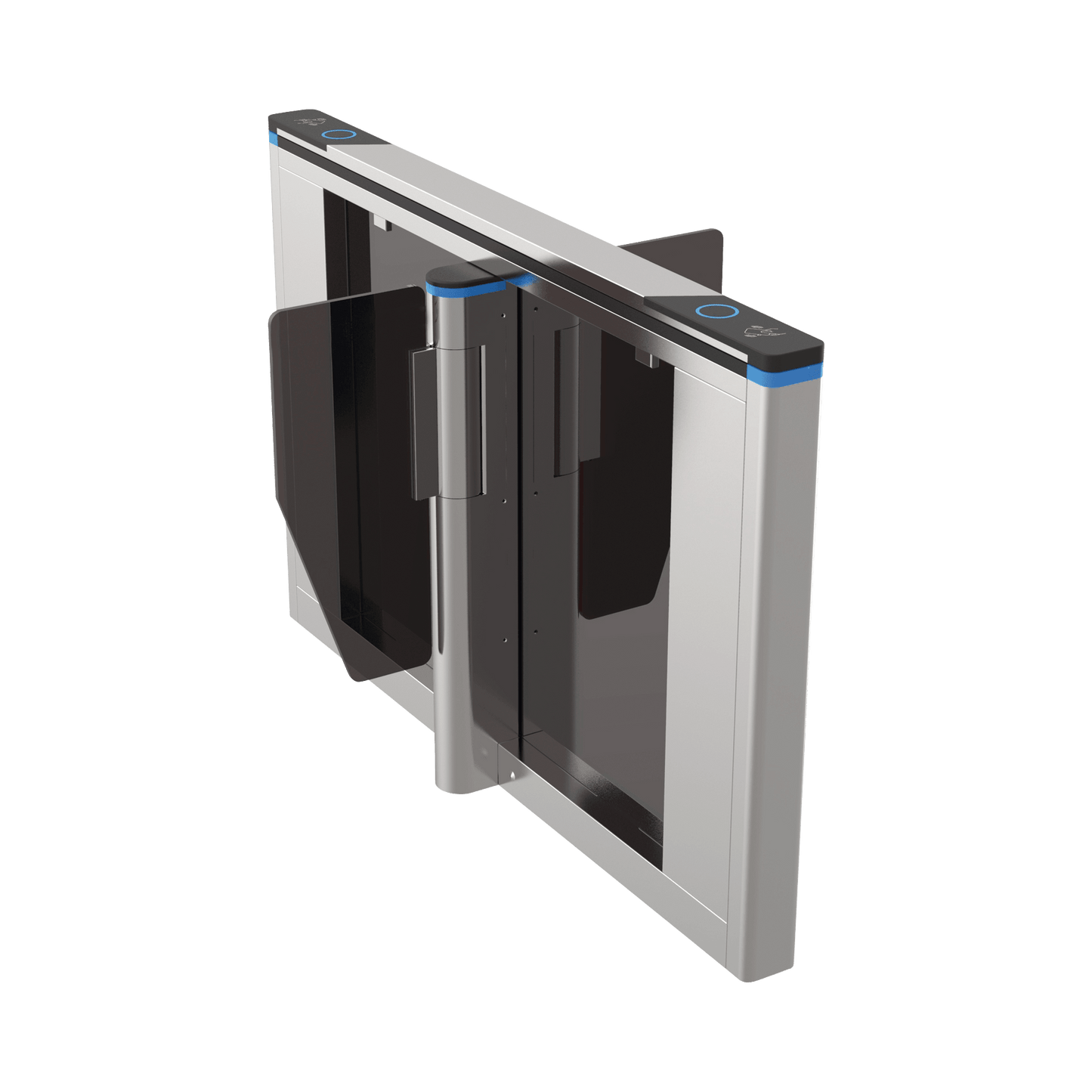

AP4000HDE

The AP4000HDE courtesy turnstile is designed for demanding users, it's safe, efficient and intelligent, high quality, sturdy and durable. The AP4000HDE are designed to improve security and optimize labor at your entry points. These systems will provide you with efficient and elegant control of individual access to your facilities. They are easy to install, easy to understand and maintain. The products can be widely applied to the following uses: as industrial companies, office buildings, stores, museums, security facilities, prisons, nuclear power plants, airports, railways, sea ports, exhibition centers, ski resorts, gym and others.

Main features:
  • Dimensions: 1400x185x1020mm
  • Material: 1.0mm 304 SUS Hairline #400
  • Passage width: ≦900mm
  • People flow: 35-40 per minute
  • Operation time: 0.2 Seconds
Physical and Electrical Characteristics:
  • Input voltage: 100-240Vac. 50/60Hz
  • Operating voltage: 24Vdc
  • Communication interface: RS-485
  • Dry contact activation
Featured Features:
  • Use RFID smart cards, identity cards, barcode or Qr code readers.
  • The direction indicator shows the pedestrian the status of the current reading and guides the pedestrian correctly.
  • Unidirectional or bidirectional, configurable on the turnstile.
  • Adjustable time delay.

  • Note: Does not include counter relay.

  • Requires cleaning maintenance and protection with WD40 according to the installation area.

More features and benefits
AP4000HD

Analysis sensors:

The sensors obtain the signal in real time, analyzes and processes the person or object to be able to have a variety of actions, According to the result of the analysis, the turnstile motors will be activated, or alarm depending on the situation.

Convenient settings:

Users can quickly and easily view and configure turnstile parameters, They no longer depend entirely on the computer or keyboard to consult and configure parameters.

Safe:

In case of emergency or power failure, The doors can be released without hindrance. I/O interfaces, RS23/485, which are convenient to control the input signal, and provides a centralized interface.

Two working methods:

NO and NC, which guarantees its efficiency for normal use or during peak hours.

Multiple control modes:

It can work in only one direction, bidirectional, free passage, with authorization to satisfy user needs.

Precise Positioning:

Precise positioning is thanks to photoelectric sensors, The duty cycle of the turnstile can be regular or heavy thanks to them.

Control indicator:

The control indicator can show us the three different types of turnstile status, open, waiting and free passage.

Stepper motor:

Both sides of the turnstile feature stepper motor for optimal coordination and synchronization, the controller himself takes control of all the turnstile systems, such as sensors, engines, lighting, braking, etc…

Warranty

AccessPRO brand 4000HD series turnstiles guarantee up to 5,000,000 cycles before the first failure of the mechanism.

1 year warranty.
