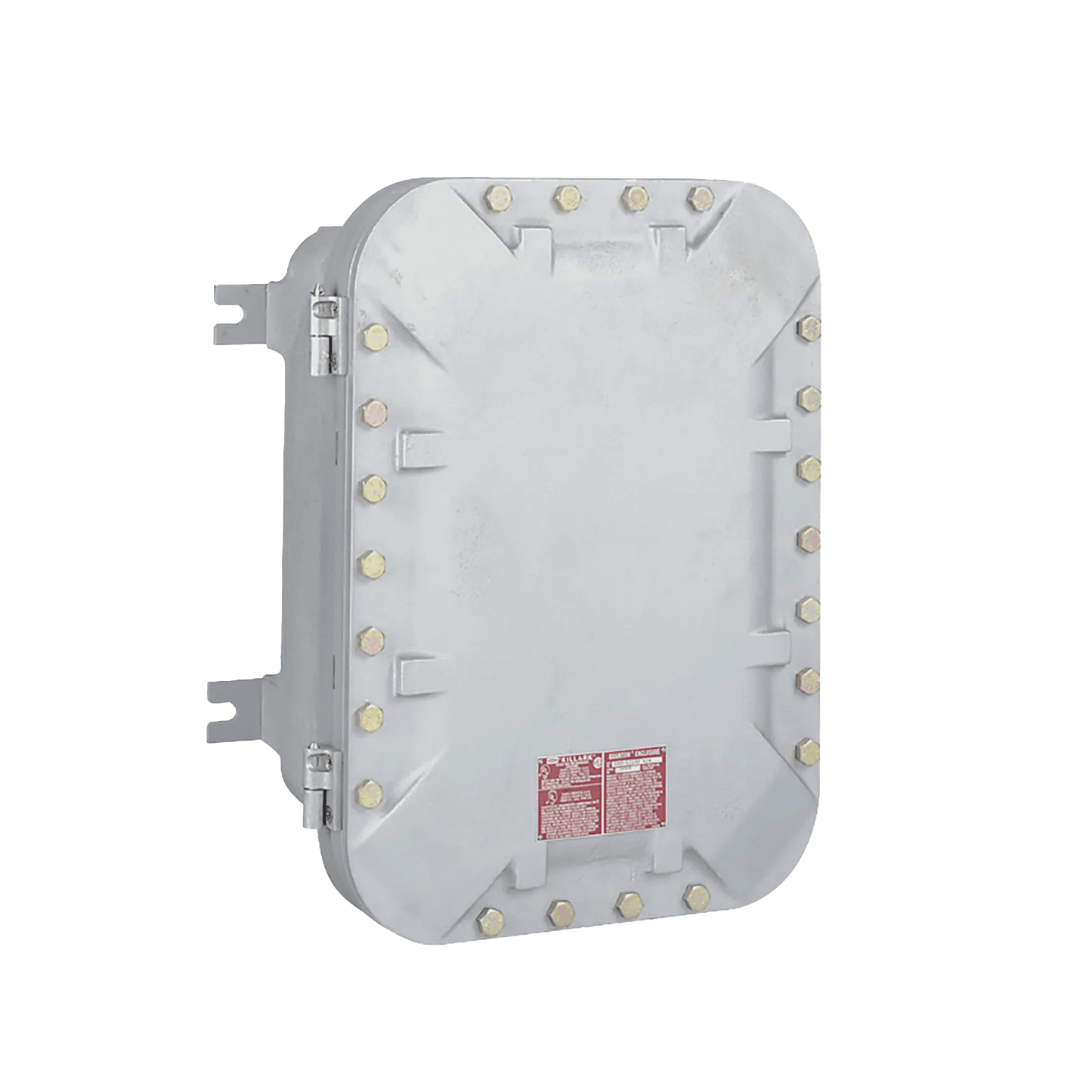

EXB 8 x 10 x 4 in Class I, II, III, BCDEFG Cast Aluminum Anti-Explosion and Fireproof Cabinet.

Applications:

• Locations that become hazardous due to the presence of flammable gases or vapors, combustible dusts or easily flammable and volatile fibers and areas that are subject to corrosive and humid climates.
• Suitable for Oil Refineries: Chemical and Petrochemical Plants with interior and exterior processes.
• Applications requiring splicing, extraction and junction box.
• Cabinets to house control stations, accountants, relays, starters, switches, terminal blocks, other equipment and devices.
• Global Applications (ATEX/IECEx) enclosures are available for global applications with the CEN suffix.
• Cabinets are available in white or with factory modifications, options and accessories.

Characteristics:

• Gray
• Size: 8 x 10 x 4 in
• Internal dimensions: 7.73 x 9.73 x 4.06 in (196.3 x 247.1 x 103.12 mm)
• External dimensions:
  • Height: 14.32 in (363.73 mm)
  • Width: 12.32 in (312.93 mm)
  • Depth: 6.32 in (160.53 mm)
• Weight: 15.89 kg
• Made of copper-free cast aluminum. High resistance, lighter in weight, corrosion resistant.
• Fewer bolts on deck. Its computer-aided design reduces the number of cap bolts, removing the corner bolts. Reducing installation and maintenance time.
• Nitrile (BUNA-N) "O" ring around bolts to prevent water from seeping into the cabinet, IP 66 & type 4.
• Ductile mounting eyes. The eyes are made of ductile aluminum alloy to conform to irregular mounting surfaces without damaging the cabinet.
• Cabinet sizes 8x12x6 and larger are equipped with two-way mounting eyes that can be positioned vertically or horizontally for easy mounting.
• Cabinet sizes 8x12x6 and larger are supplied with hinges mounted on the left side. The smaller cabinets are pre-drilled for installation of 2 Killark HINGE-9 mounts or can be installed as factory by adding SU2. To locate the hinges in other positions it must be specified when ordering.
• Options include viewing windows, control operators, rotating handles, circuit breaker handles, NPT conduit openings and metric gland openings.

Materials/Finish:

• Cabinets: Copper-free Aluminum (less than 4/10 of 1%)
• Hinges: Aluminum with stainless steel.
• Steel deck bolts.
• Optional mounting plates: Aluminum Sheet.
• Optional Windows: Tempered soda-lime glass.
• Aluminum lacquer paint with standard finish.

Certifications:

• Hazardous Area Classifications:
  • Class I, Divisions 1 & 2, Groups B,C,D
  • Class I, Zones 1 & 2, Groups IIB + H2, IIA
  • Class II, Divisions 1 & 2, Groups E,F,G
  • Class III, Divisions 1 & 2
• ATEX file number PTB 07 ATEX 1025U / PBT 07 ATEX 1024
• CSA file number LR11716
• IECEx file number IEC E x 07.0022U / IEC E x 07.0023
• NEMA 3 rating: 4, 4X
• UL file number E10514 / E83696 / E12379
