High Efficiency Power Supply, 48Vdc, 22 Amp, 1 Rack Unit, Battery Charger, Automatic Connection and Reconnection

HIGH PERFORMANCE AND EFFICIENCY POWER SUPPLIES

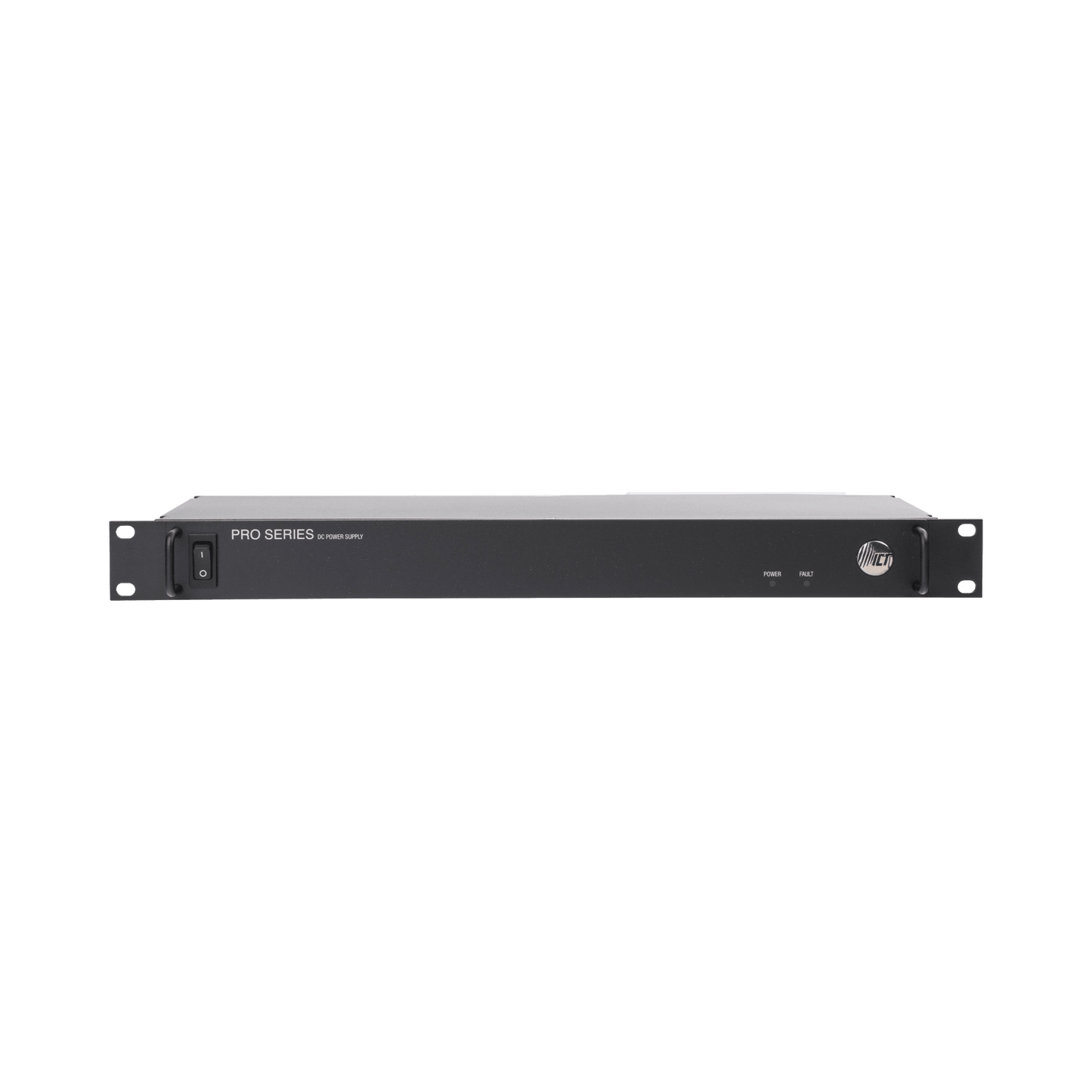

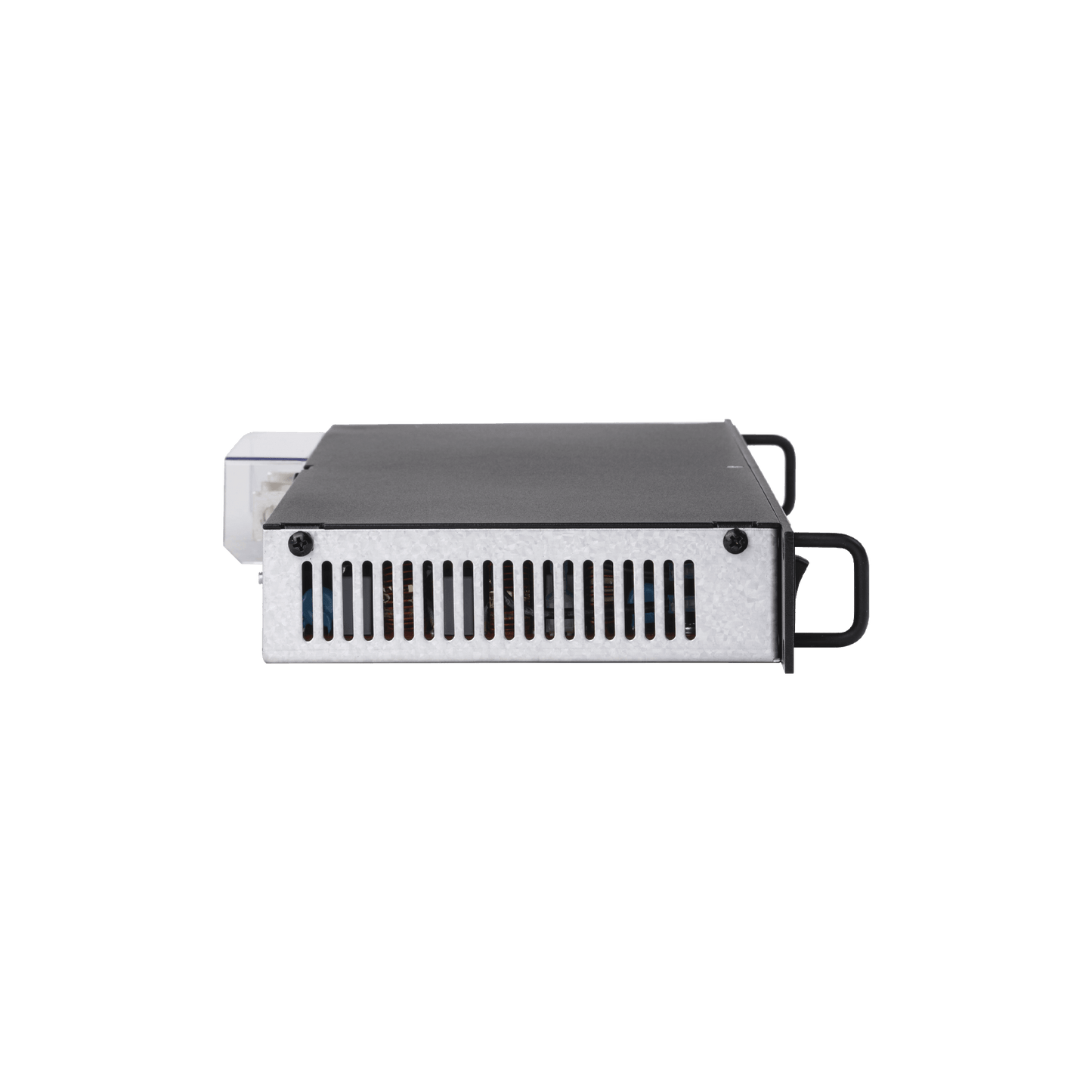

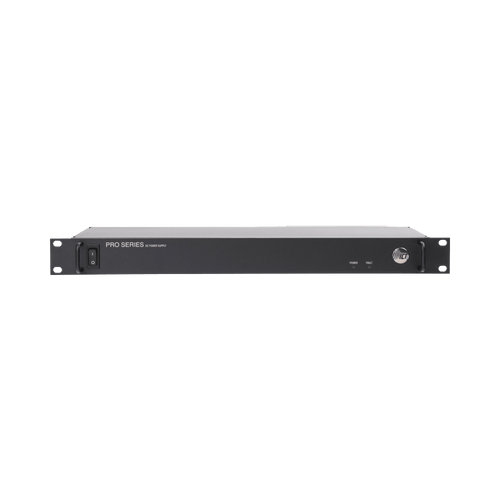

The ICT Pro Series is a 1RU high-performance, high-efficiency DC power supply . The core of the Pro Series is derived from ICT's next-generation Digital Series power supply that delivers high efficiency, AC input with power factor correction, 1RU compact chassis design standards CSA/UL 60950 and FCC class B, and optional backup battery with integrated low voltage disconnect.

ICT's Pro Series DC power supplies deliver 690 or 1200 watts of power and 12, 24 or 48 Vdc output. They offer an ideal DC power solution for wireless communications professionals who demand compact and highly efficient DC power systems.

Main Features:

• Compact Design 1 Rack Unit
• Continuous Current at 48V: 22A
• Efficiency (Typical) 24V: 93% @240VAC
• Output Voltage: 55.2 Vdc
• Input Voltage Range: 100 - 265 Vdc
• Frequency Range: 50/60 Hz
• Power Factor (Typical): 0.99
• Operating Temperature: -30 C to +60 C

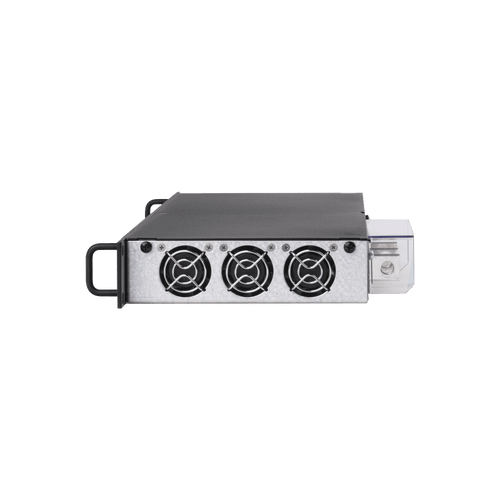

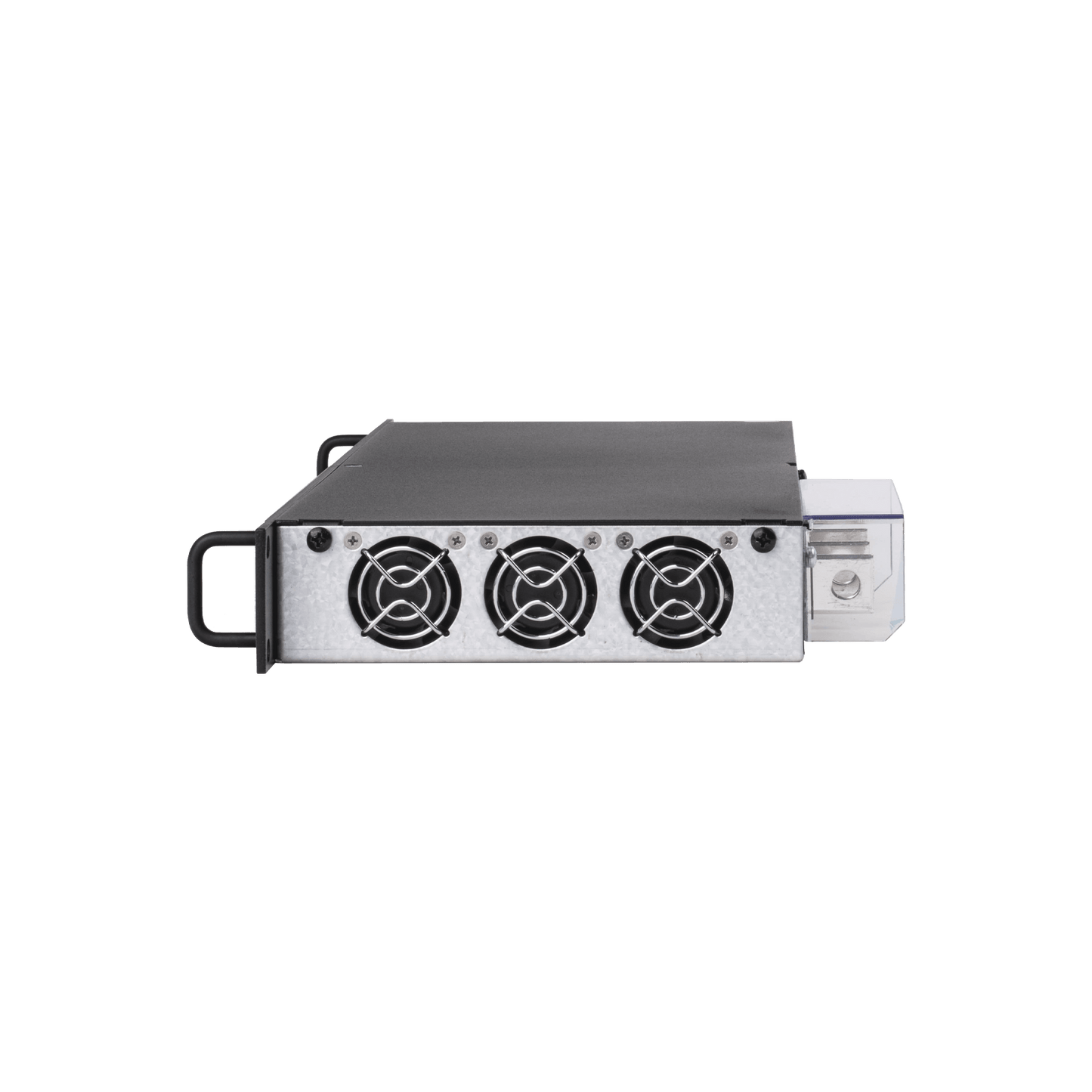

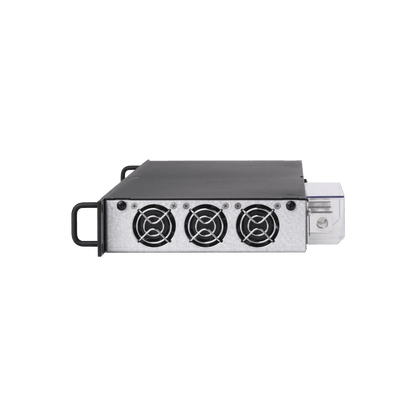

• Variable Speed ​​Temperature Fans

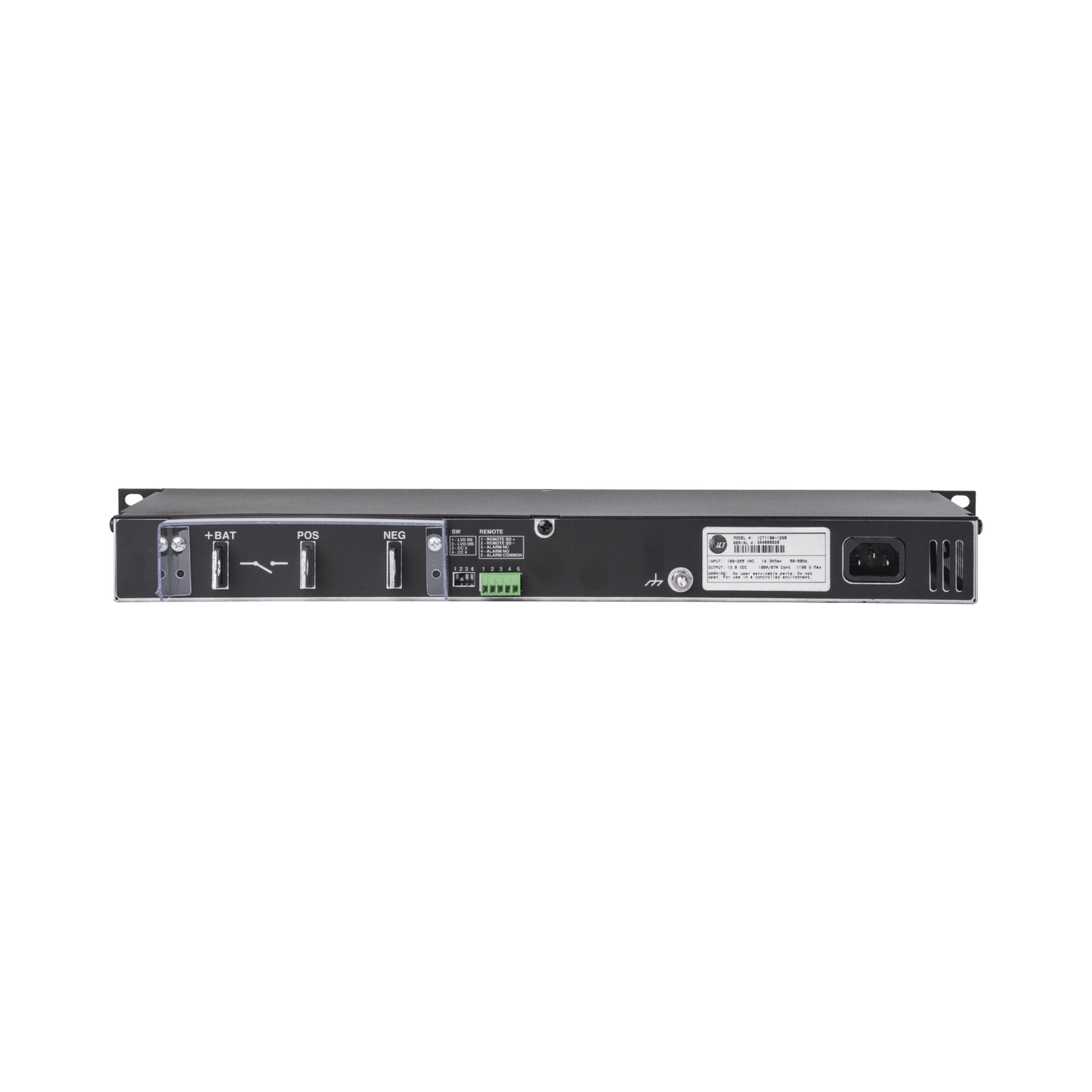

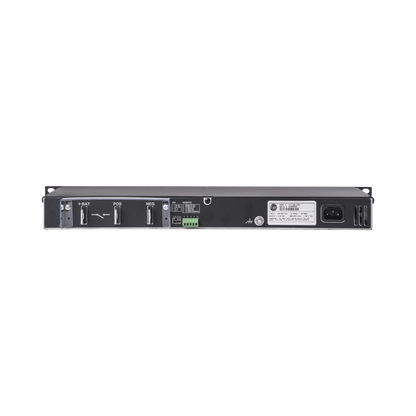

• Includes a third terminal for Battery Charging
• Automatic battery disconnection due to Low Voltage level

Physical Characteristics:

• Weight: 3.36 Kg
• Dimensions: 163 x 483 x 44 mm (6.4 x 19 x 1.7 in)

Combine the PRO Series power supply with Series 2 and Series 3 power distribution panels to create a complete TCP/IP management solution, control and monitor your equipment remotely and receive email alerts.
